QQH Z12 Manuale utente
15.6"Full HD Portable Monitor
Z12
User Manual
Note: Any technical problem pls contact support team
[support@qqhmonitor.com]
Service
[12-Month Warranty]
[24/7 After-sales Service]
support@qqhmonitor.com
QQH Tech Support
Not Satisfied?
Need Help?
Package List ---------------------------------------- 1
Monitor Introduction ------------------------------ 2
Smart Cover ---------------------------------------- 4
Smart Stand ---------------------------------------- 5
Connect Condition --------------------------------- 6
Connect with Devices ------------------------------ 7
Display Setting ------------------------------------ 12
OSD Function Introduction -----------------------14
Specifications --------------------------------------19
Supported Devices and Models ----------------- 20
Care & Cleaning ---------------------------------- 22
Notices -------------------------------------------- 23
Troubleshooting ---------------------------------- 24
Contact us ----------------------------------------- 26
Content
1
15.6"Portable Monitor Magnetic Smart Cover
USB-C to
USB-C Cable
Mini HDMI to
HDMI Cable
USB-C to USB-A
Cable (Power Supply)
5V/2.4 A Power
Adapter
Package List
2
1
2
3
4

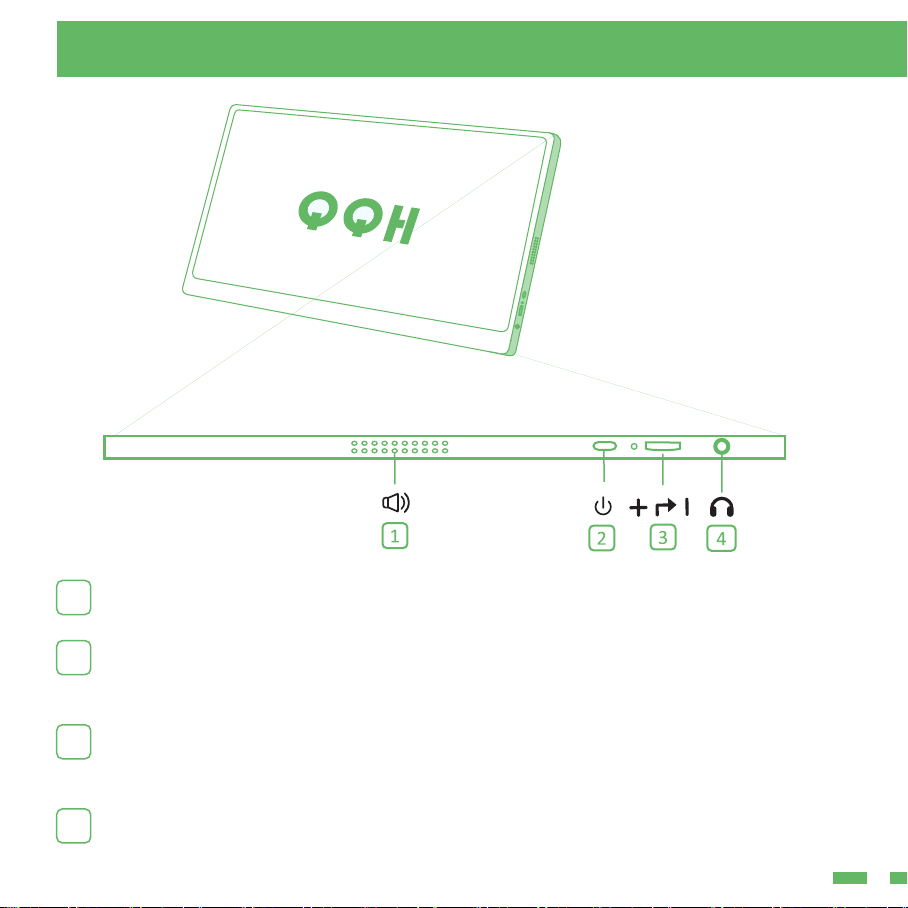

Dual Speakers
Listen to music, movies, games, and multimedia files.
Power Button/Back Button
Long press for 3s to turn the screen on/off. Short press to back to the previous page.
Trackwheel
• Press the trackwheel to turn to the OSD menu. Scroll the trackwheel to control
the cursor on the menu, and press to confirm;
• In the main interface, scroll up to open the adjust shortcut menu.
3.5mm Audio Outport
Headsets, speakers or digital audio equipment extension interface.
Monitor Introduction
3
5
6
7

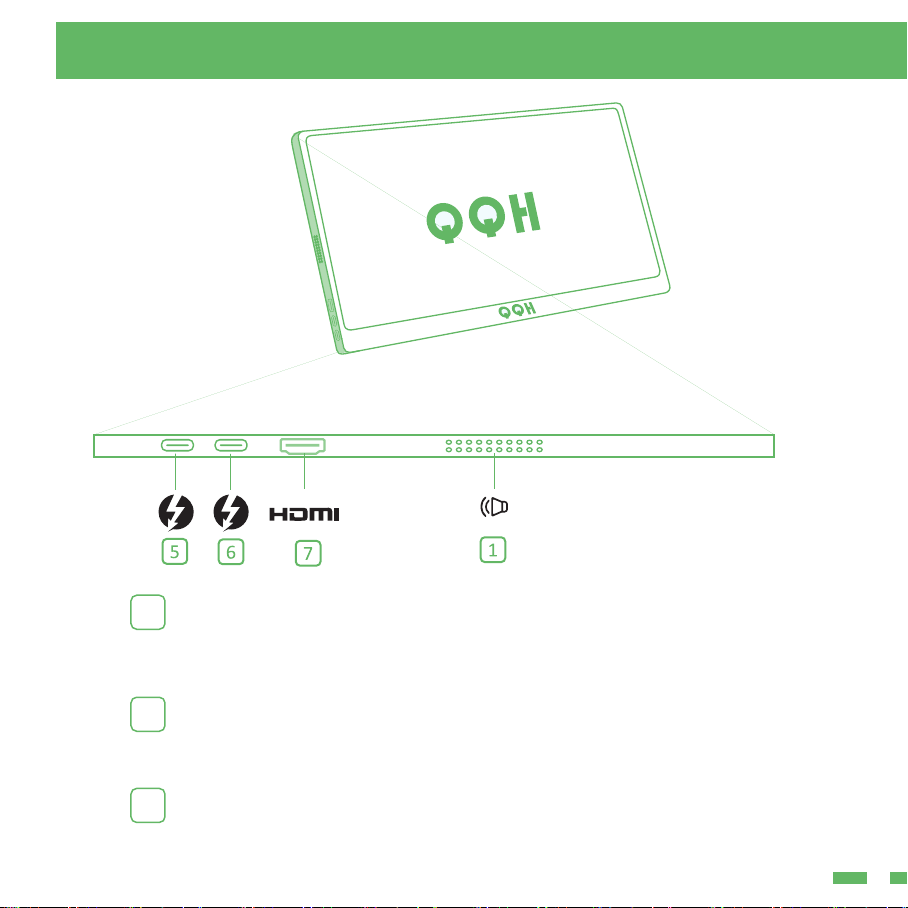

Type-C Full Function Port
• Supply power(5~20V voltage input);
• Transmit the audio, video signal.
Type-C Full Function Port
• Supply power(5~20V voltage input);
• Transmit the audio, video signal.
Mini HDMI Port
Audio and video signal transmission. (It does not provide power)
Monitor Introduction
4
Smart Cover
Place the screen on
the backside of the
smart cover.
Cover the screen
side of the smart
cover on the screen
for protection.
Back Side Screen Side
QQH
QQH

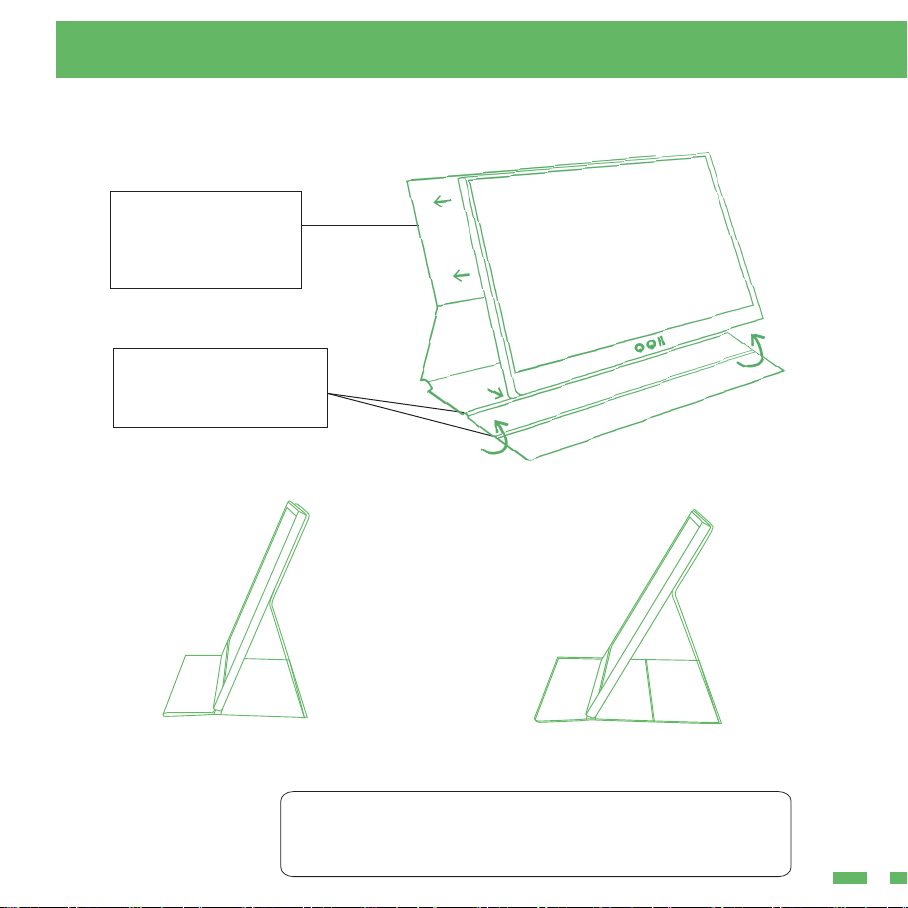

Use the smart cover to make the monitor stands
at a proper viewing angle.
Fold the screen side of the
smart cover back to support
the screen's bottom.
Adjust to a more comfortable angle.
Method 1 Method 2
There are two grooves in the
base to give you two choices
of comfortable viewing
The backside of the smart
cover is Magnetic, it can
stabilize and support the
monitor as a stand.
Note: Please place it away from the edge of the desk
when using it to prevent the display from falling and
breaking.
5
Smart Stand
6
Connect Condition
2
Connect without External Power Supply
Only works with full-function USB-C port.
Please plug in the [usb-c to usb-c cable] to the USB-C
full-function port and make sure the USB-C port
of your device is full-function.
Note: The monitor does not have an internal battery.
Before using, please make sure the connected devices
or power adapter can supply at least 5V/2.4A power.
1
Connect with External Power Supply
Connect your monitor to the power supply
with the [usb-c to usb-a cable] and the Adapter provided,
plug in the [usb-c to usb-c cable] OR [mini HDMI to
HDMI cable] for video output.
USB-C Laptop
USB-C to USB-C
7
1. If you want to adjust the brightness and volume above 80%，pls
make sure the external power supply of 5V/2.4A or above be connected.
2. Not all laptops with USB-C port can work with QQH Monitor.
Pls check if the USB-C port of your laptop is compatible with audio
and video signal transmission. If not, it would need to change a way
to connect or it will need a corresponding adapter to connect.
Connect with Devices
1
2
（external
power supply)
USB-A to USB-C
