QSC TSC-7w Istruzioni per il montaggio

™

Hardware Installation Manual

TSC-7w – Networked, Wall Mounted, 7" Touchscreen Controller

TD-000485-01-A

*TD-000485-01*

TD-000485-01-A

EXPLANATION OF SYMBOLS

The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death.

The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in

damage to the equipment that may not be covered under the warranty.

The term “IMPORTANT!” indicates instructions or information that are vital to the successful completion of the procedure.

The term "NOTE" is used to indicate additional useful information.

The intent of the lightning ﬂash with arrowhead symbol in a triangle is to alert the user to the presence of un-insulated "dangerous"

voltage within the product's enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to humans.

The intent of the exclamation point within an equilateral triangle is to alert the user to the presence of important safety, and operating

and maintenance instructions in this manual.

IMPORTANT SAFETY INSTRUCTIONS

WARNING!: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Do not submerge the apparatus in water or liquids.

7. Do not use any aerosol spray, cleaner, disinfectant or fumigant on, near, or into the apparatus.

8. Clean only with a dry cloth.

9. Do not block any ventilation opening. Install in accordance with the manufacturer's instructions.

10. Keep ventilation opening free of dust or other matter.

11. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

12. Do not unplug the unit by pulling on the cord, use the plug.

13. Only use attachments/accessories speciﬁed by the manufacturer.

14. Unplug this apparatus during lightning storms or when unused for long periods of time.

15. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

16. Adhere to all applicable, local codes.

17. Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.

TD-000485-01-A

Maintenance and Repair

WARNING!: Advanced technology, e.g., the use of modern materials and powerful electronics, requires specially adapted

maintenance and repair methods. To avoid a danger of subsequent damage to the apparatus, injuries to persons and/or the

creation of additional safety hazards, all maintenance or repair work on the apparatus should be performed only by a QSC

authorized service station or an authorized QSC International Distributor. QSC is not responsible for any injury, harm or related

damages arising from any failure of the customer, owner or user of the apparatus to facilitate those repairs.

FCC Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

RoHS STATEMENT

The Q-Sys TSC-7w product is in compliance with European Directive 2011/65/EU– Restriction of Hazardous Substances (RoHS2).

The Q-Sys TSC-7w product is in compliance with “China RoHS” directives. The following chart is provided for product use in China and its territories:

Q-Sys TSC-7t

部件名称

(Part Name)

有害物质

(Hazardous Substances)

铅

(Pb)

汞

(Hg)

镉

(Cd)

六价铬

(Cr(vi))

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

电路板组件

(PCB Assemblies)

XOOOO O

机壳装配件

(Chassis Assemblies)

XOOOO O

本表格依据 SJ/T 11364 的规定编制。

O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。

X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。

（目前由于技术或经济的原因暂时无法实现替代或减量化。）

This table is prepared following the requirement of SJ/T 11364.

O: Indicates that the concentration of the substance in all homogeneous materials of the part is below the relevant

threshold speciﬁed in GB/T 26572.

X: Indicates that the concentration of the substance in at least one of all homogeneous materials of the part is above the

relevant threshold speciﬁed in GB/T 26572.

(Replacement and reduction of content cannot be achieved currently because of the technical or economic reason.)

Warranty

For a copy of the QSC Limited Warranty, visit the QSC Audio Products website at www.qsc.com

TD-000485-01-A

Introduction

The Q-Sys TSC-7w series touchscreen controller provides remote management services for a Q-Sys audio system. The functionality of the TSC-7w

touchscreen controller is deﬁned and conﬁgured by the system designer using Q-Sys Designer. You can download Q-Sys Designer Software from the

QSC Website www.qsc.com

Refer to the Q-Sys Designer on line help for setup and operation.

TSC-7w Features

The TSC-7w series products are network enabled, projective-capacitive touchscreen, control panels. The TSC-7w products are designed to connect to

a Q-Sys system via Q-LAN or to an auxiliary network to which the system Core Processor(s) is connected. The TSC-7w does not provide low latency

uncompressed audio services, allowing the TSC-7w to join a Q-LAN network via standard 10/100/1000 Mbps Ethernet connections.

The TSC-7w uses a color graphics display with a 400 nit anti-glare LCD. The control surface is a capacitive touch interface that is reliable, bright, and

easy to use.

The TSC-7w can be mounted in a wall (new or existing construction) or podium.

TSC-7w Front Panel Features

1. Capacitive-touch control surface and LCD viewing area (7" diagonal)

— Figure 1 —

TD-000485-01-A

TSC-7w Rear Panel and Connector Edge Features

— Figure 2 —

LAN A/PoE LAN B USB 12V DC

RESET

123 4

1. Mounting-hook slots (4 places)

2. Mounting screws (secures unit to the mounting ring)

3. Q-Sys LAN A with PoE (RJ45)

4. Q-Sys LAN B (redundant) (RJ45)

5. USB 2.0 Micro-AB OTG interface

6. 12V DC AUX Power input (power supply not included)

7. Unit Reset button

8. Built-in Speaker

9. Screw holes (4 places - future use)

TD-000485-01-A

TSC-7w Mounting Ring Features

— Figure 3 —

12 3 4 5

1. Retaining Clips (4)

2. Flip Clamps (4)

3. Outside Flange (4)

4. Touchscreen Securing Screw Holes (2)

5. Flip Clamp Screws (4)

6. Mounting Ring

7. Mounting Ring Hooks

Touchscreen TSC-7w Packing List

1. Q-Sys TSC-7w Touchscreen Controller

2. Hardware Installation Guide TD-000485

3. Installation Template

4. Warranty Statement TD-000453

5. Mounting Ring Assembly (1) – The assembly includes:

a. Flip Clamps (4)

b. Flip-Clamp Screws (4)

c. Flip-Clamp Snap-ring Retainers (4)

d. Unit-to-Bracket Securing Screws (2)

TD-000485-01-A

Installation

The Q-Sys TSC-7w is designed to be mounted in a wall, or podium/desk, and so on. When you are mounting the unit in a wall, there are two options,

mounting the unit during construction of the wall, or mounting into an existing wall. The following instructions cover both installation options.

General Requirements

The TSC-7w

• Must have access to the Q-LAN Ethernet.

• Must be mounted with sufﬁcient space for adequate ventilation.

• Should not be mounted in a location where the TSC-7w may be an obstruction, for example, in a walkway or other trafﬁc areas.

• Mounting surface Thickness:

• Maximum – 1 1/4” (31.5 mm),

• Minimum – 1/2” (12.7 mm)

Power Source

• PoE (Power over Ethernet – IEEE 802.3af class 3 device) LAN A only

• 12V DC AUX Power source (not supplied)

◦12V DC @ 1A (12W)

◦Barrel connector:

»Negative contact – 5.5mm +/- 0.2mm

»Positive contact – 2.5mm +/- 0.2mm

»Length - 9.5mm +/- 0.3mm

TD-000485-01-A

Mounting the TSC-7w in a Wall or Podium

This procedure covers installing the Mounting Ring in

an existing wall or podium.

CAUTION!: Before cutting the

mounting hole, make sure that there is

nothing behind the wall/podium that can

be damaged during the cutting operation.

Ensure that there is enough space

surrounding the unit to provide

adequate ventilation.

NOTE: Be sure the touchscreen is

mounted where the Q-LAN network is

available.

Refer to Figure 4

Install the Mounting Ring

1. Determine the location where the hole for the

TSC-7w is to be cut.

IMPORTANT!: Leave a minimum of

1 inch clearance on all sides of the

opening to allow for mounting and the

TSC-7w touchscreen.

2. Use the Installation Template (included) to cut a 156.4 mm (6.2”) wide, by 113 mm (4.5 “) high rectangular hole in the mounting surface. The

opening must be in the landscape orientation (long side is horizontal), as shown in Figure 4.

NOTE: The following steps cover hardware already assembled on the Mounting Ring. They are included for cases where you may

need to re-install the hardware.

3. Install one Bracket Clamp screw (3) through each of the four Bracket Clamp Tabs (4).

4. Install one Clamp (2) on each of the four screws (3).

5. Install one Retaining Clip (1) on each of the four screws (3).

NOTE: The Retaining Clip is to help prevent the Clamp from dropping into the wall if the Screw is unscrewed to far.

6. Turn the Bracket so the Bracket Mounting Hooks (5) are pointing up.

7. Turn the Clamps (2) so they are pointing towards the center of the Bracket.

8. Slide the Bracket assembly into the hole until the ﬂanges are up against the wall.

9. Turn the Clamps (2) so they are pointing away from the center of the Bracket.

10. Tighten the Mounting Bracket Screws (3) until the Clamps (2) make contact with the inside of the wall.

11. If necessary, adjust the Mounting Bracket to level. Tighten the Mounting Bracket Screws (3) to secure the Bracket in the wall. Do not over tighten.

— Figure 4 —

TD-000485-01-A

Connections

Refer to Figure 5

1. Feed the cables through the opening in the wall/bracket.

2. Connect the LAN-A with PoE RJ-45 connector to the LAN-A/PoE socket (1) on the

back of the TSC-7w.

3. Optional – Connect the LAN-B RJ-45 connector to the LAN-B socket (2) on the

back of the TSC-7w.

4. If you are using an external power source, connect the barrel connector to the

TSC-7w 12V DC AUX Power input connector (4).

Mount the TSC-7w to the Mounting Bracket

Refer to Figure 6

1. Align the mounting slots (1) on the TSC-7w with the

mounting hooks (2) and carefully slide the TSC-7w into the

Mounting Bracket. Make sure the cables are not pinched or

stressed.

2. When the TSC-7w is in the mounting bracket, gently press

down to engage the hooks with the slots. Make sure all four

hooks are properly engaged.

3. Secure the TSC-7w to the mounting bracket with two screws

(3).

IMPORTANT!: Before you can use the

TSC-7w, you must conﬁgure the Q-Sys design

using Q-Sys Designer. Refer to the Q-Sys

Designer on-line help for details.

— Figure 5 —

LAN A/PoE LAN B USB 12V DC

RESET

123 4

— Figure 6 —

1332

TD-000485-01-A

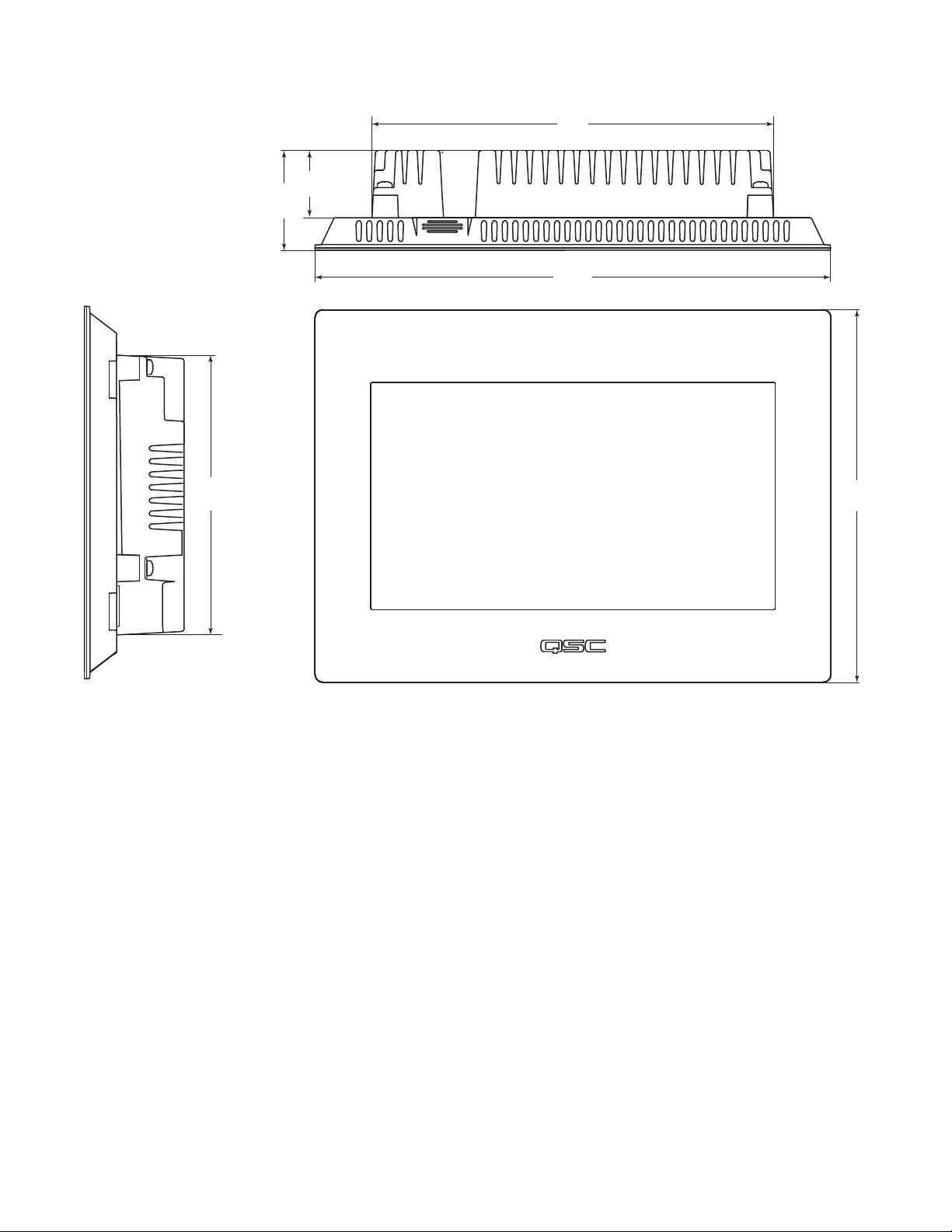

TSC-7w Dimensions

198 mm

7.8 in.

154 mm

6.1 in.

26 mm

1 in.

38 mm

1.5 in.

143 mm

5.6 in.

107 mm

4.2 in.
