BT-Q1000XT Quick Installation Guide

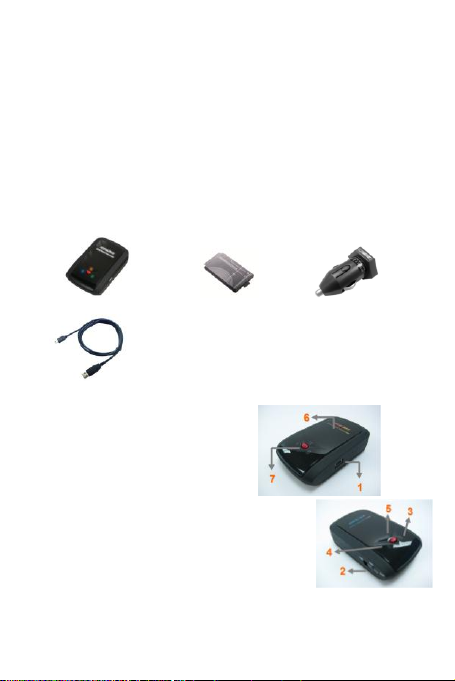

A. Standard Package

(1) GPS Unit BT-Q1000XT (2) Lithium-ION Rechargeable Battery (3)

Cigarette Adapter (4) mini USB Cable (5) Warranty Card + User’s

Guide.

NOTE: The Cigarette Adaptor can only be used to charge

BT-Q1000XT. Please don’t make use of it with devices other

than BT-Q1000XT.

1. 2. 3.

4.

B. Appearance

1. Power jack (mini USB type)

2. Mode switch (OFF/NAV/LOG)

3. Battery status LED (Red/Green)

4. Bluetooth status LED (Blue)

5. GPS status LED (Orange)

6. Internal antenna

7. POI button

1

2

4

English

……………………………………………………………………………………………………………………………………………………………………………………….

.........................................................................................................................................................................................

2www.Qstarz.com

C. Hardware Function

Hardware

Function

Description

Power Jack

Take the power cable and connect it to the

power jack (mini USB type) for charging only

Mode Switch

(OFF)

Power off BT-Q1000XT

Mode Switch

(NAV)

When switch to NAV mode, BT-Q1000XT can be

used to navigate with handheld devices (PDA /

Smartphone / Laptop…), and the Log function will

be enabled if the present time is within the

preset time schedule.

Mode Switch

(LOG)

When switch to LOG mode, BT-Q1000XT can be

used to record your travel path, and navigation

function is still enabled.

POI Button

Push the POI button to log favorite Point of

Interest

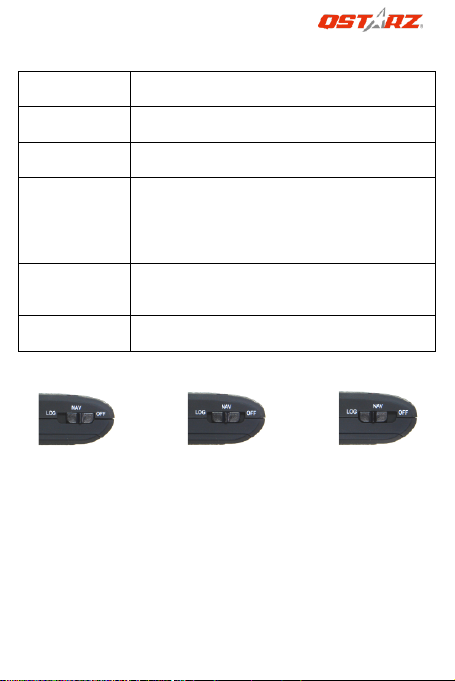

Mode Switch (OFF) Mode Switch (NAV) Mode Switch (LOG)

D. Battery Installation

D-1 Put Battery in place: Press the PUSH button on the bottom

side of the unit and pull out the battery cover. Insert battery in the

unit and put battery cover on to the cabinet, then push down and

force it forward to fit firmly.

D-2 Take Battery out: Press the PUSH button on the bottom side of

the unit and pull out the battery cover. Then take out the battery

from the unit.

GPS Travel Recorder English

……………………………………………………………………………………………………………………………………………………………………………………….

www.Qstarz .com 3

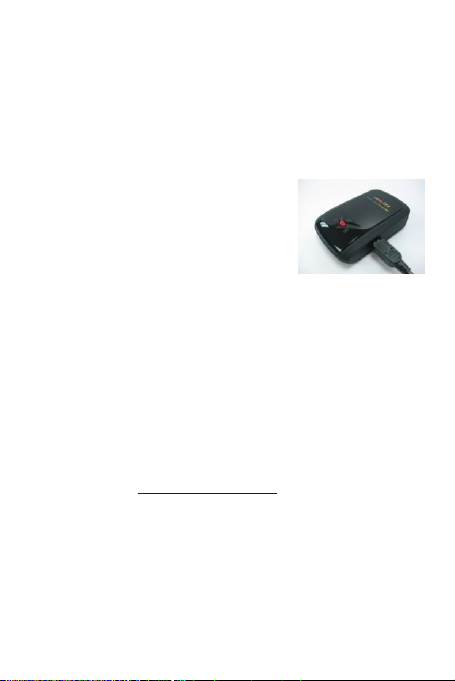

E. Charging your battery

For the first time using the BT-Q1000XT, please charge battery until it

is fully charged. Take the power cable and connect it to the power

jack (mini USB type) and recharge through USB cable, travel charger

or car cigarette adaptor. This will begin to charge the battery.

Charging time is 3 hours typically.

Battery operation time is 42hours under the default setting.

- When the Power LED is Red, battery

power is low status. Please recharge.

- When the Power LED is Green, the battery

is under charging mode.

- When the Power LED is off, the battery is

fully charged.

Caution: Risk of explosion if Battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

F. Setup BT-Q1000XT

F-1 Install the USB Driver and software utility (Support Microsoft

Windows XP / Vista/Win7/8/10)

Please go to Qstarz website (http://www.qstarz.com/download.php),

and select GPS Travel Recorder >BT-Q1000XT and download the

latest USB Driver and QTravel software.

F-2 Install Google Earth

BT-Q1000XT supports to show your travel path directly on Google

Earth. Please go to http://earth.google.com for getting the free

download of Google Earth, and then install it to your computer.

G. Start to use

G-1 Fully charge the battery when using at the first time

A fully charged battery can last up to 42 hours continuously

operation (under optimum conditions).

G-2 Getting satellite fix with Q1000XT

Q1000XT is built in GPS module which need to be used in outdoor

English

……………………………………………………………………………………………………………………………………………………………………………………….

.........................................................................................................................................................................................

4www.Qstarz.com

environment. When switch on your Q1000XT (NAV or LOG mode),

the GPS will start to acquire the satellites position. Once the GPS

position is fixed, GPS LED will be flashing, then Q1000XT can be used

to record the travel path or navigate as bluetooth receiver with

handled devices.

G-3 Connect BT-Q1000XT with your PC

Please power on and connect BT-Q1000XT with your PC by mini USB

cable, and then power on BT-Q1000XT.

G-4 Start the software utility

QTravel™:

QTravel™is the best Geotagging software to integrating your travel

track and photo together easily. Support track editing, playback,

import/export Wizard and Smart log management.

1. Click from <Start> / <All Programs> / <Qstarz QTravel> / QTravel

Users have to input product key at the first time of use. The

Software product key is located on the Warrany Card

Important: Do not lose your Product Key. Please write the

number down and keep it in a safe place.

2. <File> \ < Import Wizard >

Import Wizard can guide you to import the recorded tracks and

proceed the Geotag process easily.

3. <File> \ <Export Wizard>

Export Wizard can guide you to proceed export process easily.

4.<File> \ <Config GPS>

Configure the recording method of Travel Recorder and set the time

schedule per your demand for the recorder to start logging

automatically.

4.1 Connection Setting

I. Auto Scan GPS Module (Recommended)

The program will automatically detect the com port. It is

recommended to set to auto scan.

II. Manual Setting

GPS Travel Recorder English

……………………………………………………………………………………………………………………………………………………………………………………….

www.Qstarz .com 5

Users can also manually set the port. Please refer to users’

manual for more detail information.

4.2 GPS Device Name (Unique ID)

Name your Travel Recorder here and your downloaded log

data will come with this unique ID

4.3 GPS Log Setting

There are 4 log modes: General mode, vehicle mode,

cycling mode, and hiking mode. Users can also change the

default setting of these 4 modes.

4.4 Data Log Memory

Overwrite:

When the memory is full, Travel Recorder will

keep logging by overwriting the memory

from the earliest point.

Stop Log:

When the memory is full, Travel Recorder will

stop logging.

4.5 Vibration Detector

Vibration Detector is functioned for power saving and

waypoint saving. It will detect the physical movement of

the device. When it detects the device not moving more

than 10 minutes, Q1000XT will enter sleep mode so that

the Blue LED will turn to flash every 5 seconds. Under sleep

mode the log will be disabled.

Note 1: Vibration Sensor function is turned off as default,

and can be turned on by provided software -> config GPS.

Note 2: Once the device enters sleep mode and it may

auto wake-up when detecting “significant” movement.

We strongly suggest you to use SHAKE method as first

priority to wake-up device in case some tracks might not

be recorded.

4.6 Speed Alarm

You can set the speed (0~999km/h) and continues for

English

……………………………………………………………………………………………………………………………………………………………………………………….

.........................................................................................................................................................................................

6www.Qstarz.com

(1~9999 secs) to enabled the speed alarm sound when

speed is exceeded.

Note: The speed alarm will not be functioned if the buzzer

function is disabled.

4.7 Time Schedule

Allow you to schedule Q1000XT to start or stop log

automatically at a specific date/time or periodic date/time.

Note:The time schedule function would only works in Nav

mode.

5. <File> \ <Download AGPS Data>

Update the AGPS data from internet assistance server to boost warm

start speed to 15sec.

A-GPS is a system where outside sources, such as an assistance

server and reference network, help a GPS receiver boosts

performance beyond that of the same receiver in a stand-alone

mode by downloading the almanac data from an assistance server.

Note1: A-GPS can boost GPS warm start speed to always lower than

15sec fix after the first fix. The A-GPS efficiency will decrease

when time goes by. If it expires, you would have to download

almanac data again because the acceleration efficiency of fix

will become totally ineffective.

Note2: Please don’t update the almanac data via Bluetooth

interface.

*For detail QTravel™ functionality, please refer to QTravel™Users

Manual attaching with Software.

H. Navigate as a Bluetooth GPS Receiver with

handheld device

H-1 Activate the Bluetooth function in your PDA/Smart phone or

PC

Before activating the Bluetooth function in your Smartphone/PC,

GPS Travel Recorder English

……………………………………………………………………………………………………………………………………………………………………………………….

www.Qstarz .com 7

please switch BT-Q1000XT to <NAV> or <LOG> position for paring

and check if your device is equipped with Bluetooth function. (The

pass code is “0000”)

H-2 Automatically create a shortcut in Bluetooth Manager

window

After the pairing complete, find “Qstarz 1000XT” in Bluetooth

Manager and connect to it.

H-3 Check the Serial Port in Bluetooth Setting

After complete pairing with BT-Q1000XT, please click “Serial Port” to

confirm the assigned COM port. If you use Smartphone/PC to pair

the GPS Receiver, please check “Outbound COM port”.

H-4 Set correct Serial Port in your map software

Activate your navigation software and make sure to select the

correct “Serial Port”.

H-5 Switch off the Bluetooth function

Switch off GPS function in your Smart phone/PC, then the Bluetooth

connection will be disconnected automatically. Then put BT-Q1000XT

switch to “OFF” position.

J. Others

J-1 LED Indicators

LED Status

Flash

ON

OFF

Power

(Red/Green)

Recharging

(Green)

Low Power

(Red)

Fully

charged

Bluetooth

(Blue)

Flash per 2 sec.:

Bluetooth connected

and transmitting Mode

Flash per 5 sec.: Power

saving mode

Not

connected /

Pairing

GPS not

powered /

Log Mode

is on

English

……………………………………………………………………………………………………………………………………………………………………………………….

.........................................................................................................................................................................................

8www.Qstarz.com

GPS

(Orange)

GPS position is fixed,

Navigation

Detecting

Satellite,

GPS position

not fix

GPS not

powered

Log

(Red)

Log Mode is on

Flash per 2 sec: Low

memory (20%)

Flash 3 times:

POI(Point of Interest) is

recorded

Memory is

full

Log Mode

is off

J-2 Beeper code

Status

Beep code

Description

Startup

1 short beep

One short beep on

off->Nav, Off->log,

Nav->Log, or Log->Nav

GPS fix

2 short beeps

2 short beeps when GPS fix

on Nav or Log mode

Start Log

(Time schedule)

2 long beeps

At Nav mode, 2 long beep

to enable the Log when

present time is within the

preset time schedule.

Stop Log

(Time schedule)

1 long beep

At Nav mode, 1 long beep

when it reaches the ending

time of preset time

schedule.

POI button

3 short beeps

3 short beeps when POI

button being pressed

Memory exhausted

3 long beeps

3 long beeps when the

device is out of memory

Sleep mode

1 long and 1

short beeps

1 long and then 1 short

beep when the device

enters sleep mode

GPS Travel Recorder English

……………………………………………………………………………………………………………………………………………………………………………………….

www.Qstarz .com 9

Speed Alarm

1 short and 1

long beeps

1 short and 1 long beep

when the device reach over

the speed and time interval

set in Software>Config GPS.

*Beeper can be turned off from software -> config GPS.

J-3 GPS Features

1. Baud Rate: 115,200 bps / Datum: WGS-84; Hot/Warm/Cold Start:

1/33/35 sec. (averaged)

2. 66-channel Bluetooth GPS Receiver with super high sensitivity at

-165dBm

3. Bluetooth Version: V1.2 / SPP profile / Class 2 with 10 meters in

open space

4. Low power consumption, built-in rechargeable Lithium battery (up

to 42 hrs after fully charged)

5. Size: 72.2 (L) X 46.5 (W) X 20 (H) mm / Weight: 64.7g (battery

included)

6. Raise beeper function to notice some status of device

7. Integrate Vibration sensor to smartly manage power saving and

waypoint saving

8. Support Time schedule function to automatically start logging and

stop logging by setting multiple time intervals in specific or

periodic date per requirement

9. Support Speed Alarm function to prompt over speed status by

beeping sound

English

……………………………………………………………………………………………………………………………………………………………………………………….

.........................................................................................................................................................................................

10 www.Qstarz.com

K. Trouble Shooting

Question

Answer

Can BT-Q1000XT be

used to navigate when

travel log is on?

Yes, you can use BT-Q1000XT to

navigate when travel log is on

simultaneously.

Where can I find a

travel charger for the

GPS unit?

DC Input range of BT-Q1000XT is

4.5~5.5V. You can use a travel

charger which support DC output

range from 4.5~5.5V. You can also

use a common mini USB cable to

charge your unit via the laptop.

Besides, the battery used for

BT-Q1000XT is compatible with

Nokia phones series: BL-5C.

Can the logged data be

downloaded through

Bluetooth?

Actually it’s okay for Q1000XT to

download data via Bluetooth

interface. However, since it is not

stable and with lower download

performance than that of USB

interface, we don’t officially admit

this feature.

Why does BT-Q1000XT

only can log

150,000~160,000

waypoints?

We activate more options previously

to provide detailed GPS information

for user’s reference and download.

So it would use more memory. If you

reduce the options (under Log

Format) for your log, it would save

the memory and increase more

waypoints.

My BT-Q1000XT could

not use 42 hours?

BT-Q1000XT can use 42 hours under

the optimum environment. GPS

would spend more power

Qstarz BT-Q1000XT Manuale utente

Manuali GPS popolari di altre marche
