USER MANUAL
LED PAR64 CANS
151.257 / 151.260
User Manual 151.257 / 151.260
2
151.257 / 151.260 LED Par64 Can
These light units are capable of being controlled manually, automatically, as a slave unit
or by DMX

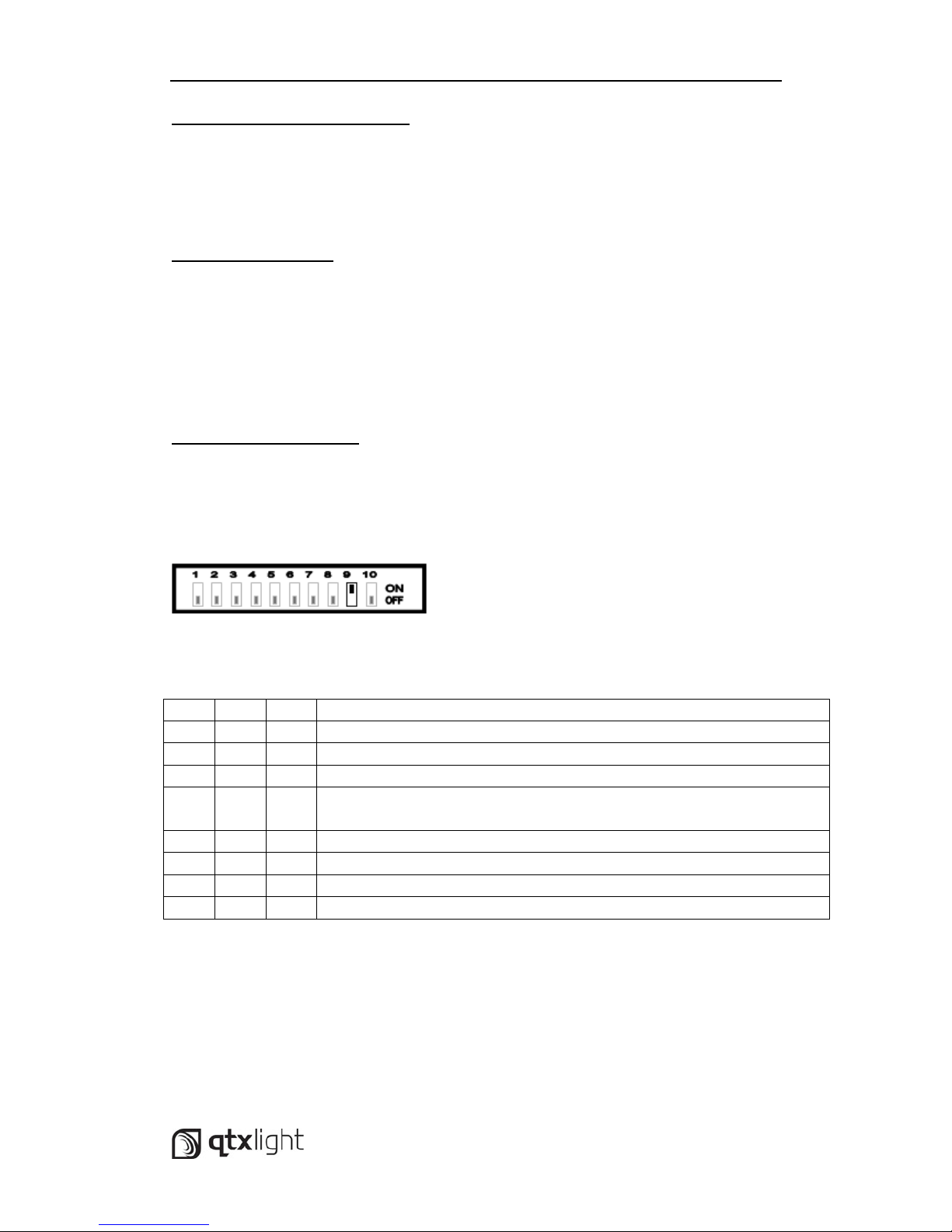

MANUAL OPERATION
To operate the unit manually first set all switches to the off position
Switches 1,2 control the intensity of the Red LED’s
Switches 3,4 control the intensity of the Green LED’s
Switches 5,6 control the intensity of the Blue LED’s
AUTOMATIC OPERATION
To operate the unit automatically first set all switches to the off position
Switch 9 must now be turned on (“1” = ON, “0”=OFF)
Switches 1, 2, 3 now select 1 of 8 programs. See below for speed selection
SW1
SW2
SW3
Program
0
0
0
Cycles through all 8 possible colours
1
0
0
White Strobe (all LED’s on/off)
0
1
0
White Strobe (all LED’s on/off) Faster than above
1
1
0
Alternates between Red and Blue, then cycles through all 8 possible
colours followed by a white strobe
0
0
1
Alternates between Red and Blue
1
0
1
Fades through all 8 possible colours
0
1
1
Fades between Red and Blue
1
1
1
Fades between Blue and Green
Switches 4-7 control the speed of the programs
User Manual 151.257 / 151.260
3
SW4
SW5
SW6
SW7
Speed
0
0
0
0
0 Fastest
1
0
0
0
1
0
1
0
0
2
1
1
0
0
3
0
0
1
0
4
1
0
1
0
5
0
1
1
0
6
1
1
1
0
7
0
0
0
1
8
1
0
0
1
9
0
1
0
1
10
1
1
0
1
11
0
0
1
1
12
1
0
1
1
13
0
1
1
1
14
1
1
1
1
15 Slowest

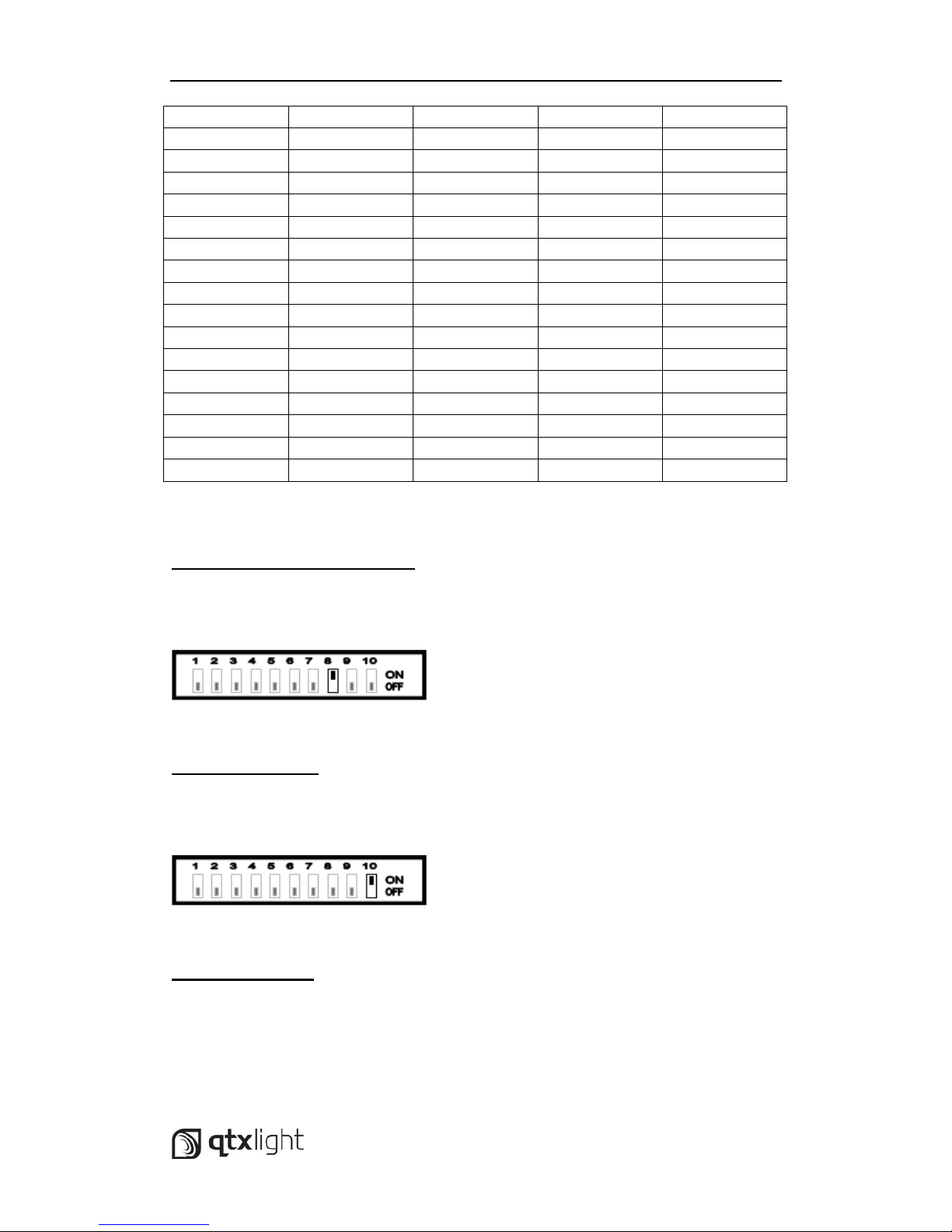

SOUND ACTIVATED OPERATION
To operate with sound activation first set all switches to the off position
Turn switch 8 on
SLAVE OPERATION
To operate the unit as a slave first set all switches to the off position
Turn switch 10 on
DMX OPERATION
To control the unit by DMX first set all switches to the off position
Turn Switch 10 on and set switches 1-9 depending on the required DMX start address
Note DMX address 1 is switches 1-9 off (0)
User Manual 151.257 / 151.260
4

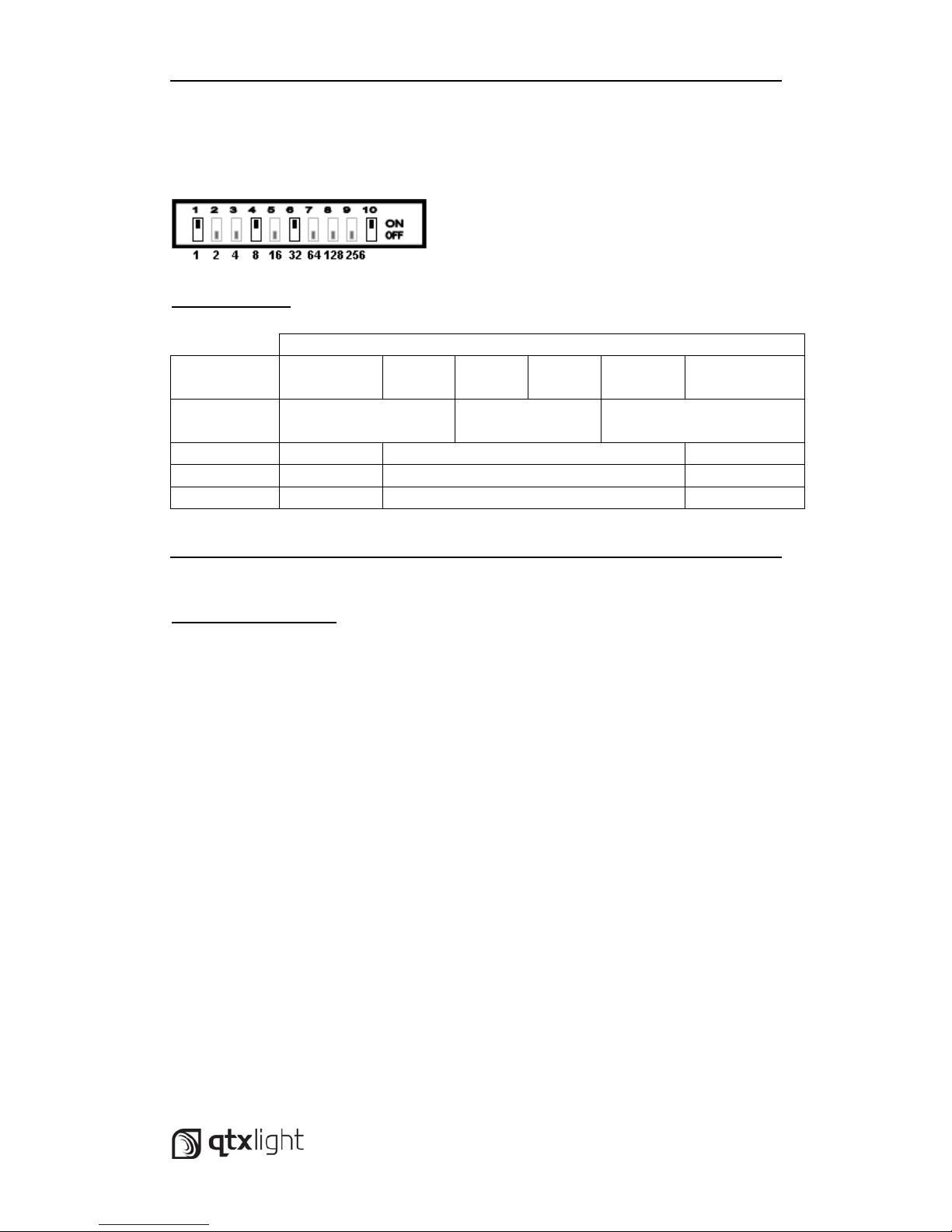

So always minus 1 from the DMX address you when setting the address:
EG: DMX Address 42: (Binary value on dip switches should = 41 see below)
Channel Values:
Value
Channel
Number
0
152
153
242
243
255
1 Dimmer /
Strobe
RGB Dimmer 0 - 100%
Strobe Speed
Slow - Fast
RGB On
2 Red
Red Off
Red Increase (50% at 127)
Red 100%
3 Green
Green Off
Green Increase (50% at 127)
Green 100%
4 Blue
Blue Off
Blue Increase (50% at 127)
Blue 100%
Technical Information:
Lamp: Total 183 LED light points, 59 red, 62 green, 62 blue
Angle: LED light points: astigmatism or spot, spot LED angle: 15-60 degree
Brightness: Red LED brightness 8000mcd, green LED brightness 20000mcd, blue LED
brightness 6000mcd
Control: Receive standard DMX512 signal, total 4 channels
Power: 20W
Special sound control adjust switch, speed adjustable;
256 x256x256 kinds of colour adjustable;
Low consume, high brightness, long life time.
