HZ-800

HAZE MACHINE

Order ref: 160.498UK

User Manual

Caution: Please read this manual carefully before operating

Damage caused by misuse is not covered by the warranty

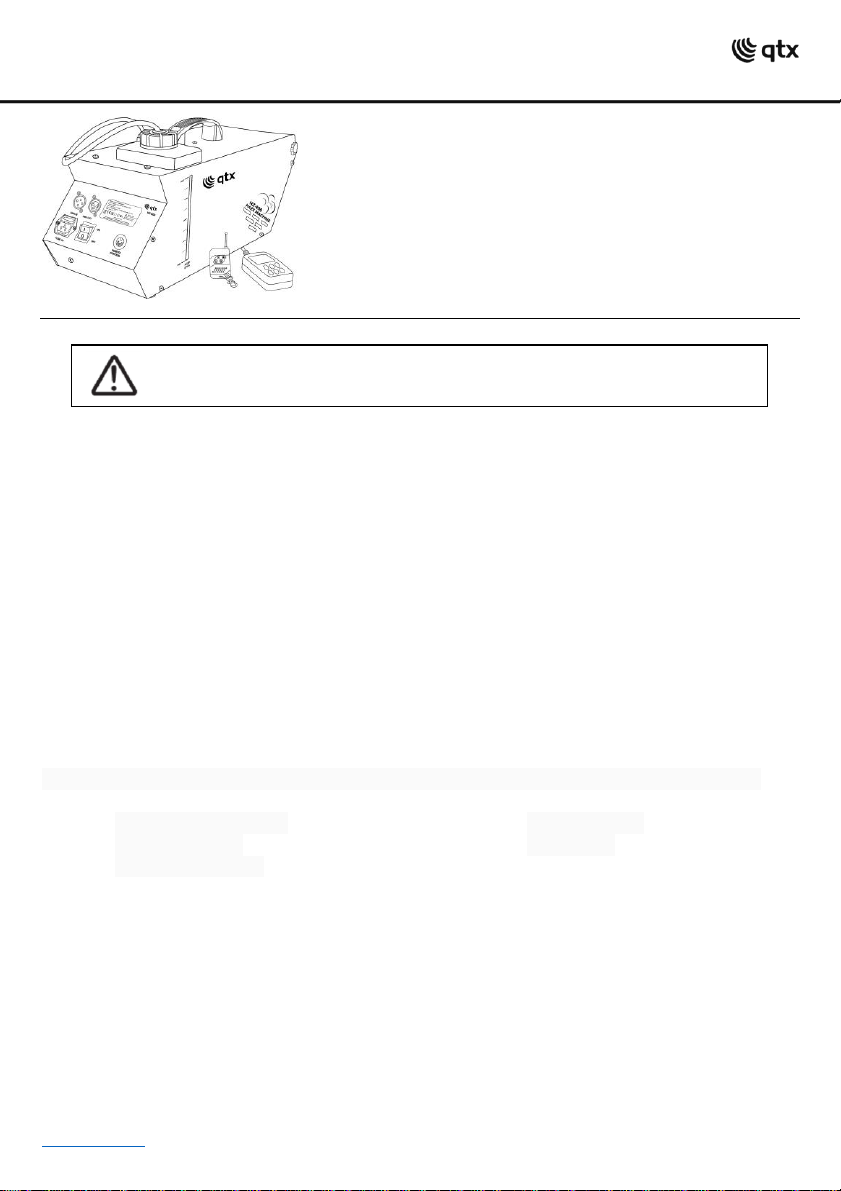

The HZ-800 is a high efficiency 800W haze machine capable of producing 12,000 cu.ft per

minute of haze to rapidly fill venues. The volume and speed of fill can be easily controlled

using the included wired controller with LCD panel or keyfob-style RF wireless remote. For

automated operation, a 2 channel DMX connection is also available. The fluid bottle can be

removed for easy refilling and there is a slot window to indicate the current fluid level.

•800W Haze Vaporiser

•Haze output ~12,000 cu.ft/min

•Wired Controller with button control and LCD display

•433Mhz keyfob-style RF wireless remote

•2-Channel DMX connections

•Removable fluid tank

In the box:

Please check the contents to ensure that the product has been received in good condition.

•HZ-800 Haze Machine

•Wired Controller

•RF Remote Control

•UK Mains Lead

•User Guide

If you find any accessory is missing or the machine has arrived with damage, please contact

your local dealer at once. Do not try to fix this item yourself or you will invalidate the

warranty. Please keep the original packaging and invoice for any possible replacement or

return demands.

Warnings:

1. To prevent risk of fire or electric shock, do not expose electrical parts to rain or

moisture.

www.avsl.com 160.498UK Manual

2. If liquids are spilled on areas other than inside the fluid tank, disconnect the mains,

allow the unit to dry out and have it checked by qualified personnel before further

use.

3. Avoid any impact, dropping or extreme pressure to the housing.

4. No user serviceable parts inside - do not open the case.

5. Allow the unit to acclimatise to room temperature before operating.

6. The HZ-800 has a built-in fluid container and should be operated in an upright

position. Ensure that the unit is positioned on a stable, non-slip surface.

Safety and Cleaning:

1. Check for correct mains voltage and condition of IEC lead before connecting to mains.

2. This unit must be earthed.

3. This unit uses a heating element –be aware that parts of the housing may be hot

during use!

4. Use a soft dry or slightly damp cloth to clean the casing.

5. Do not use strong solvents for cleaning the housing.

6. Clean the haze mechanism periodically by operating with distilled water instead of

haze.

7. It is also recommended to use fog machine cleaning fluid (160.670UK) periodically.

Recommended Fluids:

For the HZ-800 haze machine, we strongly recommend the following fluid which has been

specifically formulated to perform best with any heater-based haze machines.

QTX ref code

Description

Size

160.591UK

High quality professional haze fluid

5 Litre

160.596UK

Eco haze fluid

5 Litre

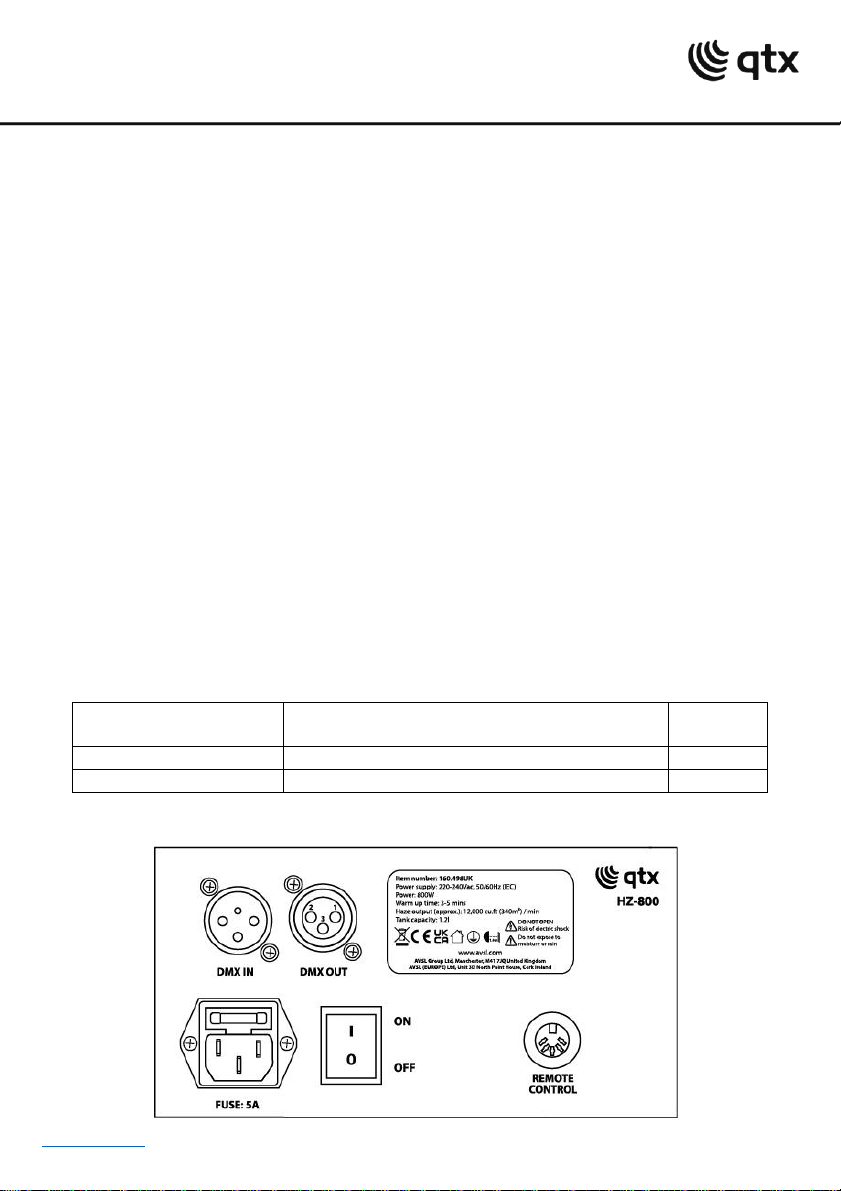

Rear Panel:

www.avsl.com 160.498UK Manual

Setting Up:

1. Unpack the HZ-800 unit.

2. Unscrew the top cap of the tank and remove to fill with haze fluid.

3. Replace the bottle and screw the cap securely, making sure that the pipe is fed down

to the bottom of the bottle to ensure a consistent flow of fluid.

4. Connect the wired remote controller to the socket on the rear panel.

5. If DMX is to be used for control, connect the DMX signal from the controller to the

DMX IN XLR connector. Any further DMX controlled units may be connected via the

DMX OUT XLR connector.

6. Connect the IEC mains plug and power the unit on.

7. The unit will begin the warming up process and the display panel on the wired remote

will display “Warm up”which normally takes around 3-5 minutes.

8. Once the unit is warm enough for use the display panel will change to “Ready”.

Operation:

Use the control buttons on the panel of the wired controller to operate the unit’s modes and

functions quickly and efficiently as below:

Button

Response

Function

Scrolls between DMX, Pump, Wind, Interval and

Duration modes

Increase function or setting

Down

Decrease function or setting

Timer

Enter timer mode

Start/Stop

Turn pump on/off

Manual

Manually adjusts the fan speed

The LCD panel on the wired controller will display the following outputs:

Function

Display

Warm up state

Warm up or Ready

DMX address code

1-512

Pump settings

Pump

Fan settings

Wind

Time setting

Interval

Continuous smoke time setting

Duration

The small RF remote control supplied can also be used when wireless control of the unit is

needed. Its possible to increase and decrease the values of the pump (button A) and wind

(button B) settings using the remote control. As the receiver for the RF remote is fitted inside

the wired controller this must be connected and switched on for it to function correctly.

www.avsl.com 160.498UK Manual

If the LCD panel display is showing the DMX address, the unit will operate from DMX control

as follows:

Off

Channel 1 (start address)

1-255

Pump control 1-100%

Channel 2 (start address +1)

0-255

Fan speed slow to fast

Specifications:

Power supply

220-240Vac, 50/60Hz (IEC)

Fuse rating

Power

800W

Warm up time

3-5 minutes

Remote control frequency

433.92Mhz

Haze output (approx.)

12,000 cu.ft (340m³) per minute

Tank capacity

1.2 litres

Dimensions

485 x 195 x 230 mm

Weight

4.9kg

Troubleshooting:

No power to main unit

Check mains voltage is correct and socket is switched on

or wired controller

Check IEC lead is OK and connected properly

Check mains fuse in IEC connector and fuse in plug top

If fuse blowing repeatedly, refer to qualified service personnel

Power to unit but no

Check fluid level in tank

haze output in manual

If fluid is OK and pump working, the lines may be blocked

or continuous mode

Check that output is not set to zero on the control panel

Check that output is not switched off on the keyfob remote

If blocked, clean with fog machine cleaner & distilled water

Check that if DMX mode is selected, the DMX channel is correct

In DMX mode, check that haze output is not set to zero

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or

commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines

Errors and omissions excepted.

Taylor Road, Trafford Park, Manchester. M41 7JQ. North Point Bus. Park, New Mallow Road, Cork, Ireland.
