Owner and Installation Manual For:

QUAD EZ-7000

LOW ENERGY AUTOMATIC SWING

DOOR OPERATOR

PLEASE READ THIS ENTIRE MANUAL AND FOLLOW ALL GUIDELINES TO

ENSURE PROPER INSTALLATION AND SAFETY

PROUDLY DISTRIBUTED BY…

ANSI/UL 991, 325 & CAN/CSA 27 Listed

REV. 1.29.19

- 2 -

- 3 -

READ THIS FIRST!

Quick Start Instructions

Caution: When used in a low energy installation, the EZ-7000 operator and

associated ES500 control must be installed and adjusted in accordance with

ANSI 156.19.

Warning: The ES500 control must remain connected to the operator at all times.

Never leave the operator without a control connected, as the closing speed will be

uncontrolled and may cause severe damage to the operator or door. Manual

operation must never be permitted with the control removed.

Attention: This unit has been pre-programmed to a generic 90-degree opening

position. Please follow the instructions below.

1. Plug in the wiring harness from the controller to the operator.

2. Plug in the Hold-Automatic-Off (HOA) harness ONLY. Do not plug in any

additional accessories, i.e. safety switches, door lock switches or actuating

devices.

3. Plug in motor and check for polarity. (Motor should return slowly to the stop

position when closed manually if wired correctly).

4. Plug in power supply. Turn HOA switch to the HOLD position. The motor should

open to the full hard stop position.

5. Install arm and check the outside cam. The cam switch arm should be in the

down position (flat part of cam).

6. Turn power off and let door close completely. Check inside cam. The switch

should be in the down position (flat part of cam)

7. Turn power on. After a couple of seconds, the Id light should be on. Test door

by pressing the Down button on the control board.

You are now ready to fine tune the Controller and install accessories. Please refer to

the ES500 Swing Control Installation instructions attached.

Note: Due to the method used for synchronization, it is not possible to have different

values for the standard delay (d1) and the close recycle delay (d3). Delays d1 and d3

should be set to the same value in each operator, and must also be set identically on

both operators. The push-n-go delay (d2) may be different from d1/d3, but should

also be set identically on both operators. This restriction does not apply to single

operators.

- 4 -

- 5 -

CAUTION

An improperly installed and/or adjusted Automatic Door can cause injury and

equipment damage.

Door must be installed and adjusted as described in this Owner’s Manual by a certified

professional.

All required safety devices must be in place and operational.

Door must be inspected DAILY. If the door is not functioning correctly it must be taken

out of Automatic Service immediately until a Certified Technician inspects and repairs

the unit.

DO NOT ATTEMPT TO ADJUST OR REPAIR THE DOOR YOURSELF

CALL YOUR AUTOMATIC DOOR SUPPLIER FOR REPAIRS

To our Customers

The purpose of the manual is to familiarize you with your automatic door system. It is essential that you

know your system and that you recognize the importance of maintaining your door system in compliance

with the industry standards for safety.

It is your responsibility, as owner or caretaker of the equipment, to inspect the operation of your door

system on a daily basis, and after any loss of electrical power, to ensure that it is safe for use by your

invitees, customers, or employees.

Daily Safety Checks are the responsibility of the equipment owner or caretaker. The Following safety checks

are to be done daily and/or after any electrical power outages:

1. When actuated, the door should slowly open at a smooth pace (5 seconds min.) until gently stopping

at the pre-set fully open position.

2. The door should hold open for the pre-set time of not less than 5 seconds

3. The door should then slowly close at a smooth pace (5 seconds min.) and stop gently.

4. Make sure the traffic path and threshold area are clean and clear inside and outside of doorway

5. Inspect the door, safety decals, connecting arms, hardware and glass for wear or damage.

- 6 -

NOTE: The Association of Automatic Door Manufactures (AAADM) has established a program

to certify automatic door inspectors. Though this program, the inspectors are trained to

check your door systems for compliance with the American National Institute’s standard

ADSI/BHMA A156.10

WARRANTY:

Quad Systems, LLC (seller) warrants to the Buyer all products which Quad Systems, LLC

manufactures to be free from defects in material and workmanship, under normal use and

service, for twelve months from the date product is purchased. The Seller’s obligation under

this warranty is limited to the repair or replacement at the factory, of any parts which shall

be returned to the Seller with transportation charges prepaid and which after examination,

prove to be defective. This warranty shall not apply to such products which have been

altered or repaired by other than an authorized agent. Authorization shall be in writing by

Quad Systems, LLC. Warranty does not apply if products have been subject to misuse,

negligence or accident.

There is no expressed or implied warranty by Quad Systems, LLC except as specifically stated

above.

Quad Systems, LLC shall not be liable for special or consequential damage, nor for claims of

any third party against the buyer.

NOTE: Quad Systems, LLC units are identified by serialized numbers (stamps or stickers) and

recorded by sales purchase order numbers, date sold, date made and date tested. Removal

or defacing of serial number tags will void warranty.

SERVICE AVAILABILITY:

Quad Systems, LLC products are distributed throughout the United States and Canada by a

network of authorized distributors for sales, installation and service.

IF YOUR AUTOMATIC DOOR IS NOT WORKING PROPERLY

TURN IT OFF, AND

CALL YOUR AUTOMATIC DOOR SUPPLIER.

- 7 -

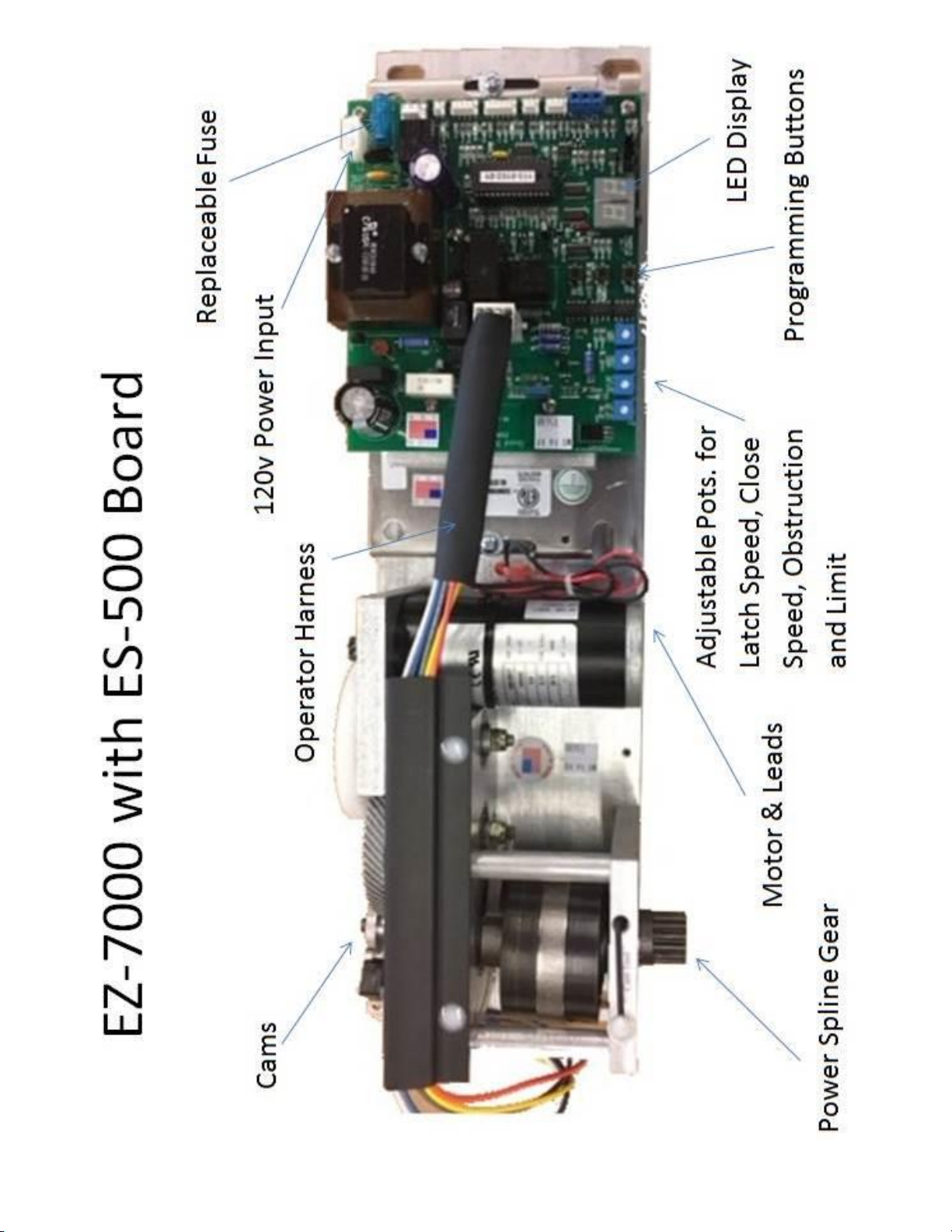

- 8 -

- 9 -

Quad Systems, LLC

EZ-7000 Automatic Door Operator

Mounting Instructions

Attention: Important Installation Instructions. Read and follow all Installation

Instructions. Save these Instructions.

This device is to be installed by an experienced, trained installer in accordance with ANSI A156.19

American National Standard for Power Assist and Low Energy Power Operated Doors as well as all

local codes.

WARNING: The EZ-7000 may be used for Residential or Commercial interior doors only with widths up to

48" (1220 mm) and a maximum weight of 200 lb. (91 kg). The operator can open the door up to an opening

angle of 110° for maximum accessibility. All switching devices must be in sight of the door it operates.

120-volt electrical supply supplied by others in accordance with all local codes. This unit must be

grounded.

Do NOT connect opener to source of power until instructed to do so.

Step One-Mounting the Header

•Make sure the mounting area has proper support for the unit. Wood studs or blocking in wallboard

is recommended.

•On each side of the door frame the header should overlap by 1½” on each side. If the header does

not overlap each side by 1 ½”, the output shaft should measure 4” from center to the inside of the

hinged side of the opening.

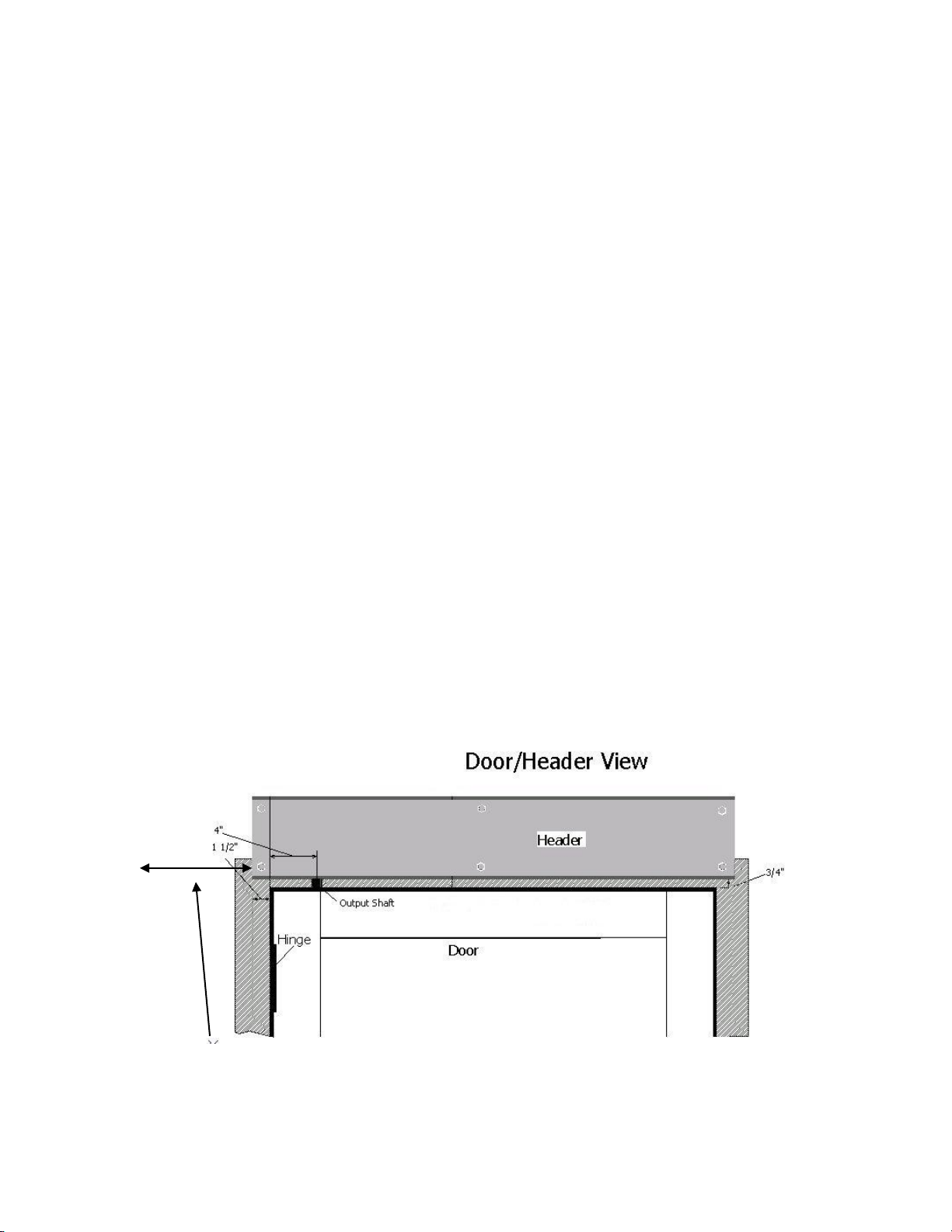

•The bottom of the unit should be ¾” to the inside of the doorframe (see drawing below).

•Drill holes in back of header and install a minimum of 6 correct fasteners for the wall material. The

unit must be mounted level and in a secure manner.

NOTE: If door is an In-Swing, allow 8” minimum between header and opposing wall to allow

clearance for the Pull Arm.

8”

- 10 -

Step Two-Mounting Operator-Controller

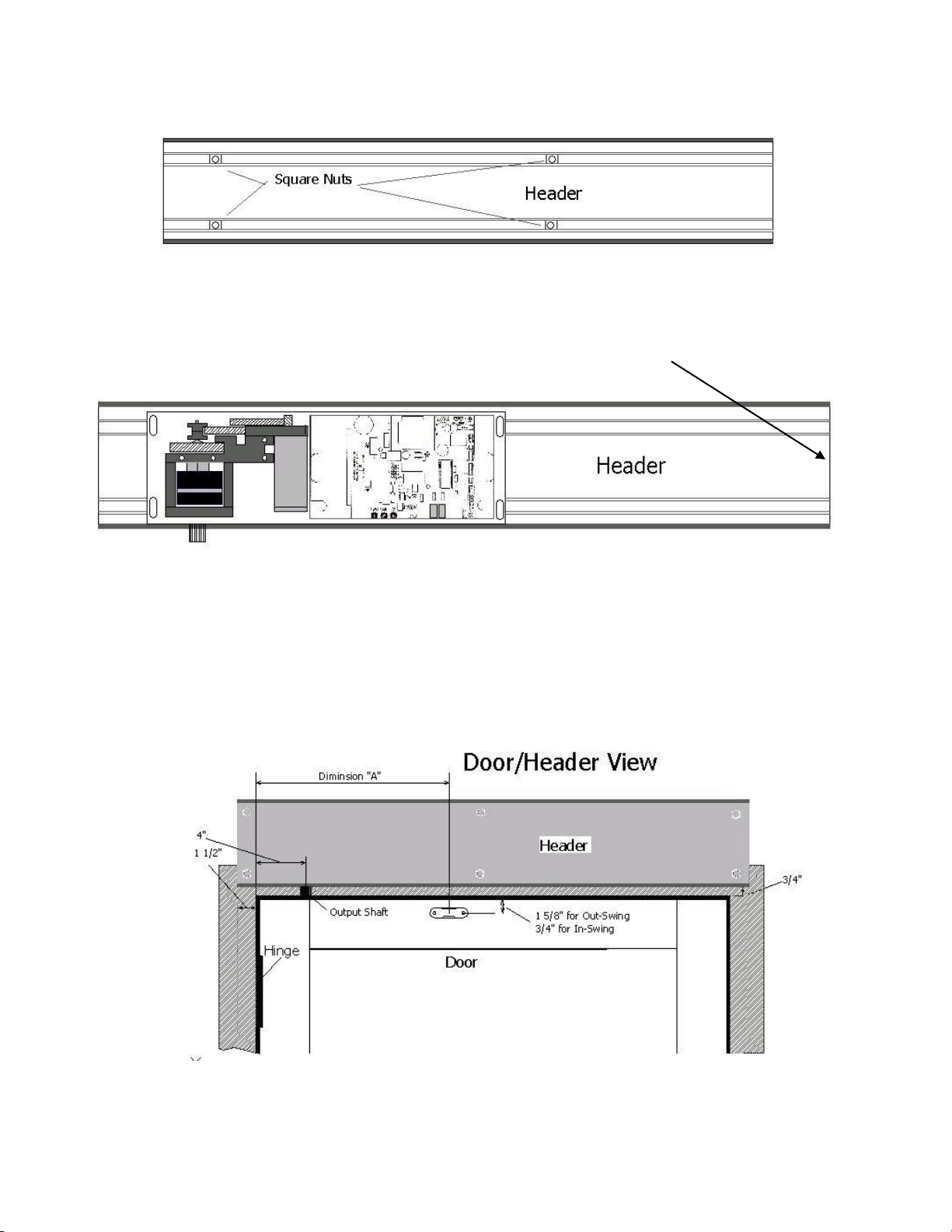

•Move square nuts provided in header slots to pre-marked positions.

•Lift unit into header and secure with the 4 bolts provided making sure output shaft is at center of

opening.

WARNING: The closing speed control is built into the Controller. DO NOT wind or rotate the motor until

the Controller is installed and plugged in or serious damage could be inflicted on the Controller as well as the

installer.

•Install the Hold-Open-Automatic (HOA) switch into the end cap hole provided on each end and

plug in wiring harness from switch and operator into marked pins.

WARNING: Do NOT connect opener to source of power until instructed to do so.

NOTE: At this point do not install any other device into the controller i.e., switch harness lock

harness, safety harness, radio harness, etc…

Step Three-Mounting the Arm, Rod and Rod Swivel

•Install Rod Swivel as shown below using dimension chart below.
