QuadLink XC-QL4 Scheda tecnica

FEATURE AND USE GUIDE

Model XC-QL4 4-Channel 6/12V DC Charger Multiplier

Model XC-QL4 Feature and Use Guide

Table of Contents

Features.................................................................... Inside front cover

User Guide ............................................................................... 1 – 3

Speciﬁcations ......................................................................................3

Battery Charger Use..........................................................................3

FAQs ...................................................................................................... 4

5-Year Limited Warranty...........................................Inside back cover

Xtreme Charge®Products and Accessories..............................Back cover

Features

Thank you for your purchase of the Xtreme Charge®QuadLink®from PulseTech®

Products Corporation.

PulseTech®Products Corporation (www.PulseTech.net) is nationally recognized for

its innovative technologies speciﬁcally designed to improve 6/12V battery perfor-

mance, trim replacement costs by extending battery life cycles and contributing to

the nation’s environmental movement to think and act Green by keeping batteries

healthy and out of the waste stream, landﬁlls and smelters.

With the development of the QuadLink, Xtreme Charge®has multiplied this useful

application by 4 times—turning any 6V or 12V DC battery charger (using the stan-

dard 2-prong output connector) into a 4-station maintenance charger.

There’s no more need to spend time or to remember to switch back and forth

between vehicles or batteries in storage. Utilizing a simple, plug and play system,

QuadLink automatically splits and distributes 10-minute charge segments to up to

four batteries.

Applications include a wide variety of vehicles and equipment, including automobiles,

light trucks, SUVs, motorcycles, motor homes, small boats and watercraft, lawn

mowers and equipment, ATVs and even golf carts. When mated with a typical

maintenance charger (see User Guide) the QuadLink’s microprocessor automatically

adapts to the number of batteries actually connected.

Included with your QuadLink purchase:

1 – QuadLink 4-station charger multiplier

4 - Eyelet lug adaptor cables

4 - 5' extension leads

(Additional 5'and 25' lead extensions available separately)

User Guide

Do not operate without ﬁrst reading these important safety notices and use instructions.

Additionally, do not use this without ﬁrst reading important safety notices and use

instructions that come with your battery charger/maintainer and your battery.

NOTE: As part of good safety routine, this product is designed for use only with automatically controlled

charger maintainers and is optimized for use with the Xtreme Charge family of products. It is not

suggested for use with manual maintenance chargers that cannot be used without constant supervision.

1. Inspect all cable leads and connections to be sure that they are all in good working condi-

tion. Never use cable leads or clips that are worn, damaged or frayed in any way. Replace

worn or damaged leads prior to use. Do not alter or otherwise modify cables as this could

cause an unsafe condition possibly resulting in personal injury, explosion or ﬁre.

2. Connect the output of your battery charger/

maintainer to the input of the QuadLink.

Note: The charger must have the same industry

standard 2-prong connector to mate properly

with the QuadLink.

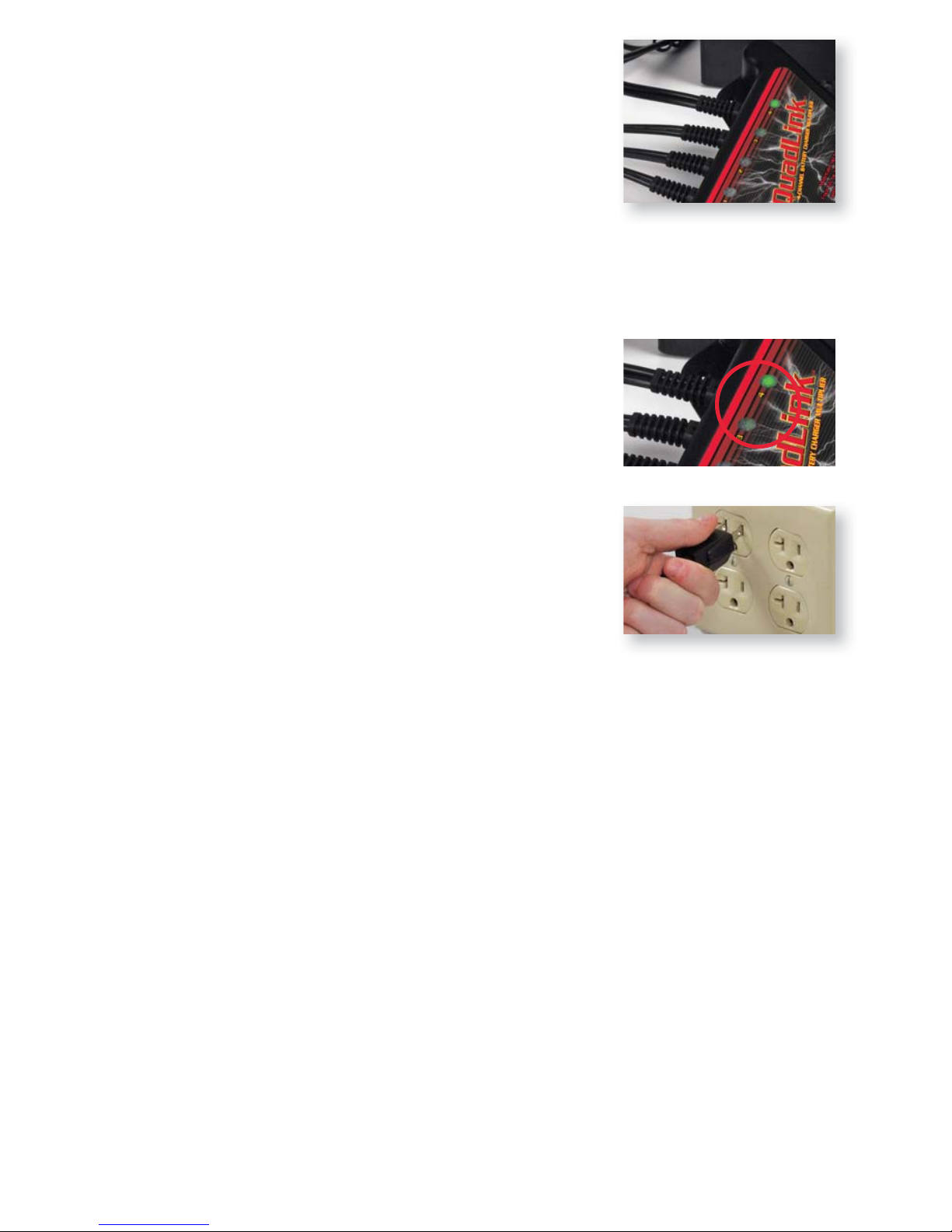

3. Connect the extension leads that come with the QuadLink to either the standard attached

battery eyelet connector on each vehicle battery and/or to the charging clip set that comes

with your charger. Be sure to ﬁrst connect the red battery clip to the positive (+) battery

terminal. Then connect the black battery clip

to the negative (-) battery terminal. Also, be

sure to double check that your attached eyelet

terminal cable sets are properly polarized.

Once you have connected the cable leads to

all batteries in use, you can begin the battery

maintenance process by plugging in your

charger to your AC power source.

4. What is happening:

A. Your battery charger is still in full control of the charging processes. Always refer to the

battery charger manufacturer’s instructions or the user interface on your charger to

determine what state of charge your battery is in.

B. The QuadLink is almost transparent to the battery. It does not add to the charging

capabilities of your charger, just to the number of batteries being maintained. Your

charger is still the “brain” in the system.

C. A blinking green LED light will indicate the ﬁrst battery

connected to the QuadLink. Once additional batteries are

connected, a solid glowing green LED light will verify

connection to all additional connected stations. Once the

charger is connected to the QuadLink and plugged into the

AC power source, the charging cycle begins. From this point

forward, the station or battery that is currently “live” or

being charged is indicated by a blinking green LED light.

D. Every 10 minutes, the QuadLink will switch to the next battery in line. If there is no

battery connected to any given channel, the channel will be skipped after a short qualiﬁ-

cation process.

E. Cycle rotation will continue indeﬁnitely, maintaining the

charge of all 4 batteries for you automatically. The

QuadLink distributes your charger’s full power, moving

from battery to battery in 10-minute increments.

F. If you would like to remove a battery from the chain, it is

always best to unplug the QuadLink from the charger and

the charger from the AC power source ﬁrst. Once the battery

is disconnected and the units are plugged back in, the

QuadLink will reset and recognize the batteries in the circuit

and skip any open channels after a circuit veriﬁcation test.

G. If you replace or add a battery to an open channel, again it is always best to unplug

the QuadLink from the charger and the charger from the AC power source ﬁrst. Once

you have connected the new battery to the circuit and plugged the units back in, the

QuadLink will reset and recognize the additional battery in the circuit and begin the

process again.

Use Comments and Suggestions:

1. If you are putting a vehicle/battery away for an extended period, it is always best to give

the battery a good charge on its own for a few days and test it prior to putting it away for a

season or any extended period. This will assure that proper storage maintenance will occur

without a hitch.

2. If there is ever a power outage, it is likely that during the outage, the charger may and the

QuadLink will consume a small amount of power via LED light indication of the batteries’

state of charge and channel indication. This is common and will not cause noticeable dis-

charge of the batteries in the circuit unless the power is out for an extended period of time.

Note: If either AC input power to the charger or DC power from the charger to the QuadLink

is purposely disconnected for any extended period for any reason, disconnect the QuadLink

from the batteries in the circuit until power is restored. This will assure that the batteries are not

unintentionally discharged.

3. If for any reason the QuadLink is not unplugged from the DC power source and allowed

to reset during removal of a battery, the LED channel indicator will remain illuminated

until the next cycle provides a circuit veriﬁcation test indicating an open circuit. The output

previously associated with the removed battery will then in turn be skipped.

4. For use more customized to your speciﬁc needs, including additional 5' extension leads

(part #100X805) and 25' extension leads (part #100X825), please visit www.PulseTech.net.

Additional Functionality:

The QuadLink is also uniquely designed to

provide a very useful service of maintaining the

state of charge of multiple 6V or 12V batteries

in 24, 36 and 48V series connected conﬁgura-

tions typically used in Golf Carts or similarly

designed vehicles or battery packs.

The user would simply connect each output

lead using the provided eyelet lug connectors

(up to 4) to each of the 6V or 12V segments of

the multiple battery conﬁgurations and in doing

so allow the QuadLink to maintenance charge

each of the 6V or 12V segments of the pack in

10-minute intervals. This will ensure that the

entire pack is maintained at the state of charge

that they were left at when stored or left unused

for an extended period.

Speciﬁcations Battery

Charger Use

Description: 4-channel 6/12V DC Char-

ger Multiplier

Input Voltage: 4Vdc to 18Vdc

Input Amperage: 8A Max

Functional Output Cable Length: 5'9"

(per channel) Note: Additional 5' and 25'

cable extensions available separately

Mounting: Yes, via 4 holes in housing

(use housing to mark holes on

mounting surface)

IMPORTANT: Please follow the use

and safety recommendations that were

included with the maintenance char-

ger that will be used with your new

QuadLink. This information should

provide explicit important safety,

operation and maintenance instruc-

tions for the user, and, if applicable,

with assembly, moving and storage

instructions. 3

24V

36V

48V

Frequently Asked Questions

1. Can the QuadLink be used with a Solar Charger? YES, if the Solar Charger uses the same connector, is 6V or 12V

DC and does not exceed 8 Amp output.

2. Is the QuadLink water resistant? YES, it is water resistant but not waterproof. It cannot be submerged or left in

pooled water or driving rain. Safety dictates that one should never use an electrical product in wet conditions.

3. Does the “bad battery” function still work when using the QuadLink? The QuadLink is not a charger but a

charge conduit. If your charger has a “bad battery” indicator, it will work through the QuadLink connection.

4. Will the QuadLink work if batteries are connected to ﬁrst, second, and fourth outlet, skipping the third

position? YES, the QuadLink will sense the open circuit and skip it after a few seconds.

5. Will the QuadLink work on multiple battery types and styles simultaneously? For instance, AGM and Gel or

Deep Cycle marine and small Motorcycle batteries all connected to each of the 4 stations? YES, your charger

is still the “brain” in the system. If your charger has the ability to properly charge all of these battery types automati-

cally, the QuadLink will allow it. If your charger has to be manually switched to alternate settings to enable proper

charge output for these different battery types, the answer would be NO. If this is your situation, we suggest using

the Xtreme Charge to charge multiple battery types automatically.

6. Knowing that the QuadLink is optimized for use with the Xtreme Charge battery charger; does it also work

with other brands of chargers? YES, as long as your charger is fully automatic and utilizes the same DC connector.

7. When connected to Gel, maintenance free and AGM battery with a charger that requires the use of a battery

selection dial for charging different battery types, what happens? We suggest that you do not use the QuadLink

with this type of charger. Consider buying an Xtreme Charge to properly charge all these types on the QuadLink au-

tomatically.

8. If there is no battery connected, is power ﬂowing to the battery clips or eyelet connector? The answer is NO

if you are using a fully automatic charger and it is functioning properly. We suggest that a manual charger NOT BE

USED with the QuadLink. Remember, the charger is always in control of the charge process, not the QuadLink.

9. Can I use this on my vehicle that has 4 batteries connected in parallel (in a 12V system)? YES, as long as

you are connecting only one station lead to this 12V pack. Although it will cause no harm, we do not suggest the

QuadLink be used in a parallel connected multi battery scenario as there is no additional charging beneﬁt when com-

pared to single station charging to the pack.

10. Can I start my vehicle with the QuadLink still attached? YES, as long as your charger allows this capability. The

QuadLink does not control the charge going into the battery; it is only a conduit for the power going to each station.

11. Can I change the timing so that one battery charges longer before moving to the next battery? NO, the micro-

processor is not adjustable.

12. Can I connect two sets of leads to one battery so it will charge for an extended period? YES, if you want to

allow a certain battery to have more relative charge time within the charge cycle, you can “double connect” a

station to any given battery. This will give that battery 10 additional minutes of charge time per cycle.

For answers to additional questions, please see your dealer or contact PulseTech Products Corporation at

1-800-580-7554, 8 a.m. to 5 p.m. Monday through Friday CST or go to www.PulseTech.net.

PulseTech Products Corporation

What Does This Warranty Cover? This warranty covers any defects in workmanship or materials in the

product under normal use and service.

How Long Does The Coverage Last? This warranty runs for ﬁve (5) years from the date of purchase.

What Will PulseTech Do? PulseTech will, at its option, repair the unit or replace the unit with a

remanufactured unit at no charge.

What Does This Warranty Not Cover? This warranty applies only to the product and does not cover

any other equipment, static damage, water damage, overvoltage, dropping of the unit or damage result-

ing from extraneous causes. The warranty is void if the owner attempts to disassemble the unit or modify

the cable assembly. In addition, PulseTech will not be responsible under this warranty if PulseTech de-

termines that (1) upon examination that the unit’s failure was (A) caused by misuse, neglect, accident,

alteration, or abnormal condition of operating or handling (including the failure to install the product in

accordance with PulseTech’s instructions and observe the warnings on the product and the instruction

manual), or other conditions beyond the control of PulseTech or (B) damaged in transit to PulseTech,

or (2) the owner is not the original purchaser that purchased the product from PulseTech directly or

through an authorized PulseTech dealer or distributor. IN NO EVENT SHALL PULSETECH BE

LIABLE FOR ANY DIRECT, SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL, PUNI-

TIVE OR EXEMPLARY DAMAGES, EXPENSES, LOST SAVINGS OR LOST PROFITS OR ANY

OTHER DAMAGES OF ANY KIND FROM ANY BREACH OF THIS WARRANTY OR OTHER-

WISE. Some states, provinces or countries do not allow the exclusion or limitation of incidental or conse-

quential damages, so the above limitation may not apply to you.

How To Get Service? Send the product postage prepaid with proof of purchase (sales receipt) within

the warranty period to the authorized reseller where the product was purchased or contact PulseTech

directly by calling 1-800-580-7554.

How Does State, Province or Country Law Apply? This warranty gives you speciﬁc legal rights, and

you may also have other rights which vary from state to state, province to province or country to country.

THIS WARRANTY IS THE SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL

OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE.

5-Year Limited Warranty

Southlake, TX 76092

Patent Pending

Model XC-QL4

PRODUCTS & ACCESSORIES

12V Xtreme Charger w/Pulse Maintenance

Ideally suited for AGM and Maintenance-Free

batteries. Increases the duty

and life cycle of all 12V

batteries up to ﬁve

times longer.

Part #: 100X010

Model: XC-100-P

Quick Mount Wall Bracket

Part #: 100X808

Model: XC-QM

Full Enclosure Wall Bracket

Part #: 100X810

Model: XC-BKT

12V 2-Channel Charger w/Pulse Maintenance

Double the charging capabilities

of the popular XC-100-P

Xtreme Charge® 12V

Battery Charger. Each

station charges at a 2.5 A

(5 A effective) charge rate

at over 14.8V.

Part # 100X200

Model: X2

QuadLink™ 4-Channel Battery Charger Multiplier

Turns any 6/12V battery charger

(using the standard 2-prong

output connector) into a

4-station maintenance charger.

Part # 100X004

Model: XC-QL4

Battery Lead with Clips

This 7.5-amp fuse-protected cable is

supplied with a quick-disconnect

terminal. Lead is 2 feet long.

Part #: 100X827

Model: XC-CLIPS

“Leave-On” Battery Lead with Lugs

Xtreme Charge® 7.5-amp fuse-protected cable

comes with a quick-disconnect terminal.

Lead is 2 feet long.

Part #: 100X830

Model: XC-LUGS

5' and 25' Extension Lead

Extend a standard lead by 5 or 25 feet with these

extensions. They feature quick-disconnect

terminals on both ends. Lead is 5 feet

or 25 feet long.

Part #: 100X805

Model: XC-EXT-5

Part #: 100X825

Model: XC-EXT-25

Quick Battery Tester

Assess your 12V battery’s state of charge

quickly with this pocket-sized tester.

It will be the most used tester in shops,

garages and any areas where battery

checks are performed.

Part #: 100X822

Model: XC-822-TEST

TO PURCHASE ANY OF THESE ITEMS, VISIT WWW.PULSETECH.NET

998XM104 04/11

Indice

Altri manuali QuadLink Caricabatterie per batterie

QuadLink

QuadLink XC-QL4-K2 Manuale utente

Manuali Caricabatterie per batterie popolari di altre marche

AA Portable Power Corp

AA Portable Power Corp Universal Smart Charger Manuale utente

Enelion

Enelion Vertica Manuale utente

RCA

RCA CHU6 Manuale utente

ANSMANN

ANSMANN ALCT 6/24-10 Manuale utente

Hitachi

Hitachi UC 18YRSL Guida alla risoluzione dei problemi

Olympus

Olympus B-20 LPC Manuale utente

Exibel

Exibel ZH1708143 Manuale utente

Lenmar

Lenmar Mach 1 Manuale utente

CTEK

CTEK MXS 5.0 Manuale utente

ABB

ABB HT842379 Manuale utente

Nitecore

Nitecore Superb Charger SC4 Manuale utente

Renogy

Renogy RBC2125DS-21W Manuale utente

Braun

Braun BWC02M Manuale utente

CTEK

CTEK MXS 3.6 Manuale utente

Black & Decker

Black & Decker BDV090 Manuale utente

Trinity

Trinity DPD Manuale utente

Hulkman

Hulkman Sigma 1 Manuale utente

IKEA

IKEA koppla Manuale utente
