Quandify CubicDetector QCD-01 Manuale utente
Manual & Datasheet
CubicDetector
QCD-01
Intelligent water detector
Detects and alerts for water leaks when in direct contact with water.
Measures temperature &humidity to warn from frozen pipes and mold risk
When used in conjunction with the CubicSecure, leaks can also trigger an
automatic water supply shut-off
Thank you for choosing the CubicDetector
The CubicDetector is an intelligent water detector that protects your home from water and extreme
temperature and humidity damages by measuring water flooding as well as room temperature and
humidity. The device should ideally be placed on strategic locations where water damages often
occur, e.g. near toilets, freezer, washing machine, air conditioners etc.
To maximize protection, the device can automatically shut off the water supply in case of a leakage
when used in conjunction with Quandify’s CubicSecure.
The CubicDetector is easy to set up, and it requires no previous experience. This guide will assist you
in getting your CubicDetector up and running.
Common installation areas
Near or under:
- Washing machine
- Dishwasher
- Toilet
- Bath
- Kitchen sinks
- Under or near water appliances
- Water heater or heating boiler
- Water tanks
- Water pumps
- Basements
- Air conditioners
- Refrigerator or freezers
Still stuck?
Feel free to reach out to us at [email protected] or visit our website for more information:
quandify.com.
Details are subject to change, check the latest version here.
The company is not liable for possible errors and/or misprints. 2 of 7
INTRODUCTION
PACKAGE CONTENTS

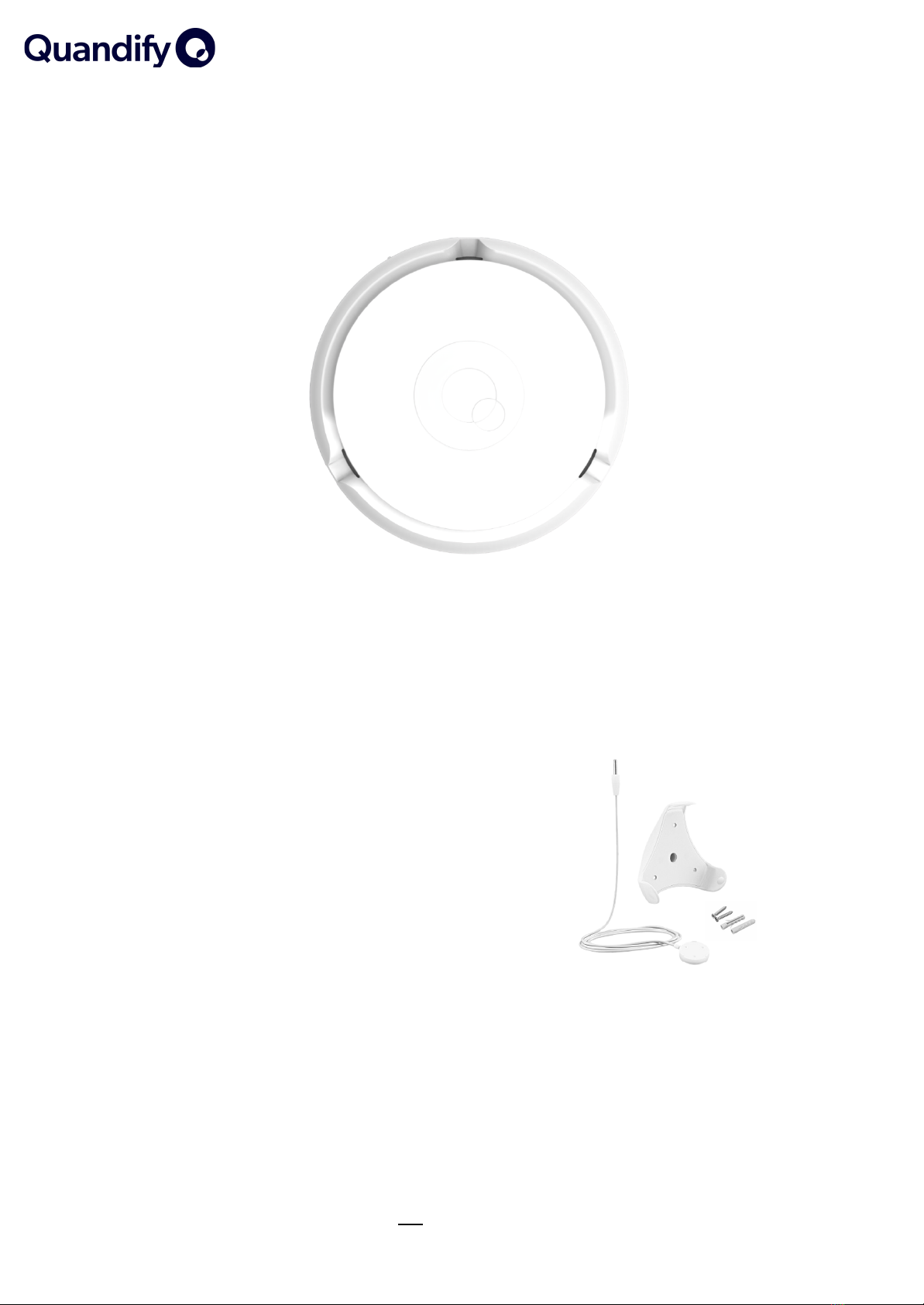

●CubicDetector - 1x
●CR123A Lithium cell included - 1x
●Optional wall mount with self-adhesive backing - 1x
●Wall mount screws - 2x
●Leak sensing cable - 1x
Details are subject to change, check the latest version here.
The company is not liable for possible errors and/or misprints. 3 of 7
INSTALLATION GUIDE
The wall mount and leak sensing cable is intended to be used for small spaces, such as under
appliances.
Installation steps:
1. Remove the top cover, by holding the
CubicDetector in your hand, while
twisting the cover counter clockwise.
2. Pull out the battery insulator, the LED
should start blinking blue.
3. Put back the top cover in place.
4. Provide Wi-Fi and cloud credentials to
the device with either a smartphone
or a computer.
5. Only attach the wall mount if using
the leak sensing cable.
6. The device is now ready to be placed.
Internal view
Factory Reset:
1. Remove the top cover, by holding the
CubicDetector in your hand, while
twisting the cover counter clockwise.
2. Remove the battery.
3. Press and hold the reset button while
putting back the battery.
4. Release the button when the LED
starts blinking blue.
5. Attach the top cover, in reverse order
of removal. Turn the top cover until
the three notches align.
Wi-Fi Reset:
1. Remove the top cover, by holding the
CubicDetector in your hand, while
twisting the cover counter clockwise.
2. Press and hold the reset button for
10 seconds.
3. Release the reset button when the
LED turns purple.
4. The device will now be in pairing
mode and the LED should be blinking
blue.
5. Put back the top cover in place.
6. Provide Wi-Fi and cloud credentials to
the device with either a smartphone
or a computer.
Details are subject to change, check the latest version here.
The company is not liable for possible errors and/or misprints. 4 of 7
SPECIFICATIONS
Storage conditions:
5 °C ... 55 °C
Environment:
Indoor usage
Temperature range:
-25°C … 60°C
Temperature accuracy:
±1.5°C
Humidity range:
0 - 100 % RH
Humidity accuracy
± 5 %
Sound level:
85 dB
Wi-Fi connectivity:
2.4 GHz Wi-Fi, (802.11bgn)
Cloud data resolution:
30 min
Weight:
80 grams (excluding packaging)
Dimensions:
Width: 67 mm, height: 67 mm, length 25 mm
Leak sensor cable:
1219 x 27 x 8 mm
Replaceable battery:
CR123A lithium cell, up to 3 years battery life*
Warranty:
2 years
*The battery life depends on the total duration of which the device is in active Wi-Fi mode and alarm
mode .
Details are subject to change, check the latest version here.
The company is not liable for possible errors and/or misprints. 5 of 7
STATUS & ALARM INFORMATION
STATUSES
LED PATTERN
MEANING
ACTION
OFF
Normal operation when powered
-
BLUE BLINKING
Device is in pairing mode and is visible on
Wi-Fi list
Pair using smartphone
app
PURPLE blinking
Device is in abnormal operation mode
Perform a factory reset
15s RED blinking on
wakeup
Device is in offline mode, Wi-Fi not used
Perform a Wi-Fi reset to
go back to pairing mode
10s RED + BLUE
blinking
Device is in fatal fault mode
Perform a factory reset
or contact support
15s RED blinking on
wakeup
Device is in low power mode, Wi-Fi disabled
Replace battery
Single PURPLE blink
Device is booting up
-
ALARMS
ALARM
MEANING
ACTION
Continuously beeping +
RED blinkin
Water is detected in direct contact with
the device or leak sensor cable
Remove device from water
and check for leaks
Single beep every 30
min
Low battery warning (< 5%) and is in low
power mode
Replace battery
Details are subject to change, check the latest version here.
The company is not liable for possible errors and/or misprints. 6 of 7
MAINTENANCE & SERVICE
If a unit is faulty, please contact your authorized distributor for further assistance. All service must be
performed by an authorized Quandify service center. If external parts need to be replaced, only
original manufacturer spare parts should be used.
Contact support at [email protected] for assistance.
Copyright © Quandify AB 2017-2022
All rights reserved
Details are subject to change, check the latest version here.
The company is not liable for possible errors and/or misprints. 7 of 7
