What is included with the TIER1-AR2

Check the entire unit for any shipping-related damage, missing parts, or damage to shipping cartons. Contact the

transportation company for all damage and loss claims. Tier1®is not responsible for damage in transit. Small parts

needed to assemble the softener are contained in parts bags, the control valve box, or in the owner’s manual zip-lock

bag. To avoid loss of small parts, keep them in the parts bag until you are ready to use them.

What is included in the box?

Model TIER1-AR2 includes the following:

1. Control Valve with Bypass

2. Resin Tank

3. Parts Bags

4. Owner’s Manual Zip-lock Bag

5. Brine Tank and Brine Valve Assembly

1. Control Valve

Upper

Distributor

5. Brine Tank

3. Parts Bags

2. Resin Tank

4. Owner’s Manual Resealable Bag

Distributor

Tube Inside

of Tank

Parts Bag A includes:

1. Brine Well Overow Elbow

2. Brine Well Bracket

3. Blue “C” Clip

Parts Bag B includes:

1. Master O-Ring (3.25” outside diameter)

2. Brine Line Connector Nut

3. Brine Line Bushing/Filter Screen

1. Owner’s Manual

2. Hose clamps (x2)

3. Silicone Lubricant

A. Control Valve

B. Bypass and 4 clips

C. Clear Drain Tubing (10’)

D. PVC Tubing

E. Upper Distributor

F. Brine Valve

G. Brine Well

H. Control Valve Power Cord

Additional Components

1 2 3

A DC E F GB H

Operating Conditions

This softening system will operate at maximum efciency under the following conditions:

Operating Conditions

Working conditions Working pressure 21 psi to 120 psi

Water temperature 40°F - 120°F (5° C - 50°C)

Working Environment

Environment temperature 40°F - 120°F (5°C - 50°C)

Relative humidity ≤95% when temperature is 25C/77°F

Power source AC100~240V/50~60Hz

Inlet Water Quality

Water turbidity Down-ow Regeneration <5FTU

Chlorine <0.1ppm

Iron2 <0.3ppm

• All plumbing and electrical work should be performed by an accredited professional to ensure all local, munici-

pal, and state codes are met.

• Do not use the water softener with water that is unsafe or of unknown quality.

• Do not use the brine tube, injector body, or other connectors on the valve as a handle to carry the system.

•Ensure there is salt in the brine tank at all times when in use for softening. The brine tank should contain clean

water softening salt only, at least 99.5% pure. Do not use small grain salt.

•When there is moderate to high turbidity, a lter should be installed before the softening system on the inlet

side.

• If the water pressure exceeds 80 psi, it is recommended to install a pressure valve. If the water pressure is under

20 psi, a boost pump must be installed before the water inlet.

Assembly Instructions

Locate the following parts:

Brine Tank - Inside the brine tank you will nd:

A. Control Valve with

B. Bypass with 4 clips

C. Clear Drain Tubing (10’)

D. PVC Tubing

E. Upper Distributor

F. Brine Valve

G. Brine Well

H. Control Valve Power Cord

Parts Bag A includes:

1. Brine Well Overow Elbow

2. Brine Well Bracket

3. Blue “C” Clip

1 2 3

Parts Bag B includes:

1. Master O-Ring (3.25” outside diameter)

2. Brine Line Nut

3. Brine Line Bushing/Filter Screen

4. Owner’s Manual Resealable Bag

1. Owner’s Manual

2. Hose clamps (x2)

3. Silicone Lubricant

A DC E F GB

1 2 3

Prior to Assembly

IMPORTANT NOTE: To avoid irreversible

damage to connector threading, hand tighten

plastic connections rst. If leaks are noted

during initial start up, gently tighten with tool.

1. Prior to installation of this water softener, ensure you are aware of local laws and

codes regarding the installation, use, and maintenance of water softeners.

2. Resin Tank - the tank may be shipped with a temporary shipping cap, a master

O-Ring, and a piece of tape covering the riser tube. This is to prevent resin from

entering the riser tube during shipping. The cap, master O-Ring, and tape must

be removed and discarded prior to attaching control valve and the upper distrib-

utor. (Another master O-ring is supplied.)

3. Unpack the product and ensure all listed parts are included.

4. Turn off the main water line to your home prior to installation.

5. If you will be draining the tank, shut offthe power supply to your water heater.

6. Turn on the water faucets in the highest and lowest levels of your home.

Begin assembly on pages 7-12.

Assembly Instructions

STEP 1: Attach the Control Valve to the Resin Tank

A. Locate the Master O-ring (from Parts Bag B) and lightly coat with silicone lubricant (from Owner’s Manual Zip-

lock Bag). Insert into bottom of control valve as shown below.

B. Connect the upper distributor to bottom of control valve, line up slots and twist as shown below.

C. Center the riser pipe within the resin tank.

D. Attach the control valve to the resin tank by sliding the upper distributor over the riser pipe.

E. Securely tighten the control valve by hand, tightening it clockwise.

Twist to securely seat

Assembly Instructions

STEP 2: Connect Bypass Valve to Control Valve

A. Attach bypass valve to control valve by rmly pushing inlet and outlet of bypass valve into control valve. Install

plastic clips to secure bypass.

B. Connect inlet and outlet elbow connectors to pipe connection end of bypass valve. Install plastic clips.

C. Connect the signal wire ends from control valve and bypass. Tighten nut.

D. Verify water meter probe is installed in probe port on control valve.

Top view of bypass assembly

Outlet

Inlet Clip

Signal wire Outlet elbow

connector

Inlet elbow

connector

Water meter

probe

Assembly Instructions

STEP 3: Connect Brine Line to the Brine Tank

A. Remove brine well cap from brine well.

C. Remove nut from threaded end of brine well bracket. Slide

bracket (1) over top of brine well, lining up hole in bracket with

hole in brine tank as shown in Figure 1.1.

D. Insert threaded end of bracket into top hole (2) of brine tank.

Replace nut on bracket outside of hole in tank.

E. Feed PVC tubing (3) from outside the brine tank through the

hole in the bracket. Push tubing rmly into quick connect tting

on brine valve.

F. When fully inserted, secure tubing by placing blue “c” clamp (4)

from Parts Bag A in between collar of quick connect tting and

brine valve.

G. Replace brine well cap.

Brine well bracket Blue “C” clamp

Threaded Nut

FIGURE 1.1

B. Locate brine well bracket and blue “C” clamp in Parts Bag A.

Follow steps on next page to connect brine tubing to control valve.

Assembly Instructions

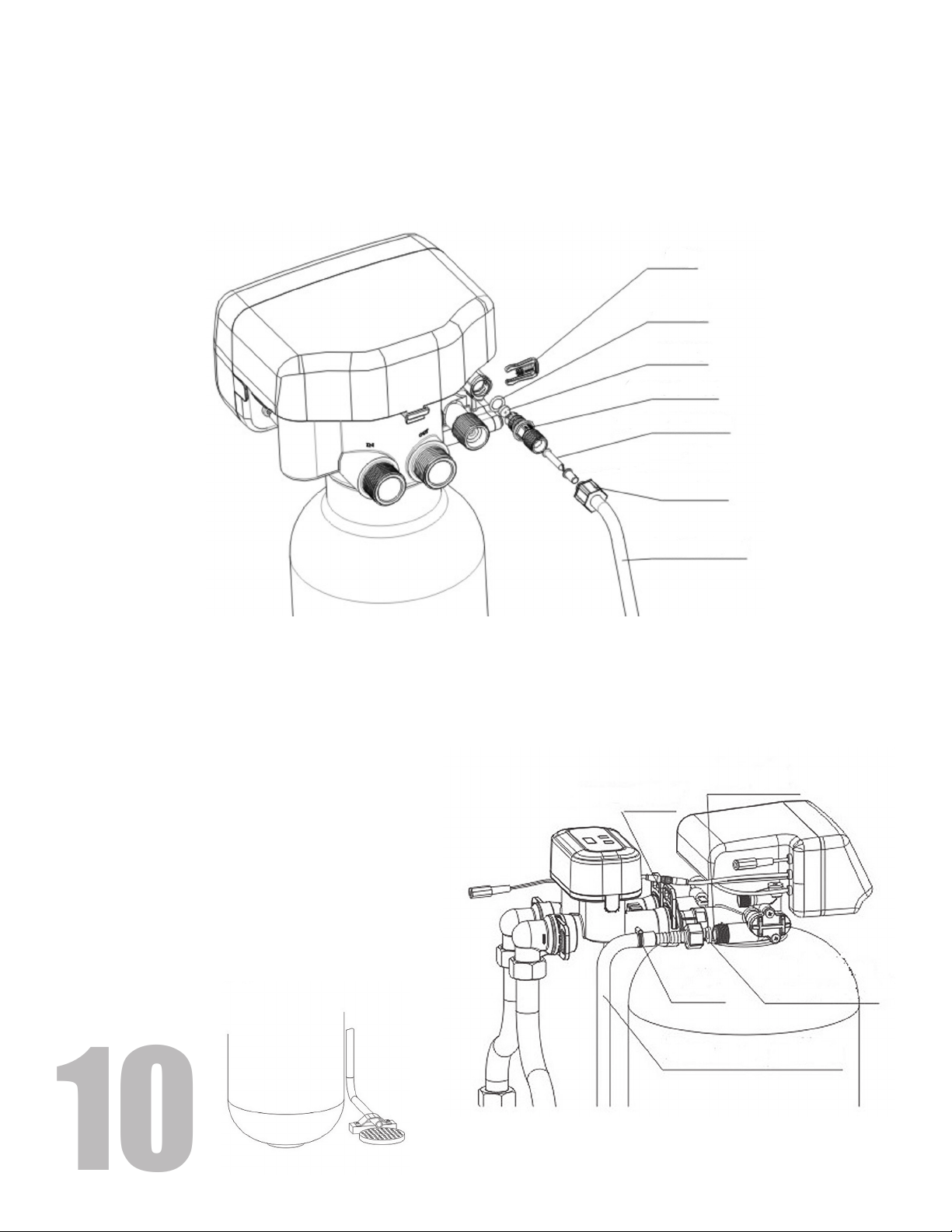

A. Slide brine nut over end of brine tube. Insert brine tube bushing/lter screen into the end of brine tube.

B. Insert brine tubing into brine line connector.

C. Tighten hexagonal nut onto brine line connector.

STEP 4: Connect Brine Line to the Control Valve

STEP 5: Connect backwash drain line to control valve

A. Slide drain hose connector into drain outlet.

B. Insert drain line ow control into drain outlet.

C. Attach clear drain tubing to connector. Secure

using a hose clamp (from Owner’s Manual Zip-

lock Bag.)

D. Secure the clear drain tubing over a oor drain

or other suitable drain. Leave an air gap of

about 1 1/2” between the end of the hose and

the drain. An air gap is necessary to prevent

backow of sewer line.

Drain Outlet

Drain line

ow control

Clear drain tubing

Clip

Drain hose

connector

Note: There is one 10’ length of clear drain tubing provided. This tubing will need to be cut to be used for both

backwash drain line from control valve and overow drain line from brine tank. You should measure the length you

need for the backwash line from the resin tank rst, using the remainder for the brine tank overow line.

Air gap to drain

Brine tube

Brine Nut

Bushing/Filter Screen

Brine line connector

Brine line ow control

O-ring

Clip
