GV300TP 4G WW User Manual
QSZTGV300TPMGUM0100 - 2 -
Document Title
GV300TP 4G WW User Manual
Version
1.00
Date
2021-12-24
Status
Released
Document Control ID
QSZTGV300TPMGUM0100
General Notes
Queclink offers this information as a service to its customers, to support application and
engineering efforts that use the products designed by Queclink. The information provided is
based upon requirements specifically provided to Queclink by the customers. Queclink has not
undertaken any independent search for additional relevant information, including any
information that may be in the customer’s possession. Furthermore, system validation of this
product designed by Queclink within a larger electronic system remains the responsibility of the
customer or the customer’s system integrator. All specifications supplied herein are subject to
change.
Copyright
This document contains proprietary technical information which is the property of Queclink.
Copying of this document, distribution to others or using or communication of the contents
thereof is forbidden without express authority. Offenders are liable to the payment of damages.
All rights reserved in the event of grant of a patent or the registration of a utility model or design.
All specifications supplied herein are subject to change without notice at any time.
Copyright © Queclink Wireless Solutions Co., Ltd. 2021
GV300TP 4G WW User Manual
QSZTGV300TPMGUM0100 - 3 -
Contents
0. Revision History.............................................................................................................................4
1. Introduction ..................................................................................................................................5
1.1 Reference..............................................................................................................................5
1.2 Terms and Abbreviations......................................................................................................5
2. Product Overview..........................................................................................................................8
2.1. Check Parts List....................................................................................................................8
2.2. Parts List ..............................................................................................................................9
2.3. Interface Definition .............................................................................................................9
3. Getting Started............................................................................................................................12
3.1. Open the Case ...................................................................................................................12
3.2. Installing a SIM Card..........................................................................................................12
3.3. Device Status LED ..............................................................................................................12
4. CE Declaration .............................................................................................................................13
GV300TP 4G WW User Manual
QSZTGV300TPMGUM0100 - 4 -
0. Revision History
Revision
Date
Author
Description of change
1.00
2021-12-24
Eddy Qi
Initial
GV300TP 4G WW User Manual
QSZTGV300TPMGUM0100 - 5 -
1. Introduction
The GV300TP 4G WW is a powerful GPS locator designed for vehicle or asset tracking. It has
superior receiver sensitivity, fast TTFF (Time to First Fix) and supports EGPRS/LTE Cat-M1/LTE
Cat-NB2/GPS tracker. Its location can be monitored in real time or periodically tracked by a
backend server or other specified terminals. It has Bluetooth. The GV300TP 4G WW has multiple
input/output interfaces that can be used for monitoring or controlling external devices. Based on
the integrated @Track protocol, the GV300TP 4G WW can communicate with a backend server
through the network to transfer reports of emergency, geo-fence boundary crossings, low
backup battery and scheduled GPS position as well as many other useful functions. Users can
also use GV300 TP 4G WW to monitor the status of a vehicle and control the vehicle by its
external relay output. System integrators can easily set up their tracking systems based on the
full-featured @Track protocol.
1.1 Reference
Table 1.GV300TP 4G WW Protocol Reference
SN
Document name
Remark
[1]
GV300TPMG @Track Air Interface Protocol
The air protocol interface between
GV300TP 4G WW and backend
server.
1.2 Terms and Abbreviations
Table 2.Terms and Abbreviations
Abbreviation
Description
AIN
Analog Input
DIN
Digital Input
GND
Ground
RXD
Receive Data
TXD
Transmit Data
GV300TP 4G WW User Manual
QSZTGV300TPMGUM0100 - 8 -
2. Product Overview
2.1. Check Parts List
Before starting, check whether the product is intact. If anything is missing, please contact your
supplier.

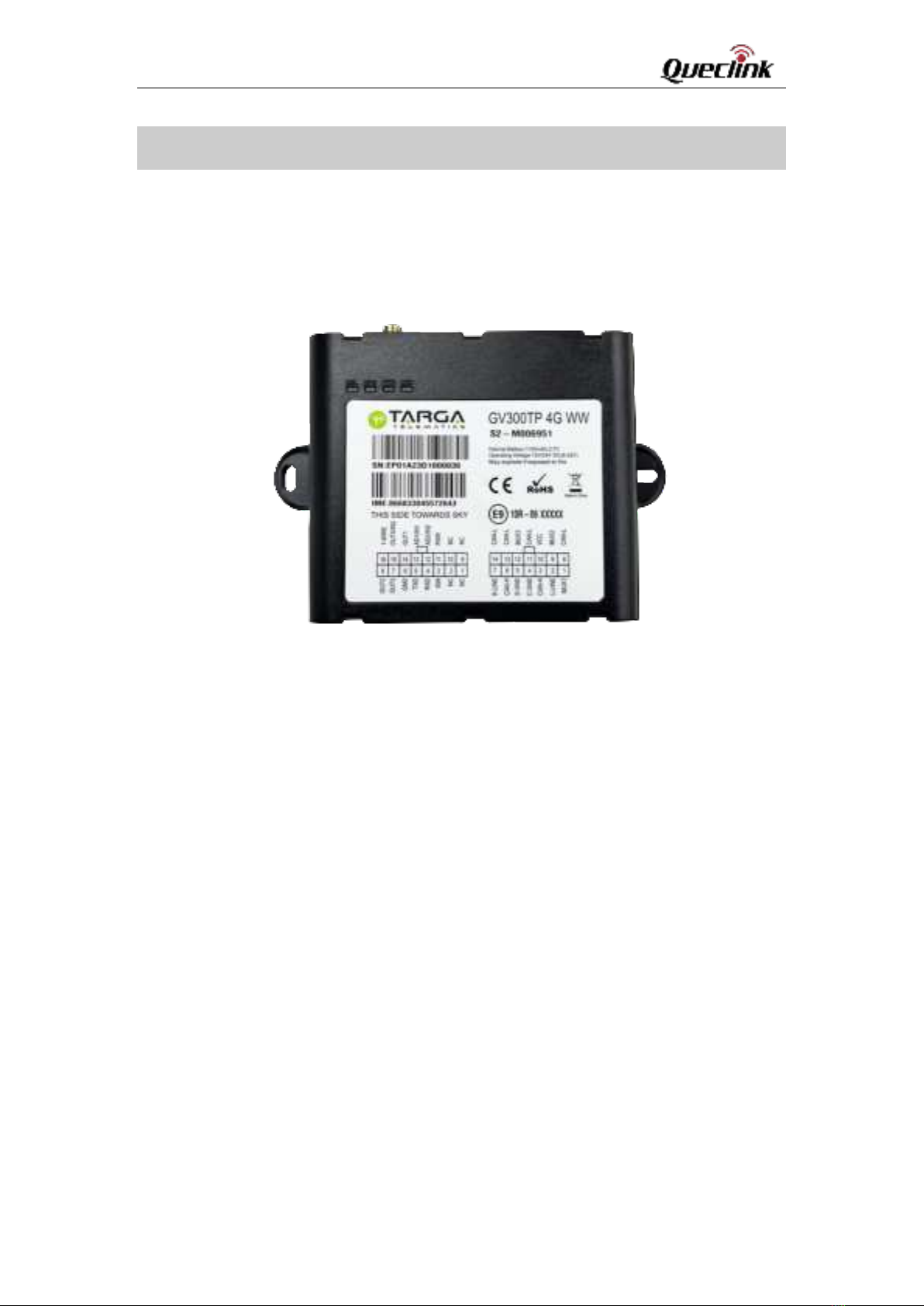

Figure 1. Appearance of GV300TP 4G WW
GV300TP 4G WW User Manual
QSZTGV300TPMGUM0100 - 9 -

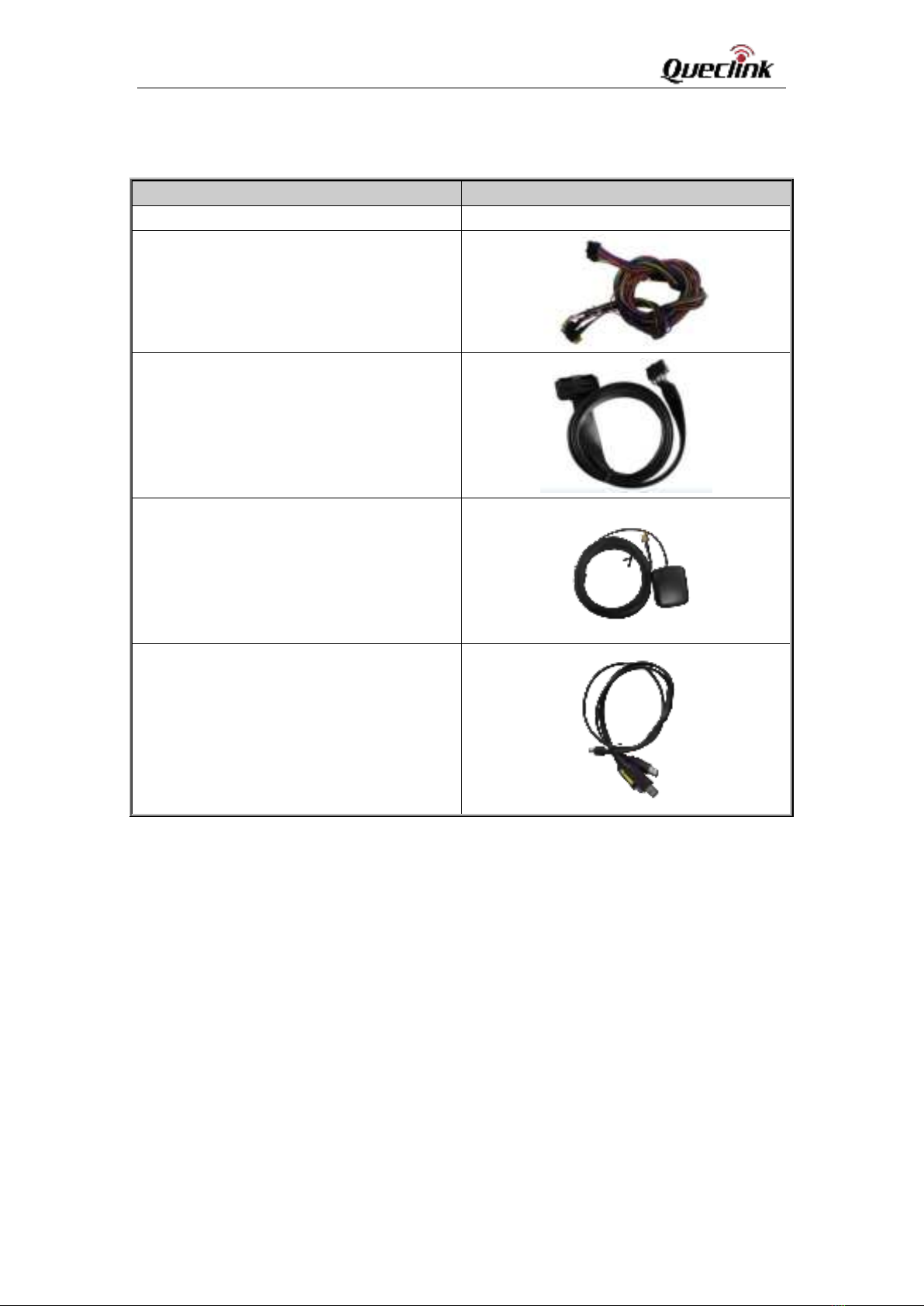

2.2. Parts List
Table 3.Parts List
Name
GV300TP 4G WW Locator
122*85.2*24.2 mm
Tracker Cable
OBD Cable
GPS Antenna (Optional)
Debug Cable (Optional)
2.3. Interface Definition

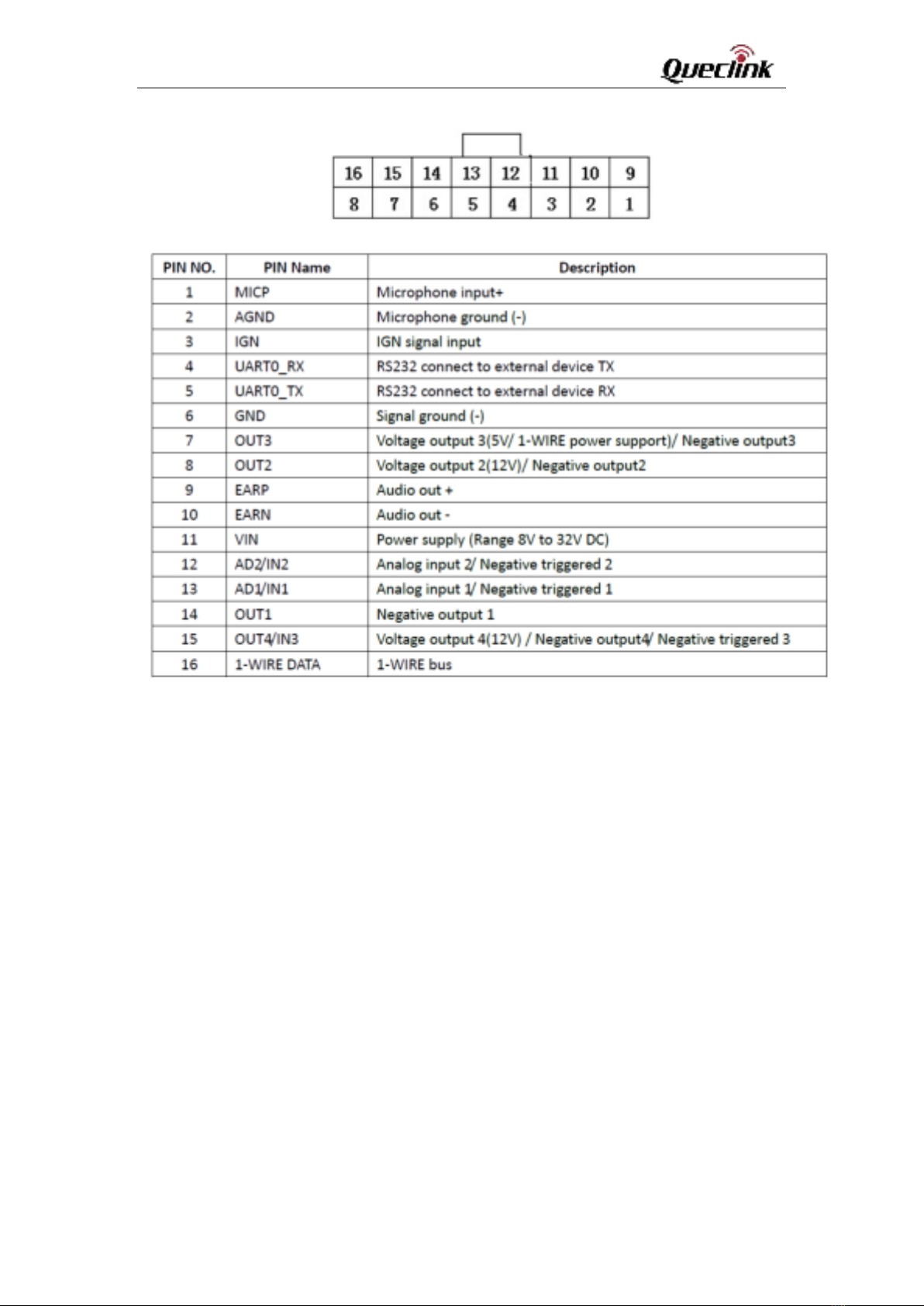

16-pin interface
GV300TP 4G WW User Manual
QSZTGV300TPMGUM0100 - 10 -

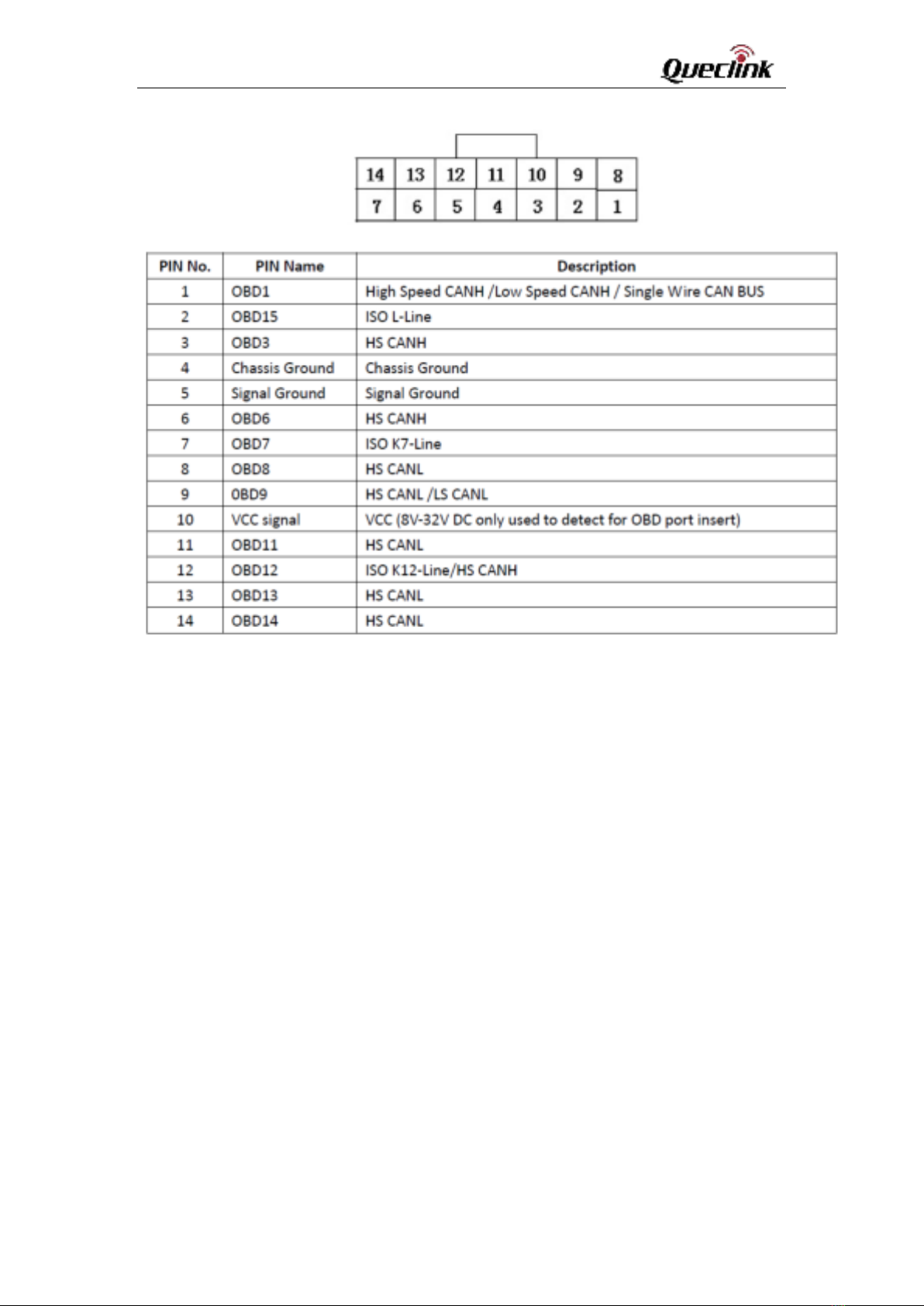

14-pin interface
GV300TP 4G WW User Manual
QSZTGV300TPMGUM0100 - 11 -
GV300TP 4G WW User Manual
QSZTGV300TPMGUM0100 - 12 -
3. Getting Started
3.1. Open the Case

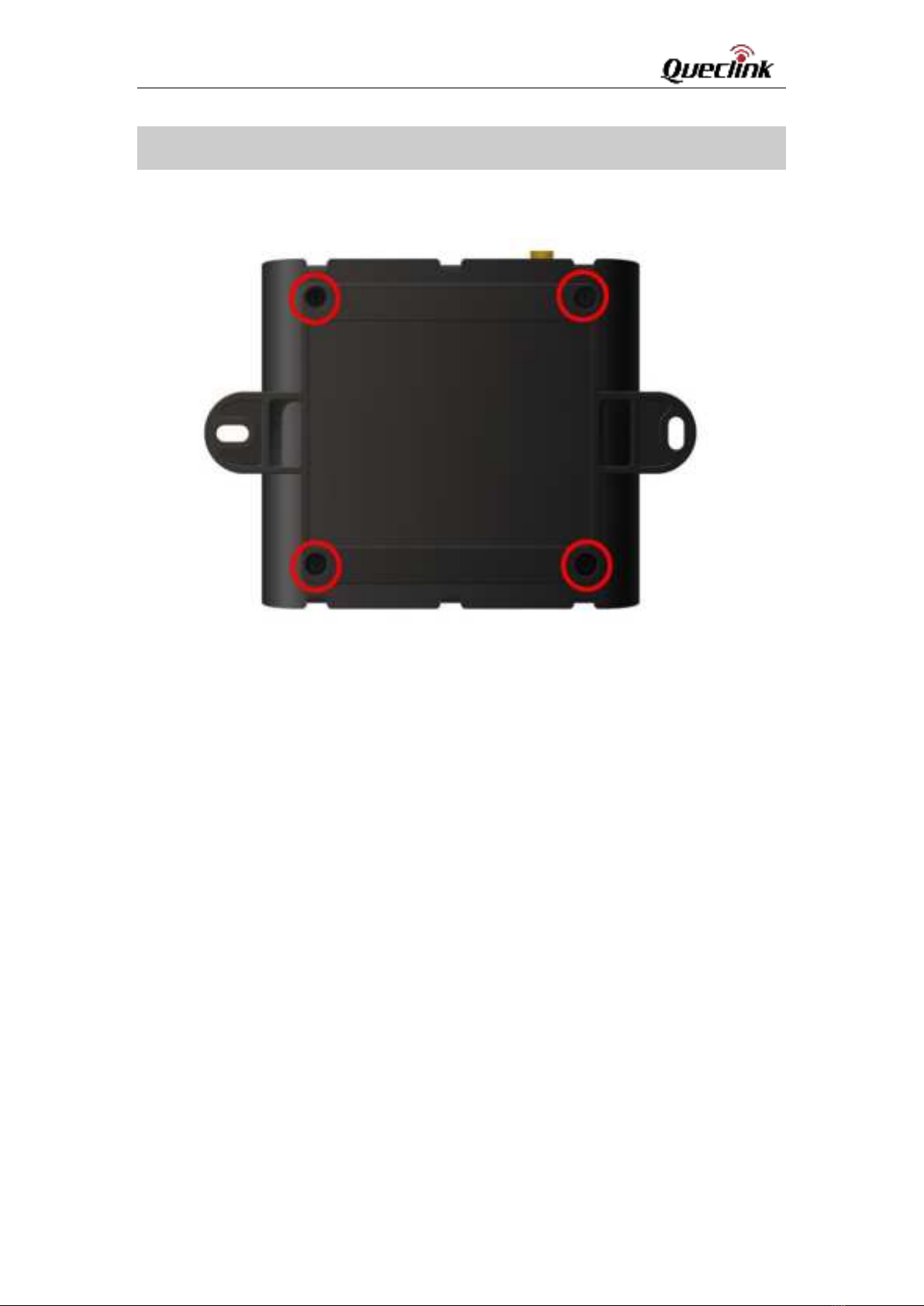

Figure 2.Open the Case
Loosen the screws at the back of the device.
3.2. Installing a SIM Card
Open the case and ensure the unit is not powered (unplug the cable and unplug the internal
battery). Slide the holder to open the SIM card holder. Insert the SIM card into the slot. Take care
to align the cut mark. Close the SIM card holder. Close the case.
3.3. Device Status LED
