QR2 Rigging Installation Guide
QR2: Pan/Tilt Wall Mounting System Order Ref: ACHPI-QR2
Kit Contents
• Wall-Mount assembly (swivelling)
• i-Spine
• Quick pin 8x50
• Screws (2x M10)
Installing the i-Spine
Remove the 2 top screws
that are installed in the
speaker then insert the lip
of the Spine to grab the
casing handle.
NOTE: The 2 x M10 bolts supplied with both the i-Spine should replace the previously installed screws in the speaker.
The M10 bolts are designed with a longer thread which provides increased strength and security to the system.
Swing it flat on the top of
the speaker box.
Bolt in and secure the Spine
(using fastener securing
compound) onto the
speaker with the 2 x M10
bolts included.
21 3
QR2 Rigging Installation Guide

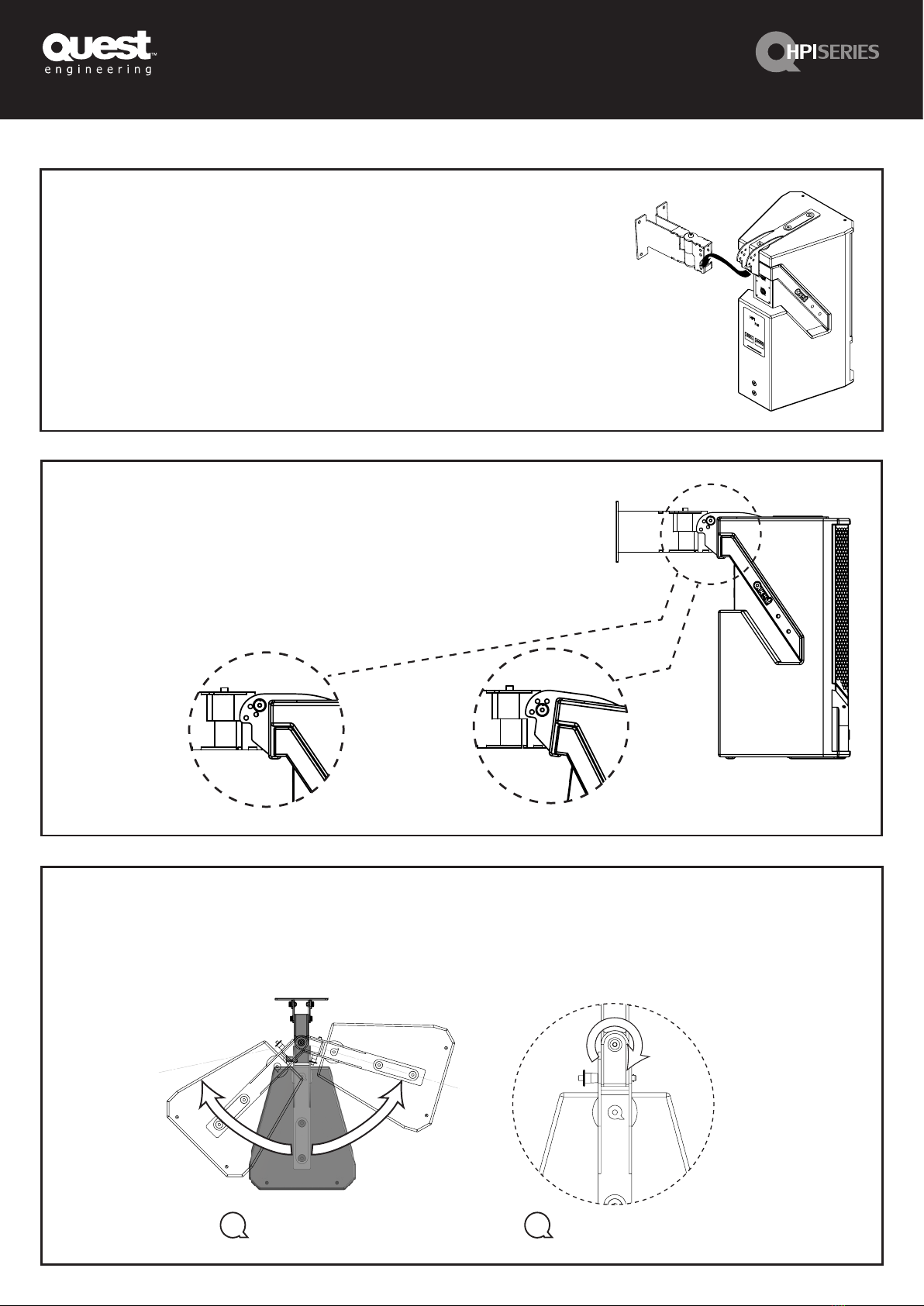

Adjusting and Locking Horizontal Pan.
The advantage of the swivelling assembly is the ability to set the pan angle from -75˚ to +75˚. The
cabinet can be locked in position by tightening the screw located on top of the pivot axis of the rigging
assembly.
Turn the Cabinet
1Tighten the top screw
2
Mounting the Speaker to the Wall
Bracket
Once the spine has been installed, mount to the wall bracket as follows:
1. Bolt the wall mount assembly (without the speaker attached) onto the wall.
2. Lift the speaker (now installed with Spine) and hook it onto the wall-mount. The
wall-mount is designed to safely support the weight of the box from this point.
Setting The Angle Of The Cabinet
Once the speaker has been mounted correctly, the angle at which
the speaker will be fixed can be adjusted by fitting the Q-Pin into the
correct hole. The standard kit offers the possibility to wall or beam
mount a speaker at -5 to -30 degrees. (Maximum angle of tilt can vary
according to installation environment).
0 degrees 7.5 degrees
QR2 Rigging Installation Guide
Safety Precautions
Avoid installing the mounting
hardware on unstable structures,
such as on unreinforced walls or
ceiling beams that are not designed
to carry extra weight.
Refer all installation work to the
dealer from whom the speaker was
purchased. Installation for flying
speaker systems requires extensive
technical knowledge and experience.
The speaker or rigging hardware may
detach if not correctly installed,
resulting in serious injury to people
below.
Check that all elevated work
platforms or other height access
devices (ladders etc.) will safely carry
the weight of the products to be
elevated and the weight of the
installation personnel before starting
the installation.
Be sure to follow the flying
instructions exactly as described. Do
not take shortcuts during the
installation and flying process.
Identify any possible risks or hazards
before beginning the setup\
installation. Time and care should be
taken so as not to expose yourself or
other workers to danger with unsafe
practices.
Check to confirm that suspension
wires are strong enough, correctly
terminated and sufficient to carry the
total load with at least a 4:1 safety
rating.
The connectors of the suspension
wires and belts must be securely
linked with those of the speaker or
rigging hardware.
Be sure to use screws supplied with
the optional flying hardware when
installing any mounting hardware or
the speaker itself.
Install the unit only in a location that
can structurally support the weight
of the unit and the mounting bracket.
Do not use other methods than those
specified to mount the speaker
boxes.
Use nuts and bolts that are
appropriate for the ceilings or wall’s
structure and composition.
Use only the specified mounting
brackets. No warranty is provided
due to damage resulting from a
failure of after-market accessories.
After installation periodically have the rigging and installation
fittings checked by a competent technician or rigging
specialist. Failure to do so may result in a loudspeaker or
rigging element falling and causing injury.
Caution
www.questengineering.com.au
Quest Engineering Pty. Ltd.
130 - 140 Melrose Drive, Tullamarine Vic. 3043 Australia
Phone: +61 (03) 8373 6868
