Quest Engineering Flying ModelRocket KitL Manuale utente

Things you'll need to assemble this kit

Information about Foam Parts, Paint and Fillers

11820 - Body Tube 3.5 Diam x 5.5" Long

11824 - Orange Capsule Base Shoulder Ring

16032 - Laser-cut Ring motor mount rear

16033 - Laser-cut Ring motor mount forward

16034 - Laser-cut Ring nose cone shoulder

FNC2 - Foam Capsule

10303 - Yellow Motor Mount Tube

49000 - Motor Clip

14000 - Blue Thrust Ring

50051 - Kevlar* Cord 18"

50011 - White Elastic Shock Cord 18"

50061 - Kevlar* Nose Cord

82302 - Parachute Sub-assy (3)

33069 - Laser-cut Balsa Fin Set - Small

33070 - Laser-cut Balsa Fin Set - Large

10008 - 3 inch launch lug

45010 - Lag Bolt Nose Weight

3014-1010 - Kit Instructions

3014-1030 - Decal

FNC1 - MMX Foam Nose Cone (2)

*Kevlar is a

registered

trademark of

Dupont

Hobby Knife, Pencil, Paint Brush and Razor Saw

Sandpaper (220 or 320 & 400 Grit)

Elmer's Carpenter's Wood Filler

Wood Glue

Alphatic Resin glues

work best such as

TITEBOND or

ELMER'S

CARPENTER'S

WOOD GLUE

Tape & Paint

Scotch Magic

Tape or Paper

Masking Tape

and Foam Safe

Spray Paint.

(See below for

Foam Safety Info)

Many brands of Spray Paint are not "Foam Safe" and may melt the foam. ALWAYS test

the brand you intend to use FIRST before spraying the entire Foam part. We recommend

testing your paint on the base of the Large Foam Capsule before starting assembly (it

will get covered up by the Orange Shoulder and Cap Ring in STEP 13.) Most brands of

"Acrylic" or water based paint will not harm the Foam.

Only use water based fillers such as Elmer’s Carpenters Wood Filler

on your Foam Parts. Elmer’s Carpenters Wood Filler is a thick paste,

so we recommend thinning it with about 50% water to 50% paste.

Test on flat end of cone .

Parts List

MLAS

MLAS Max

Launch

Abort

System

Max

Launch

Abort

System

Flying Model

Rocket Kit

Prod. No. 3014

Assembly

Instructions

Assembly

Instructions

BEFORE STARTING ANY ASSEMBLY READ THROUGH ALL THESE INSTRUCTIONS. IT IS BEST TO TEST FIT

ALL PARTS BEFORE APPLYING ANY GLUE. READ AND FOLLOW THE N.A.R. MODEL ROCKET SAFETY CODE.

PAGE01

A. Place the Blue Thrust Ring up against the side of the Yellow

Motor Mount Tube and use it as a guide to cut a 1/8 inch long slit in

the side of the Yellow Motor Mount Tube as shown.

B. Place the Yellow Motor Mount Tube up against the ruler provided

below. Make a pencil mark on the tube 1/2 inch from the uncut end

as shown, then draw that all the way around the tube's diameter.

C. Insert the Motor Clip into the slit in the Yellow Motor Mount Tube.

D. Wrap a piece of tape all the way around the Yellow Motor Mount

Tube to hold the Motor Clip in place.

Step 01

1/2 inch

MLAS

Flying Model

Rocket Kit

A. Apply a bead of wood glue around inside edge

of Yellow Motor Mount Tube as shown.

B. Insert the Blue Thrust Ring into the Yellow Motor

Mount Tube so it is even with the end of the Yellow

Motor Mount Tube.

Step 03

Apply bead of Wood Glue here

Place Yellow Motor Mount

Tube here.

Place pencil mark on tube here.

Step 02

A. Hold the Yellow Kevlar Cord and the White Shock Cord side by side. Pull one end of each cord so that they are

even with each other. While holding the two cords together, tie a single parallel overhand knot approximately one inch

from the ends as shown.

B. Gently pull on both cords to

set the knot and prevent it from

slipping.

Yellow Kevlar

White Shock

Single Parallel

Overhand Knot

Knot

NOTE THIS IS A VERY IMPORTANT STEP. IF YOU TIE A DIFFERENT TYPE OF KNOT THE SHOCK CORDS MAY SEPARATE DURING FLIGHT!

C. Apply a small amount of

Wood Glue on the ends of

both cords to prevent them

from fraying.

A. Use two overhand knots to tie the Yellow Kevlar Cord around the Yellow Motor Mount Tube as shown.

Step 04

PAGE02

INCHES

MLAS

Flying Model

Rocket Kit

Step 11

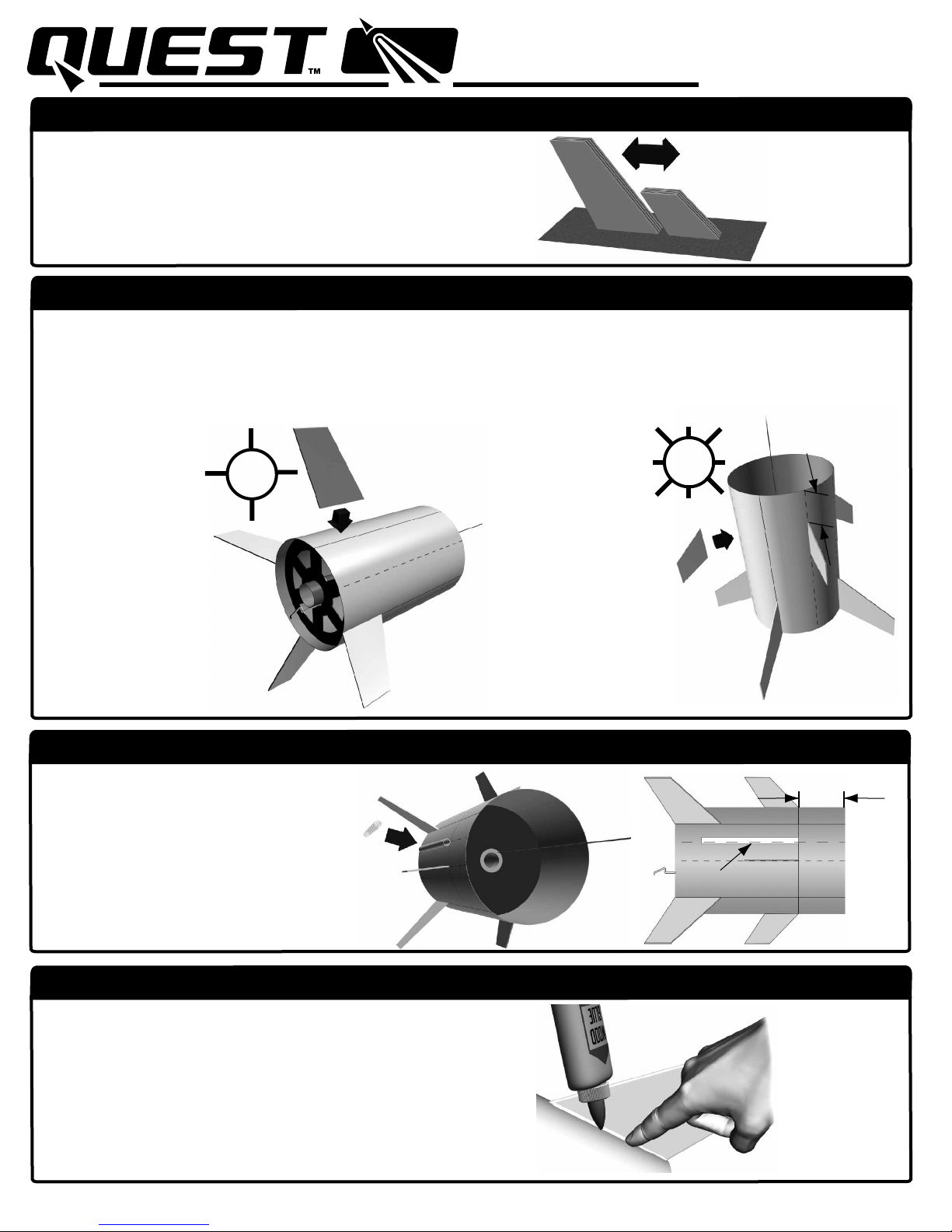

A. After the Fin glue joints have completely dried,

apply a thin bead of Wood Glue to both sides of a

fin-body joint. A.

B. Smooth out the glue with your finger. Wipe

excess glue off your finger onto a tissue or paper

towel.

A. Carefully remove each of the

Laser Cut Balsa Fins from the

sheet with a sharp hobby knife.

B. Stack like fins together and

sand all edges smooth.

How to make a "Double Glue Joint" for extra fin strength

A. Apply a small line of wood glue to the root edge of the fin.

B. Attach it to the body tube in correct position.

C. Remove the fin and wipe away any excess glue on the fin and the body tube so there is only a very thin layer of glue left.

D. Wait until the glue is dry, then re-apply a new line of glue to the root edge of the fin and re-attach the fin.

Step 08

Slide stack of Fins

back and forth

across sandpaper

3014-1010A

Step 09

Starting with Rear

Fins, one at a time

apply the fins on a

solid pencil line so

it's trailing edge is

even with the end

of the White Body

Tube. Repeat this

step for the

remaining Rear

Fins.

Start with Forward

Fins, one at a time

apply the fins on the

dotted lines so it's

leading edge is even

with the pencil mark 1

1/2 inches from the

front end of the White

Body Tube. Repeat

this step for the

remaining Forward

Fins.

PAGE04

1 1/2 inch

A. Apply a small line of Wood Glue

along the root edge of the Launch Lug

and position it along the Launch Lug

line. Set the Launch Lug so it's leading

edge is even with the mark 1 1/2

inches from the end of the White Body

Tube.

Step 10

1 1/2 inch

Launch Lug

MLAS

Flying Model

Rocket Kit

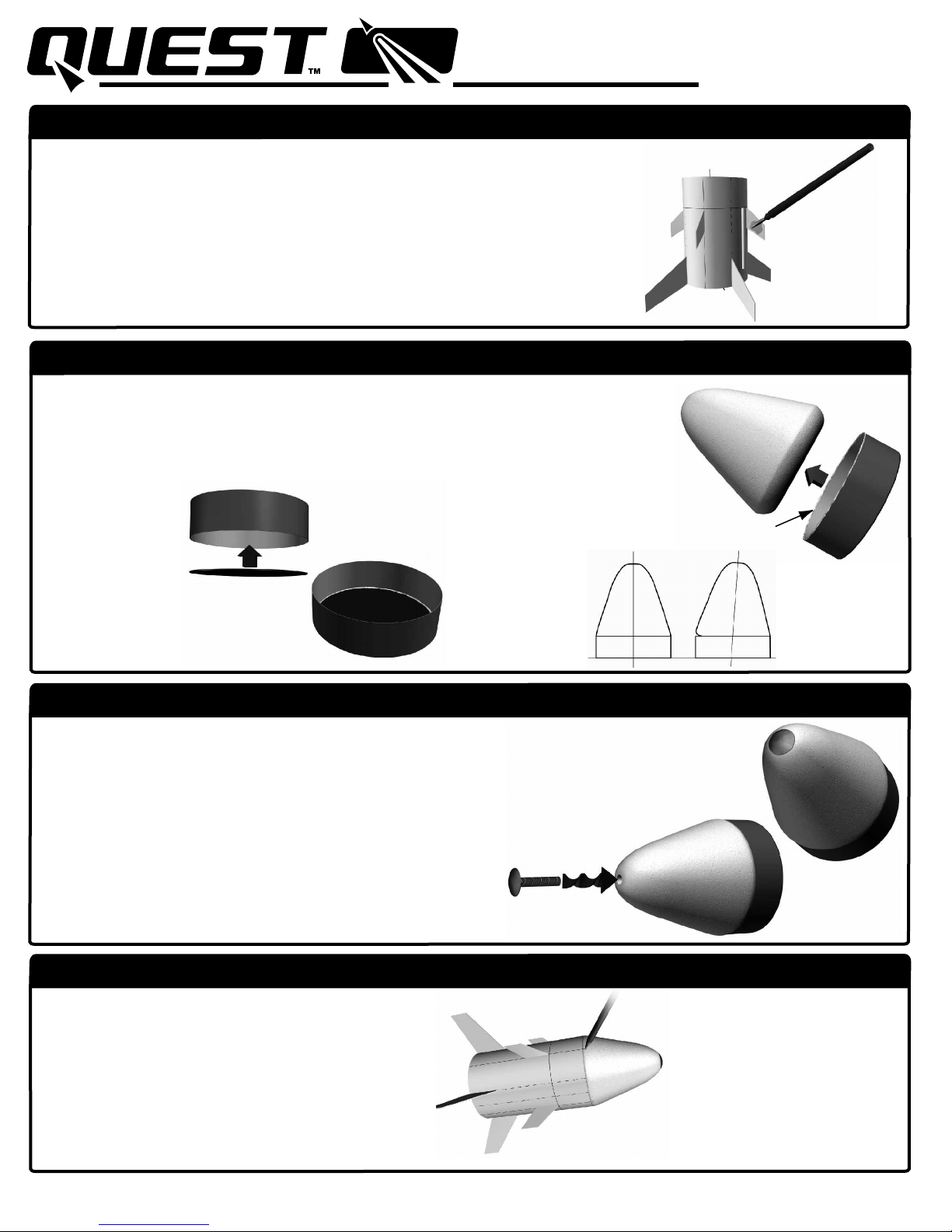

Step 15

A. Test fit (DO NOT

GLUE) the Foam

Capsule in the open

end of the Main Body

Tube.

B. Make a pencil

mark on the Capsule

where each Forward

Fin Line is.

C. Remove the Foam

Capsule Assembly

from the Main Body

Tube.

NOTE: BE CAREFUL

HANDLING THE

FOAM CAPSULE

AND COMPONENTS,

IT CAN BE FRAGILE

AND DENT EASILY.

Step 14

A. Insert the nose weight piece in the hole in the

tip of the capsule. Keep it straight while twisting it

into the hole in the top center of the Foam

Capsule. Leave a small gap between the bolt head

and the nose cone tip to allow for a line to be tied

around it later.

NOTE: BE CAREFUL HANDLING

THE FOAM CAPSULE, IT CAN BE

FRAGILE AND DENT EASILY.

A. Test fit the Black Capsule Ring Cap by sliding it into

the Orange Capsule Shoulder Ring. Make sure the

bottom of the Ring Cap is even with bottom edges of

the Orange Ring by setting it flat on a table.

B. Place a bead

of Wood Glue

where the Ring

Cap meets the

inside of the

Orange Ring.

Allow to dry

before continuing.

C. Put a thin bead of Wood

Glue around the inside

edge of the open end of the

Orange Capsule Shoulder

Ring. Then attach it to the

Foam Capsule, keeping

them aligned and level as

shown. Set aside to dry.

Step 13

YES NO

Apply bead of

Wood Glue here

Step 12

A. Apply a coat of Wood Filler to each Fin. When the Filler is dry,

lightly sand each Fin.

A. After all the glue is completely dry, mix a small amount of Wood

Filler with very small amount of water until it is like a thin syrup

B. Repeat the sanding and sealing until the surface of each

Fin is smooth.

PAGE05

MLAS

Flying Model

Rocket Kit

Step 18

B. Apply a coat of thinned Wood Filler

to the Capsule. When the Filler is dry,

lightly sand the Capsule.

C. Repeat the sanding and filling until

the surface of the Foam Capsule is

smooth and no foam is exposed.

Step 16

A. Locate the two small foam nose

cones. Using a razor saw, carefully

cut each one in half lengthwise to

create four "thrusters".

B. Lightly sand rough

edges and mold lines

with 400 Grit Sandpaper.

NOTE: BE CAREFUL HANDLING THE FOAM NOSE CONE,

IT CAN BE FRAGILE AND DENT EASILY.

Step 17

A. Using Wood Glue, attach

one of the thrusters to the

capsule at one of the pencil

marks made in Step 15. Be

sure it is straight up and

down and the flat end is

flush with the lip around the

capsule. Allow to dry before

continuing.

B. Using Wood Glue,

attach the other

thrusters one at a time

to the capsule 90o

apart. Allow each to

dry before continuing.

PAGE06

A. Mix a small amount of Elmer's Carpenters Wood

Filler with water.

Elmer’s Carpenters Wood Filler is a

thick paste, so we recommend thinning it with about 50%

water to 50% paste.

Mask Orange

Shoulder Ring Mask Orange

Shoulder Ring

MLAS

Flying Model

Rocket Kit

Step 21

A. Using masking tape, mask out the black areas

shown here. Also mask the Orange Capsule

Shoulder Ring to prevent any paint from getting on it.

B. Paint the black areas with

Foam Safe Gloss Black Spray

Paint.

F. After the paint has dried, remove the Capsule Assembly by

gently twisting and pulling it out or it might remain stuck.

Step 19

A. Slip the Capsule Assembly into the Main Body Tube. DO NOT GLUE!

D. Once again, slip the Capsule Assembly into the Main

Body Tube. DO NOT GLUE! Twist it a few times to ensure

the fit is not too tight.

B. Paint the entire rocket with Foam Safe Primer. Follow

instructions on the spray can for best results.

C. After the primer has dried, remove the Capsule Assembly

by gently twisting and pulling it out or it might remain stuck.

E. Paint the entire rocket with Foam Safe Gloss White.

Follow instructions on the spray can for best results.

PAGE07

Step 20

A. After the Foam Safe Gloss White has completely

dried, cover the Body Tube with paper or a plastic

bag, with the fins completely exposed. Use Masking

Tape to secure the cover to be even with the root of

the fins. Leave the bottom open so it gets painted

as well, but cover the top so no paint gets inside.

B. Insert a rolled up newspaper in the Motor

Tube to hold the rocket with while painting.

Paint the exposed areas of the rocket with

Foam Safe Gloss Black. Follow instructions

on the spray can for best results.

Insert a rolled up

newspaper in the

Motor Tube

C. After the paint has dried, remove the

Masking tape and paper.

Step 23

Step 24

A. Tie one end of the thin Kevlar

cord around the Nose Bolt.

A. Tie a 2" loop in the end

of White Shock Cord.

B. Tie a 2"

loop in the

other end of

the thin

Kelvar cord.

C. Pass the

Shroud Line

loops of one of

parachutes

through the loop

in the Kevlar and

pull them

straight.

B. Pass the

Shroud Line

loops of the third

parachute

through the loop

in the White

Shock Cord and

pull them straight.

D. Repeat

Step "C"

for second

parachute.

MLAS

Flying Model

Rocket Kit

Step 22

A. Remove the Gripper

Shroud Line Fasteners from

the strip one at a time.

Always handle Grippers by

the edge so that you don't

touch the adhesive. Place

each Gripper on one of the

six corners of the parachute.

A. B. C.

B. Firmly squeeze

each Gripper and

parachute material

between your fingers.

C. The Shroud Line is pre-cut

into three equal lengths. Take

one length of the Shroud Line,

pass it through the hole in the

Gripper and tie one end with two

overhand knots. Tie the other

end of the shroud line to the

nearest Gripper. Repeat for

remaining Shroud Lines.

PAGE08

3014-1010B

Step 25

MLAS

Flying Model

Rocket Kit

A. When all paint is dry, apply the Water Decals. Use scissors to

cut out the decals.

B. Place the decal in lukewarm water. DO NOT PLACE MORE

THAN ONE DECAL AT A TIME IN WATER. The decals will curl

when placed in water. When the decal starts to uncurl,

(approximately 30 seconds) remove decal from water and slip from

backing into position on the rocket. Blot each decal dry with a

tissue.

BA C E

"VI" On lower

hidden fin

"I" On upper

hidden fin

Place

anywhere

you like

PAGE09

Note: For the best

appearence, cut

decals as close to the

color print as you can.

You may have to cut

Decal "C" in half to

fit it under forward fins.

3014-1010C

Estimated Altitude

Crumple up

a piece of

wadding and

gently push

down into

space at top

of Rocket

Motor.

This line runs to

tip of Capsule

What Else You Will Need

Prepping for Launch - Step01

Prepping for Launch - Step02

Prepping for Launch - Step03

MLAS

FLYING YOUR MLAS ROCKET

Flying Model

Rocket Kit

A. Place 3 sheets of wadding inside the body tube. Set them so they are

flat against the Black Mounting Ring.

B. Crumple up a piece of wadding and gently push down into space at

top of Rocket Motor before inserting into rocket.

A. Grab the parachute at it's center and pull the shroud lines taut so that

the parachute is in long narrow triangle shape.

B. Fold the parachute in thirds lengthwise, and DO NOT wrap the

shroud lines around the parachute. See the illustration to the right for

clarification.

TIP: Lightly dust the parachute with Talcum or Baby Powder to keep it

from sticking together. This works well in hot and humid or very cold

weather.

A. Place the folded parachute for the Main Body Tube in first. Set it

directly atop the Wadding inserted in Step 01A. Set the shock cord and

shroud lines loosely atop the parachute.

B. Now place the two folded Capsule parachutes in the Main Body

Tube. Set the shock cord and shroud lines loosely atop the parachutes.

C. Now insert the Capsule into the Main Body Tube, making sure that

lines and cords do not get caught between the shoulder of the Capsule

and the Body Tube, except the Capsule Parachute line, with must pass

between the Capsule Shoulder and the Body Tube.

To successfully fly your model rocket you will need the following items:

Quest Launch Pad (No. 7610)

Quest Launch Controller (No. 7510)

Rocket Motor Estimated Altitude

B6-2 275 Feet

B6-4 300 Feet

Quest Parachute Recovery Wadding (No. 7021)

Quest Rocket Motor: B6-2, B6-4

PAGE10

READ AND FOLLOW THE ENCLOSED

LAUNCHING PROCEDURES SHEET.

READ AND FOLLOW THE N.A.R.

SAFETY CODE DURING ALL YOUR

MODEL ROCKET ACTIVITIES.

Manufactured by:

Quest Aerospace, Inc.

PO Box 2409

Pagosa Springs, CO

81147

Altri manuali Quest Engineering Giocattolo

Quest Engineering

Quest Engineering Astra Manuale utente

Manuali Giocattolo popolari di altre marche

marklin

marklin 37321 Manuale utente

Canon

Canon PAPER CRAFT Manuale utente

GREAT PLANES

GREAT PLANES Pitts M-12S Manuale utente

NOCH

NOCH 14261 Manuale utente

Hausler

Hausler 450 SE V2 Manuale utente

Dynaflite

Dynaflite Daydream Manuale utente

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuale

Kenner

Kenner Batman 63651 Manuale utente

LEGO

LEGO 8527 Manuale utente

iKarus

iKarus ECO 8 Manuale utente

Multiplex

Multiplex EasyStar II Manuale di istruzioni

Walkera

Walkera 38 Manuale di istruzioni

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuale utente

MD MXION SWD Manuale utente

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuale utente

marklin

marklin 39671 Manuale utente

Meccano

Meccano 15103 Manuale utente

LEGO

LEGO TECHNIC 8735 Manuale utente
