Quictent GM1203M Manuale utente
The Parts List varies by the model. Please check which one you have.
User Manual
for Quictent Pop up Canopy
10' x 10'
10' x 20'
8' x 8'
9' x 9'
6.6' x 6.6'
Please read, understand, and practice the guidelines in this user manual before use, and
keep it for future reference.
Tableof Contents
About Quictent
...........................................................................
1
..............................................
3
Small Standard Pop up Canopy (3 Sizes)
.....................................................
14
9’ x 9’ Slant Leg Pop up Canopy
....................................................
8
10’ x 20’ Standard Pop up Canopy
..................................................................................
19
Warranty
..................................................................................
20Appendix
1
Our Vision
Creating unique spaces to meet every specific need, and become a part of America's landscape.
Our Mission
To keep innovating and provide a wide range of reliable shelters and shades at consumer-grade prices with custom-
er-first service.
Our Service
The customer-centric services are what we at Quictent take great pride in. In addition to the hassle-free warranty
covering all Quictent products, an industrial-leading support team is standing behind at all times. Whenever you need
help or have any suggestions and comments about our products, do not hesitate to reach us, you’re sure to get a
to-the-point reply in 12 hours (working days).
About QuictentAbout QuictentAbout Quictent
Founded in the early 21st century, Quictent has grown into a popular brand with reliable products and excellent
customer services during the past decades. We started with pop up canopies, and then expanded to other 6 categories
for shelters and the like including party tents, carports, greenhouses, shade sails, patio umbrellas and grow tents.
Driven by the vision to create unique spaces to meet every specific need and become a part of America's landscape,
we at Quictent would spare no effort to keep innovating.
About Quictent
IMPORTANT
We’d love to hear from our customers. If you have any questions about the manual, our products, and services,
or would like us to help in any way, please feel free to contact the support team. We will reply in 12 hours
(working days).
This user manual applies to Quictent pop up canopies. It will help you to get to know your Quictent pop up
canopies. Please read the guidelines in this manual and keep the manual for future reference.
We may update the manual without notice in advance. You can always search “Quictent Instructions” online
for the latest version.
2222
Safety Instructions
You should read, understand, and practice safety instructions in this chapter. For any damages due to not obeying
guidelines as instructed, the owner (user) should take full responsibility.
Please do NOT leave your canopy unattended outdoors overnight because it’s designed to be a temporary
structure.
Please ALWAYS keep your canopy away from any heat and fire sources. For example, do not use a grill or
light a fire inside.
Please ALWAYS take down the canopy for any potential inclement weather including but not limited to
rains, winds, storms, snow, etc.
Please ALWAYS stop using the canopy immediately if any damage is found, or Quictent will not be liable
for any loss thereafter.
Please ALWAYS ensure the canopy is clean and dry before storing it.
Please ALWAYS clean the fabric with a mild detergent and you'd better not put the Fabric into a washing
machine.
Reminder
Please keep the original packaging cartons in case of a return or an exchange.
You can ALWAYS contact the support team for replacement parts whenever in need.
Please do NOT place heavy objects on the top of your canopy.
Please ALWAYS secure your canopy with stakes & ropes. If applicable, we highly recommend you use extra
weights (e.g., sandbags) to weigh it down.
3
VERY IMPORTANT!
Parts List
4m x 6m (Model # GM1403W)
Small Standard Pop up Canopy (3 Sizes)
There are 3 small-sized standard pop up canopies in 10' x 10' (Model #GM1203M &Model #GM1203), 8' x 8' (Model
#GM1209M &Model #GM1209), and 6.6' x 6.6' (Model #GM1207M). You’ll receive one (1) box for each model. Please
pay particular attention to making sure all parts are numbered and graphically indexed as shown on the Parts List
below, so does the quantity for each part. If you need any help, please CONTACT THE SUPPORT TEAM with the
ORDER NUMBER, REQUIRED PARTS (NAME, QUANTITY, AND PART NUMBER), PICTURES (OR VIDEO
CLIPS, IF APPLICABLE), we’ll get back to help out soon.
Applicable Models: #GM1203M, #GM1203, #GM1209M, #GM1209,#GM1207M
The parts for a model in one size can NOT be used for models in other sizes.
The parts numbered from #1 – #12 are for the pre-assembled Frame (#A), they are the
same for the models in the same size. That is, the Frame for Model #GM1203M and
Model #GM1203 is interchangeable, it goes the same with Model #GM1209M and
Model #GM1209.
The Roof Cover (#B) for one model can NOT be used for another model even though
the two models are in the same size. For example, the Roof Cover for Model #GM1203M
can NOT be used for Model #GM1203 the two models are both in 10’ x 10’.
Model #GM1203M, Model #GM1209M, and Model #GM1207M have a Roof
Cover (#B) and two piece Mesh Sidewalls (#C1).
4
Part
Number Diagram Description Quantity
(10’ x 10’ , GM1203M &
GM1203)
Quantity
(8’ x 8’, GM1209M
& GM1209)
Quantity
(6.6’ x 6.6’,
GM1207M)
#A
#B
#C1
#C2
#C3
#D
#E
#F
#G
Frame
(See Details
Below)
Roof Cover
Mesh Sidewall
Window
Sidewall
Zipper
Sidewall
L-Shaped
Stake
Tie-Down
Rope
Sand Bag
Roller Bag
1 1 1
1 1 1
1 1 1
22
2
22/
8 8 8
4 4 4
4
Model #GM1203 and Model #1209 have a Roof Cover (#B), 2 Window Sidewalls
(#C2), and 2 Zipper Sidewalls (#C3).
Only Model #GM1203M, Model #GM1209M, and Model #GM1207M have 4
Sandbags (#F).
We recommend you put your canopy into the Roller Carry Bag (#G) whenever storage or
transportation is required.
(For Model
#GM1203M ONLY)
(For Model
#GM1203 ONLY)
(For Model
#GM1209M ONLY)
(For Model
#GM1209 ONLY)
/
2
(For Model
#GM1203 ONLY)
4
(For Model
#GM1203M ONLY)
2
(For Model
#GM1209 ONLY)
4
(For Model
#GM1209M ONLY)
55
Part
Number Diagram Description
Quantity
(10’ x 10’ , GM1203M &
GM1203)
Quantity
(8’ x 8’, GM1209M &
GM1209)
Quantity
(6.6’ x 6.6’,
GM1207M)
Details for Frame (#A)
#1
#2
#3
#4
#5
#6
#7
#8
#9
#10
#11
#12
Lower Button
Upper Button
Hinge
Y-Shaped Bar
Joint
Top Support
Bar Joint
Top Center
Connector
Upper Leg
(45.3″)
Lower Leg
(37″)
Y-Shaped
Top Support
Bar
X-Shaped
Cross Bar
Bracket for
X-Shaped
4 4 4
4 4 4
4 4 4
4 4 4
4 4 4
12 12 8
12 12 8
1 1 1
4 4 4
4 4 4
4 4 4
4 4 4
(40.6”) (34.4”) (28.3”)
(38.6”)
(40.6”) (36.6”) (36.6”)
(38.6”)(32.3”)

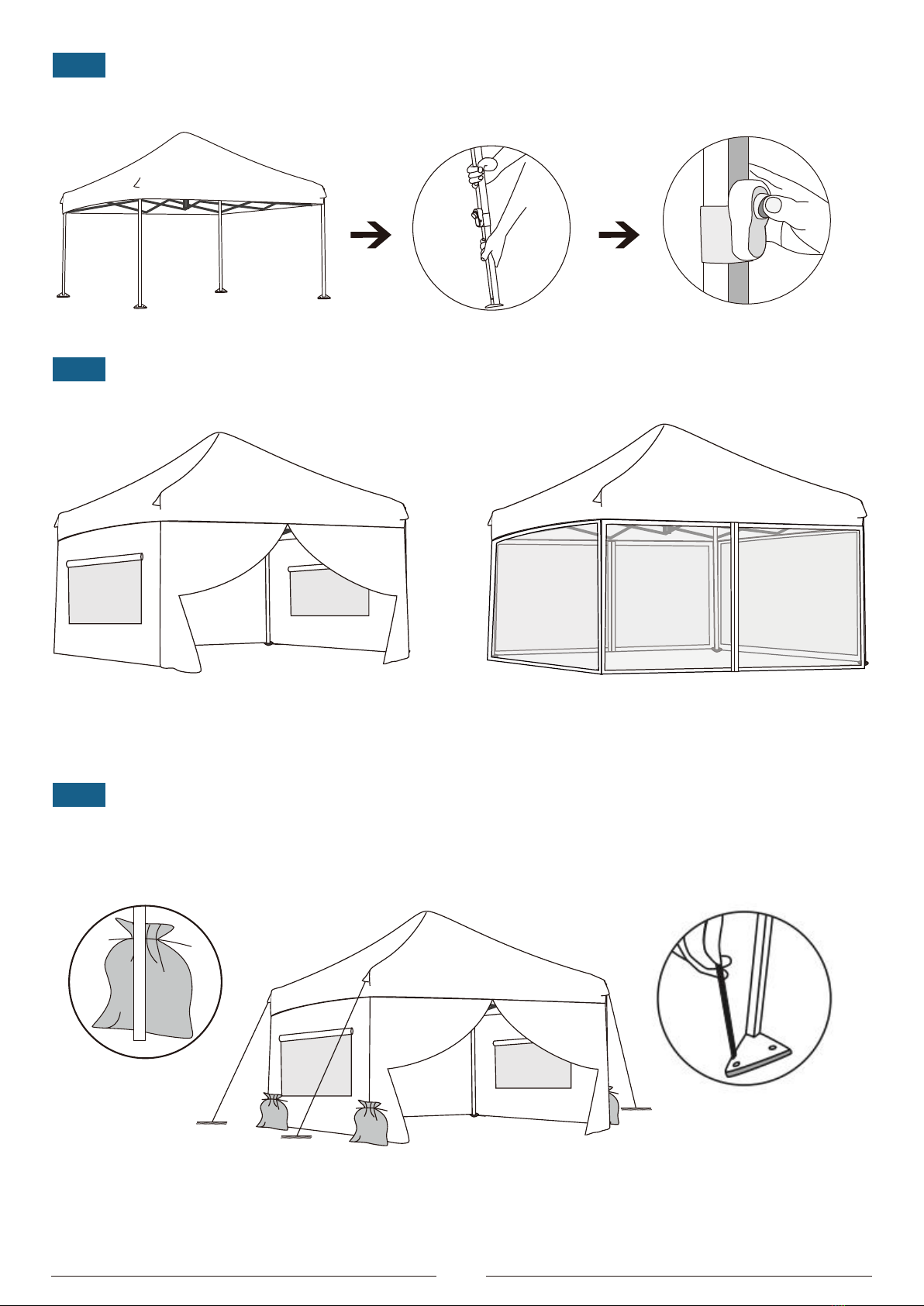

Assembly
Step 1 Take out the pre-assembled frame, grasp the two outer legs and lift the frame slightly off the ground,
and then pull the frame to open while stepping backward.
Step 2 Attach the roof cover to the frame by matching the hook and loop straps inside the 4 corners of the
roof cover with the hook and loop straps at each frame corner, then fully unfold the frame.
Step 3 Lock the legs (#7) by pushing up the crossbars until you hear the upper buttons click.
56
Please check to make sure that you have all the parts listed in the Parts List.
We recommend at least 2 adults for the assembly.
7
Step 4 Extend the legs and adjust them to a proper height by pushing down the leg-release buttons.
There are 3 height options.
Step 5 Attach the sidewalls to the frame with built-in Velcro tapes as per your needs.
Step 6 Secure the whole structure with the anchoring accessories.
You can also use some extra weights (for example, sandbags) to weigh down your
canopy.
Reminder:
Note:
（GM1203/GM1209） （GM1203M/GM1209M/GM1207M）
