Quoizel NY8317AC Manuale utente

Part Description Quantity

A Crossbar 1pc.

1pc.

2 pcs.

Fixture Body

Hex Nut

Lock Washer

Package Contents

Quoizel, Inc.

6 Corporate Parkway

Goose Creek, SC

29445

Customer Service

Phone 631.273.2700

Fax 631.231.7102

www.quoizel.com

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing

the fixture. We strongly recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool

before removal. Do not subject glass parts to any shock while in operation or shattering may result.

2012 QuoizelInc.

Mounting Ball

Mounting Screw

Assembly Instruction Sheet #IS-NY8317AC

For Style NY8317AC

1of6

Pleasegoto forproductcleaningtips.Gotothe

selection.

www.quoizel.com Care+Maintenance

ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wire

strippers,electricaltape,safetyglasses.

EstimatedAssemblyTime:20-30 minutes

Preparation:Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage

contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissing

ordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer

serviceforreplacementparts.

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

LightSource: (2) 60WMaximumCandelabraBase

2 pcs.

GCandle Cover

RevisedDate:2016-09-13

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

NY8317AC

FINISH: AGED COPPER

2of6

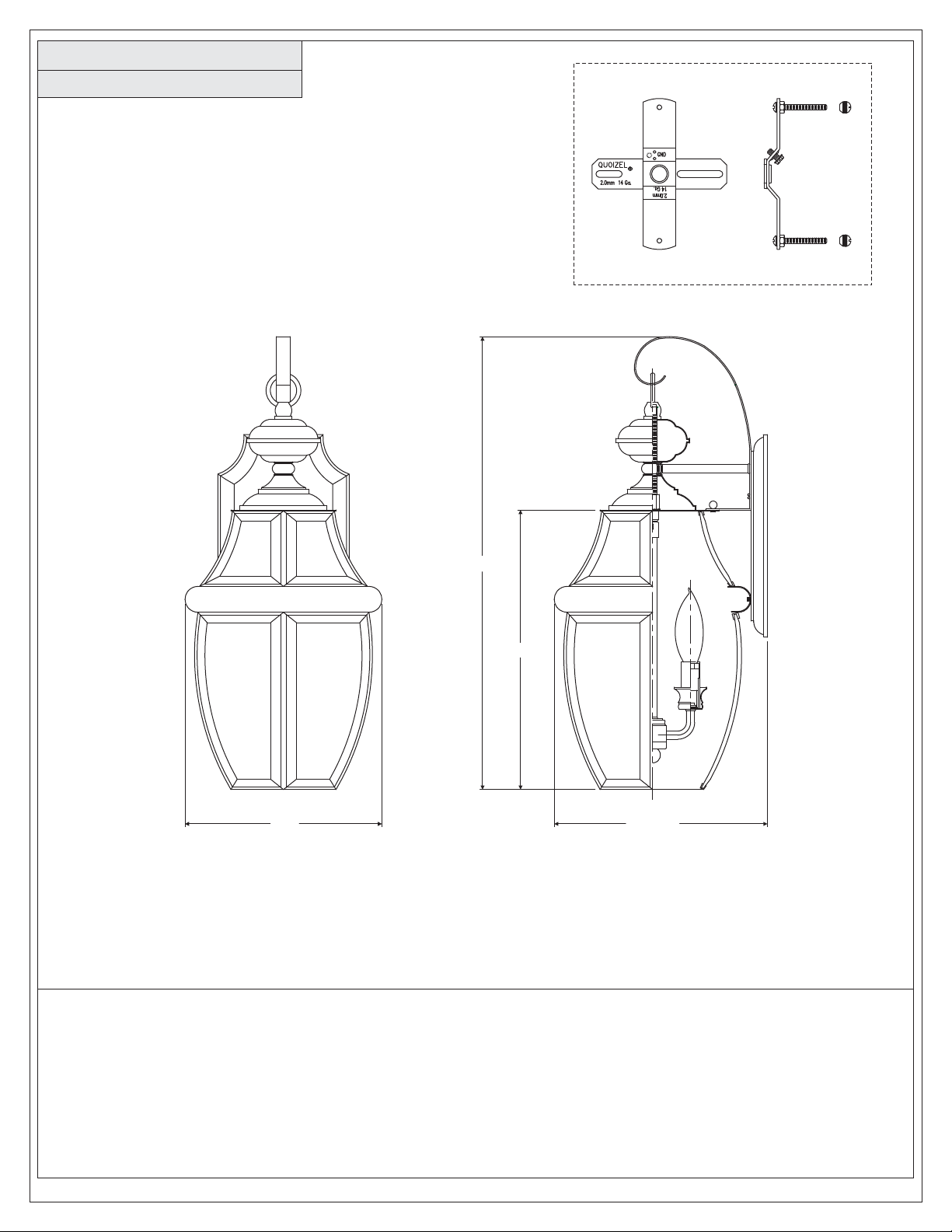

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"

20”

13”

9.75”

11”

2012 QuoizelInc.

3of6

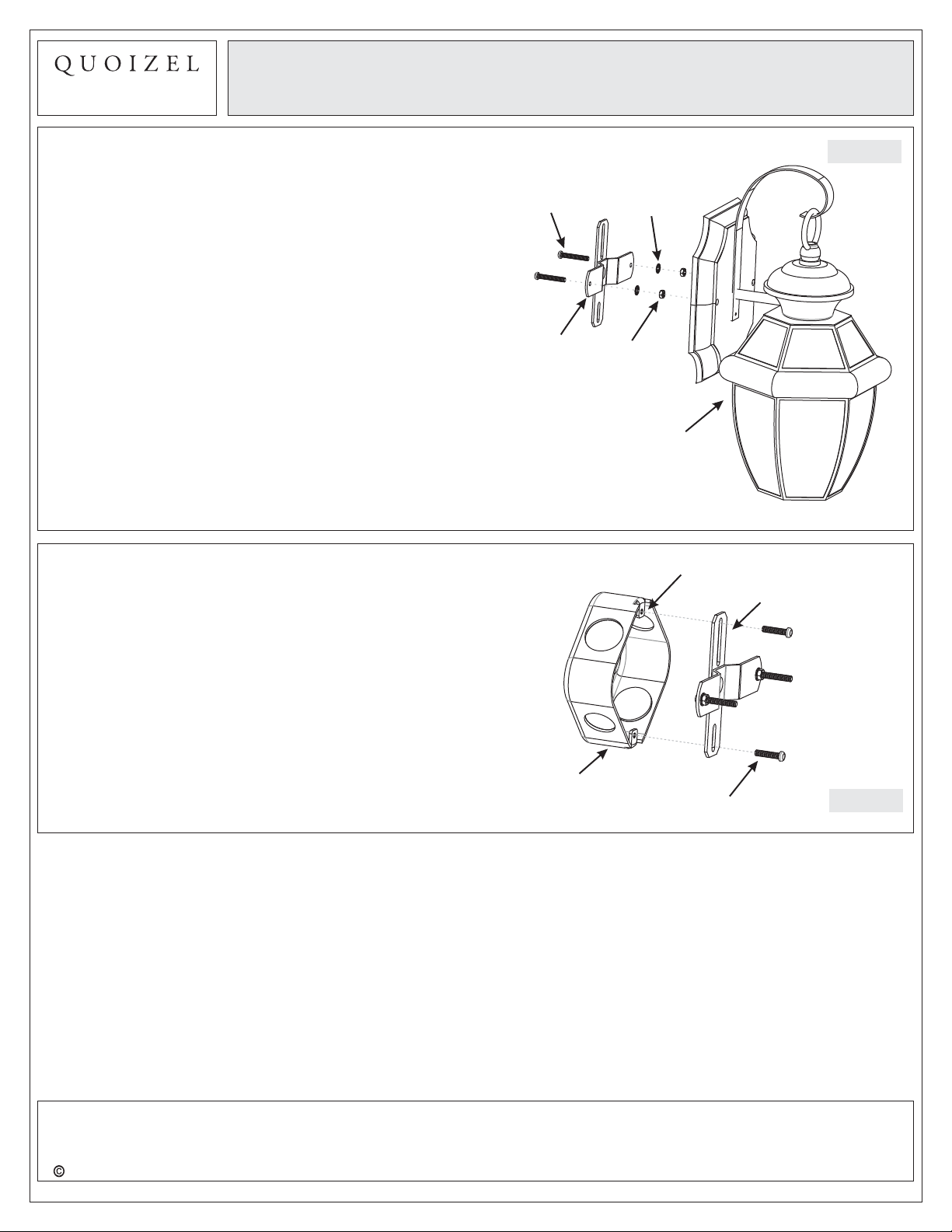

STEP 2 -Attach Crossbar to Outlet Box

A. Attach the Crossbar (A) to Outlet Box and secure by

threading Outlet Box Screws (not supplied) into the

Mounting Holes on the Outlet Box. Tighten until snug.

Figure 2

STEP 1 -Attach Mounting Screws, Lock

Washers and Hex Nuts to Crossbar

A. Line up a set of holes on the Crossbar (A) and Holes on

the backplate of the Fixture Body (K).

B. Thread Mounting Screws (B) into the holes on the

Crossbar (A), pass Lock Washers (C) and thread Hex

Nut (D) onto the Mounting Screws (B). Hand tighten

until snug.

Fixture

Body

Mounting

Screw

Crossbar

Lock Washer

Hex Nut

Crossbar

Outlet Box Outlet Box

Screw

Mounting Hole

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Assembly Instruction Sheet #IS-NY8317AC

For Style NY8317AC

Figure 1

RevisedDate:2016-09-13

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

2012 QuoizelInc.

4of6

STEP 3 Make Wire Connections-

A. Use standard wire connectors to make all wire

connections. (Connectors are not included with fixture.)

Strip and prepare wire ends according to instructions

supplied with connectors.

B. Connect White Supply Wire from the Outlet Box to White

Wire from fixture.

C. Connect Black (or Red) Supply Wire from the Outlet Box

to Black Wire from fixture.

D. Connect Ground Wire from the Outlet Box to Ground

Wire from fixture.

E. Twist connectors until wires are tightly joined together.

F. Wrap each connection with approved electrical tape and

carefully stuff all the connected wires into the Outlet Box.

Figure 4

White wire from supply White wire from fixture

Black wire from supply

(or Red)

Black wire from fixture

Ground wire from supply Ground wire from fixture

STEP 4 -Attach Fixture Body to Mounting

Screw

A. Place the backplate of the Fixture Body (F) over the

Mounting Screws (B) and secure with Mounting Balls

(E). Hand tighten until snug.

Figure 5

Mounting

Screw

Mounting Ball

Backplate

Figure 3

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Assembly Instruction Sheet #IS-NY8317AC

For Style NY8317AC

RevisedDate:2016-09-13

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

2012 QuoizelInc.

5of6

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Assembly Instruction Sheet #IS-NY8317AC

For Style NY8317AC

STEP 7 Apply Silicone Sealer to Mounting

Balls

A. To prevent moisture from entering the wire

compartment, apply a small amount of silicone sealer

(not included) to the threaded side of the mounting

balls (E) and then install them onto the mounting

screws (B). Wipe off excess caulk.

STEP 6 -Install Bulb

A. This fixture uses standard bulb with a candelabra screw

base. Maximum 60 watts.

B. Place the bulb from the bottom of the glass frame. Insert

bulb and screw snugly into place.

Figure 7

Figure 8

Mounting Ball

Socket

Bulb

Figure 6

STEP 5 Attach Candle Cover to Socket

Assembly

A. Place the Candle Cover (G) over the Socket properly.

Socket

Candle

Cover

RevisedDate:2016-09-13

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

2012 QuoizelInc.

6of6

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Assembly Instruction Sheet #IS-NY8317AC

For Style NY8317AC

STEP 8 Apply Silicone Sealer to Backplate-

A. Make sure exterior wall surface and fixture backplate

are free of dirt before applying caulk. Using exterior

grade caulk, start on one side of fixture backplate and

follow contour, where the fixture backplate meets the

exterior wall surface upward. Proceed to caulk over top

of backplate and down other side. Do not caulk bottom

of fixture backplate to ensure proper moisture

drainage.

Your fixture is now assembled and ready to use.

Enjoy!

Exterior

Grade Caulk

Outdoor Fixture

Backplate

Exterior Wall Surface

Figure 9

RevisedDate:2016-09-13

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com
