Quoizel OAS8409Z Istruzioni per il montaggio

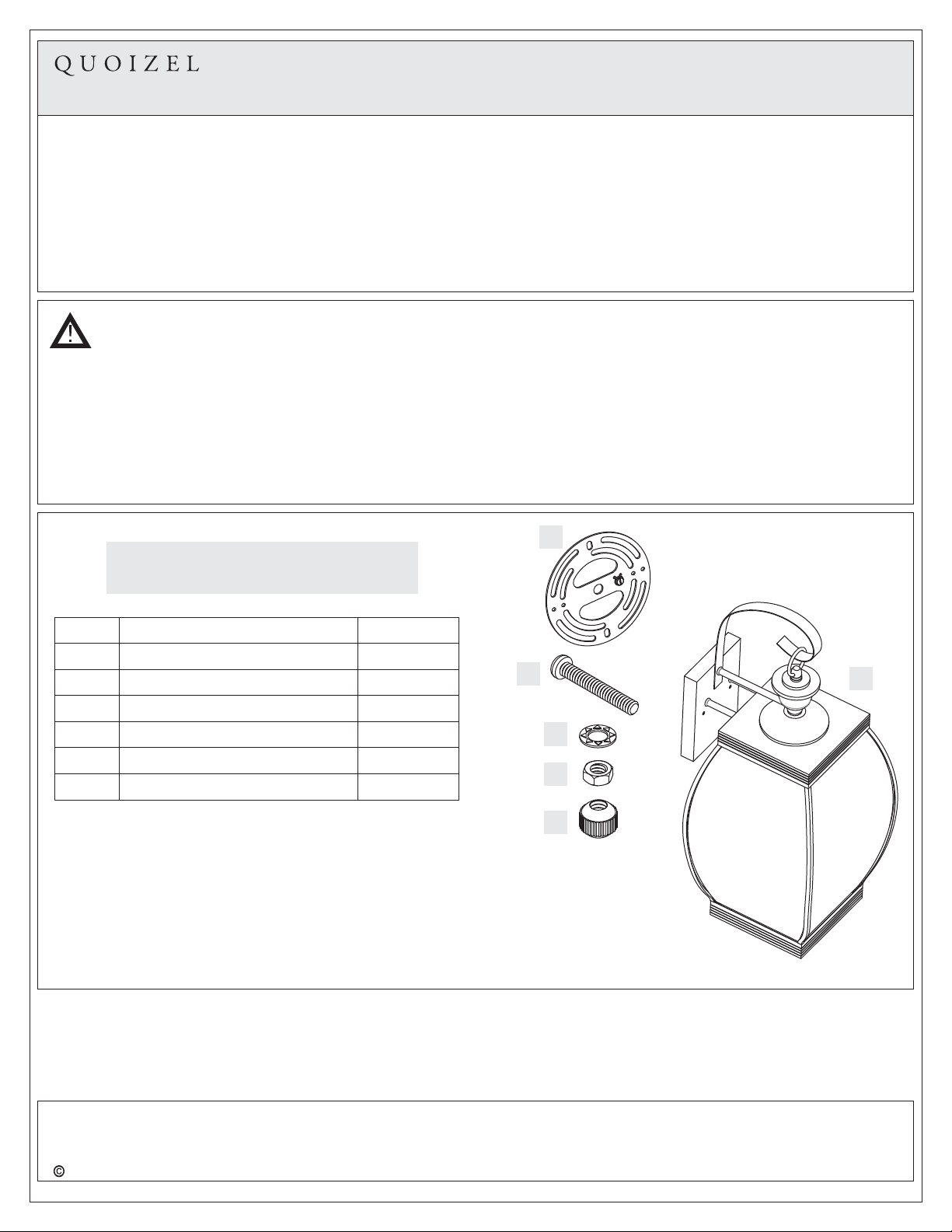

Part Description Quantity

A Crossbar 1pc.

1pc.

2 pcs.

Fixture Body

Hex Nut

Lock Washer

Package Contents

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing

the fixture. We strongly recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool

before removal. Do not subject glass parts to any shock while in operation or shattering may result.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2015 QuoizelInc.

Mounting Ball

Mounting Screw

Assembly Instruction Sheet #IS-OAS8409

For Style OAS8409Z

1of5

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Pleasegoto forproductcleaningtips.Gotothe selection.

(3)CandelabraBase60WMaximum

20-30minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagrams

belowtobesureallpartsarepresent.Ifanypartsaremissingordamaged,donotattempttoassemble,install,or

operatethefixture.Contactcustomerserviceforreplacementparts.

www.quoizel.com Care+Maintenance

LightSource:

EstimatedAssemblyTime:

Preparation:

ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safety

glasses.

November2015

Rev.A

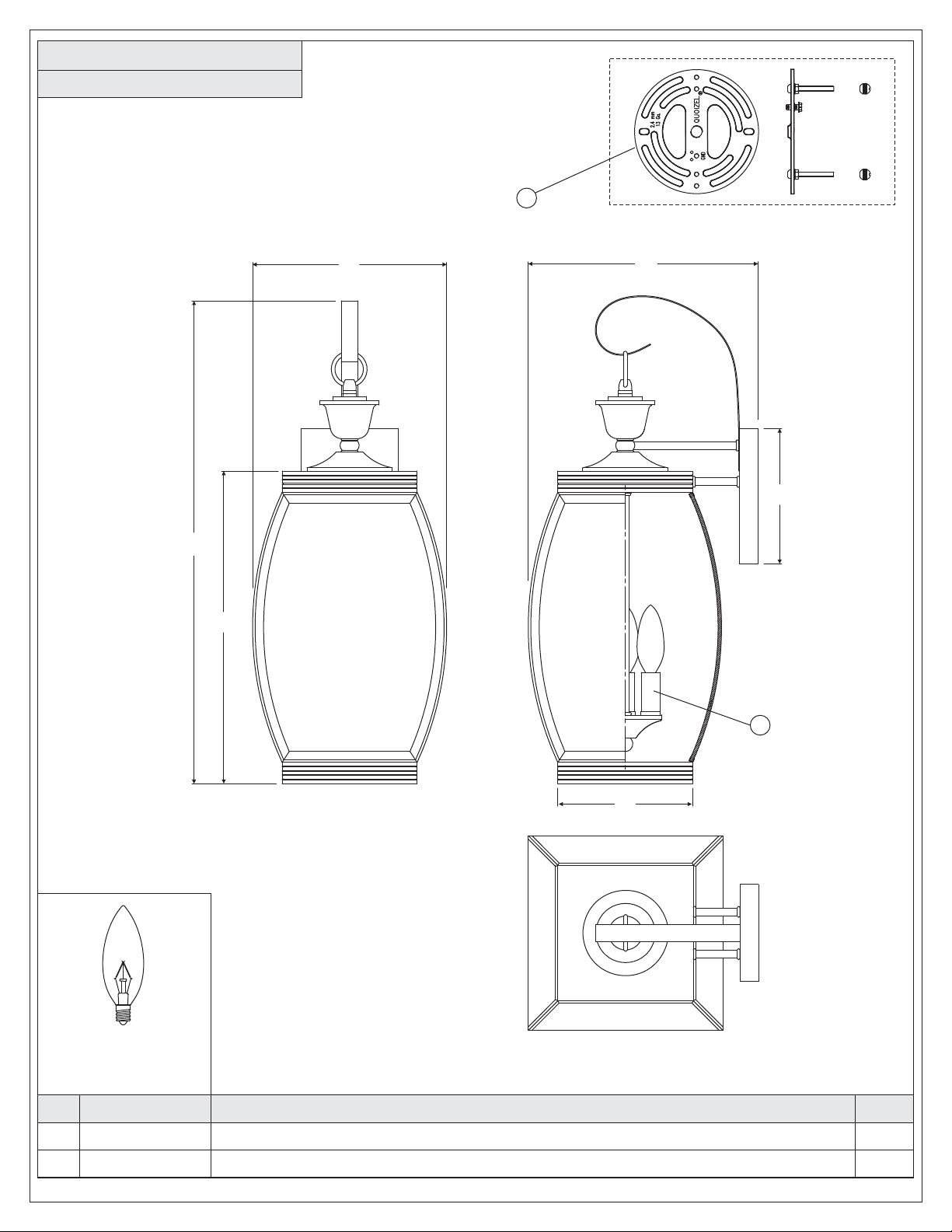

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"

2of5

(3)60W candelabra

base bulbs

(not Supplied)

14.5”

23”

9” 11”

6”

Rev.A

OAS8409Z

FINISH: MEDICI BRONZE

PART NUMBER

M2253CCZ

9453KIT

REPLACEMENT PART DESCRIPTION

CANDLE COVER MEDC BRNZ 2”H

MTG HDW MEDC BRNZ 4”D

REQ.

NO.

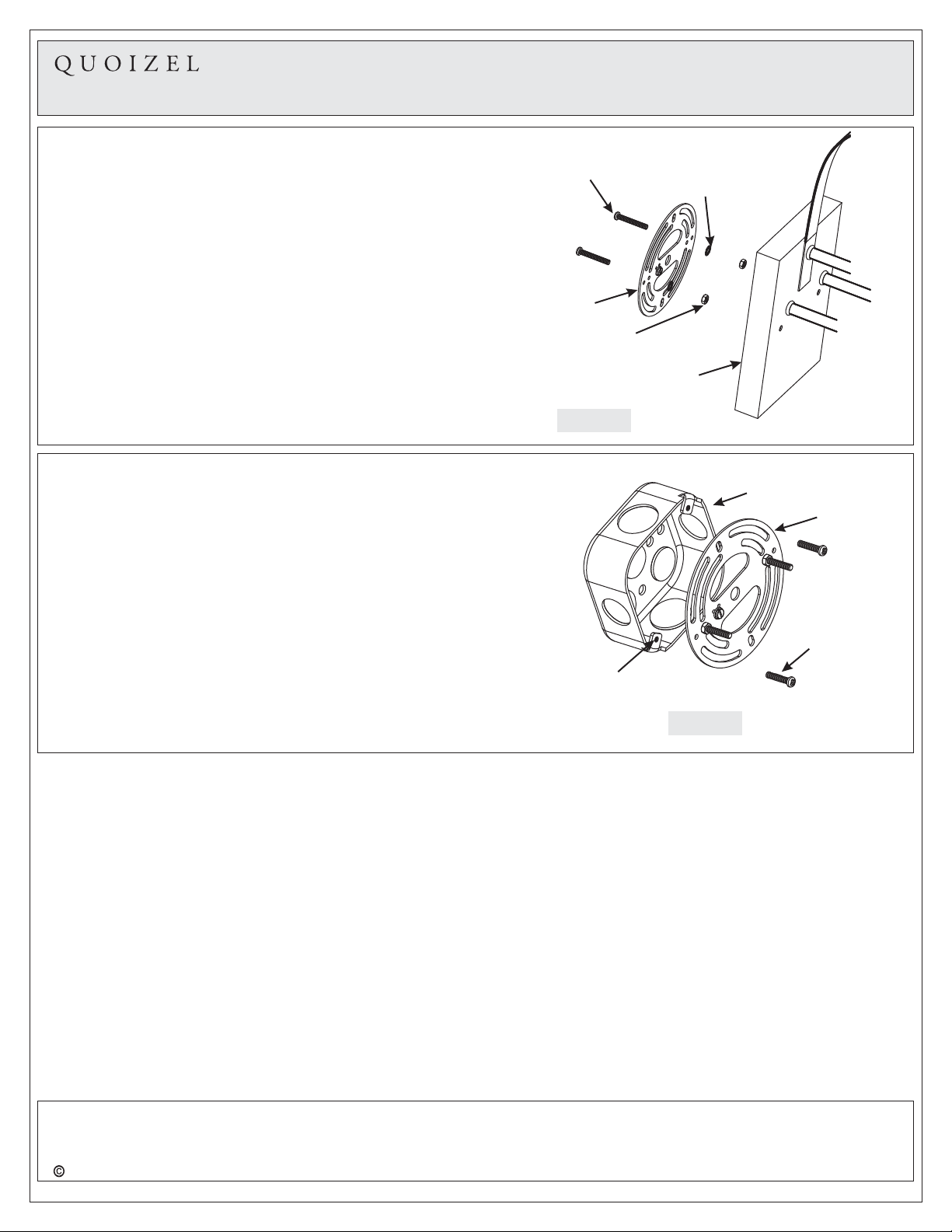

STEP 2 -Attach Crossbar to Outlet Box

A. Attach the Crossbar (A) to Outlet Box and secure by

threading Outlet Box Screws (not supplied) into the

Mounting Holes on the Outlet Box. Tighten until snug.

Crossbar

Outlet

Box

Outlet Box

Screw

Mounting

Hole

Figure 2

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2015 QuoizelInc.

3of5

STEP 1 -Attach Mounting Screws, Lock

Washers and Hex Nuts to Crossbar

A. Line up a set of holes on the Crossbar (A) and Holes on

the backplate of the Fixture Body (F).

B. Thread Mounting Screws (B) into the holes on the

Crossbar (A), pass Lock Washers (C) and thread Hex

Nut (D) onto the Mounting Screws (B). Hand tighten

until snug.

Figure 1

Crossbar

Mounting Screw

Lock Washer

Hex Nut

Fixture

Body

November2015

Rev.A

Assembly Instruction Sheet #IS-OAS8409

For Style OAS8409Z

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2015 QuoizelInc.

4of5

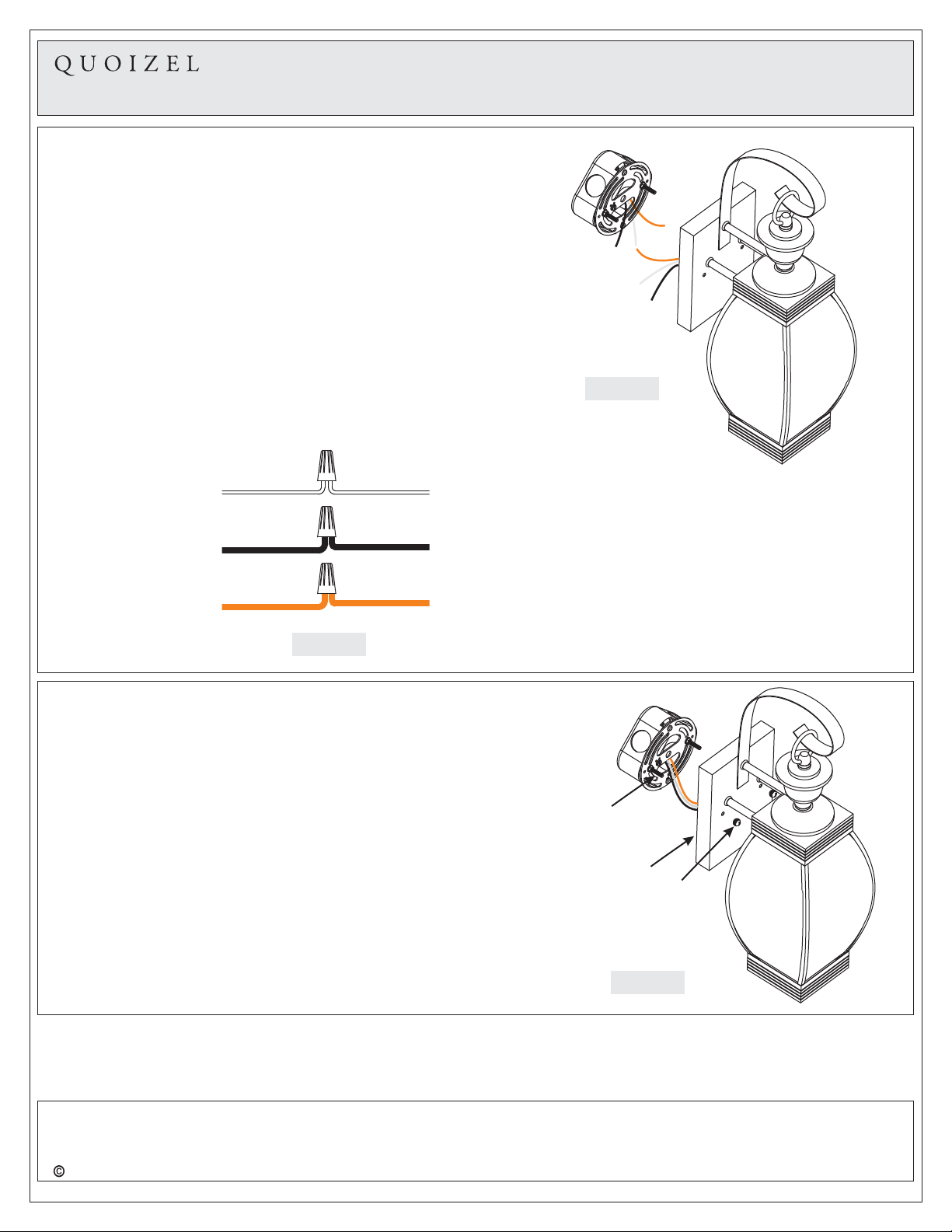

STEP 4 -Attach Fixture Body to Mounting

Screw

A. Place the backplate of the Fixture Body (F) over the

Mounting Screws (B) and secure with Mounting Balls

(E). Hand tighten until snug.

Mounting Screw

Mounting Ball

Backplate

Figure 5

STEP 3 Make Wire Connections-

A. Use standard wire connectors to make all wire

connections. (Connectors are not included with fixture.)

Strip and prepare wire ends according to instructions

supplied with connectors.

B. Connect White Supply Wire from the Outlet Box to White

Wire from fixture.

C. Connect Black (or Red) Supply Wire from the Outlet Box

to Black Wire from fixture.

D. Connect Ground Wire from the Outlet Box to Ground

Wire from fixture.

E. Twist connectors until wires are tightly joined together.

F. Wrap each connection with approved electrical tape and

carefully stuff all the connected wires into the Outlet Box.

Figure 4

White wire from supply White wire from fixture

Black wire from supply

(or Red)

Black wire from fixture

Ground wire from supply Ground wire from fixture

Figure 3

November2015

Rev.A

Assembly Instruction Sheet #IS-OAS8409

For Style OAS8409Z

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2015 QuoizelInc.

5of5

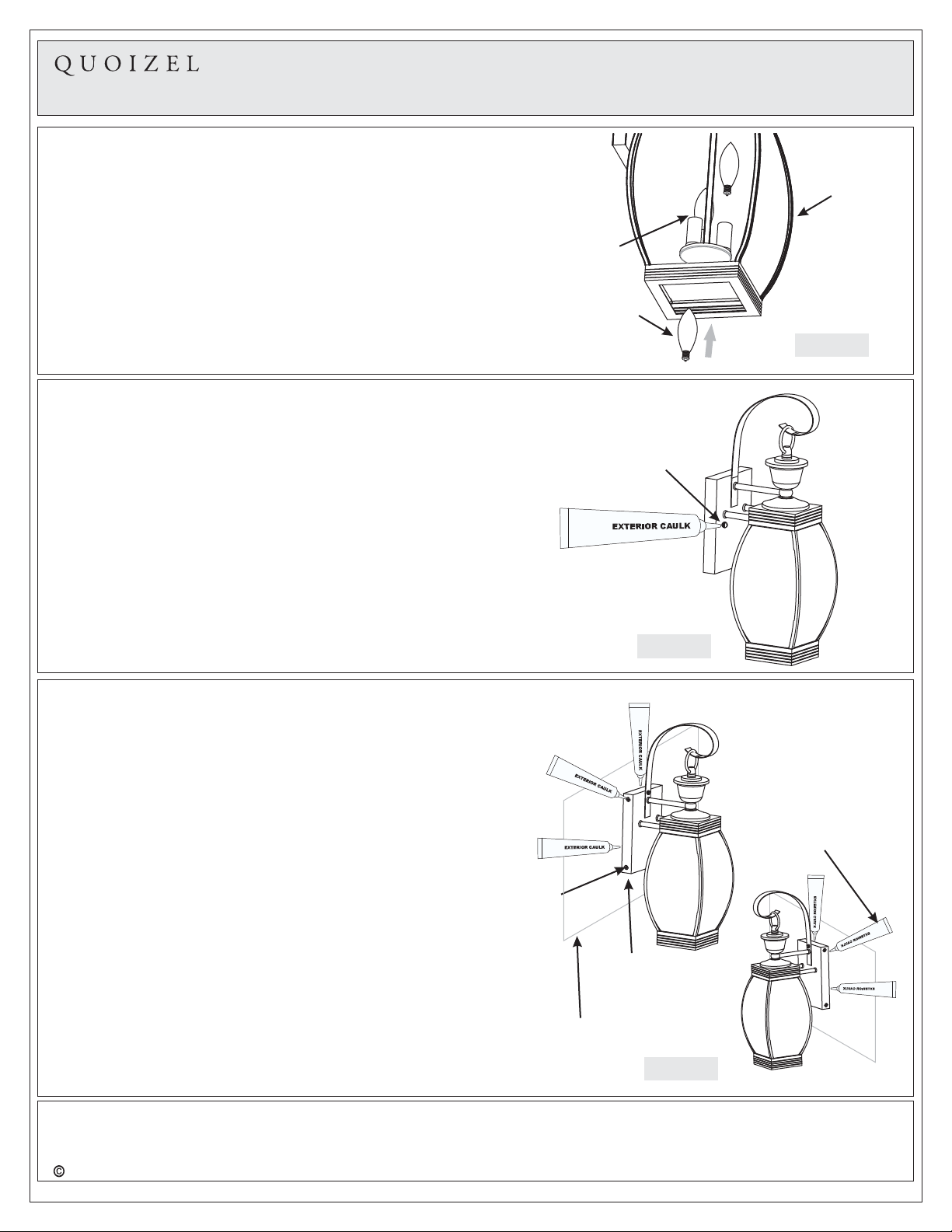

STEP 5 -Install Bulb

A. standard bulb with a candelabra screw

base 0

This fixture uses

. Maximum 6 watts.

B. Place the bulb from the bottom of the glass frame. Insert

bulb and screw snugly into place. Socket

Figure 6

Bulb

STEP 6 Apply Silicone Sealer to Mounting

Balls

A. To prevent moisture from entering the wire

compartment, apply a small amount of silicone sealer

(not included) to the threaded side of the mounting

balls (E) and then install them onto the mounting

screws (B). Wipe off excess caulk.

STEP 7 Apply Silicone Sealer to Backplate-

A. Make sure exterior wall surface and fixture backplate

are free of dirt before applying caulk. Using exterior

grade caulk, start on one side of fixture backplate and

follow contour, where the fixture backplate meets the

exterior wall surface upward. Proceed to caulk over top

of backplate and down other side. Do not caulk bottom

of fixture backplate to ensure proper moisture

drainage.

Your lamp wall fixture is now assembled and ready to

use. Enjoy!

Figure 7

Mounting Ball

Figure 8

Glass

Frame

November2015

Rev.A

Mounting

Screw

Exterior

Grade Caulk

Outdoor

Fixture

Backplate

Exterior Wall Surface

Assembly Instruction Sheet #IS-OAS8409

For Style OAS8409Z

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com
