Introduction
The operation of the Quooker COMBI
The Quooker system consists of a vacuum-insulated tank, which is connected to the cold water
supply under the sink and to the Nordic single tap, the Fusion tap or the Flex tap. Both boiling
water and mixer water can be dispensed from the Fusion and Flex tap.
Inside the tank the water is heated electrically to approx. 108°C and is kept at this temperature.
When boiling water is dispensed, cold water ows back into the tank at the same time and is
heated automatically. If the entire content of boiling water (7 litres) is used in one go, the heating
time is ca. 20 min.
Before the water leaves the tank it is puried by the HiTAC® water lter (High Temperature
Activated Carbon). To extend the life of the lter, the water used for mixing the hot water is
not ltered.
In addition to boiling water, the Quooker COMBI also supplies instant hot water. The COMBI
supplies hot water by mixing boiling water from the Quooker tank with cold water from the water
mains inside the mixing valve. A thermostatic control element inside the valve keeps the outgoing
water temperature constant. This temperature can be set between 40 °C and 60°C with the grey
knob on the mixing valve. The mixing valve is suitably protected against a loss in water pressure,
preventing any boiling water from owing out of the mixer tap.
The grooved handle on the tap lights up when the water is running to warn the user that the
water is boiling. As an additional safety feature, the Nordic single tap is height-adjustable and
the Nordic single tap, the Fusion tap and the Flex tap are fully insulated.
Despite all the safety features incorporated in the product, anyone using the Quooker system
must keep in mind the risks of using boiling water in general. Incorrect use can lead to injury.
Therefore always read the manual carefully before use.
Installation, maintenance and warranty
Installing the Quooker requires connections to the mains water supply and the electrical system.
The Quooker is supplied with a handy connection kit for simple installation. You must not connect
the Quooker to a reverse osmosis system or to a water softener that reduces the pH value.
For optimally puried Quooker boiling water, we recommend changing the HiTAC® lter cartridge
every 3 - 5 years. If necessary, the tank can be descaled. In areas with hard water this should be
performed more regularly.
The warranty period is two years, according to our General Terms of Business.
Users
The Quooker tap can be used by children above the age of eight and people with diminished
physical, sensory or intellectual abilities provided they are supervised or have been instructed
on the safe use of the device. Inform people who are unfamiliar with the Quooker system about
safe use and the possible dangers associated with the use of the boiling-water tap. Please note:
incorrect use may result in injury. Prevent children from using the tap as a toy and do not
allow children to clean or maintain the product unsupervised. Keep the plug out of reach
of small children.
The Quooker system is suitable for household use and commercial use such as in sta kitchens
at shops, oces, farms and other business premises and for use by visitors at hotels, motels,
bed & breakfasts and other residential accommodation.
Always follow the installation method described in the manual. Avoid spilling water on the plug.
If defective, the power plug may only be replaced by a qualied technician. Make sure you let
the tank cool o adequately before disconnecting it. The fastest way to do this is as follows: turn
o the Quooker, but leave the plug in the socket. Then open the boiling-water tap and turn it o
once the water runs cold. You can nd a more detailed explanation for disconnecting the tank in
chapter E.
Tips for use and the installation manual can also be found on our website: quooker.ae
Declaration of conformity
Quooker Nederland B.V., Staalstraat 13, 2984 AJ Ridderkerk (The Netherlands) herewith declares,
on our own responsibility, that the products Quooker COMBI and Quooker COMBI+ are in
accordance with the conditions of the following directives:
- 2014/35/EU Low Voltage Directive (LVD)
- 2011/65/EU Restriction of Hazardous Substances (RoHS) Directive
- 2014/30/EU Electromagnetic Compatibility Directive (EMCD)
- 2009/125/EC Ecodesign energy-related products Directive
- 2014/68/EU Pressure Equipment Directive
and are in conformity with the following standards:
General product safety household and similar electrical appliances
EN 60335-1:2012 + AC:2014 + A11:2014
EN 60335-2-15:2002 + AC:2005 + A1:2005 + AC:2006 + A2:2008 + A11:2012 + A11:2012/AC:2013
+ EN 60335-2-15:2016
EN 60335-2-21:2003 + A1:2005 + AC:2007 + A2:2008 + AC:2010
Public exposure to electromagnetic elds (EMF)
EN 62233:2008 + AC:2008
Electromagnetic compatibility (EMC)
EN 55014-1:2017 + EN 55014-1:2006 + A1:2009 + A2:2011
EN 55014-2:2015 + EN 55014-2:1997 + AC:1997 + A1:2001 + A2:2008
EN 61000-3-2:2014
EN 61000-3-3:2013
Restriction of hazardous substances
EN 50581:2012
Ecodesign water heaters
Regulation (EU) 814/2013
The Netherlands, Ridderkerk, December 2021
Niels Peteri, Director
Technical specications
Tank COMBI
Voltage 230 V
Wattage* 2200 W
Capacity 7 litres
Heating-up time* 20 minutes
Standby power consumption* 10 W
Tank height 48 cm
Tank diameter 20 cm
Min. mains pressure 200 kPa (2 bar)
Max. mains pressure 600 kPa (6 bar)
Max. working pressure 800 kPa (8 bar)
Mounting bracket optional yes
Safety features - maximum temperature fuse
- pressure relief valve in solenoid valve 800 kPa (8 bar)
HiTAC® water lter High Temperature Activated Carbon
*These are average values.
Energy label
Declared load prole XXS
Water heating energy
eciency class A
Water heating energy eciency 36%
Annual electricity consumption 511 kWh/A
Warm water temperature
settings of the water heater 40 °C - 60 °C
Sound power level - dB
Tap Nordic Fusion, Flex
single tap and mixer tap
Tap hole size 32 mm 35 mm
Recomm. temp. mixing water - 60 °C
Bezel available yes yes

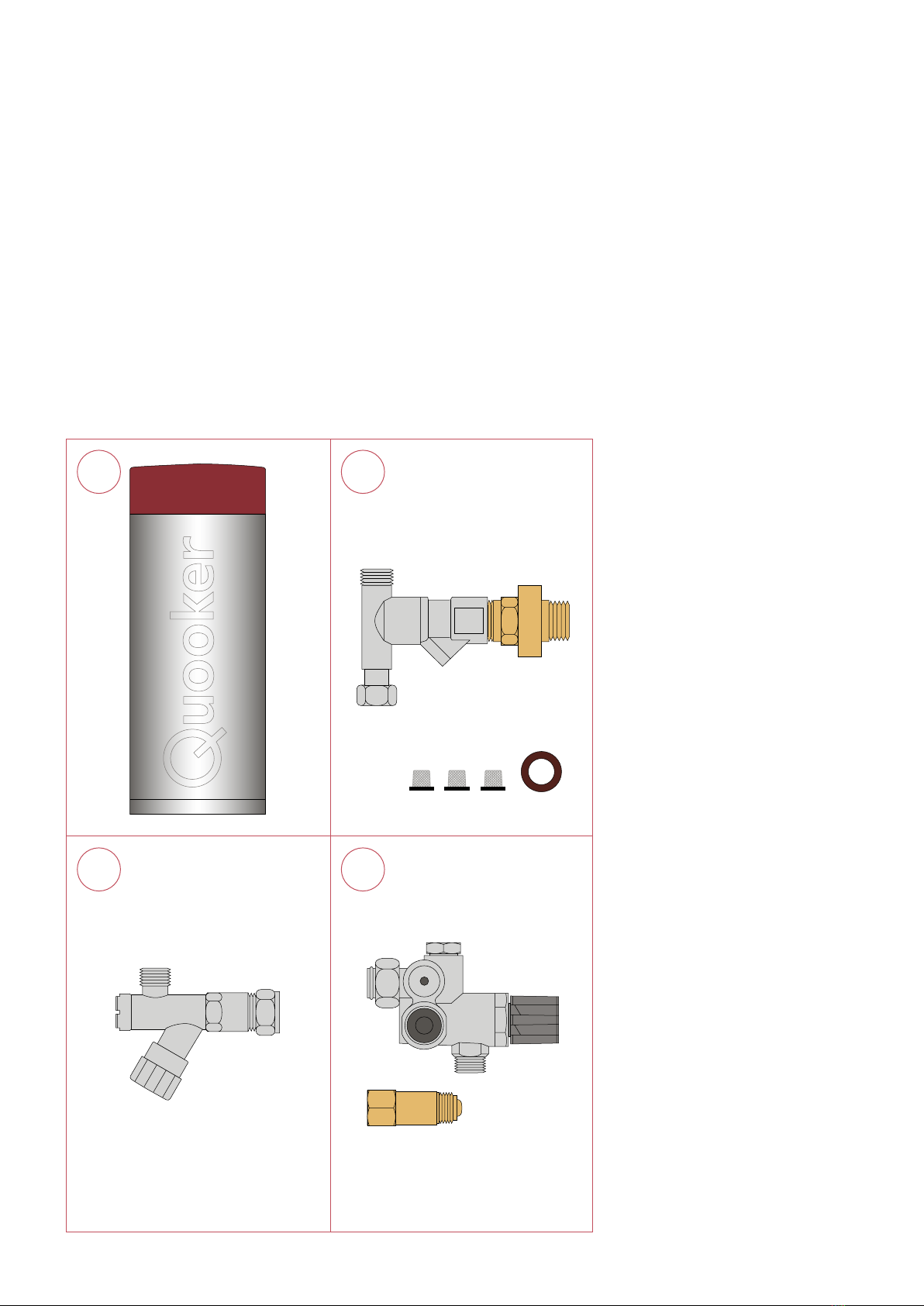

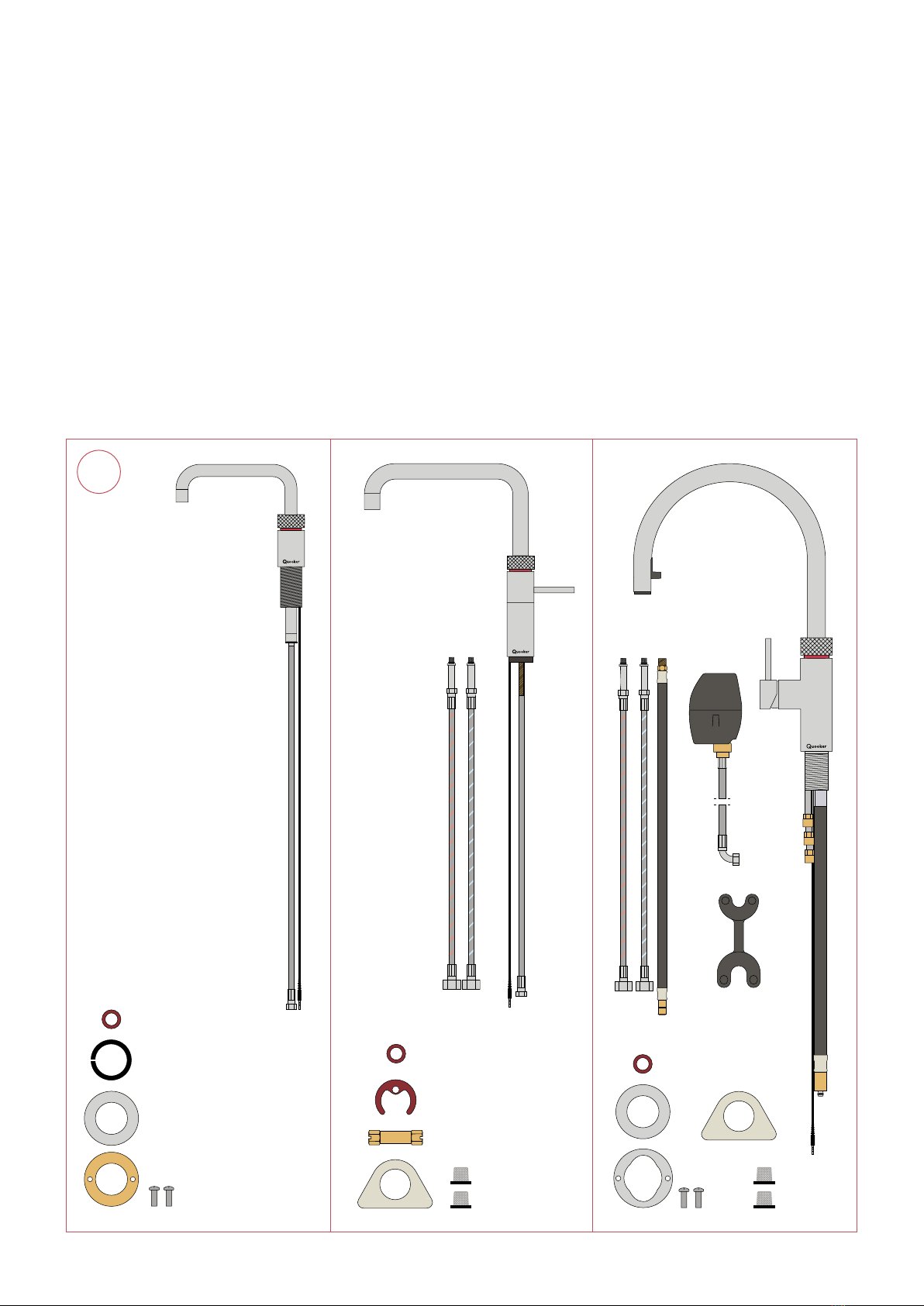

Contents of the pack
1. - Nordic single tap, packing ring, centring ring, steel ring, brass sink nut and two screws
- or Fusion tap, packing ring, brass xing plate, xing nut, white tap support (for thin work tops)
and two inlet hose screens
- or Flex tap, hoses, bre washer(s), steel washer, screw ring with two screws, coupling with
boiling water hose, white tap support, two inlet hose screens and quick-release tool.
1
Fusion
Flex
Nordic single tap
2. COMBI tank
3. T-joint, inlet hose screens and bre washer
4. Isolation valve with lter
6. Mixing valve and check valve
2
4
3
5

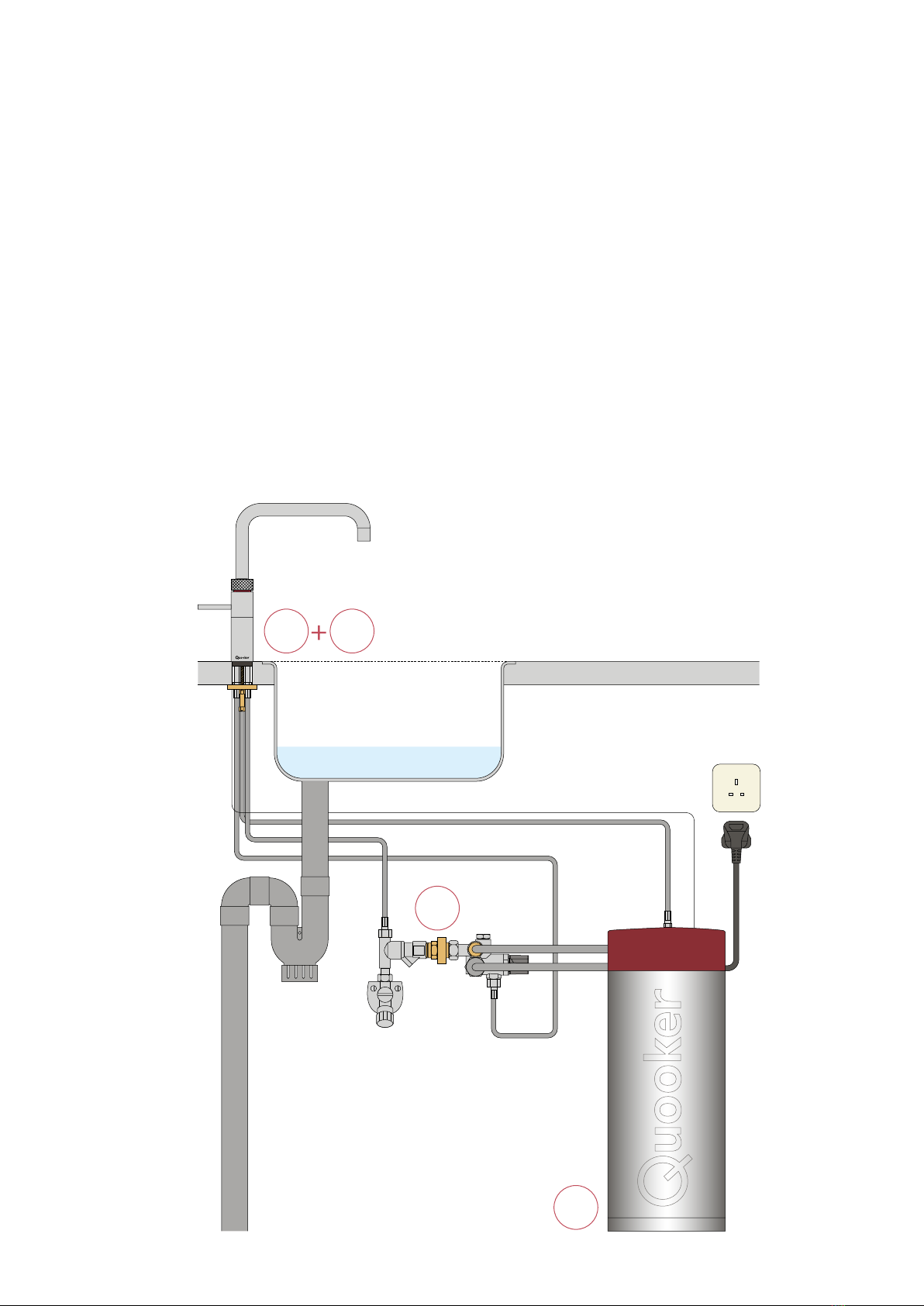

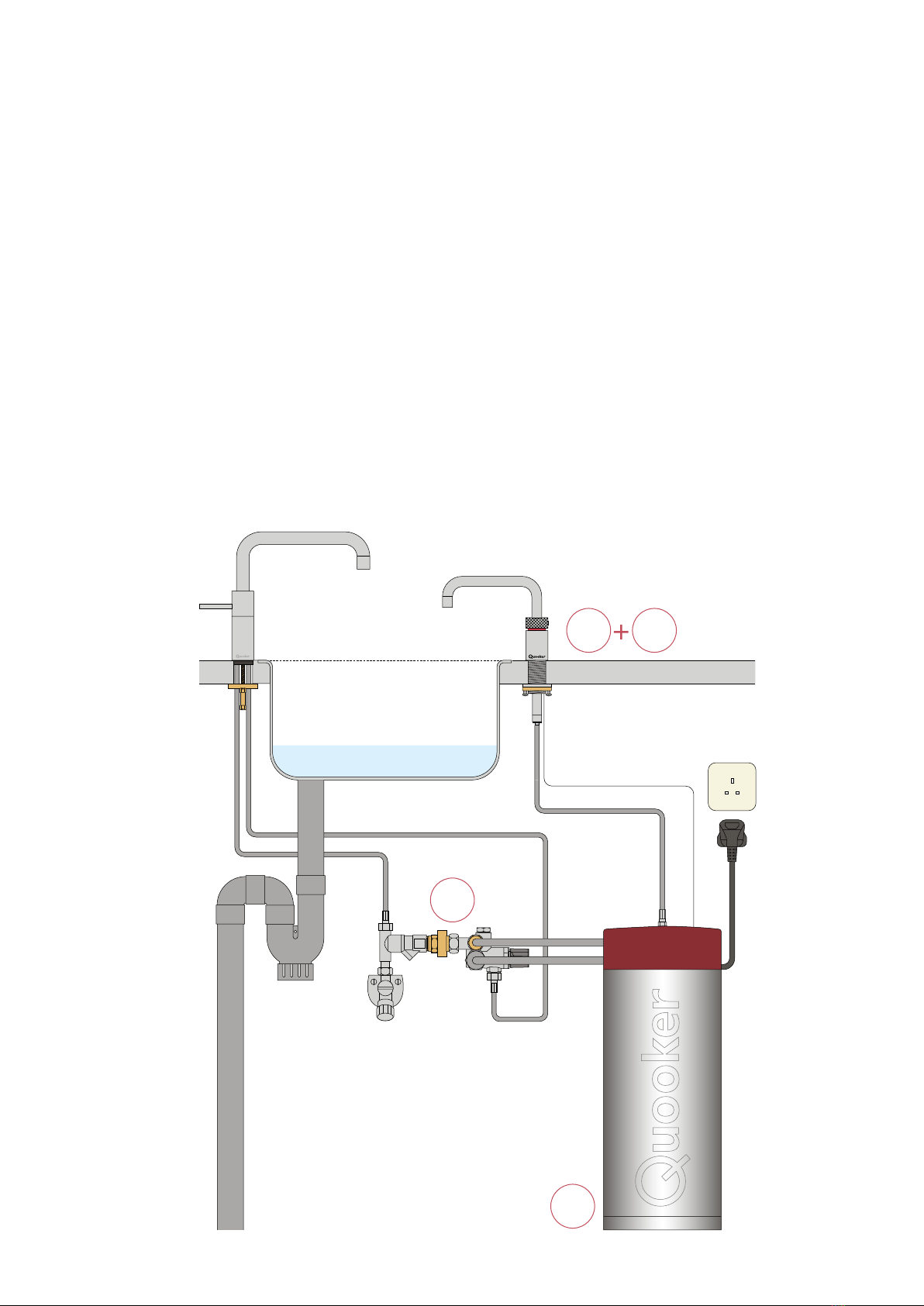

Overview of Nordic single tap installation
It is recommended that you install the Quooker in the following order:
A. Drlling hole
B1. Fitting Nordic single tap
C. Connecting water
D. Connecting tank
Note: Bear in mind that the tank, mixing valve and socket must remain accessible for servicing.
For an overview of the Fusion tap installation, please refer to the next page and for the Flex tap to
the page after that.
A B1
C
D
Cold
Overview of Nordic single tap installation
It is recommended that you install the Quooker in the following order:
A. Drlling hole
B2. Fitting Fusion tap
C. Connecting water
D. Connecting tank
Note: Bear in mind that the tank, mixing valve and socket must remain accessible for servicing.
For an overview of the Flex tap installation, please refer to the next page.
A B2
C
Cold
D

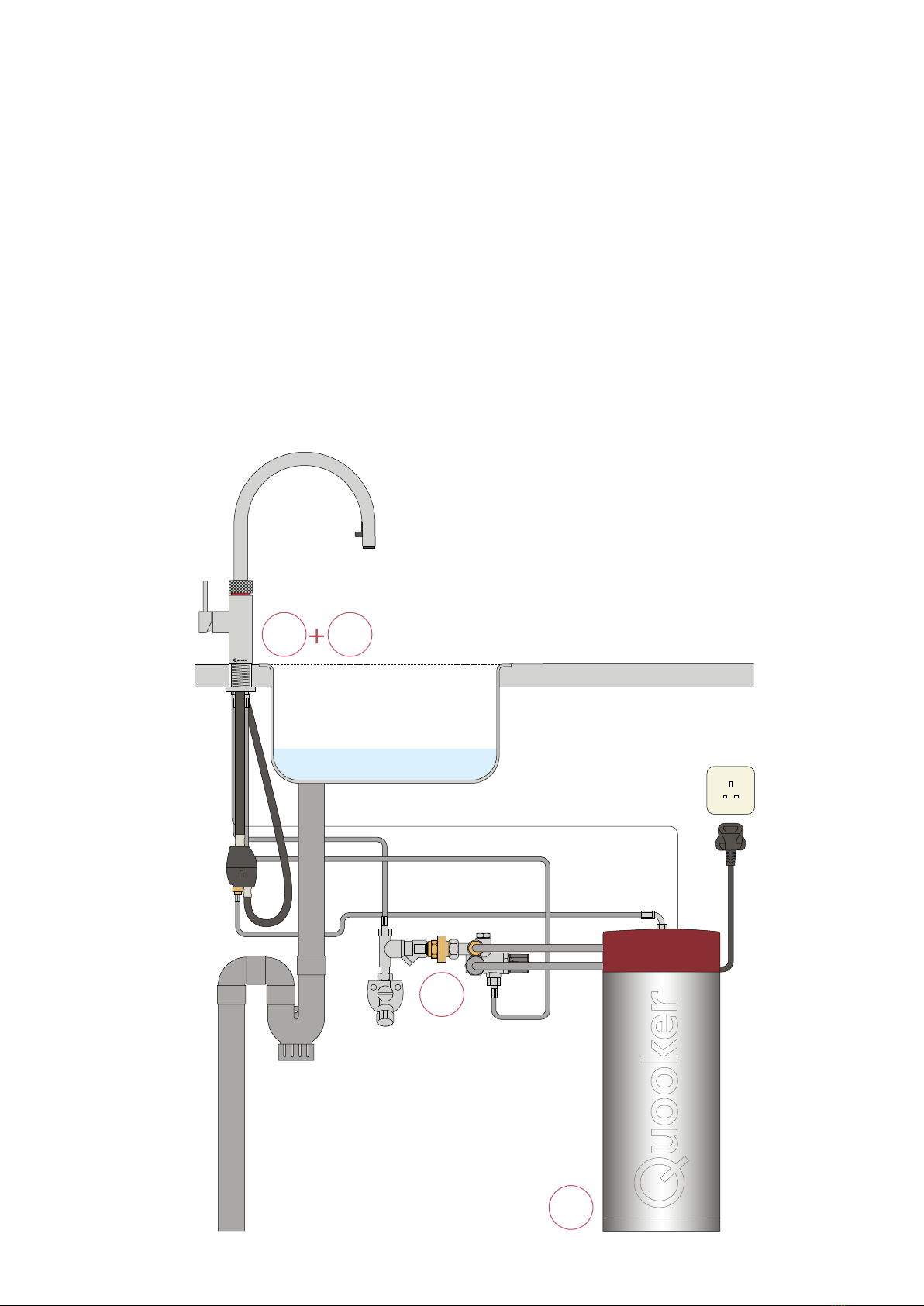

Overview of Flex tap installation
It is recommended that you install the Quooker in the following order:
A. Drlling hole
B3. Fitting Flex tap
C. Connecting water
D. Connecting tank
Note: Bear in mind that the tank, mixing valve and socket must remain accessible for servicing.
For an overview of the Flex tap installation, please refer to the next page.
A B3
C
D
Cold
