Installation guide Scale Control Plus

Read this guide before installation

Introduction

How does the Quooker Scale Control Plus work?

The Scale Control Plus reduces the hardness of the water in order to prevent limescale build-up

in the tank. This extends its lifespan and improves the taste of the water. The Scale Control Plus

consists of a lter head and a cartridge, which is inserted into the head. This cartridge softens the

water that ows through it by means of an ion exchanger. The cartridge must be replaced after

a certain period of time, which depends on the mains water hardness and how much Quooker

water is used. Replace the cartridge before it becomes completely saturated.

Installing the Quooker system for the rst time

Using the installation manual, rst install the Quooker tank and connect it to the tap. Then use the

manual to install the Scale Control Plus.

When the Scale Control is to be replaced by a Scale Control Plus

Please note: the Scale Control Plus should be installed before the inlet combination valve. It is

therefore important to follow the instructions as shown in this installation manual.

Lifespan of the cartridge

The Scale Control Plus cartridge needs to be replaced regularly. The replacement frequency

depends on how hard the water is and how much water is used. Timely replacement of the

cartridge prevents the deposition of limescale in the Quooker system. For Quooker systems

installed after October 2017, the included Scale Control Plus Meter can be installed. The Scale

Control Plus Meter provided sounds an alarm signal when the cartridge needs to be replaced.

Before mounting the meter, use the test kit provided to determine the total water hardness, as

described in Part A. After doing so, mount the Scale Control Plus Meter and connect it to the

Quooker tank, as described in Part E.

For Quooker systems installed before October 2017, it is not possible to use the Scale Control Plus

Meter supplied. The cartridge lifespan can be determined in a dierent way. Before installing the

Scale Control Plus, test the water hardness with the test kit provided. Part A of this guide features

detailed instructions on how to do this. With the help of this value, the service life of the cartridge

can then be determined on the basis of the hardness table supplied. See Part B.

Technical specications

Height 470 mm

Diameter 100 mm

Maximum operating pressure 8,7 bar

1 32

4 5

Package contents

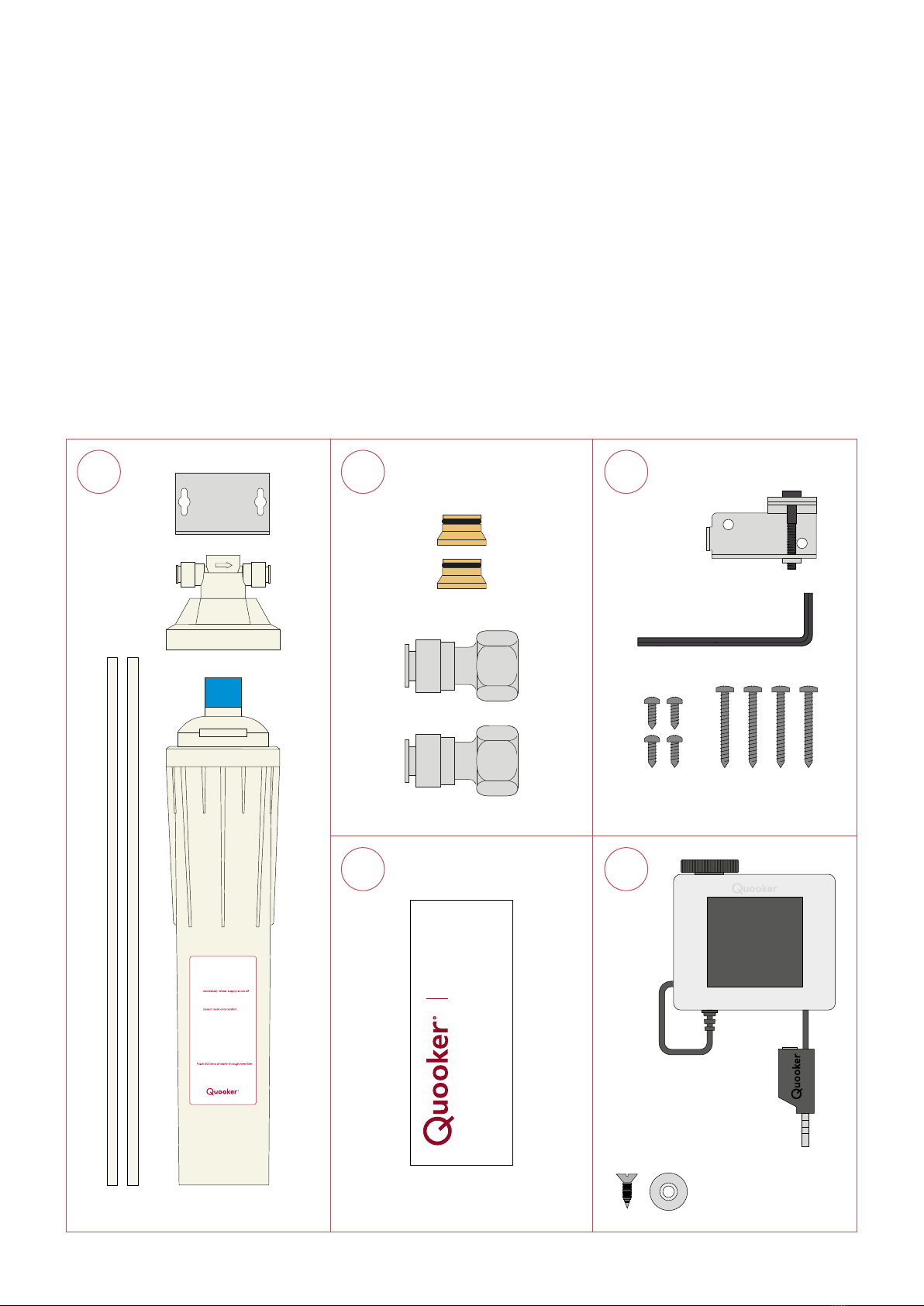

1. Mounting bracket, head, cartridge, two plastic tubes

2. Two inserts, two push-ts

3. Mounting bracket inlet combination, Allen key, four short screws, four long screws

4. Total Hardness Test Kit

5. Scale Control Plus Meter, metal washer, screw and sticker

total hardness

test kit

Peteri b.v. Staalstraat 13 2984 AJ Ridderkerk (NL) www.quooker.com

Scale Control Plus

cartridge

Reduces limescale

Step 1 When alarm sounds, 0% blinks.

Step 2 Unscrew the old cartridge (counter

automatically.

Step 3 Screw in the new cartridge

(clockwise).

Step 4

The Scale Control meter is 100%.

Step 5 Run boiling water for 20 seconds.

Step 6 Check for leaks.

Operational data

Life span: 550L @ 15 dH

Max pressure: 8.6 bar

Temperature range: 2-38°C

Service and order: www.quooker.com

• Only to be connected to drinking water.

•

cartridge prior to use.

• Please dispose this cartridge with your

general waste.

AHardness testing

• Test your water hardness with the Total Hardness Test Kit, as described below, to determine

the expected cartridge lifespan.

• Ensure the Scale Control Plus is working optimally by comparing the water hardness of the

cold mains water to the hardness of the Quooker tank water. The second value should be

lower.

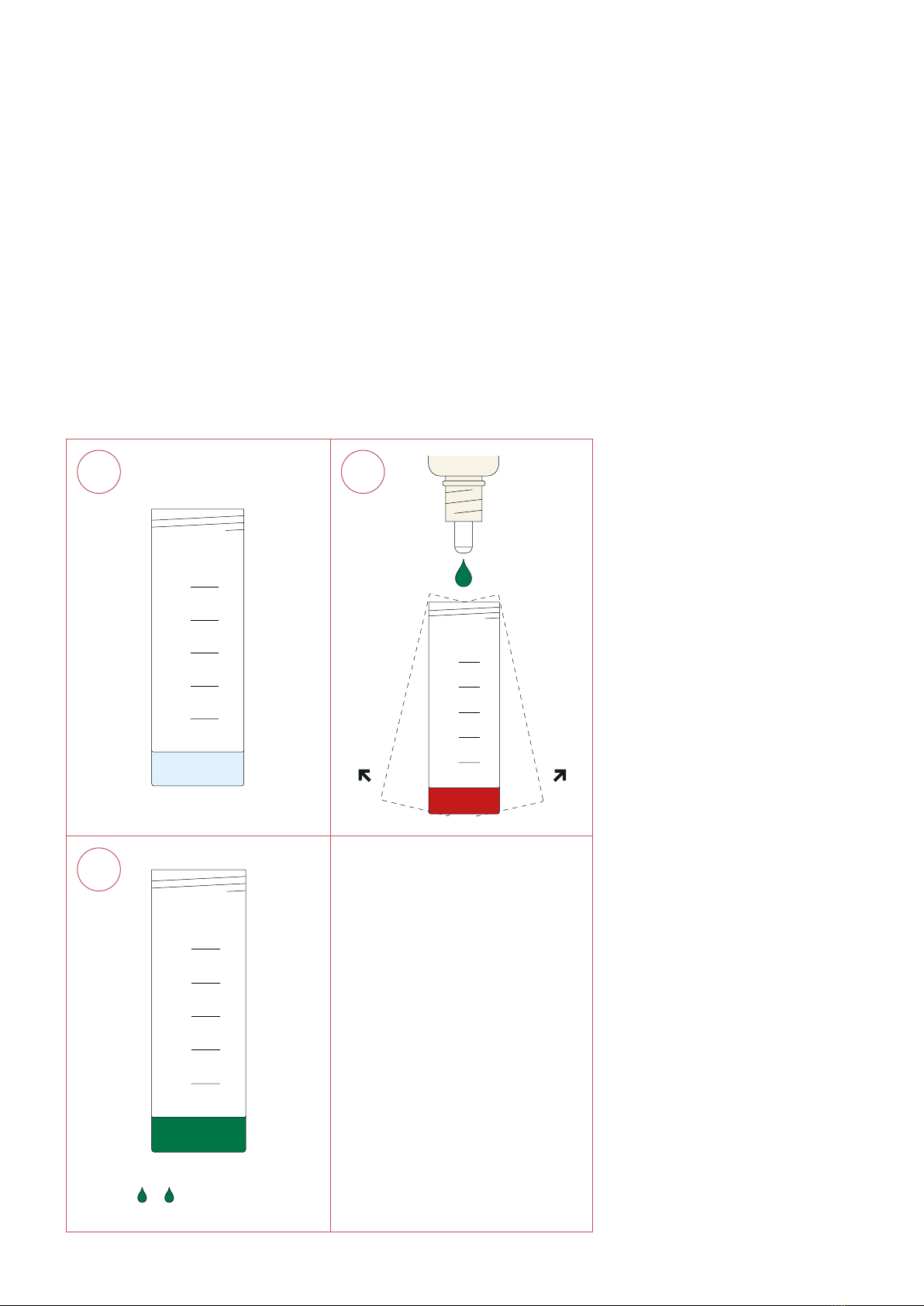

1. Filling test tube

Take the test tube out of its box. Take

a sample of water from the mains cold

water feed. Rinse out the test bottle with

this sample water then ll to the 5 ml mark.

2. Adding reagent

Slowly add the reagent drop by drop, all

the while swirling gently to mix the water.

Count the number of drops it takes to turn

the red colour of the solution to green.

3. Determining water hardness

One drop of the reagent is the equivalent

to 1.0°dH (degree of hardness) – For

example, if it takes 9 drops for the sample

to turn to green, this means your water has

a water hardness of 9°dH.

++…=

°dH

BHardness table (for systems before October 2017)

• The left side of the table shows the reduced water hardness, derived from the mains water

hardness. The right side of the table shows the expected lifespan of the cartridge, derived

from the mains water hardness and the type of Quooker tank used. For continuous optimum

performance replace the cartridge at the end of the lifespan.

• Enter the replacement date for the cartridge in the table below. Keeping this table

in a handy place will remind you to order a new cartridge on time.

• For Quooker systems installed after October 2017, the life of the cartridge is determined by

the Scale Control Plus Meter. This sounds an alarm signal when the cartridge needs to be

replaced. Part E describes how to install this meter.

Cartridge 1

Lifespan

Installation date

Replacement date

Cartridge 2

* The cartridge lifespan is based on the

average consumption of Quooker water

for each type of Quooker tank: PRO3,

3 litres/day; PRO7, 7 litres/day; COMBI,

8 litres/day.

Total hardness (°dH) * Cartridge lifespan (in weeks)

Type of tank

PRO3 PRO7 COMBI

19 8 7

20 9 8

22 9 8

23 10 9

25 11 9

27 11 10

29 12 11

31 13 12

34 15 13

Mains water

Mounting the Scale Control Plus

• When mounting the bracket, make sure to leave enough space for the cartridge to be replaced.

• For PRO3, PRO7 or COMBI.

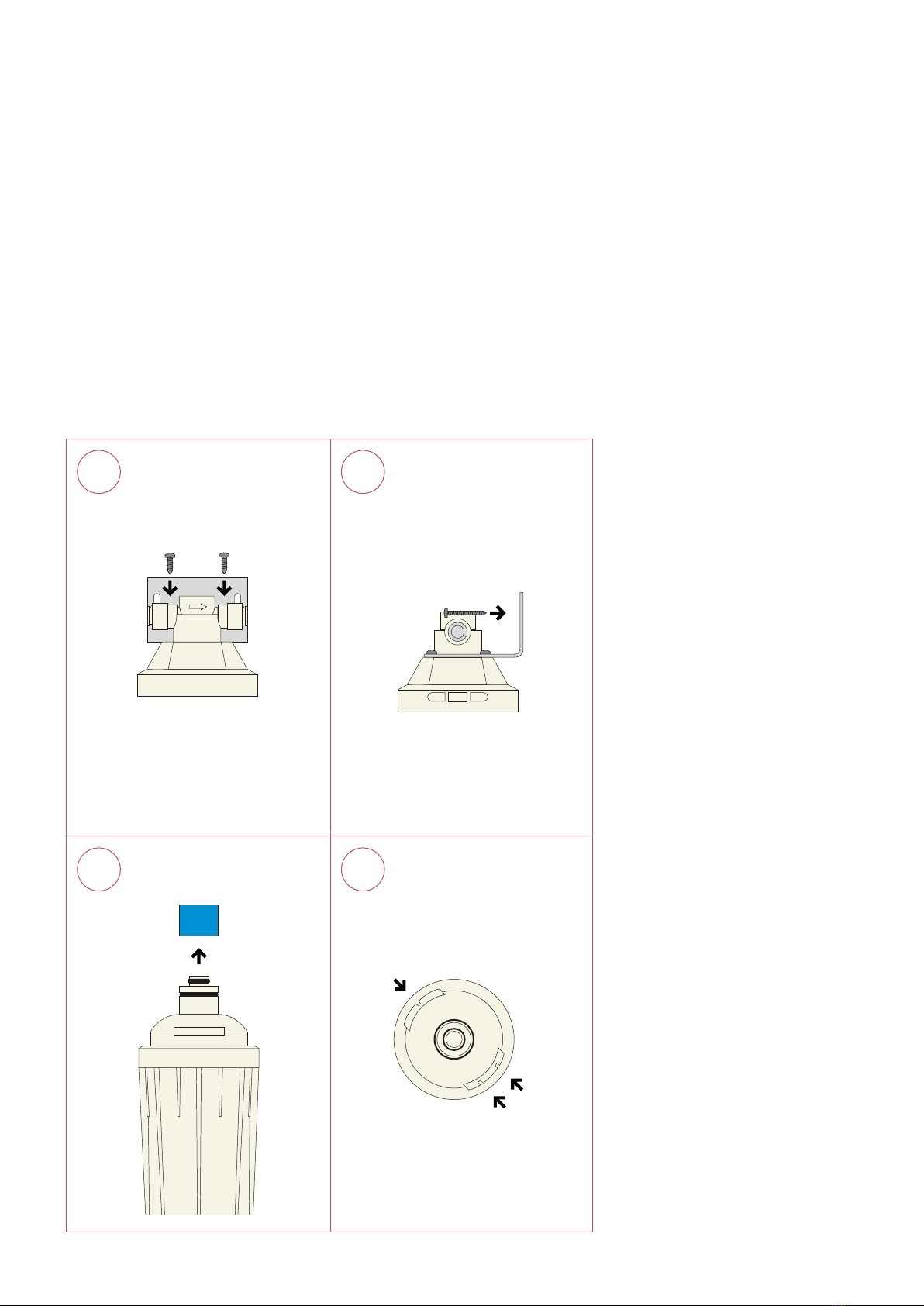

1. Mounting the bracket

Screw the bracket into the head of the

cartridge using the four short screws

provided.

2. Mounting the bracket

Screw the bracket onto the kitchen

cabinet wall using the two long screws

provided.

3. Removing the cap

Remove the blue cap from the top of the

cartridge.

4. Aligning the cartridge

In order to insert the cartridge into

the head of the Scale Control Plus,

the protruding parts on the side of the

cartridge need to be aligned with the

notches in the head. When doing so, keep

in mind that there are two grooves on one

side of the cartridge and only one on the

other side.

2×2×

2×

Scale Control Plus

cartridge

Reduces limescale

Step 1 When alarm sounds, 0% blinks.

Step 2 Unscrew the old cartridge (counter

automatically.

Step 3 Screw in the new car tridge

(clockwise).

Step 4

The Scale Control meter is 100%.

Step 5 Run boiling water for 20 seconds.

Step 6 Check fo r leaks.

Operational data

Life span: 550L @ 15 dH

Max pressure: 8.6 bar

Temperature range: 2-38°C

Service and order: www.quooker.com

• Only to be connected to drinking water.

•

cartridge prior to use.

• Please dispose this cartridge with your

general waste.

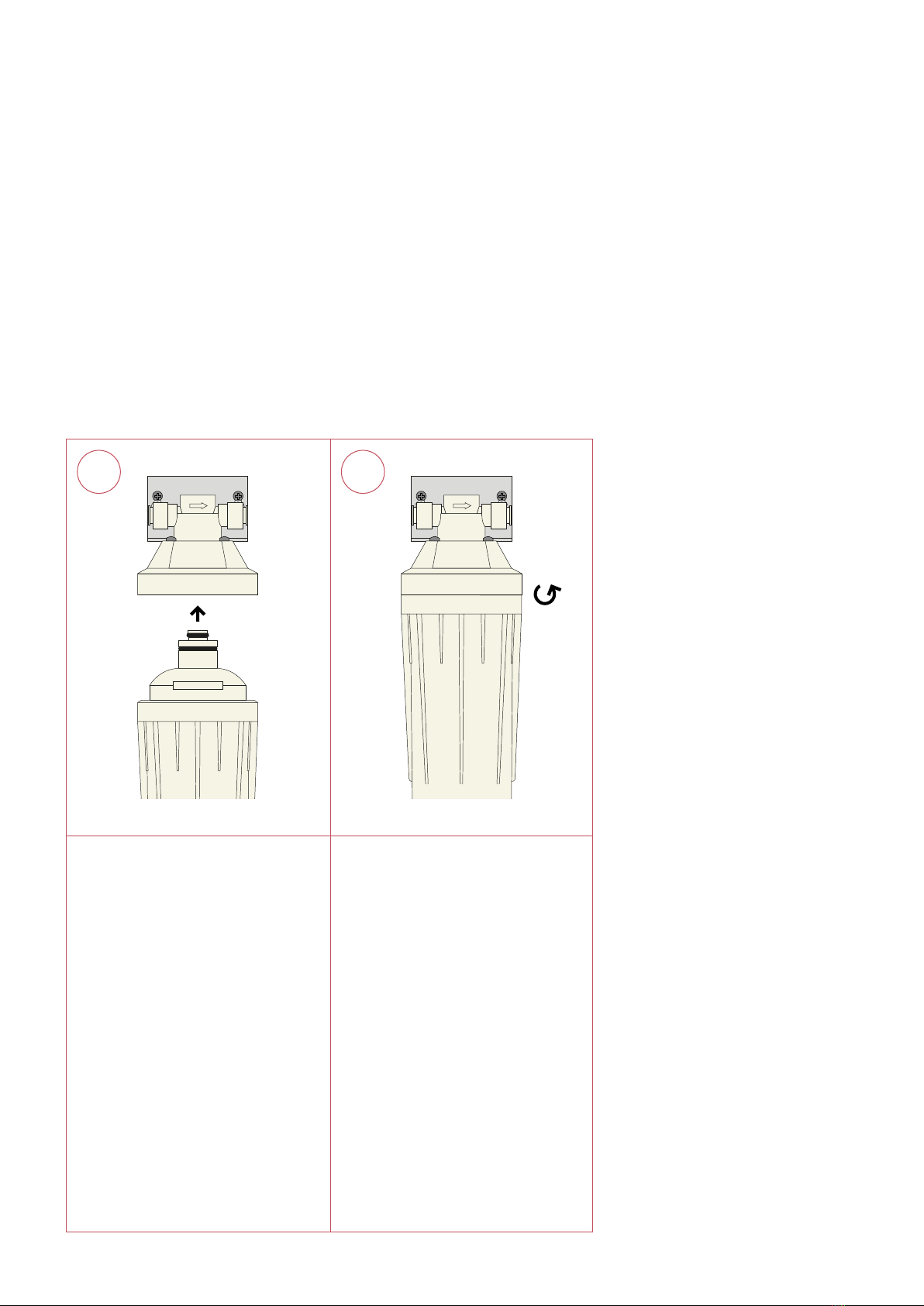

5 6 5. Inserting the cartridge

Firmly push the cartridge into the head

of the Scale Control Plus until the groove

between the cartridge and the head is no

longer visible.

6. Securing the cartridge

Now rotate the cartridge a quarter turn

to the right to ensure that it is securely in

place.

(For installation with PRO3 or PRO7,

continue to section E1. For installation with

a COMBI, continue to section E2.)

Scale Control Plus

cartridge

Reduces limescale

Step 1 When alarm sounds, 0% blinks.

Step 2 Unscrew the old cartridge (counter

automatically.

Step 3 Screw in the new car tridge

(clockwise).

Step 4

The Scale Control meter is 100%.

Step 5 Run boiling water for 20 seconds.

Step 6 Check fo r leaks.

Operational data

Life span: 550L @ 15 dH

Max pressure: 8.6 bar

Temperature range: 2-38°C

Service and order: www.quooker.com

• Only to be connected to drinking water.

•

cartridge prior to use.

• Please dispose this cartridge with your

general waste.

Scale Control Plus

cartridge

Reduces limescale

Step 1 When alarm sounds, 0% blinks.

Step 2 Unscrew the old cartridge (counter

automatically.

Step 3 Screw in the new car tridge

(clockwise).

Step 4

The Scale Control meter is 100%.

Step 5 Run boiling water for 20 seconds.

Step 6 Check fo r leaks.

Operational data

Life span: 550L @ 15 dH

Max pressure: 8.6 bar

Temperature range: 2-38°C

Service and order: www.quooker.com

• Only to be connected to drinking water.

•

cartridge prior to use.

• Please dispose this cartridge with your

general waste.

3 4

1 2 1. Turning o the tank

Turn o the tank. Leave the plug in the

socket. Open the boiling water tap and

let the water run cold. Also open the cold

water tap. Close the inlet combination rst,

and then the tap. Then turn o the mains

cold water supply.

2. Removing the copper pipe

Remove the copper pipe, including the

nuts and clamping rings, between the

T-piece and inlet combination.

3. Mounting the inlet combination

Mount the push-t using the insert on the

pressure reducing valve. Then connect

one of the two plastic tubes (B) to the

push-t.

4. Mounting the bracket

Screw the bracket onto the kitchen

cabinet wall using the two long screws

provided.

Installation with a PRO3 or PRO7

• Follow the steps below to install the Scale Control Plus with a Quooker PRO3 or PRO7.

• The ‘Q’ on the top of the tank is the on / o switch.

COLD

ScaleControl Plus

cartridge

Reduceslimescale

Step1 Whenalarmsounds,0%blinks.

Step2Unscrewtheold cartri dge(counter

automatically.

Step3Screwin thenewcartridge

(clockwise).

Step4

TheScaleControlmeteris 100%.

Step5Runboilingwaterfor20seconds.

Step6Checkforleaks.

Operationaldata

Lifespan:550L@ 15dH

Maxpressure:8.6bar

Temperaturerange:2-38°C

Serviceandorder:www.quooker.com

• Onlytobeconnectedtodrinkingwater.

•

cartridgepriortouse.

• Pleasedisposethiscartrid gewithyour

generalwaste.

COLD

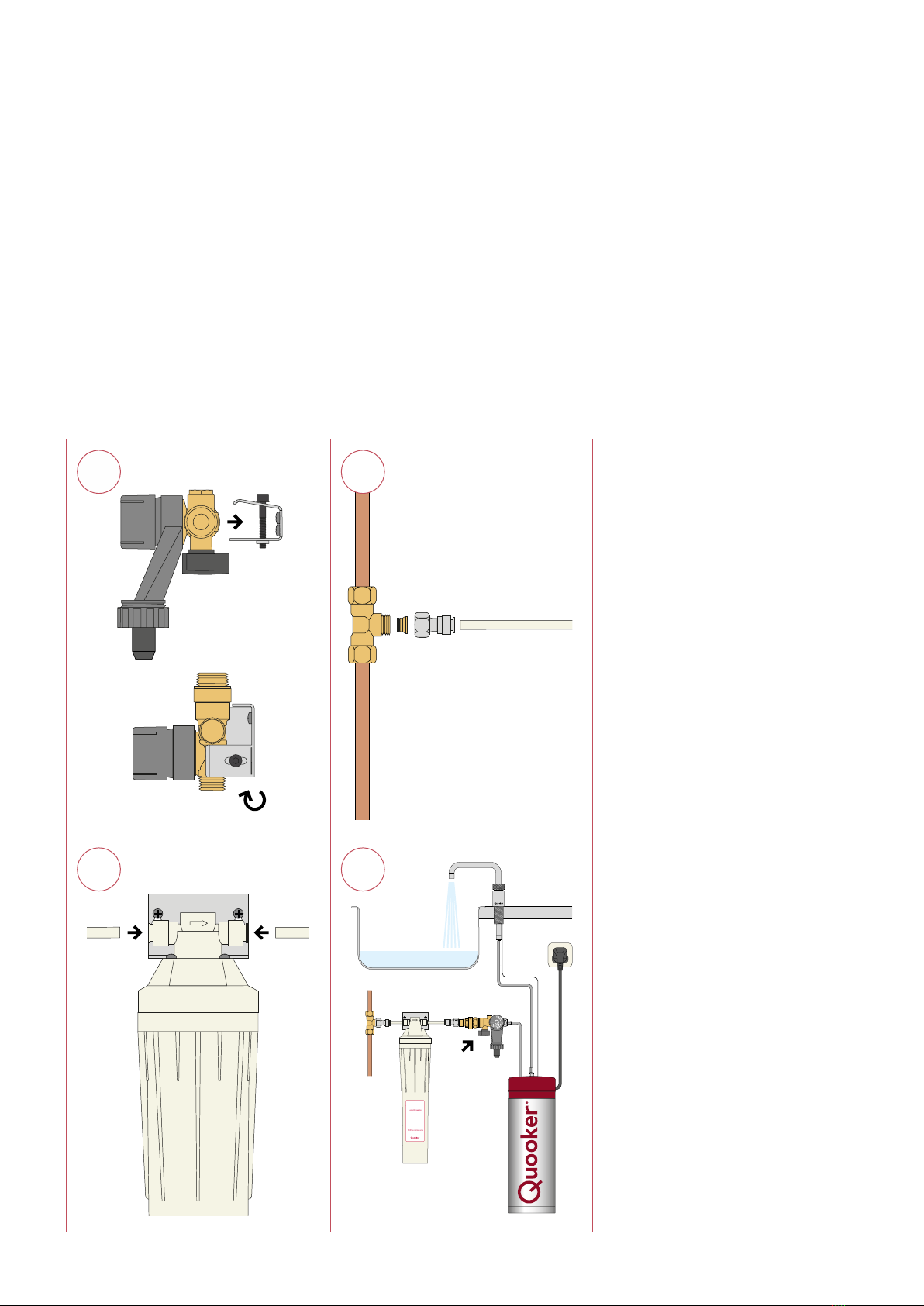

5. Mounting the inlet combination

Insert the inlet combination into the

bracket. Turn the screw on the top of the

bracket clockwise using the supplied Allen

key until the inlet combination is securely

attached.

6. Connecting the tube

Mount the provided push t connection

using the insert on the T-piece. Then

connect plastic tube A to the push-t.

7. Connecting the Scale Control Plus

Now connect plastic tube (A) to the head

of the Scale Control Plus. Make sure that

this is done in the right direction (see

the arrow on the head). Now connect the

second plastic tube (B) to the other side

of the head.

8. Flushing out the cartridge

Open the inlet combination and turn on

the mains cold water supply. Ventilate the

system by opening the boiling water tap.

Flush the system with 20 litres of water

until the water runs clear. Turn on the tank.

Once the water has heated up again, the

Quooker system is ready to use (continue

to section F).

Scale Control Plus

cartridge

Reduces limescale

Step 1 When alarm sounds, 0% blinks.

Step 2 Unscrew the old cartridge (counter

automatically.

Step 3 Screw in the new cartridge

(clockwise).

Step 4

The Scale Control meter is 100%.

Step 5 Run boiling water for 20 seconds.

Step 6 Check for leaks.

Operational data

Life span: 550L @ 15 dH

Max pressure: 8.6 bar

Temperature range: 2-38°C

Service and order: www.quooker.com

• Only to be connected to drinking water.

•

cartridge prior to use.

• Please dispose this cartridge with your

general waste.

Installation with a COMBI

• Follow the steps below to install the Scale Control Plus with a Quooker COMBI.

• The ‘Q’ on the top of the tank is the on / o switch.

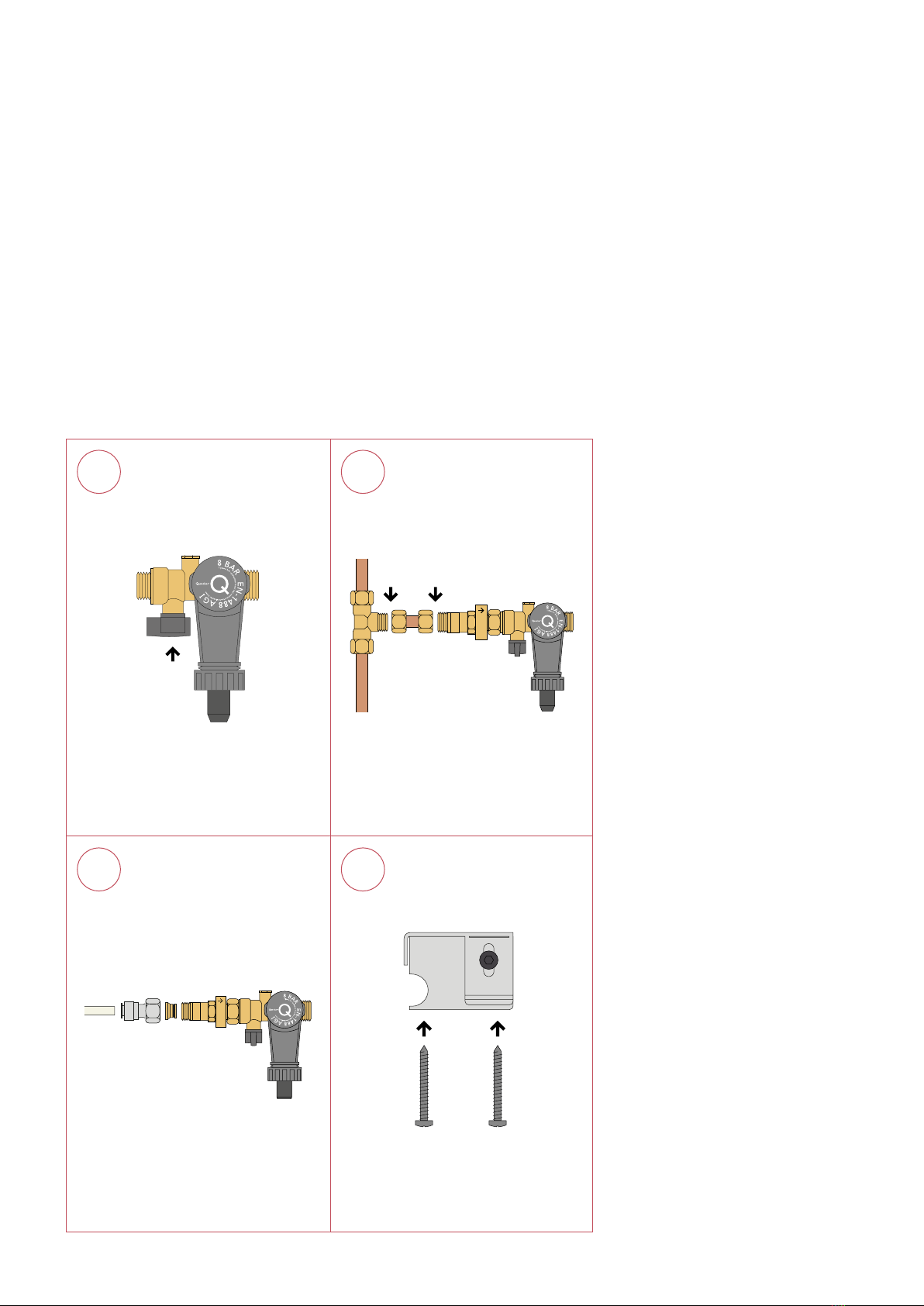

1. Turning o the tank

Turn o the tank. Leave the plug in the

socket. Open the boiling water tap and

let the water become cold. Also open the

cold water tap. Close the inlet combination

rst, and then the tap. Then turn o the

mains cold water supply.

2. Removing the copper pipe

Remove the copper pipe, including the

nuts and clamping rings, between the

T-piece and inlet combination.

3. Mounting the inlet combination

Mount the push-t using the insert on the

inlet combination. Then connect one of

the two plastic tubes (B) to the push-t.

4. Mounting the bracket

Screw the bracket onto the kitchen

cabinet wall using the two long screws

provided.

3 4

1 2

COLD

Altri manuali per Scale Control Plus

Indice

Altri manuali Quooker Distributore d'acqua

Quooker

Quooker scale control Manuale utente

Manuali Distributore d'acqua popolari di altre marche

Monarch Water

Monarch Water ULTIMATE MINI AQUA HE Manuale utente

Haier

Haier HLM-109B Manuale utente

abc

abc Fleck 5600SXT Manuale utente

GE GXOF18G Istruzioni operative

Kenmore

Kenmore 625.385560 UltraFilter 650 Manuale utente

Innova

Innova CEV+ Guida rapida

Aries

Aries Hydra DI Manuale

GE GNCF02H Manuale utente

ProFlo

ProFlo PFB Series Manuale utente

Hydrotech

Hydrotech 89DF HIM Manuale utente

A.O. Smith

A.O. Smith FREZYA 300S Manuale utente

Frakco

Frakco Travelsoft RV 2400HD Manuale utente

GE GXSF30V Istruzioni operative

Avanti

Avanti WD31EC Manuale utente

Avanti

Avanti WD360 Manuale utente

BRIO

BRIO CLCTTL520 Guida utente

3M HCD-1 Manuale utente

Elkay

Elkay EFHFA8_2CJO Manuale di installazione
