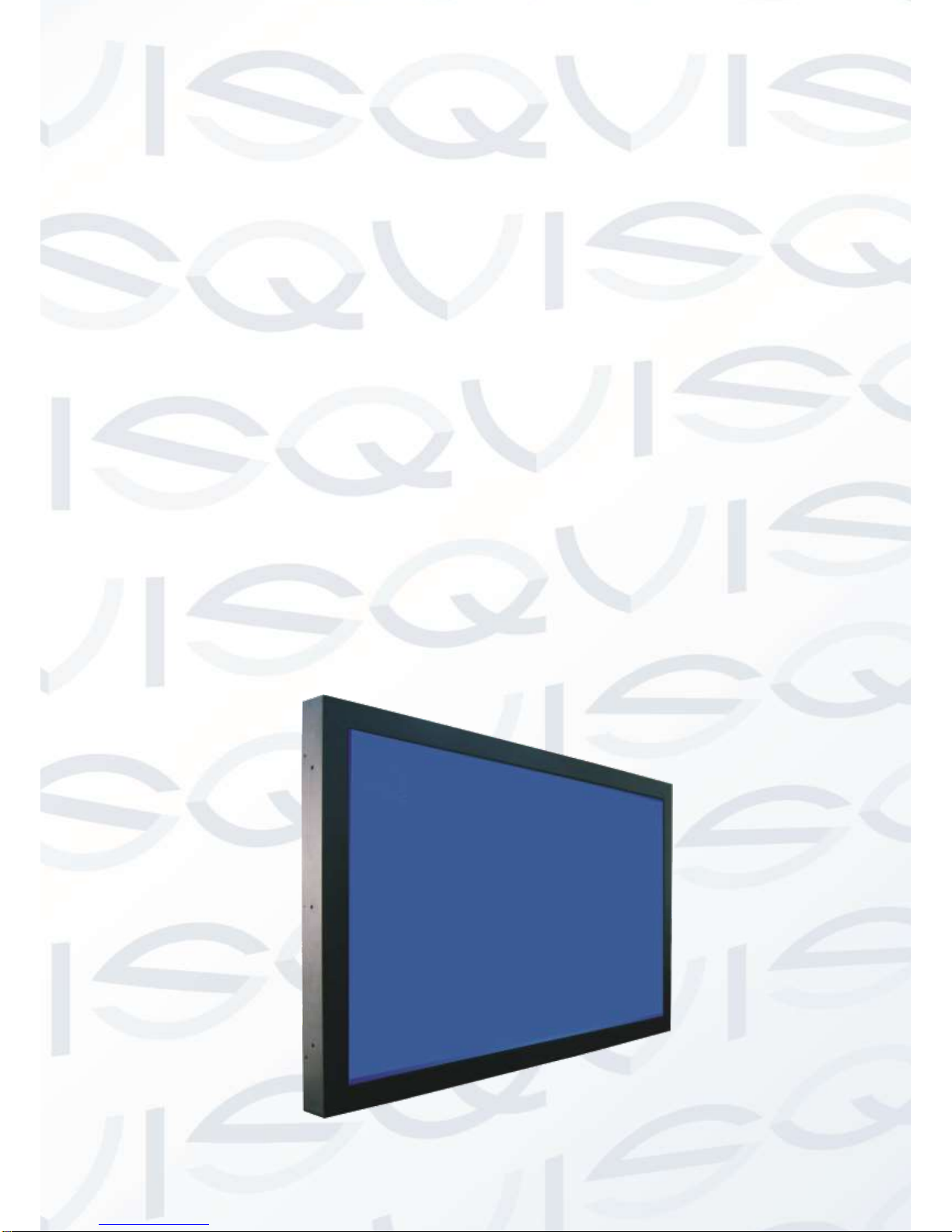

Qvis LED-HDMI2406-MA Manuale utente

24” LED SECURITY

MONITOR

LCD

LED-HDMI2406-MA

LED-HDMI2406-PA

User’s Manual

V1.0 01 / 2014

Welcome

Thank you for purchasing the 24” LED VGA Security Monitor.

This user’s manual is designed to be a reference tool for the

installation and operation of the device.

Here you can find information about the corresponding model’s

features and functions, as well as detailed instructions on how

to operate the device.

Before you operate the device please read the following

safeguards and warnings carefully!

Table of Contents

1General information.....................................................................................................3

1.1 Product description and type of use........................................................................3

1.2 General features.....................................................................................................3

1.3 Opening the box .....................................................................................................3

1.4 Contents of the box.................................................................................................3

2Warnings ......................................................................................................................4

2.1 Power .....................................................................................................................4

2.2 Safety precautions..................................................................................................4

2.3 Installation precautions...........................................................................................4

2.4 Cleaning the device ................................................................................................5

2.5 Privacy and copyright..............................................................................................5

3Hardware setup............................................................................................................6

3.1 Connecting/Disassembling the stand to the display:...............................................6

3.2 Positioning your display ..........................................................................................6

3.3 Connecting with the PC..........................................................................................7

4Controls & Settings .....................................................................................................8

4.1 Control key board: ..................................................................................................8

4.2 On Screen Display (OSD) selection and adjustment .............................................8

4.3 On Screen Display (OSD) control adjustment.........................................................9

4.3.1 PICTURE.......................................................................................................11

4.3.2 COLOR..........................................................................................................12

4.3.3 TRACKING....................................................................................................12

4.3.4 SETUP ....................................................................................13

4.3.5 Other functions ..............................................................................................14

5Troubleshooting.........................................................................................................15

6Product Specifications.............................................................................................. 18

1 General information

1.1 Product description and type of use

The LCD color monitor is designed to be very durable and comes with a hardwearing

case structure. It is also ideal for continuous operation and can be used in closed

circuit TV systems without risks of excessive operational degradation. The Flat Panel

Display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD).

1.2 General features

Display area

Wall mounting (bracket not included)

Audio input/output sockets

HDMI video input

Two composite video input channels (BNC) & one composite video output

channels (BNC).

Wide inclination/viewing angle to allow you to view either from a seated position,

when standing up or when moving from one position to the other.

Multilingual OSD menu for easy setup and optimisation of the display.

1.3 Opening the box

Check that the packing and the contents are not visibly damaged. Contact the

retailer immediately if parts are either missing or damaged. Do not attempt to use the

device if you do find that there are parts missing or the device is damaged. Send the

product back in its original packing, if it is damaged, to the supplier.

1.4 Contents of the box

LCD monitor

User’s Manual

Power cord

15-pin D-Sub signal cable

Audio cable (optional)

2 Warnings

2.1 Power

Only use the power unit provided to power the device. Check the mains voltage

rating before plugging the power unit in.

Do not pull the cable to unplug the device. Grip the plug end firmly and slowly

pull out of the monitor.

2.2 Safety precautions

Keep the device away from rain and atmospheres with a high humidity, to

prevent risk of fire and electrocution. Do not introduce material (either solid or

liquid) to the interior of the device. If this should accidentally occur, disconnect

the device from the mains IMMEDIATELY and have it inspected by qualified

personnel.

Never open the device. In all cases, contact the qualified personnel or authorised

service center for repairs.

Keep the device away from children, to prevent accidental damage.

Do not touch the device with wet hands so to prevent electrical shock or

mechanical damage.

Do not use the device if the external casing is damaged from a fall or impact

from a heavy/forceful object. There is a risk of electrocution if the device is

continued to be used when the casing has been compromised. In all cases,

contact the qualified personnel or authorised service center for repairs.

It is advisable to disconnect the power wire if the monitor is not used for a certain

time.

2.3 Installation precautions

To prevent the device from overheating, locate it in a position where there is an

allowance of air flow through the slots in the casing. Ensure at least 5 cm of free

space when installing inside a rack. For the same reason, do not install near

sources of heat, such as radiators or hot air ducts. Keep away from direct

sunlight. Do not install in areas subject to excessive dust, mechanical vibrations

or shocks.

Do not arrange this device on an unstable surface, such as a unbalanced or

slanted table. The device could fall causing injury or mechanical failures.

Do not install the device in a place where it could be exposed to humidity or

water. Do not direct a jet of water onto the device: risk of fire, electrocution or

even mechanical failure.

Stop using the device if water or other material should penetrate inside; risk of

fire and electrocution. Contact the retailer or authorized installer.

Slots and openings in the cabinet are provided for ventilation. These openings

must not be blocked or covered.

Do not place heavy or heat generating objects on top of the device: this could

damage the casing and/or increase internal temperature causing faults.

Do not cover the device with a cloth while it is running to prevent deforming the

external casing and overheating the internal parts. This could raise the risk of

fire, electrocution and mechanical failure.

Keep magnets and magnetised objects away from the device to prevent faults.

Do not use the device in the presence of smoke, vapor or dust.

Wait for a while before operating a device immediately after transporting it from a

cold place to a warm place and vice versa. Wait on average for three hours: this

will allow the device to adapt to the new ambient (temperature, humidity, etc.).

The monitor is provided with a plastic base and rubber feet. It can be positioned

on a horizontal surface, such as a desk or a table. Make sure that the device is

fastened firmly and that it is not resting on unstable supports or surfaces.

Remember to adjust the brightness and contrast to obtain a perfect image.

The monitor can also be installed on the wall by means of a bracket (not

provided).

2.4 Cleaning the device

Rub delicately with a dry cloth to remove dust and dirt.

Dip the cloth in neutral detergent if dirt cannot be eliminated with a dry cloth

alone.

Do not use volatile liquids (such a petrol, alcohol, solvents, etc.) or chemically

treated clothes to clean the device to prevent deformation, deterioration or

scratches to the paint finish.

2.5 Privacy and copyright

The LCD monitor is a device for CCTV systems. Recording of images is subject

to the laws in force in your country. Recording of images that are protected by

Product users shall be responsible for checking and respecting all local rules and

regulations concerning monitoring and recording video signals. The

manufacturing SHALL NOT MADE BE LIABLE for use of this product not in

compliance with the laws in force.

3 Hardware setup

3.1 Connecting/Disassembling the stand to the display:

Before setting up the monitor, ensure that the power to the monitor, the computer

system, and other attached devices are turned off.

Connecting and disassembling the stand:

1. Place the monitor face down on to a soft cloth.

2. Assemble the Stand Base into the stand body in the correct direction.

3. Turn the Stand Base and lock through by turning it 90° to fix the Stand Base to the

Stand Body.

4. Once assembled, lift the monitor up carefully.

5. Turn the Stand Base Lock through 90° to separate the Stand Base from the Stand

Body. If you can't release the Stand Base even after the Locking Knob is at the

release position then please push the indicated knob down and retry it.

6. Pull out the Stand Base to remove.

IMPORTANT

These

connection

steps

are a

general description for a range of monitor

model

. Stand Base connection may differ slightly from the connection

steps.

not

carry

the

product

upside

down, only

hold

only

the

stand

base and

monitor in an upright position.

Otherwise

the

product

may

fall

and

become

damaged

cause

injury.

3.2 Positioning your display

After installation, you can adjust the position of the panel in various ways for maximum

comfort. Tilt Range: 5~15 degrees.

(Do not touch or press the screen when adjusting the angle of the monitor).

It is recommended that in order to maintain an ergonomic and comfortable viewing

position, the forward tilt angle of the monitor should not exceed 5 degrees.

3.3 Connecting

with

the

Before setting up the monitor, ensure that the power to the monitor, the computer system,

and other attached devices is turned off.

1. Connect signal input cable, audio cable and power cord in order, then tighten the

screw of the signal cable.

2. Connect the D-sub (Analog signal) cable.

3. Connect the DVI-D (Digital signal) cable if has DVI-D.

4. Press the power button on the front panel to turn the power on. When monitor power is

turned on, the 'Auto' is executed automatically.

4 Controls & Settings

4.1 Control key board:

1. Menu

2. Up

3. Down

4. Auto

5. Power Button & Indicator

4.2

On Screen Display (OSD) selection and adjustment

What is DCR?

Dynamic Contrast Ratio (DCR) auto adjusts the brightness of the screen so users can see

the darker areas of the displayed content in greater depths. By increasing the darkness of

the dark areas and the brightness of the bright areas, the contrast ratio is uplifted to

100000:1. DCR value varies subject to the original CR values of the monitor module. The

higher the original CR, the higher DCR can be achieved. DCR is great for watching movie or

video contents.

How to Use DCR?

Go to the first OSD icon labelled ‘Luminance’, turn on or off DCR as desired. DCR boosts

the contrasts between lightness & darkness and enables the viewer to see more layers and

details of the picture, especially in the darker areas. Please note when DCR is on, DCB will

be disabled.

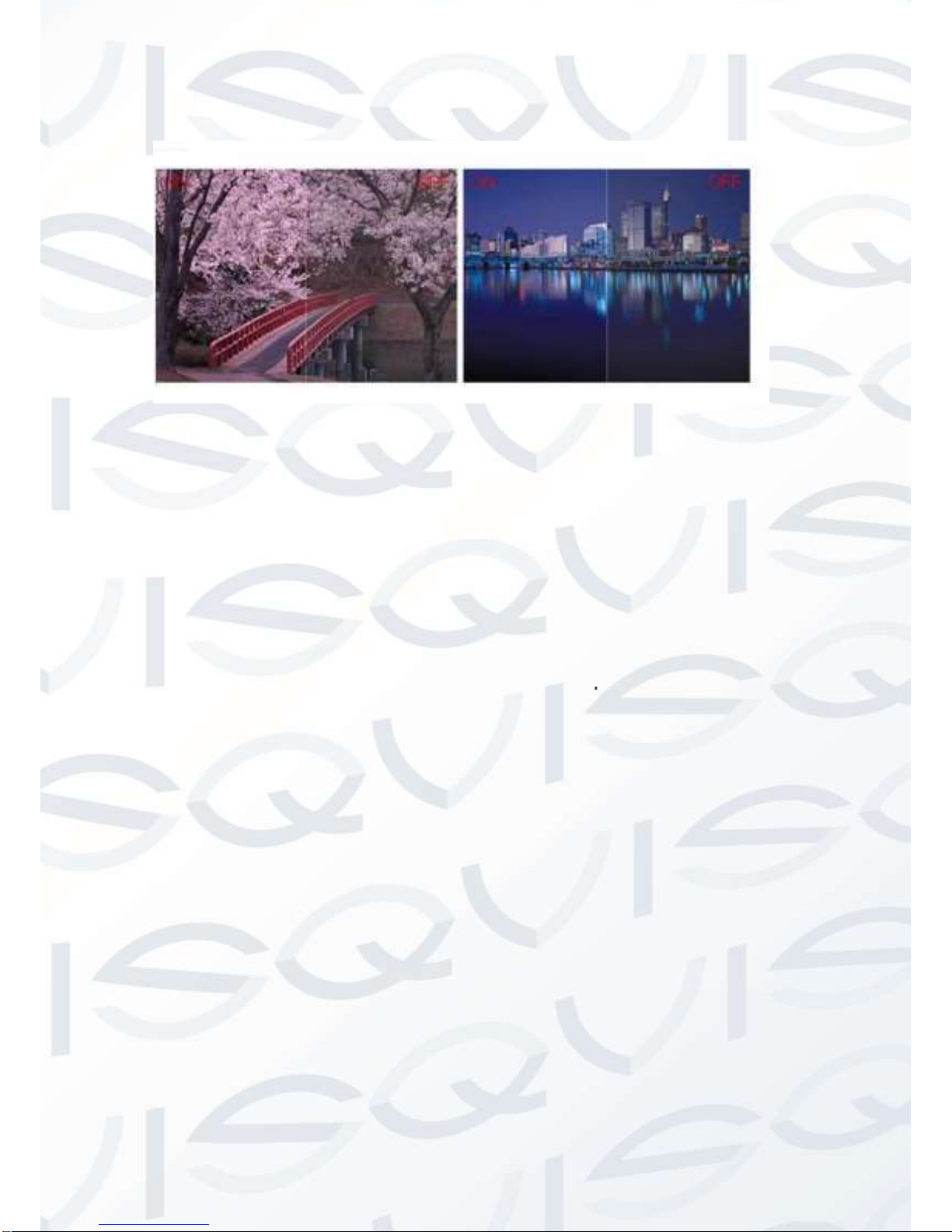

DCR Demontrations:

4.3 On Screen Display (OSD) control adjustment

Making adjustments to the image size, position and operating parameters of the display

is quick and easy with the ‘On Screen Display Control system’. A short example is given

below to familiarise you with the use of the controls. The following section is an outline

of the available adjustments and selections you can make using the OSD. To make

adjustments in the On Screen Display, follow these steps:

1. Press the MENU Button, then the main menu of the OSD appears.

2. To access a control, use the buttons on the monitor. When the icon you want

becomes highlighted, press the AUTO/SET Button.

3. Use the / Buttons to adjust the image to the desired level. Use the AUTO/SET Button

to select other sub-menu items.

4. Press the MENU button once to return to the main menu and to select another

function.

5. Press the MENU button twice to exit from the OSD.

ON OFF ON OFF

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Qvis Monitor

Qvis

Qvis LED-HDMI3206-PA Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
