QYSEA FIFISH Manuale utente
Quick Start Guide
V1.0
FIFISH Onshore Power Supply System
1
Contents
Safety and Regulations………................................................................………...1
Introduction…………..................................................................................………2
FIFISH Onshore Power Supply System (OPSS) Protecting Box….....…........................…2
FIFISH Onshore Power Supply System (OPSS)……….....................………................…3
FIFISH OPSS Power Management (OPSS-PM)…….....................………................……4
Electric Power Tank (E-Tank)…………….............................................................……5
FIFISH Onshore Power Supply System (OPSS)Spool………................................………5
Preparation……………...................................................................................……6
Connection……..............................................................................……………7-10
Maintenance………..........................................................................…………11-12
The indication of the led colors on OPPSS-PM……......................……………13
Safety and Regulations
Operating FIFISH products requests training and practice.Please read
through this document before operating in water.
1
1. Unauthorized disassembly of any parts is prohibited.
2. Please ensure that you install and connect the AC power system after the ROV is
powered off.
3. Check if any damges in OPSS or E-Tank.
4. Check and keep both the communication interface and tether interface dry and clean,
Salt and moisture may cause corrosion of the connector interface.
5.Check if AC input cable damage or not.
6.Please keep the power switch off during take-up and pay off the cable.
7.Pay attention to check whether the O-ring is on the connection cable connector. If it is
missing or broken, please replace it in time.
8.Not recommended that OPSS and diver work underwater at the same time.
9. Pay attention to the conditioning of the Power indicator during uses.
10. Do not put heavy objects on OPSS-PM.
11.Do not make OPSS-PM in wet conditioning.
Introduction
FIFISH Onshore Power Supply System (OPSS) Protecting Box
1.Protecting Box
2.Protecting Box Button
3.Protecting Box Handle
2
1
3
2 2
Introduction
FIFISH Onshore Power Supply System (OPSS)
1.OPSS Power Management (OPSS-PM)
2.OPSS ROV Mount
3.The AC input cable for OPSS-PM
4.OPSS Spool（200M）
5.Electric Power Tank (E-Tank)
3
1
2
3
4
5
Introduction
FIFISH OPSS Power Management (OPSS-PM)
1.AC power output interface
2.AC power input interface
3.Switch Key
4.Power Indicator
Normal work (no charging): green light
Normal work (in charging): red light
Other colors: Abnormal working condition (refer to the power indicator
lights description of on pages P13 )
4
1
2 3
4
1 2
Introduction
Electric Power Tank (E-Tank)
①Electric Power Tank (E-Tank) ②Tether ③ROV Plug
5
FIFISH 岸上供电线盘
OPSS Spool
④AC Plug ⑤RC Plug ⑥Tether（200M）
3
1
2
4
5
6
Preparation
1.Check the accessories are whether complete in Protecting Box
2.Check the appearance of all accessories for damage
（1）Check OPSS Power Management (OPSS-PM)
（2）Check OPSS ROV Mount
（3）Check Onshore Power Supply System (OPSS)。
（4）Check OPSS Spool
6
3.Check each connection plug for damage or water ingress
（1）Check each connection plug for damage
（2）Check each connection cable for damage
Preparation
1.Connect the AC output plug and input plug(E-Tank) to correct AC interface.(OPSS-PM).
2.Plug the AC input plug into the designated power socket.
7
Notice: Please ensure that you install and connect the AC power system after
the ROV is powered off.
3.Turn off the OPSS-PM, and cut off the AC power supply.
AC output plug
AC input plug
Note:
Please confirm the indicator shows green once turn on the OPSS-PM. If it shows wrong
color, please turn if off and cut off the power.
Connection

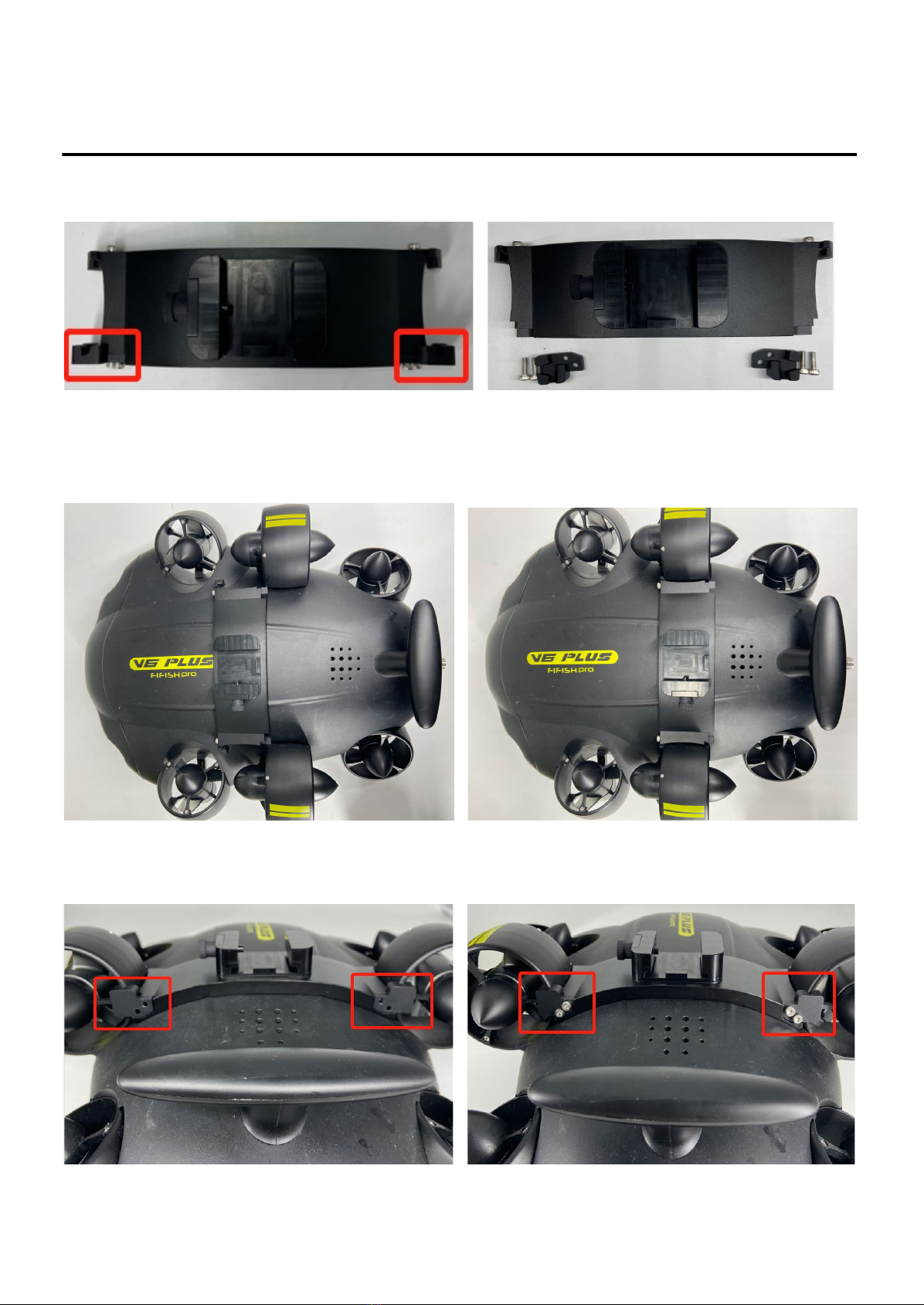

1.Unfasten and take off the 4 fixing screws (NOT the 2 screws side)
8
2.Position the OPSS ROV mount on the top of ROV, and the side has 2 screws shall facing
forward (the same with heading), the bracket end shall snap on horizontal thrusters
3.Fasten the 4 screws and the back (stern side) to secure the OPSS ROV mount, and
twist to open the dowel pin
