R.LiNK CI-RL3-R40 Manuale utente

Version 16.03.2020 HW: CAM(V97)/(V30) CI-RL3-R40

r.LiNK Video-inserter

CI-RL3-R40

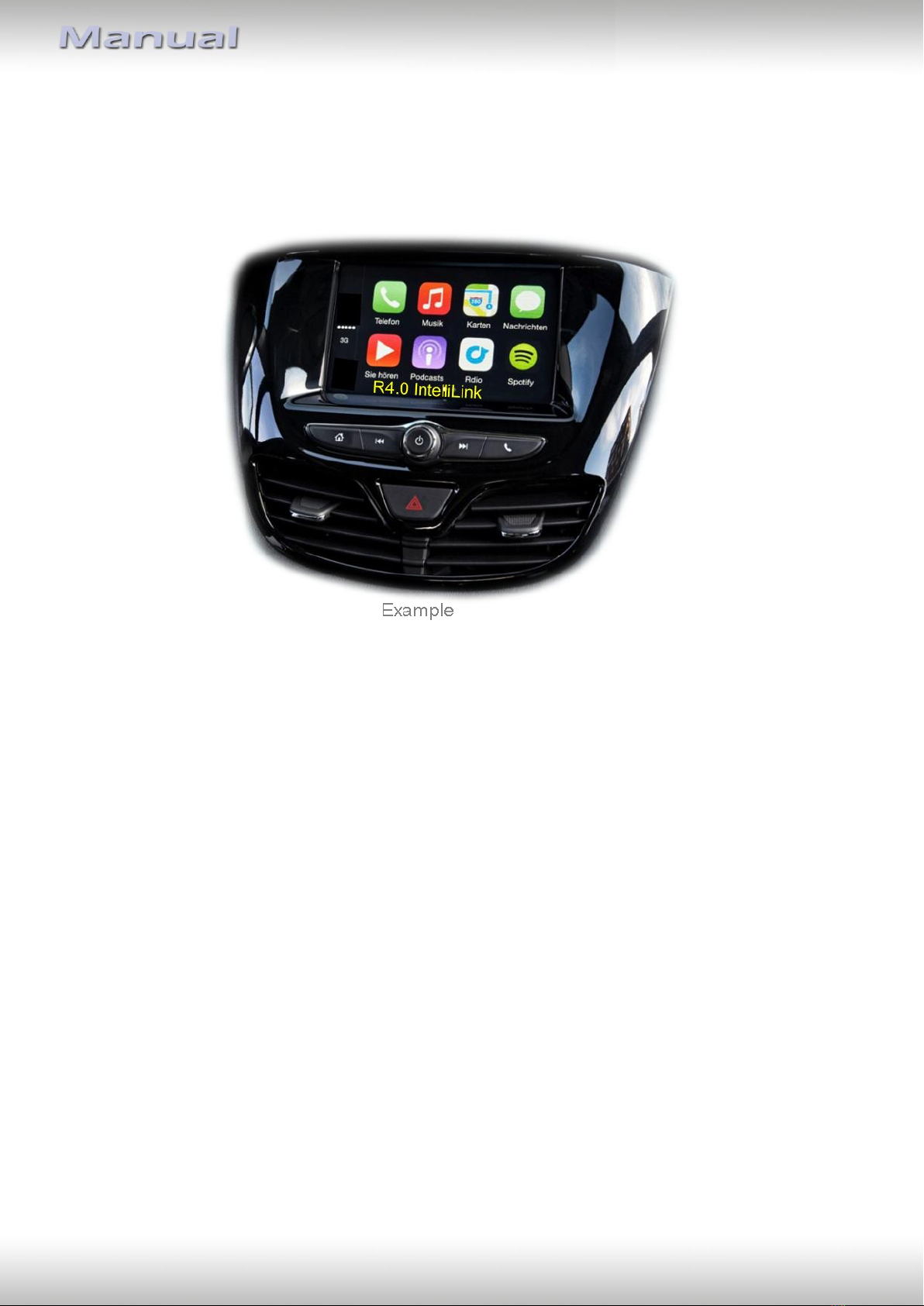

Compatible with

Opel vehicles with R4.0 IntelliLink system

and 7" monitor with DIN-cage attached

Video-inserter with 2 video inputs,

rear-view camera input and CAN control

Product features

Video-inserter for factory infotainment systems

2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner)

1 Rear-view camera CVBS video-input

Automatic switching to rear-view camera input on engagement of reverse gear

Activatable parking guide lines for the rear-view camera (not available on all

vehicles)

Video-in-motion in drive mode (ONLY for connected video-sources)

Video-inputs PAL and NTSC compatible

Version 16.03.2020 HW: CAM(V97)/(V30) CI-RL3-R40

Page2

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Checking the compatibility of vehicle and accessories

1.3. Connection Video-Interface

1.4. Settings of the 8 Dip switches (black)

1.4.1. Enabling the interface’s video inputs (dip 2-3)

1.4.2. Rear-view camera setting (dip 5)

1.5. Settings of the 4 Dip switches (CAN function –red)

2. Installation

2.1. Place of installation

2.1.1. Place of installation –video interface

2.1.2. Place of installation –daughter PCB

2.2. Connection schema

2.3. Connection to the head-unit

2.3.1. Installation of the Exchange –retaining plate and the daughter PCB

2.3.2. Connecting ribbon cables

2.3.2.1. Ribbon cable –66pin

2.3.2.2. Warning notes, concerning the installation of ribbon cables

2.4. Connection from monitor to the video interface

2.5. Connection to the head-unit –Power / CAN

2.6. Connecting video sources

2.6.1. Video-sources to Video IN1 and Video IN2

2.6.2. Audio-insertion

2.6.3. After-market rear-view camera

2.6.3.1. Case 1: Video-interface receives the reverse gear signal

2.6.3.2. Case 2: Video interface does not receive the reverse gear signal

2.6.3.3. Video signal connection for the rear-view camera

2.7. Connecting video-interface and external keypad

2.8. Picture settings and guide lines

3. Interface operation

3.1. By CALL OFF button

3.2. By keypad

4. Specifications

5. FAQ –Trouble shooting

Version 16.03.2020 HW: CAM(V97)/(V30) CI-RL3-R40

Page3

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. Apart from using this

product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-

camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).

Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to

one year after purchase we offer free software-updates for our interfaces. To receive a free

update, the interface has to be sent in at own cost. Wages for de-and reinstallation and

other expenditures involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

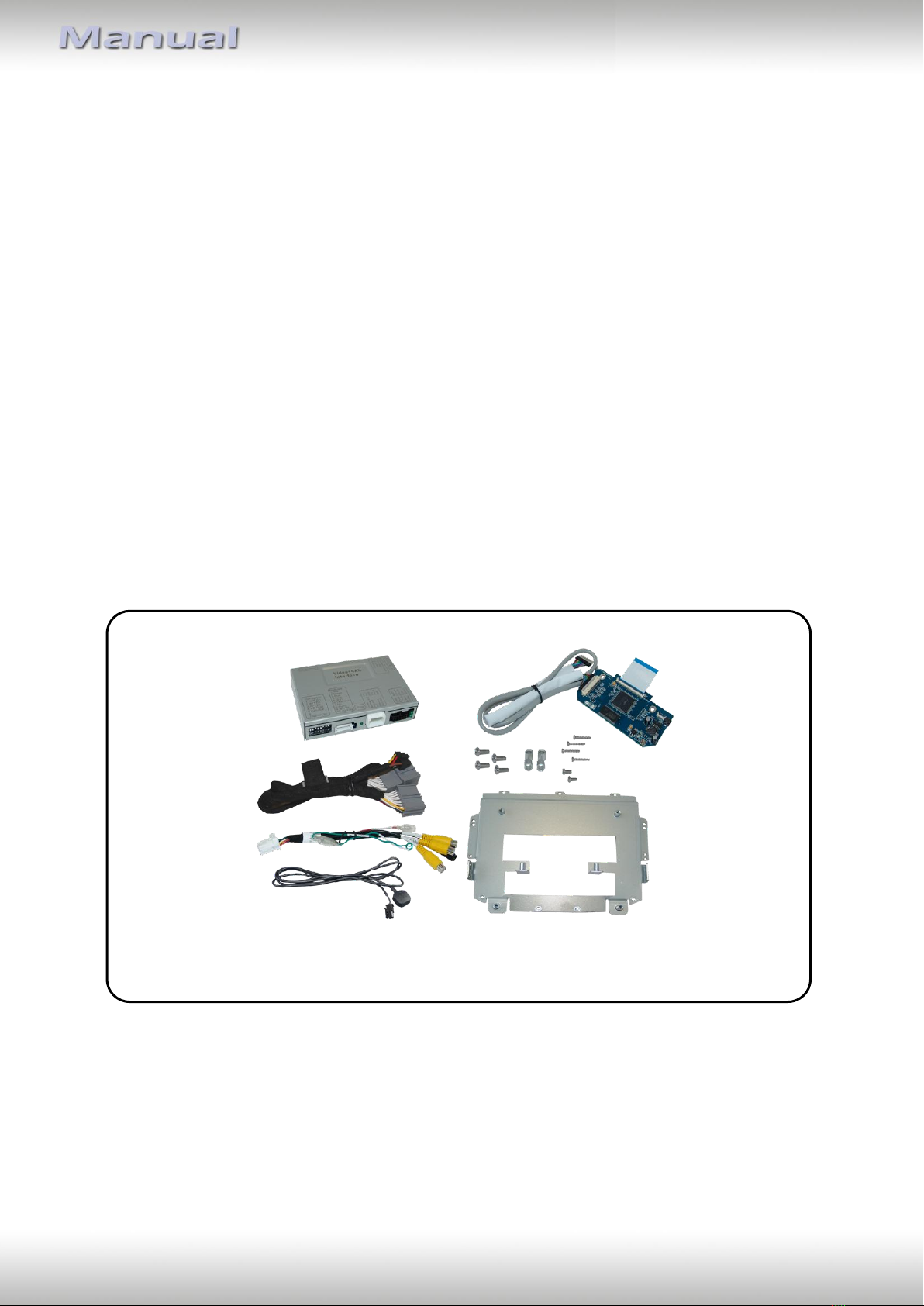

1.1. Delivery contents

Take down the serial number of the interface and store this manual for support

purposes: ____________________

Version 16.03.2020 HW: CAM(V97)/(V30) CI-RL3-R40

Page4

Compatibility

Limitations

Video only The interface inserts ONLY video signals into the infotainment.

For audio inserting, use the possibly existing factory audio-AUX-input

or a FM-modulator. If 2 AV-sources shall be connected to the

infotainment, for audio switching an additional electronic part is

required.

Factory rear-view camera Automatic switching-back from inserted video to factory rear-view

camera is only possible while the reverse gear is engaged. To delay

the switch-back, an additional electronic part is required.

1.2. Checking the compatibility of vehicle and accessories

Brand

Compatible vehicles

Infotainment systems

Opel

Adam

Corsa E

Crossland X since model year 2017 (no GM-LAN)

Grandland X since model year 2017 (no GM-LAN)

Mokka X since model year 2016-

Zafira C since model year 2017

R4.0 IntelliLink - 7" monitor

with DIN-cage attached

Version 16.03.2020 HW: CAM(V97)/(V30) CI-RL3-R40

Page5

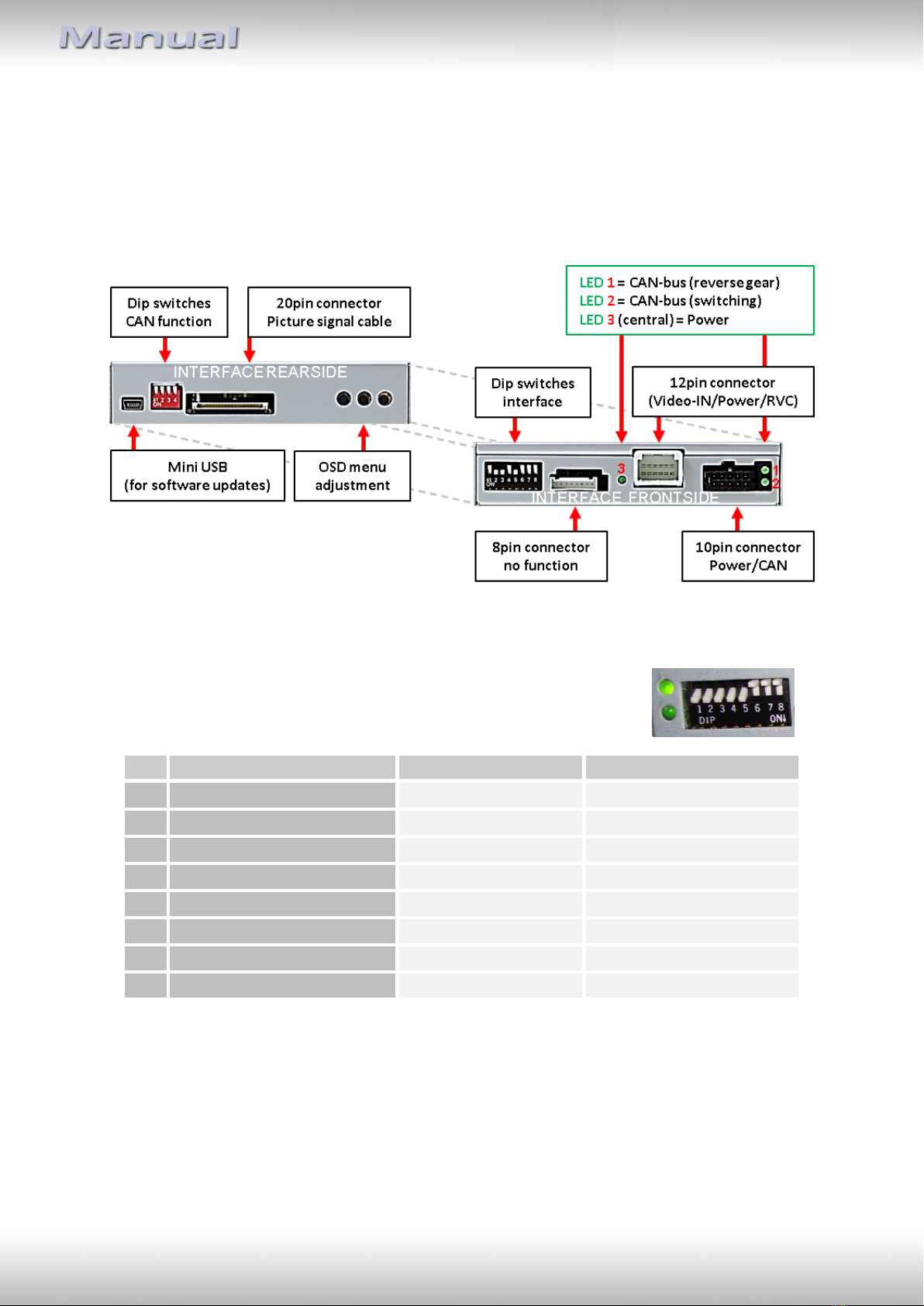

1.3. Connection Video-Interface

The video-interface converts the connected after-market sources video signals into an digital

RGB signal which is inserted in the factory monitor using separate trigger options and it

reads vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video

interface.

1.4. Settings of the 8 Dip switches (black)

Some settings have to be selected by the 8 dip-switches at the

video-interface. Dip position down is ON and position up is OFF.

See the following chapters for detailed information.

After each Dip-switch-change a power-reset of the Can-box has to be performed!

Dip

Function

ON (down)

OFF (up)

No function

Set to OFF

CVBS AV1-input

enabled

disabled

CVBS AV2-input

enabled

disabled

No function

set to OFF

Rear-view cam type

after-market

factory or none

No function

set to OFF

No function

set to OFF

No function

set to OFF

Version 16.03.2020 HW: CAM(V97)/(V30) CI-RL3-R40

Page6

1.4.1. Enabling the interface’s video inputs (dip 2-3)

Only the enabled video inputs can be accessed when switching through the interface’s video

sources. It`s recommended to enable only the required inputs for the disabled will be

skipped when switching through the video-interfaces inputs.

1.4.2. Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory LVDS picture while the reverse gear is engaged

to display factory rear-view camera or factory optical park system picture.

If set to ON, the interface switches to its rear-view camera input “Camera-IN” while the

reverse gear is engaged.

Note: Dip 1, 4, 6, 7 and 8 are out of function and have to be set to OFF.

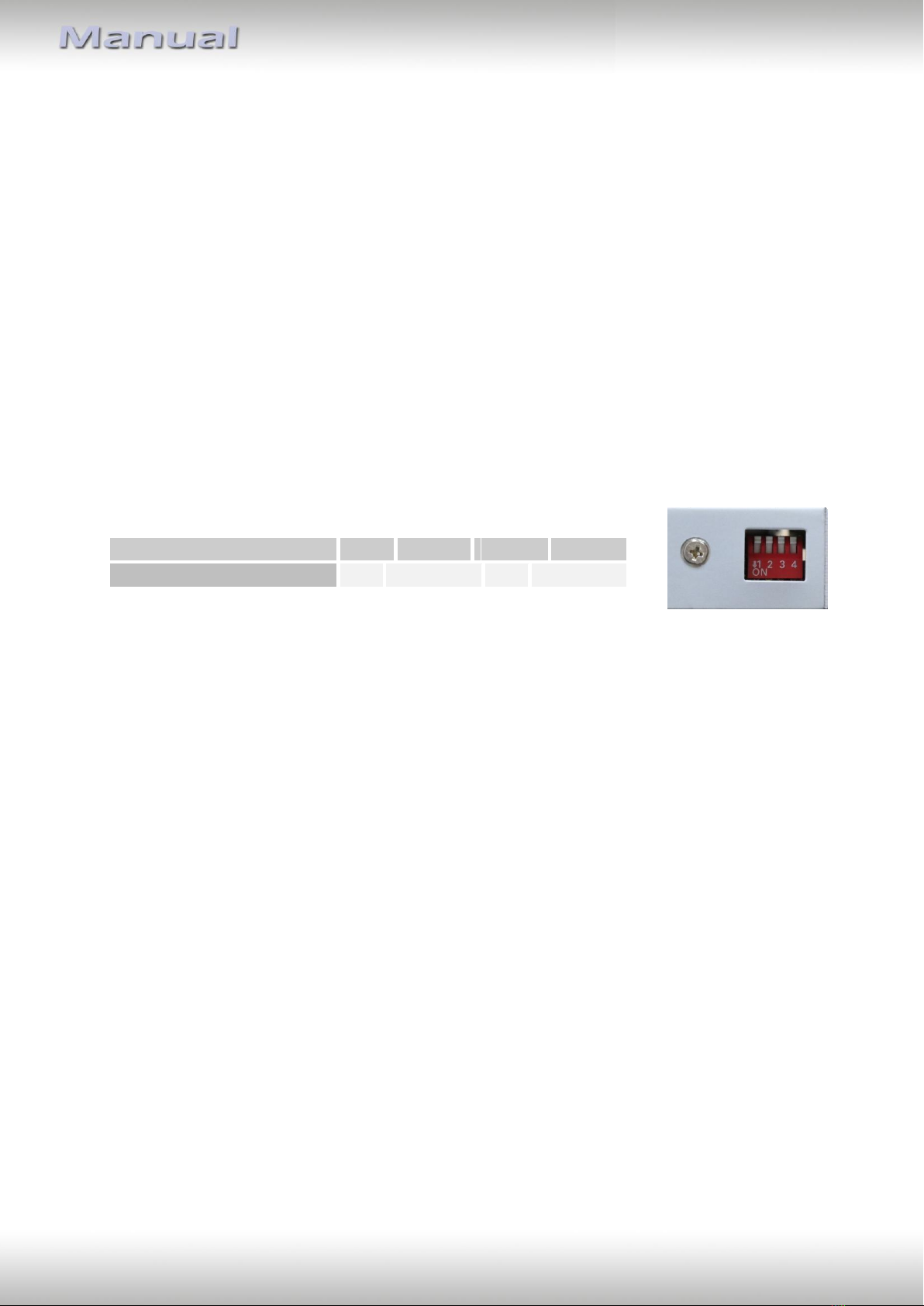

1.5. Settings of the 4 Dip switches (CAN function - red)

Dip position down is ON and position up is OFF.

Navigation / Sy5tem

Dip 1

Dip 2

Dip 3

Dip 4

R4.0 IntelliLink systems

OFF

Set all 4 dips to OFF.

After each Dip-switch-change a power-reset of the Can-box has to be performed!

Version 16.03.2020 HW: CAM(V97)/(V30) CI-RL3-R40

Page7

2. Installation

Switch off the ignition and disconnect the vehicle’s battery! The interface needs a

permanent 12V source. If -according to factory rules- a disconnection of the battery has to

be avoided, it should be sufficient to use the vehicle’s sleep-mode. In case, the sleep-mode

doesn’t succeed, the battery has to be disconnected with a resistor lead.

The Interface needs a permanent power supply! If power isn’t directly taken from the

battery, the connection’s power has to be checked for being start-up proven and

permanent.

2.1. Place of installation

2.1.1. Place of installation –video-interface

The video-interface is performed to be installed at the backside of the head-unit.

2.1.2. Place of installation –daughter PCB

The daughter PCB is performed to be installed with an exchange housing plate behind the

head unit’s monitor panel.

Version 16.03.2020 HW: CAM(V97)/(V30) CI-RL3-R40

Page8

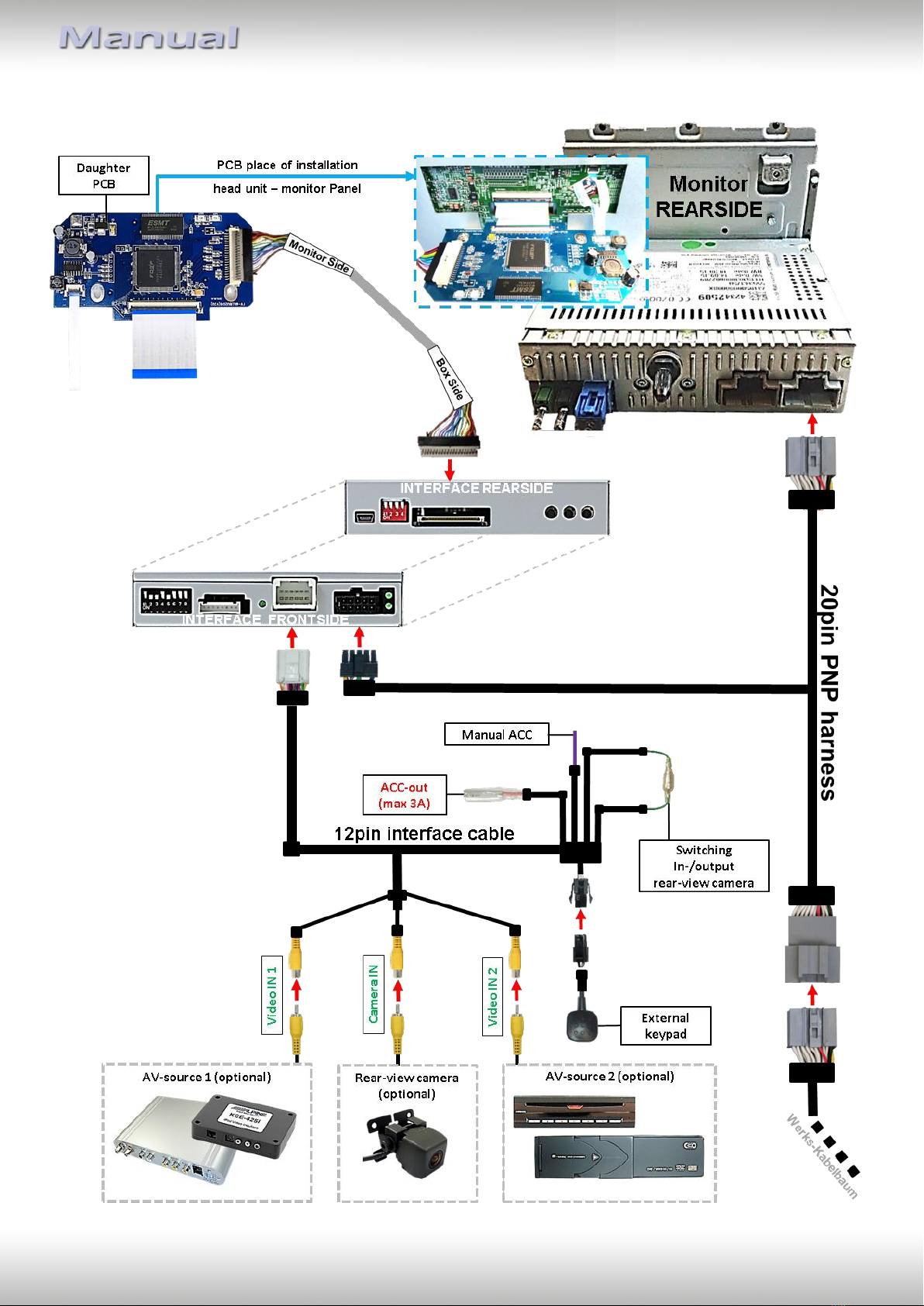

2.2. Connection schema

Version 16.03.2020 HW: CAM(V97)/(V30) CI-RL3-R40

Page9

2.3. Connections to the head-unit

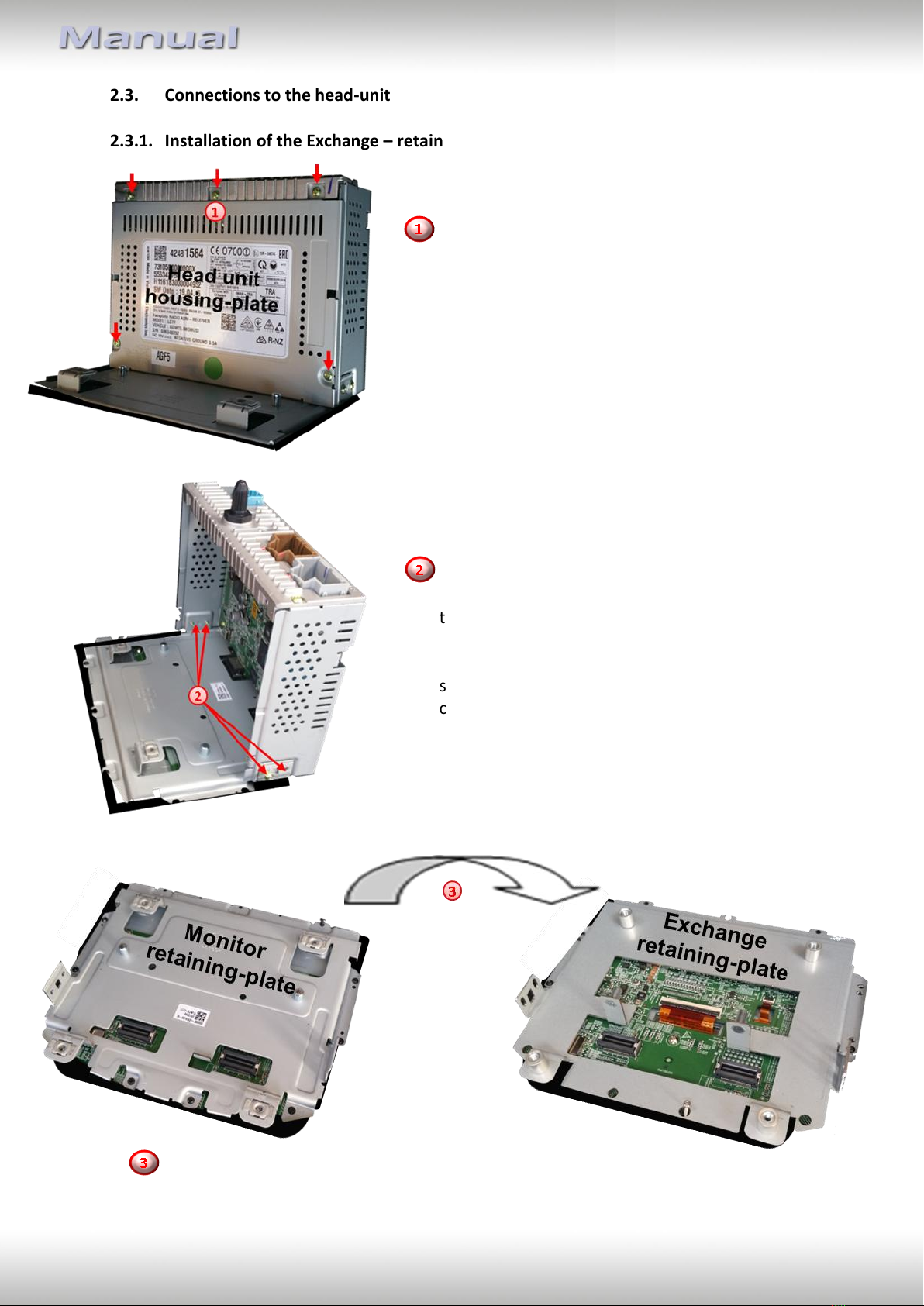

2.3.1. Installation of the Exchange –retaining plate and the daughter PCB

Remove the head-unit and further remove the

original housing cover plate, which is fixed to the

head-unit housing by 5 Torx screws (T9).

Turn out the 4 screws of the monitor retaining

plate, after carefully unklipping the 66pin and

the 9pin ribbon cables.

Note: The connected ribbon cables have to be

handled with care to avoid each damage of the

sensitive electrical inducters (Refer also to

chapter “Connecting the ribbon cables”)

Remove the Original monitor retaining plate and replace it with the exchange

retaining-plate by using the original screws.

Version 16.03.2020 HW: CAM(V97)/(V30) CI-RL3-R40

Page10

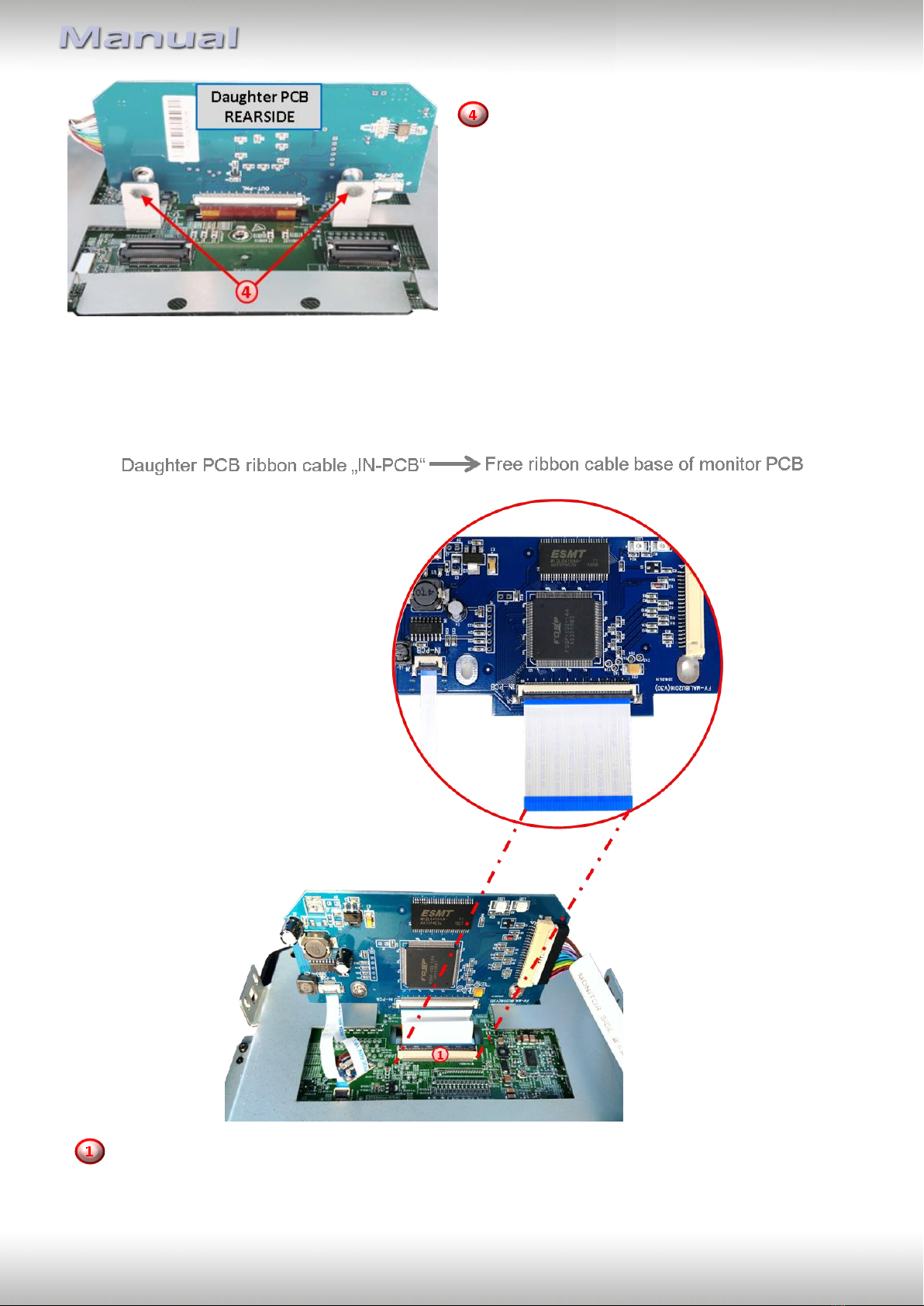

After connecting the ribbon cables, the

daughter PCB has to be fixed with its

rearside at the exchange retaining plate

by using the enclosed 2 shorter screws.

Previous ribbon cable connection:

Read the following instructions!

2.3.2. Connecting the ribbon cables

2.3.2.1. Ribbon cable –66pin

Connect the daughter PCB’s pre-assembeled 66pin ribbon cable „IN PCB“ to the previously

become free ribbon cable base of the monitor mainboard (heed the following warning

notes!).
