HOME STORAGE PRODUCTS
WWW.RACORSTORAGESOLUTIONS.COM
FREE STANDING
BIKE RACK | PLB-4R
INSTRUCTIONS

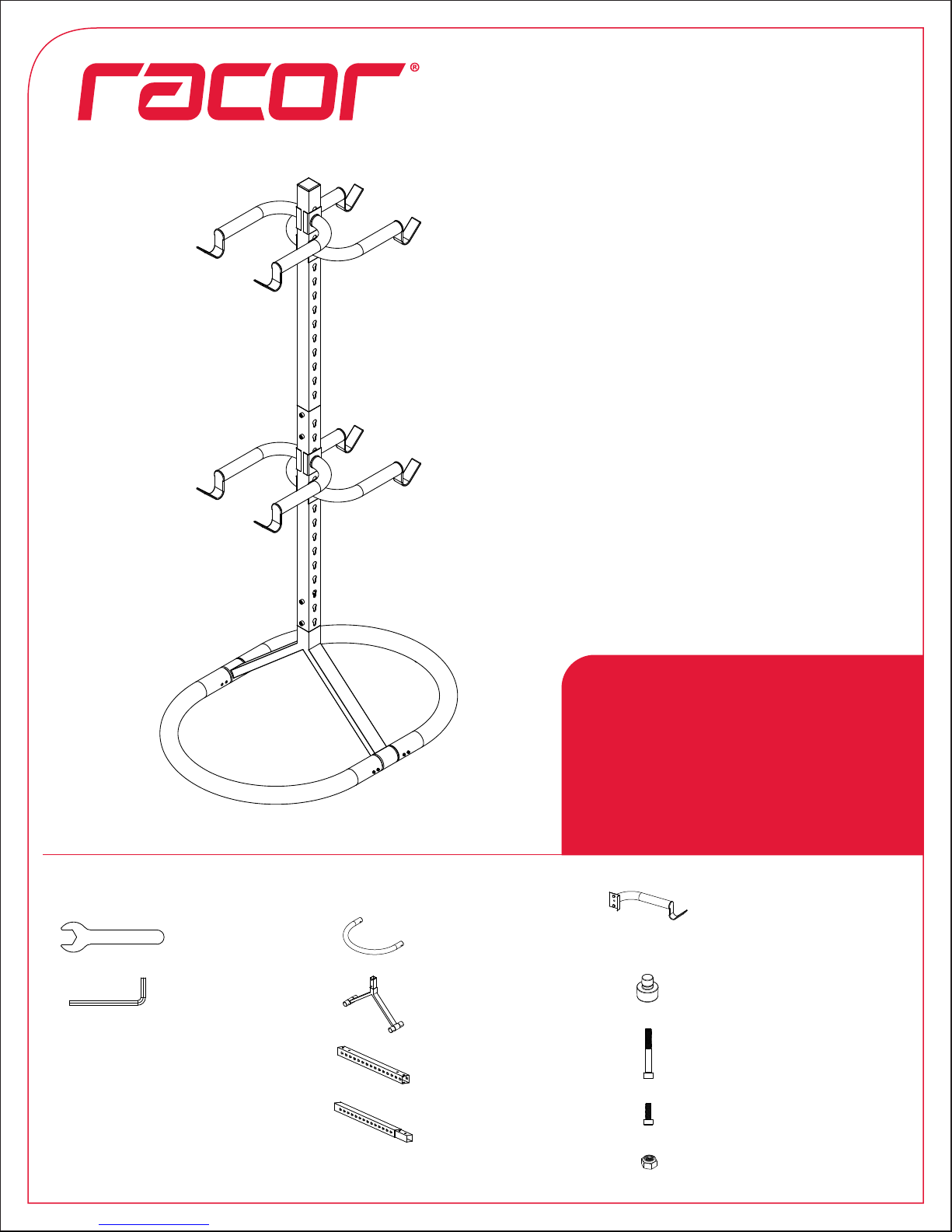

PARTS LIST
TOOLS REQUIRED
x2 Curved base
x1 V frame
x1 Straight bottom section
x1 Straight top section
x8 Universal arms
x6 Rubber feet
x4 Long hex socket cap screw
x8 Short hex socket cap screw
x4 Hex nut
Hex wrench
Allen wrench
(included)
WARNING
Please read installation instructions carefully prior to installing. Before using the product thoroughly test the fully-weighted
product (with equipment in place) to ensure the product has been installed properly. Do not allow children to play on
product. ITW Brands is not responsible for any damage resulting from improper installation, overloading or product failure.
3
2
4
1
A
B
C
D
E
F

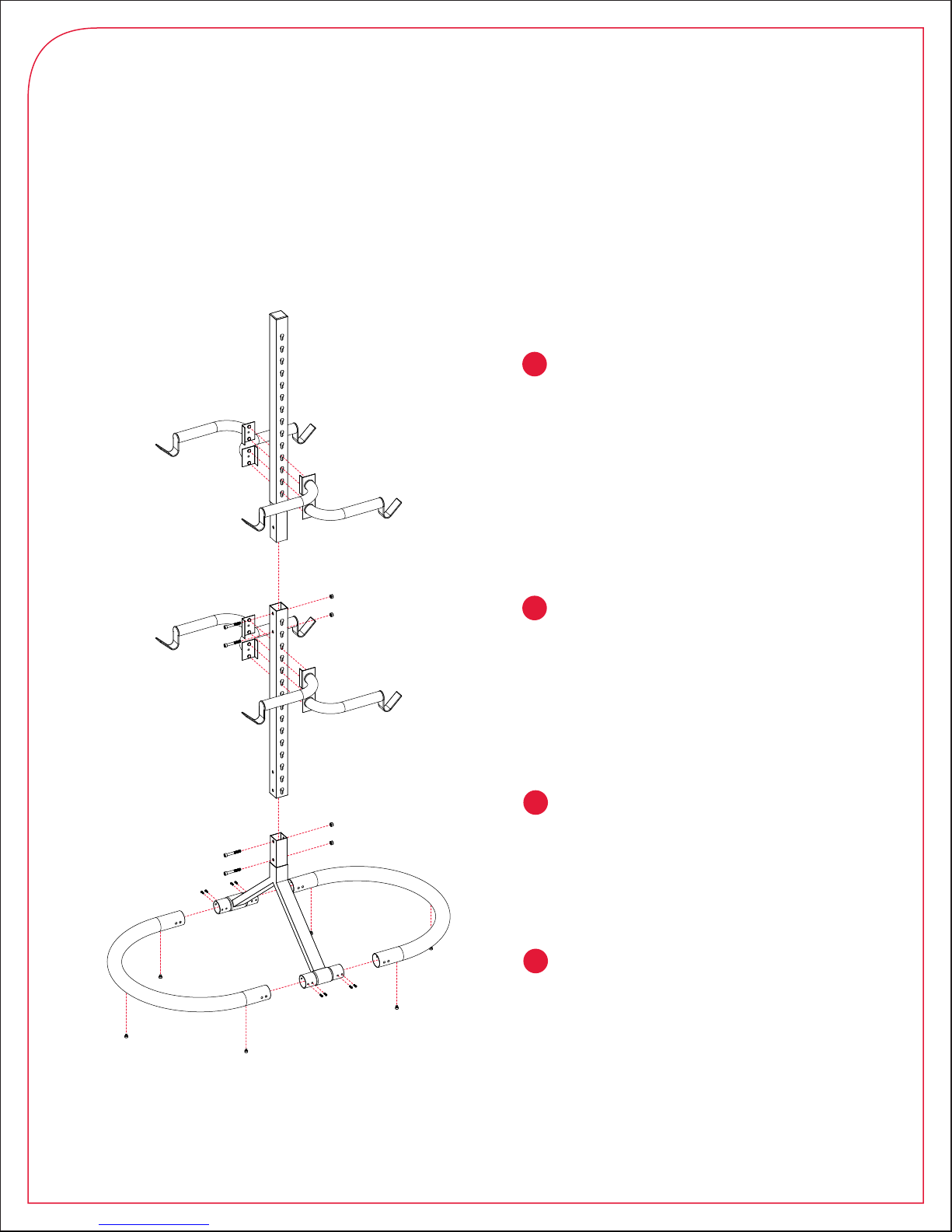

Set curved base sections Aand B on floor
and slide into support section C. Use eight
screws to fasten.
To protect floor attach feet (6F) to bottom
of assembly, as shown.
Slide straight section Dand Eover support
section Cas shown, making sure section E
is on top.
Fasten using 4 screws and nuts.
Fasten universal arms into key holes as
shown. Push in and then down to secure.
This step will take some adjustment to each
arm as bikes will vary in size.
HOME STORAGE PRODUCTS
Thank you for purchasing this product.
Racor storage and organizational
solutions will inspire and put you back
in control of your space. Racor has the
largest variety of solutions to organize
and store bikes, sports equipment,
lawn and garden supplies, bulky items
like ladders and totes, and clutter items
like tools. Please visit
www.RacorStorageSolutions.com for
other great organizational products.
Limited Warranty: These products are sold “as is” without any express or implied
warranties. ITW Brands’ sole liability, if any, shall be to replace this product or refund
the purchase price. The performance of these products is subject to variable
conditions and maximum load ratings are shown for comparison purposes only.
PLB-4R
Made in China
ITW Brands, A division of Illinois Tool Works Inc.
955 National Parkway, Suite 95500
Schaumburg, IL 60173
800-783-7725
www.RacorStorageSolutions.com
Email: [email protected]
© 2011 Illinois Tool Works Inc.
Racor and Racor logo are registered trademarks of Illinois Tool Works Inc.

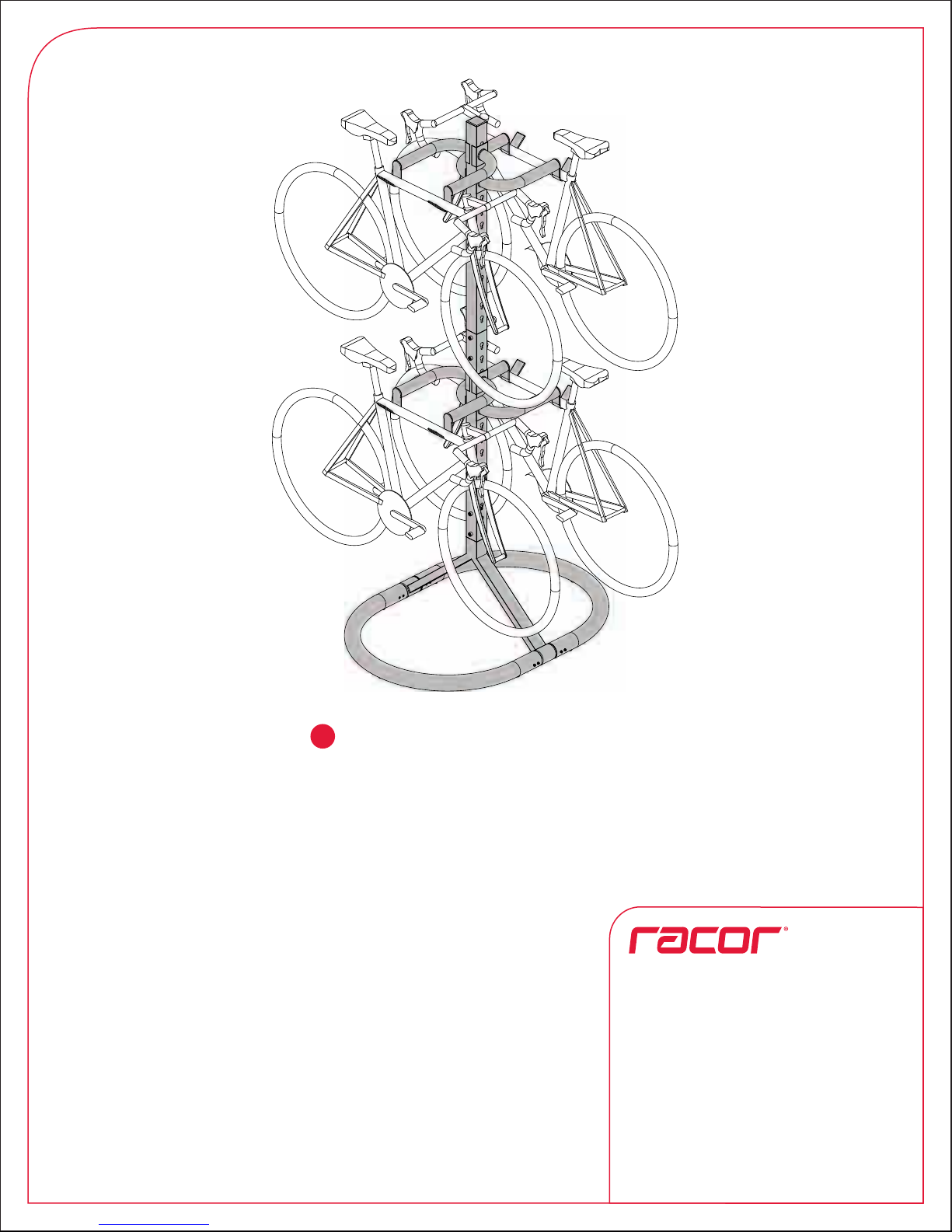

AUSING THE BIKE RACK
Fitting all four bikes on at once will require
adjustments for all to fit properly. Take your
time and make all adjustments carefully.
Make sure you place the same bike on the
same arms in the same direction each time
you store the bike.
