Your RadioShack 10M Ham/CB Base

Antenna provides excellent reception of

amateur radio, CB, and commercial radio

signals. The antenna can handle up to

2000 watts of transmit power.

Your antenna’s features include:

Electrical Half-Wave Design — pro-

vides high gain.

Note: To improve your antenna’s gain,

you can connect an optional ground

plane kit (available through your local

RadioShack store) to your antenna.

Three Easy-to-Assemble Sections —

help you quickly and easily assemble the

antenna.

Dual Tuning Rings — help you quickly

set the antenna for optimum perfor-

mance over a wide range of frequencies.

Ultraviolet Inhibitor — the antenna’s

UV-protected housing is made of impact-

resistant fiberglass, making the exterior

resistant to weathering and color change.

Strong Internal Construction — pre-

vents the antenna’s internal wires from

rattling, for maximum strength.

IMPORTANT SAFETY

PRECAUTIONS

Many do-it-yourself and professional an-

tenna installers are injured or killed each

year by electric shock. Many power wires

are within 20 to 25 feet of the ground and

could easily be touched by an assembled

antenna or cable. Touching the overhead

wires with any part of the antenna is the

same as touching the wires with your

bare hand. Contacting an electrical wire

almost always results in a very serious

shock.

To avoid electric shock, please read and

follow these important safety precautions:

• Be sure to select an antenna site

well away from all overhead wires.

• Do not try to guess which overhead

wires carry high voltage. Check with

the power company.

• If you notice anything making con-

tact with the overhead wires, call the

power company to have it removed.

• Do not run the antenna’s cable over

power wires.

• Get help from a qualified profes-

sional when removing the old

antenna, especially if you have any

doubt about clearing overhead

wires.

• Never install an antenna by your-

self. Be sure to have at least two

people available for help.

• Never install an antenna on a windy

day.

Cat. No. 21-869

RadioShack is a registered trademark used by Tandy Corporation.

10M Ham/CB Base Antenna

21-869.fm Page 1 Wednesday, October 13, 1999 11:50 AM

BEFORE YOU BEGIN

When deciding on an antenna’s location,

consider these points:

• The antenna should be as high as

possible on the building.

• The antenna and its cable should be

as far as possible from sources of

electrical noise such as appliances

or other radios.

• The antenna should be vertical for

the best performance.

Always use 50-ohm coaxial cable, such

as RG-58 or RG-8, to connect the anten-

na to your radio. For lengths over 50

feet, use RG-8 low-loss dielectric coaxial

cable. Your local RadioShack store car-

ries a wide variety of coaxial antenna ca-

ble and connectors.

Warning: When you install an outdoor

antenna, use extreme caution. If the

antenna starts to fall, let it go! It could

contact overhead power lines. If the

antenna touches the power line, con-

tact with the antenna, mast, cable, or

guy wires can cause electrocution and

death. Call the power company to re-

move the antenna. Do not attempt to

remove it yourself!

Cautions:

• Do not run the cable over sharp

edges or moving parts that might

damage it.

• Do not run the cable next to power

cables or other antenna cables.

Coaxial Cable Installation

Precautions

• Do not install coaxial cable where it

will have a pulling tension of greater

than 50 pounds. Leave no tension

on the cable after installing it.

• Use only round-headed staples.

Any clamps or securing devices

used with coaxial cable should grip

the cable evenly about the circum-

ference without crushing the cable.

Flat staples can damage coaxial

cable.

• Do not expose coaxial cable to a

temperature greater than 176°F

(80°C). Keep the cable away from

heating vents and water heaters.

• Do not install coaxial cable where it

will be crushed, stuffed, wedged, or

pinched.

• The cable’s jacket withstands most

outdoor environments. However,

you must seal connections and

splices to prevent moisture from

entering them.

21-869.fm Page 2 Wednesday, October 13, 1999 11:50 AM

PREPARATION

Pre-Tuning the Antenna

Your antenna is preset to use 27.205

MHz (the middle of the CB band) for the

lowest SWR.

If you are using your anten-

na with a CB radio, you do not have to

pre-tune it.

See “Assembling and Mount-

ing the Antenna” on Page 3.

Before you assemble and mount the an-

tenna, you must determine the frequen-

cy range you will be using with it.

If you

are not using CB frequencies

, you must

either trim the antenna’s top element to

match the range you are using or use an

antenna tuner (not supplied) to electri-

cally trim the antenna.

Caution: To avoid damaging the anten-

na, do not trim the antenna’s middle or

bottom elements.

If you are using your antenna with an

amateur radio and want to trim the an-

tenna’s top element to pre-tune it, follow

these steps.

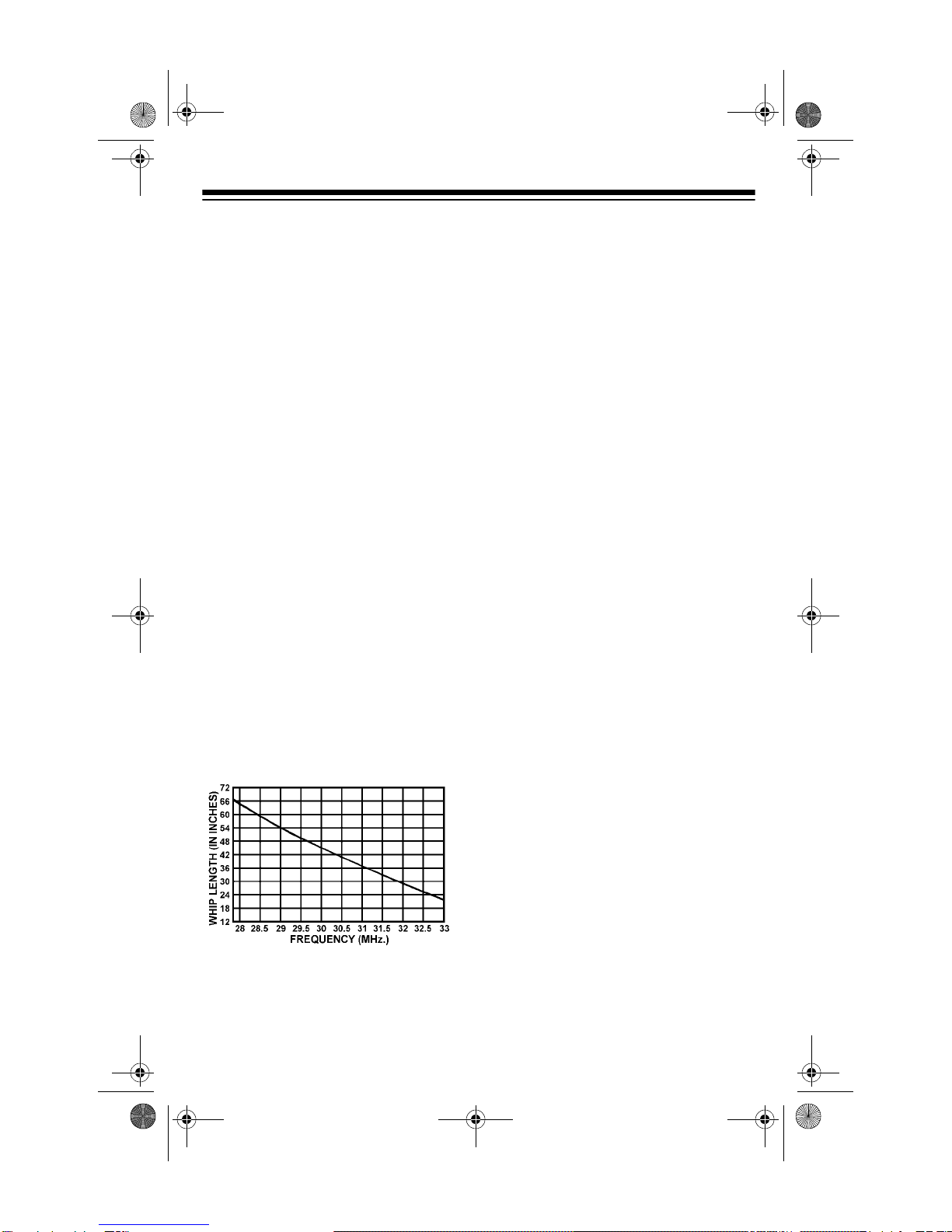

1. Use the following chart to determine

how much you need to trim off of the

top element (if any).

For example, to pre-tune the

antenna to use a frequency of

29.328 MHz, you must cut off

enough of the top element (about 21

inches) to leave it approximately 51

inches in length.

2. Remove the cap from the top of the

top element.

3. Use a tape measure to measure the

length you need to cut off of the top

element, then use a hacksaw to

carefully cut the top element.

4. Replace the cap on the top element.

5. Set the tuning rings on the bottom

element of the antenna to their low-

est position.

Note: If you trim too much off of the top

element or use the antenna for a differ-

ent frequency later, you can order a re-

placement top element from your local

RadioShack store.

If you need to pre-tune the antenna to a

frequency lower than 28 MHz, use an

antenna tuner (not supplied).

Assembling and Mounting

the Antenna

Before you can use the antenna, you

must assemble and mount it then con-

nect it to your radio. You can mount the

antenna outdoors on a vertical, solid ob-

ject such as a TV antenna mast. For the

best results, mount the antenna vertical-

ly as high as possible away from trees or

other obstructions. (Higher frequencies

are noticeably affected by obstructions.)

Important:

• Do not mount the antenna on a

metal surface such as aluminum

siding. This greatly reduces the

antenna’s ability to receive signals.

• Before you assemble the antenna,

prepare the structure that you will

mount it to. RadioShack stores carry

standard TV masts which you can

use to mount the antenna. Make

sure the supplied U-bolts will fit

around whichever mast you choose.

21-869.fm Page 3 Wednesday, October 13, 1999 11:50 AM

Follow these steps to assemble and mount the antenna.

1. Lay the antenna’s components on the ground in a flat, open

area.

2. Place the supplied 3/8-inch lock washer (2) over the threaded end

of the top element (1).

3. Insert the threaded end of the top element into the threads on the

center element (3), screw the top element into the center ele-

ment, then use a 1/2-inch wrench to tighten it.

4. Place the supplied 1/2-inch lock washer (4) over the threaded end

of the center element.

5. Insert the threaded end of the center element into the threads on

the bottom element (5), screw the center element into the bottom

element, then use a 1-inch wrench to tighten it.

6. Hold the assembled antenna vertically next to the structure

where you want to mount it, then slide the supplied U-bolts (6)

over the antenna and the structure.

7. Slide the supplied brackets (7) over the ends of the U-bolts, then

use the supplied lock washers (8) and hex nuts (9) to secure it.

Caution: To avoid damaging the bottom element, do not over-

tighten the hex nuts.

8. Connect one end of the coaxial cable (not supplied) to the con-

nector on the bottom of the bottom element. Then route the cable

to your radio and connect it to the antenna jack on the back of

the radio.

Important: Your antenna is designed to let excess moisture escape

from inside the bottom element. Do not use a silicone sealant or

caulking material around any part of your antenna to seal it. Other-

wise, the antenna might not work properly.

21-869.fm Page 4 Wednesday, October 13, 1999 11:50 AM

TUNING THE ANTENNA

If you are using your antenna at frequen-

cies in the range of 25 to 30 MHz, you

can tune the antenna using an standing-

wave ratio (SWR) meter (not supplied)

and the dual tuning rings on the bottom

element.

Notes:

• If you are using your antenna at fre-

quencies below 25 MHz, you will

need an antenna tuner (not sup-

plied) to tune it.

• The antenna's coaxial cable con-

nector is the best place to check

your antenna's SWR, but you can

also check it at the radio's coax con-

nection.

Follow these steps to tune the antenna.

1. Follow the instructions supplied with

your SWR meter to adjust your

antenna’s SWR to the lowest possi-

ble value.

SWR values of 2.0:1 are generally

acceptable, with readings of 1.5:1 or

lower being more desirable.

2. With the antenna assembled and

mounted, slowly move the tuning

rings up as you check the SWR,

until you reach your desired fre-

quency.

3. If the center frequency is still too

low, follow the steps under “Pre-

Tuning the Antenna” on Page 3 to

shorten the top element by 1/2inch.

Then check the SWR again. Keep

shortening the top element until you

reach the desired SWR.

4. Using an SWR meter, check the

SWR at the top and bottom of the

band. If the SWR is higher at the top

of the band than at the bottom, raise

both tuning rings counterclockwise

at increments of 1/4to 1/2turns.

5. Repeat Step 4 until the SWR is as

low as possible at both ends of the

band.

6. When you have set the desired

SWR, tighten the tuning rings

against each other by simulta-

neously turning the top ring down

(clockwise) and the bottom ring up

(counterclockwise) to lock them.

After you have properly installed and

tuned your antenna, use a watt meter

(not supplied) to test the amount of pow-

er your transmitter is sending to your an-

tenna. If you have properly tuned the

antenna, the meter should show the

transmitter’s maximum output power and

the SWR meter should show very low re-

flected power.

21-869.fm Page 5 Wednesday, October 13, 1999 11:50 AM

TROUBLESHOOTING

If you have problems mounting or tuning your antenna, here are some suggestions that

might help. If you still have trouble, contact your local RadioShack store for assistance.

PROBLEM POSSIBLE CAUSE SOLUTION

SWR reading is too

high or cannot be set. Depending on the frequency you

want to use it for, the antenna

might be too long or too short.

Pre-tune the antenna (see “Pre-

Tuning the Antenna” on Page 3).

The antenna is not installed in a

good location. Move the antenna to a different

location and try again.

The coaxial cable might be broken

or damaged. Use another coaxial cable.

The coaxial cable might be coiled. Uncoil the coaxial cable.

The SWR meter might be con-

nected incorrectly. Make sure the SWR meter is con-

nected correctly to the antenna

and your radio.

The antenna or radio might not be

properly grounded. Make sure the antenna and radio

are properly grounded.

21-869.fm Page 6 Wednesday, October 13, 1999 11:50 AM

SPECIFICATIONS

Reception ....................................................... VHF and UHF (Pre-tuned for 27.205 MHz)

Half-Wave Gain ....................................................................................................... 9.9 dBi

Optimum SWR Range ............................................................................... Less than 1.5:1

Height (assembled) .............................................................................................. 17.5 feet

(5.3 m)

Maximum Diameter ........................................................................................... 1.8 inches

34 mm.)

Weight .............................................................................................................. 4 lbs 15 oz

(2.24 kg)

Specifications are typical; individual units might vary. Specifications are subject to change

and improvement without notice.

21-869.fm Page 7 Wednesday, October 13, 1999 11:50 AM

RadioShack

A Division of Tandy Corporation

Fort Worth, Texas 76102

10A99 Printed in the USA

Limited Ninety-Day Warranty

This product is warranted by RadioShack against manufacturing defects in material and workman-

ship under normal use for ninety (90) days from the date of purchase from RadioShack company-

owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED

HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES,

INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

ARE LIMITED IN DURATION TO THE DURATION OF THE WRITTEN LIMITED WARRANTIES

CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABIL-

ITY OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RE-

SPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE

OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WAR-

RANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVE-

NIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT,

SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN AD-

VISED OF THE POSSIBILITY OF SUCH DAMAGES.

Some states do not allow the limitations on how long an implied warranty lasts or the exclusion of in-

cidental or consequential damages, so the above limitations or exclusions may not apply to you.

In the event of a product defect during the warranty period, take the product and the RadioShack

sales receipt as proof of purchase date to any RadioShack store. RadioShack will, at its option, un-

less otherwise provided by law: (a) correct the defect by product repair without charge for parts and

labor; (b) replace the product with one of the same or similar design; or (c) refund the purchase

price. All replaced parts and products, and products on which a refund is made, become the prop-

erty of RadioShack. New or reconditioned parts and products may be used in the performance of

warranty service. Repaired or replaced parts and products are warranted for the remainder of the

original warranty period. You will be charged for repair or replacement of the product made after the

expiration of the warranty period.

This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse,

accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or

maintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairs

other than those provided by a RadioShack Authorized Service Facility; (c) consumables such as

fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs

of product removal, installation, set-up service adjustment or reinstallation.

This warranty gives you specific legal rights, and you may also have other rights which vary from

state to state.

RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102

We Service What We Sell

04/99

21-869.fm Page 8 Wednesday, October 13, 1999 11:50 AM

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Radio Shack Antenna

Radio Shack

Radio Shack 15-1245 - Outdoor Antenna Rotator Manuale utente

Radio Shack

Radio Shack 15-1859 Manuale utente

Radio Shack

Radio Shack Amplified VHF/UHF/FM Indoor Antenna Manuale utente

Radio Shack

Radio Shack 20-006A Manuale utente

Radio Shack

Radio Shack 15-1858 Manuale utente

Radio Shack

Radio Shack 14-69 Manuale utente

Radio Shack

Radio Shack 15-1841 Manuale utente

Radio Shack

Radio Shack VU-190XR Manuale utente

Radio Shack

Radio Shack VU-190XR Manuale utente

Radio Shack

Radio Shack 15-1847 Manuale utente

Radio Shack

Radio Shack Universal Attic Mount Manuale utente

Radio Shack

Radio Shack Six-Element Triple-Drive FM Antenna Manuale utente

Radio Shack

Radio Shack AM/FM Indoor Amplified Antenna Manuale utente

Radio Shack

Radio Shack 14-Inch DBS Compatible TV Antenna with 24-Inch... Manuale utente

Radio Shack

Radio Shack OPTIMUS 15-1843 Manuale utente

Radio Shack

Radio Shack Omnidirectional Outdoor FM Antenna Manuale utente

Radio Shack

Radio Shack 15-1838 Manuale utente

Radio Shack

Radio Shack VU-210XR Manuale utente

Radio Shack

Radio Shack Amplified Upright UHF/VHF/FM Indoor Antenna Manuale utente

Radio Shack

Radio Shack 15-1844 Manuale utente

Radio Shack

Radio Shack Amlified UHF/VHF HDTV Antenna Manuale utente

Radio Shack

Radio Shack Antenna Rotator Manuale utente

Radio Shack

Radio Shack 15-2187 Manuale utente

Radio Shack

Radio Shack 15-1837 Manuale utente

Manuali Antenna popolari di altre marche

Alfa Network

Alfa Network APA-L01 Manuale utente

Naval

Naval PR-422CA Manuale utente

Feig Electronic

Feig Electronic ID ISC.ANTH200/200 Series Manuale utente

TERK Technologies

TERK Technologies TV44 Manuale utente

Directive Systems & Engineering

Directive Systems & Engineering DSE2324LYRMK Manuale utente

HP J8999A Manuale utente

MobilSat

MobilSat MSP-S Manuale utente

Steren

Steren ANT-UHF 13 Manuale utente

Novatel

Novatel 600-G Manuale operativo

TRENDnet

TRENDnet TEW-AO12O Manuale utente

CommScope

CommScope CMAX-OMFX-43M-I53 Manuale utente

Ramsey Electronics

Ramsey Electronics DAP25 Manuale utente

COBHAM

COBHAM SAILOR 800 VSAT Manuale per l'uso e la cura

Trango Systems

Trango Systems AD900-9 Manuale utente

Steren

Steren ANT-100 Manuale utente

Proxim

Proxim 5054-PA-23 Manuale utente

IWCS

IWCS iriBelt II Guida all'installazione

Labgear

Labgear LABHG32T Manuale utente
