Radio Shack 2100183 Manuale utente

Thank you for purchasing your 2-way Radio

Hands-Free Headset from RadioShack. Please

read this user’s guide before setting up and using

your new headset.

2-Way Radio

Hands-Free Headset

User’s Guide 2100183

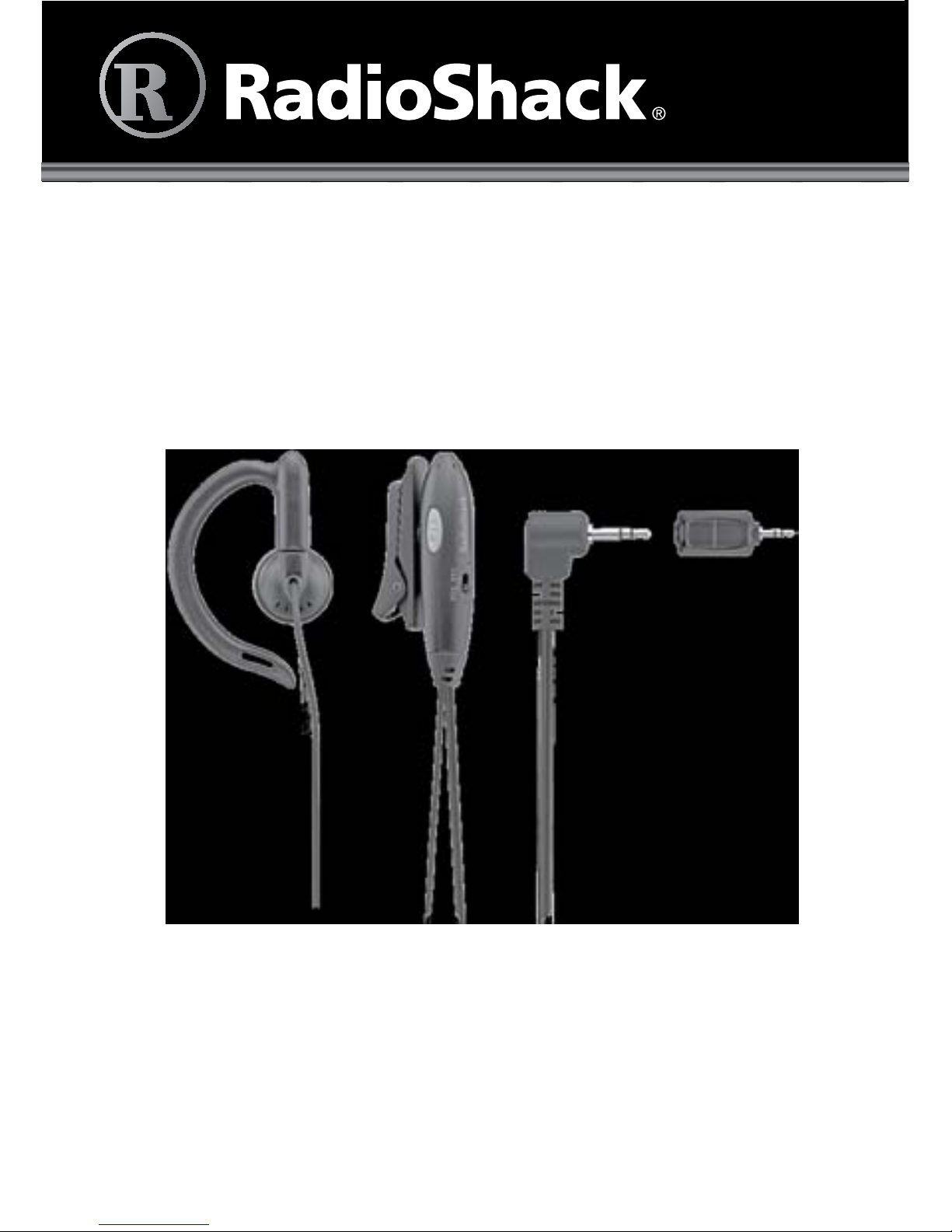

Package Contents

• Hands-Free Headset

• Adapter

• User’s Guide

Features

• VOX and PTT modes

• Detachable earhook

• Inline microphone

Using the Headset

1. Turn off your 2-way radio.

2. Set VOX/PTT on the headset to VOX

for voice-activated operation or to PTT

for manual operation.

nNote: Before setting, check your 2-way radio

to see if it has a VOX function. If it does not, you

can only use your headset in PTT mode.

3. Insert the 3/32-inch (2.5mm) plug

into your 2-way radio’s combined

microphone/earphone jack.

MIC

SPK

Attach clip

to clothing

Adjust for

comfort

PTT:Press to talk

VOX/PPTSwitch

Push to select VOX

or PTT mode.

4. Place the earphone in your

ear, then adjust the earhook

to ﬁt your ear. If you do not

want to use the earhook,

pull the earhook off the

earphone, then place the

earphone in your ear.

5. Use the clothing clip to attach the

microphone to your clothing.

6. Turn on your 2-way radio, then set your

radio to the same mode (VOX or PTT)

as the headset.

• If you select VOX, speak into the

microphone. The radio automatically

switches to transmit. When you stop

talking, the radio automatically switches

to receive after a few seconds.

• If you select PTT, hold PTT on the

microphone and speak into the

microphone. ReleasePTT to receive.

nNote: Do not change your headset’s mode

while in use.

Listening Safely

Do not wear headphones, earphones, or

earbuds while operating a motor vehicle

or riding a bicycle. This can create a trafﬁc

hazard and could be illegal in some areas.

To protect your hearing, follow these

guidelines:

• Do not listen at high volume levels.

Extended high-volume listening can

lead to permanent hearing loss.

• Set the volume to the lowest setting.

Then turn on your audio device and

adjust the volume to a comfortable

level.

• Avoid increasing the volume. Your ears

will adapt to the volume level, so a level

that does not cause discomfort could

still damage your hearing.

Care and Maintenance

• Keep the headset dry. If it gets wet,

wipe it dry immediately.

• Use and store the headset in room

temperature environments.

• Handle the headset carefully; do not

drop it.

• Keep the headset away from dust and

dirt, and wipe it with a damp cloth

occasionally to keep it looking new.

Speciﬁcations

Microphone Frequency.......................100~10KHz

Microphone Sensitivity.............................-45±4dB

Directivity.....................................Omni directional

Speaker Impedance .....................150 ohm ± 15%

Speaker Sensitivity...................................99 ± 3dB

Dimensions.... 21/8x Òx Åinch (54 x 33 x 17mm)

Weight (without cord)........................0.33oz (9.5g)

Cable Length .............................................. 97.7cm

Speciﬁcations are subject to change and improvement

without notice. Actual product may vary from the images

found in this document.

Limited Warranty

RadioShack warrants this product against defects in materials

and workmanship under normal use by the original purchaser

for ninety(90)daysafter the date of purchase from a

RadioShack-owned store or an authorized RadioShack

franchisee or dealer. RADIOSHACK MAKES NO OTHER

EXPRESS WARRANTIES.

This warranty does not cover: (a) damage or failure caused by

or attributable to abuse, misuse, failure to follow instructions,

improper installation or maintenance, alteration, accident,

Acts of God (such as ﬂoods or lightning), or excess voltage

or current; (b) improper or incorrectly performed repairs by

persons who are not a RadioShack Authorized Service Facility;

and tear or cosmetic damage; (e) transportation, shipping

or insurance costs; (f) costs of product removal, installation,

set-up service, adjustment or reinstallation; and (g) claims by

persons other than the original purchaser.

Should a problem occur that is covered by this warranty, take

the product and the RadioShack sales receipt as proof of pur-

chase date to any RadioShack store in the U.S. RadioShack

will, at its option, unless otherwise provided by law: (a) repair

the product without charge for parts and labor; (b) replace the

product with the same or a comparable product; or (c) refund

the purchase price. All replaced parts and products, and

products on which a refund is made, become the property of

RadioShack. New or reconditioned parts and products may

be used in the performance of warranty service. Repaired or

replaced parts and products are warranted for the remainder

of the original warranty period. You will be charged for repair

or replacement of the product made after the expiration of

the warranty period.

RADIOSHACK EXPRESSLY DISCLAIMS ALL WARRAN-

TIES AND CONDITIONS NOT STATED IN THIS LIMITED

WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE

Printed

in China 03A13

2100183

trademark used by RadioShack Corporation.

IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY

OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED

WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE,

SHALL EXPIRE ON THE EXPIRATION OF THE STATED

WARRANTY PERIOD.

EXCEPT AS DESCRIBED ABOVE, RADIOSHACK SHALL

HAVE NO LIABILITY OR RESPONSIBILITY TO THE

PURCHASER OF THE PRODUCT OR ANY OTHER PERSON

OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR

DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR

PERFORMANCE OF THE PRODUCT OR ARISING OUT OF

ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT

LIMITED TO, ANY DAMAGES RESULTING FROM INCON-

VENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY,

REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF

RADIOSHACK HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES.

Some states do not allow limitations on how long an implied

warranty lasts or the exclusion or limitation of incidental or

consequential damages, so the above limitations or exclu-

sions may not apply to you. This warranty gives you speciﬁc

legal rights, and you may also have other rights which vary

from state to state. You may contact RadioShack at:

RadioShack Customer Relations

300 RadioShack Circle, Fort Worth, TX 76102 04/08

www.RadioShack.com
