Contents
XMODS Custom RC Starter Kit ...................................................................... 2
Your Custom RC Starter Kit Includes 3
Assembling Your XMODS Custom RC ............................................................. 4
Assembling the Wheels 4
Installing Batteries in the Chassis 5
Assembling the Antenna 6
Redistributing the Car’s Weight 6
Assembling the Car Body 7
Mounting the Body on the Chassis 8
Setting Up the Controller .............................................................................. 9
Installing the Battery 10
Changing the Steering Control for the Left Hand 11
Driving Your Car .......................................................................................... 13
Steering Wheel 13
Speed Control 13
Fine Tuning 14
When You Finish Driving 15
Optional Upgrades ...................................................................................... 17
Care ........................................................................................................... 19
The FCC Wants You to Know ........................................................................ 19
Warranty..................................................................................................... 20
22
22
2wwwwww
wwwwww
www
.xmodsRC.com.xmodsRC.com
.xmodsRC.com.xmodsRC.com
.xmodsRC.com
XMODSTM Custom RC Starter Kit
XMODS offers you the ultimate radio control racing experience. Street smart looks meet precision
performance in a custom car just begging to be tuned — by you. Your starter kit includes the following
features...
• A full set of factory parts to assemble your car.
• A digital proportional radio controller with built-in steering and throttle trims for precision driving
under varying track conditions.
• A switchable controller for left- and right-handed drivers.
• A collapsible radio controller for easy carrying and storage.
• Redistributable weight so you can optimize driving performance and handling.
To really get your motor running, customize your XMODS with optional upgrade for both performance
and looks, available at your local RadioShack store. Check out the line-up of XMODS upgrades online
at www.xmodsRC.com.
CAT. NO. 60-8001/8002/8003/8004/8005/8006
©2003. RadioShack Corporation. All rights reserved.
XMODS is a trademark of RadioShack Corporation.
wwwwww
wwwwww
www
.xmodsRC.com.xmodsRC.com
.xmodsRC.com.xmodsRC.com
.xmodsRC.com 33
33
3

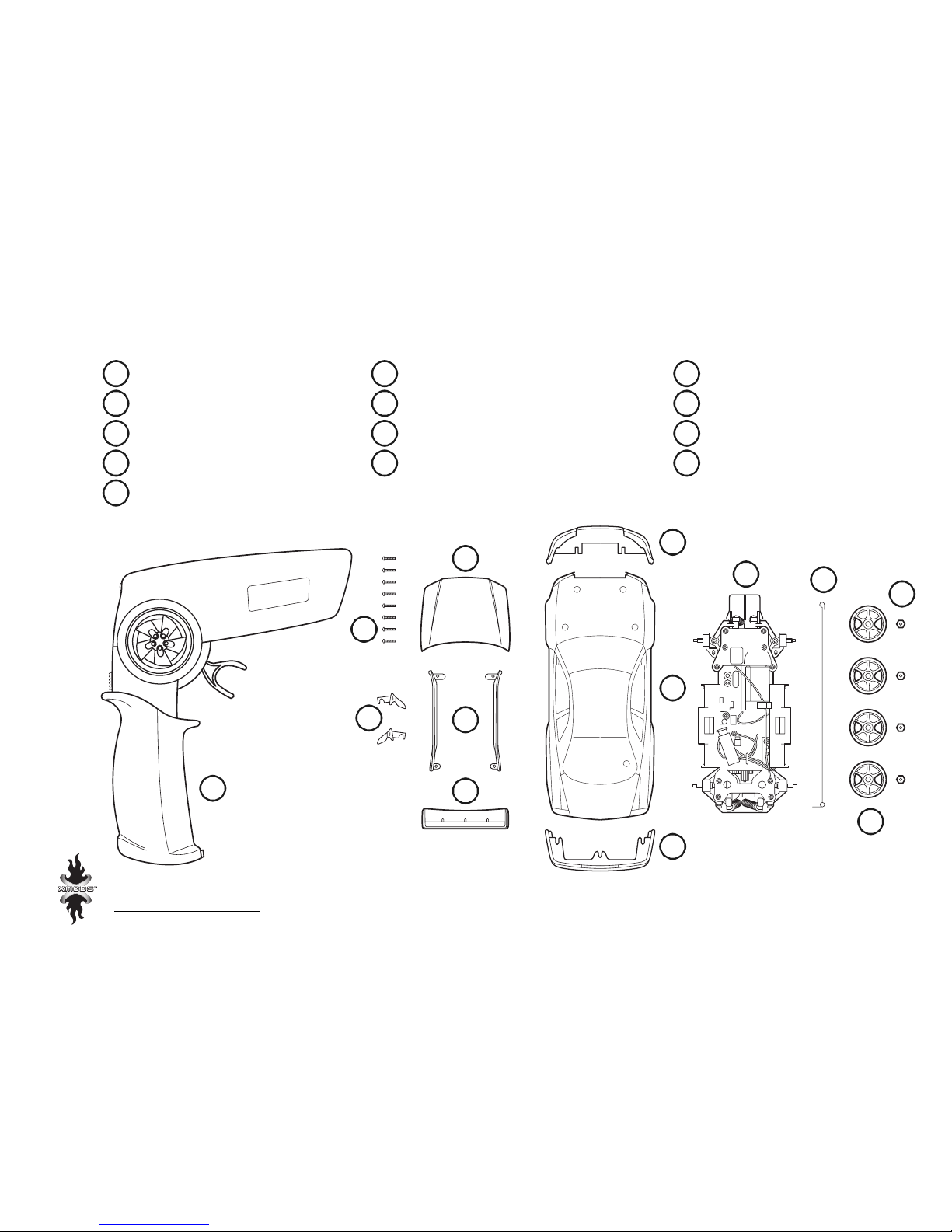

Your Starter Kit Includes
1
Controller w/antenna
2
Wheels w/Tires (4)
3
Wheel nuts (4)
4
Car antenna
5
Screws (quantity varies by body style)
6
Car Body
7
Hood
8
Front bumper
9
Rear bumper
10
Rear spoiler*
11
Left and right side mirrors
12
Left and right side skirts
13
Car chassis Lug wrench (not shown) Screwdriver (not shown)
Decal sheet (not shown)
1
2
3
4
5
6
7
8
9
10
11
12
13
*not available on Acura RSX and Honda Civic models
44
44
4wwwwww
wwwwww
www
.xmodsRC.com.xmodsRC.com
.xmodsRC.com.xmodsRC.com
.xmodsRC.com
Assembling Your XMODS Custom RC

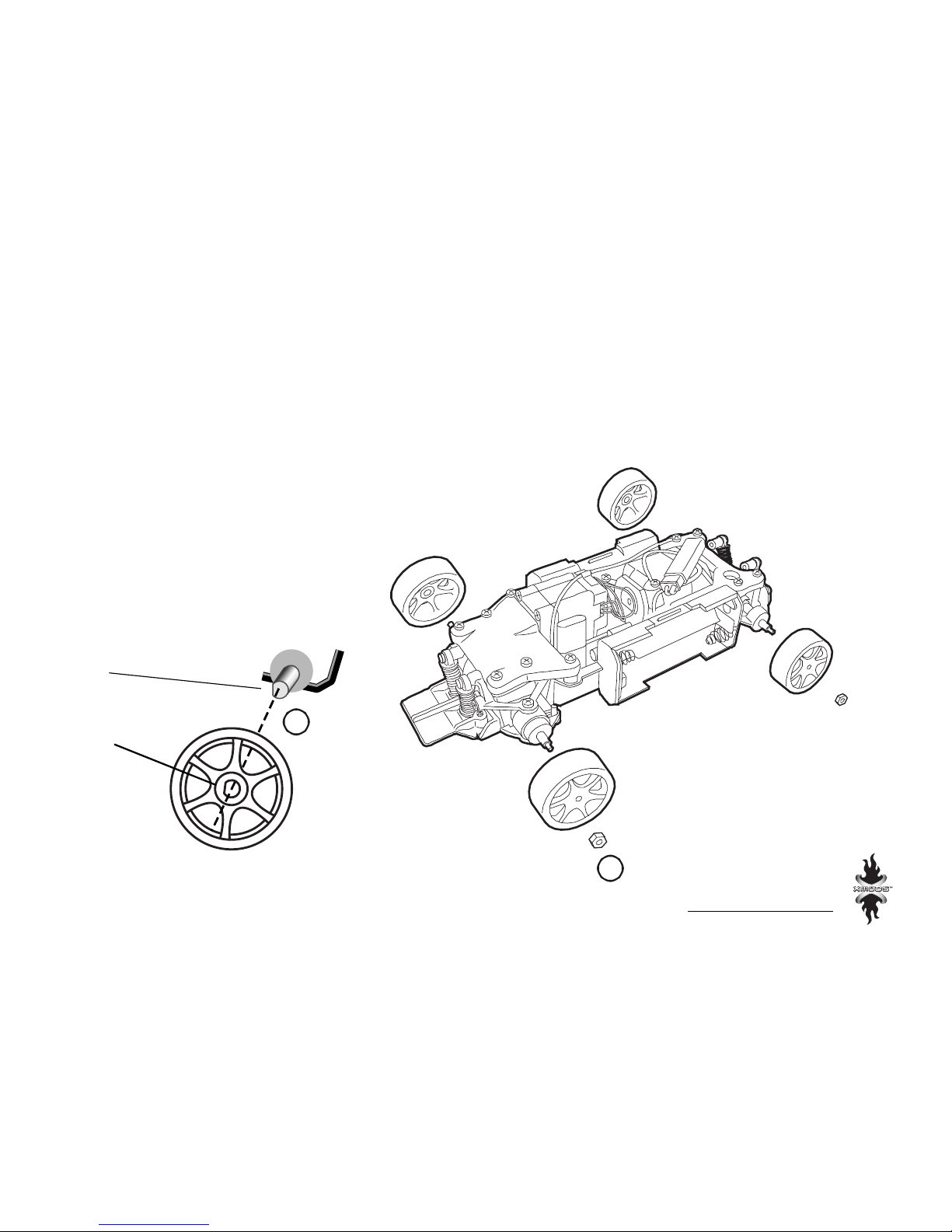

Assembling the Wheels
1) Align the flat side of the wheel with the flat side of
the axle and slide the wheel onto the same axle.
2) Screw the nut onto the axle and tighten with the
supplied lug wrench.
3) Repeat steps 1 and 2 for each wheel.
2
1
Flat side
of axle
Flat side
of wheel
wwwwww
wwwwww
www
.xmodsRC.com.xmodsRC.com
.xmodsRC.com.xmodsRC.com
.xmodsRC.com 55
55
5

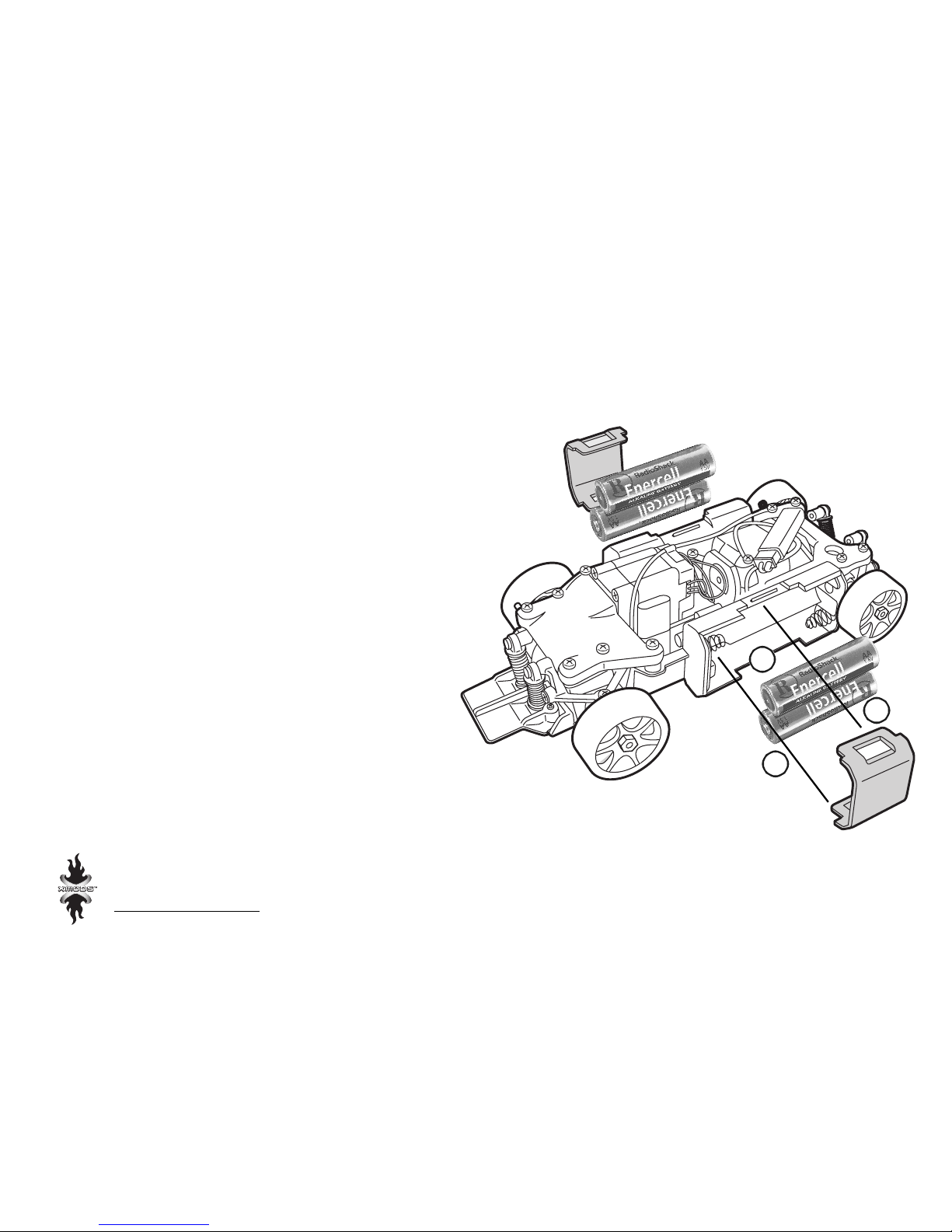

Installing Batteries in the Chassis
1) Make sure the power switch on the bottom of the
chassis is in the off (rear) position.
2) Unsnap the battery compartment covers
on the left and right sides.
3) Place two AAA alkaline or rechargeable*
batteries in the left and right
compartments, according to the polarity
symbols (+ and -) marked inside.
4) Snap the battery covers back in place.
2
3
4
*Pick up an optional battery charger kit with rechargeable
AAA batteries (230-0350) at RadioShack.
66
66
6wwwwww
wwwwww
www
.xmodsRC.com.xmodsRC.com
.xmodsRC.com.xmodsRC.com
.xmodsRC.com

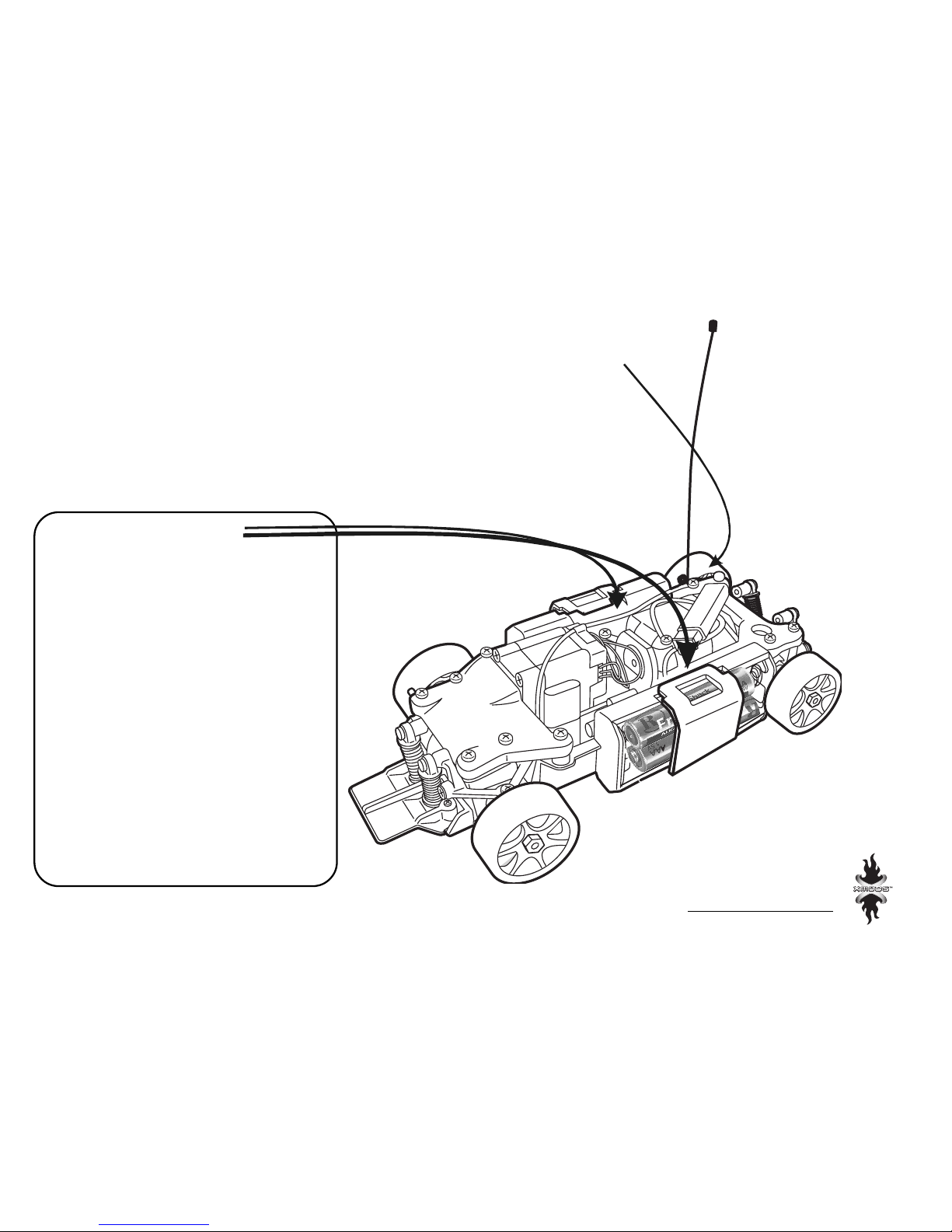

Assembling the Antenna
1) Unscrew and remove the screw over the metal plate at the right rear
side of the chassis.
2) Push the screw through the screw hole in the metal plate and then
the metal loop at the base of the antenna.
3) Thread the antenna screw back into its slot and snugly tighten.
Redistributing the
Car’s Weight
You can shift the weight of the
batteries to alter your car’s center
of gravity for optimal handling
during various driving conditions.
1. Unscrew the screws of the
left and right battery
compartments.
2. Slide the battery
compartments to the desired
position.
3. Set the screw in the front
holes on each side and
tighten until snug.
wwwwww
wwwwww
www
.xmodsRC.com.xmodsRC.com
.xmodsRC.com.xmodsRC.com
.xmodsRC.com 77
77
7

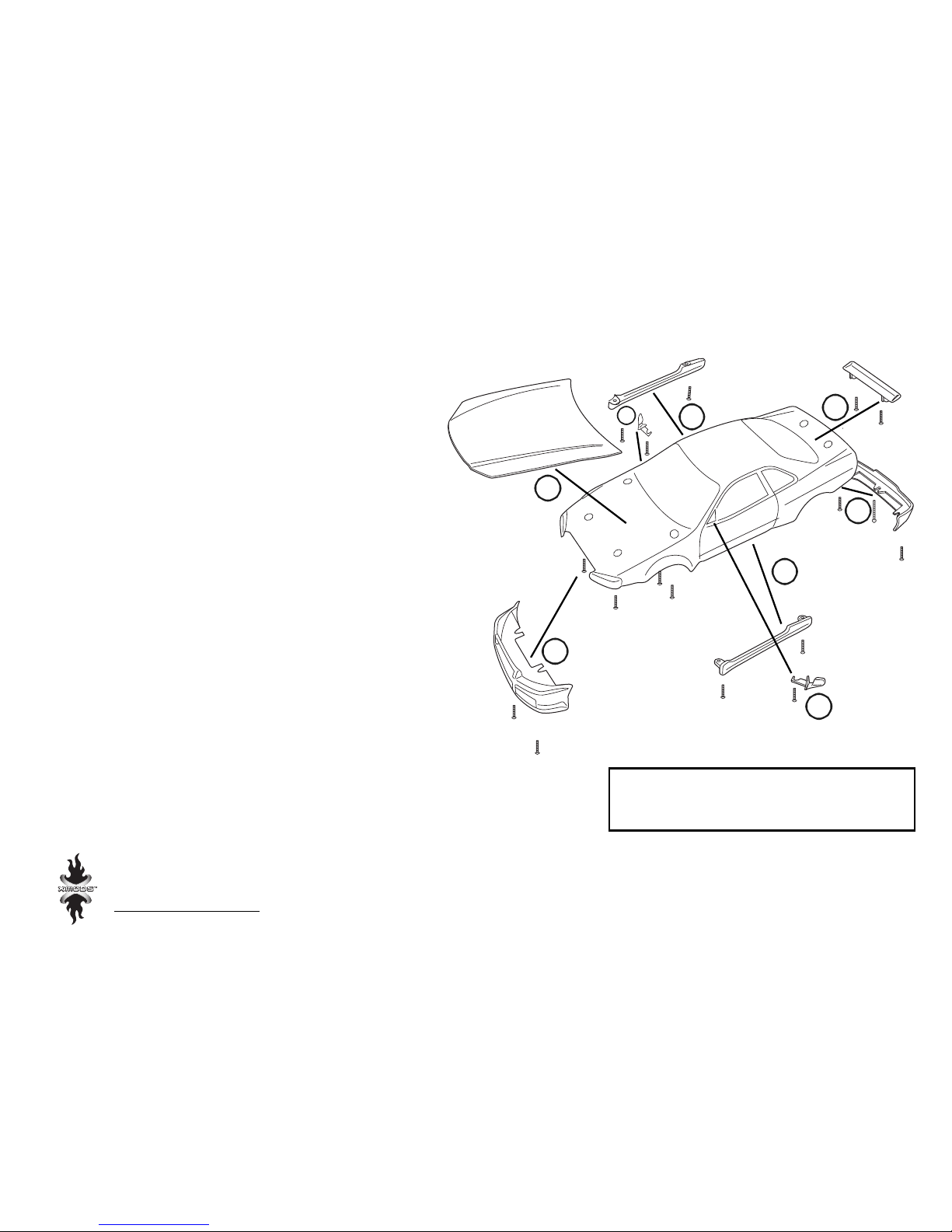

Assembling the Car Body
1) Align the front bumper under the
front end and insert and snugly
tighten two screws.
2) Align the hood to the front end
and insert four screws from
beneath and snugly tighten.
3) Align the rear spoiler* on top of
the trunk and insert two screws
from beneath the body and snugly
tighten.
4) Align the rear bumper under the
rear end and insert and snugly
tighten the screws.
5) Insert the left side mirror into the
driver’s window and then insert
one screw from beneath the body
and snugly tighten. Repeat for the right side mirror.
6) Align the left side skirt beneath the body and insert and
snugly tighten two screws. Repeat for the right side skirt.
1
2
3
4
5
6
6
5
*Spoiler not available with the Acura RSX
and Honda Civic starter kits.
CAUTION: Overtightening the screws
can damage the car.
88
88
8wwwwww
wwwwww
www
.xmodsRC.com.xmodsRC.com
.xmodsRC.com.xmodsRC.com
.xmodsRC.com
Mounting the Body on the Chassis
1) Guide the antenna through the antenna hole of the car body.
2) To attach the car body to the chassis, insert the nose of the chassis into the slot inside the front
bumper. Lower the rear of the body so the Lock Clip enters the slot behind the rear axle and
snaps over the chassis. (Note: You may need to push the chassis
forward slightly for the clip to securely grip the chassis.)
3) Push the locking lever counterclockwise to keep the Lock Clip from
slipping off the chassis.
1
2
3
2
Side View Bottom View
2
2
wwwwww
wwwwww
www
.xmodsRC.com.xmodsRC.com
.xmodsRC.com.xmodsRC.com
.xmodsRC.com 99
99
9

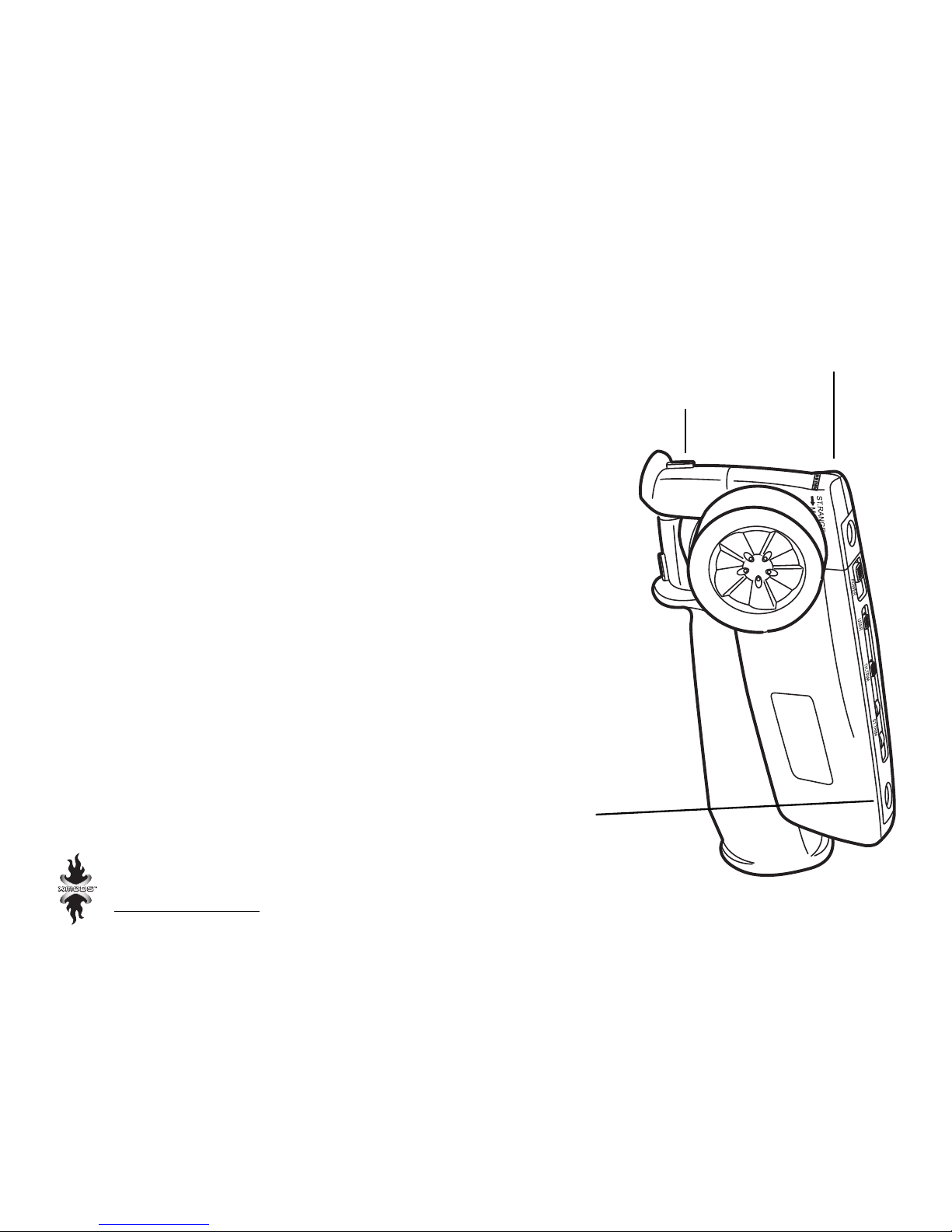

Setting Up the Controller
The controller controls your car’s steering and speed.
1) Unfold the controller.
2) Remove the antenna from its channel in the controller.
Thread antenna into the antenna connector on top of
the controller at the end farthest from the handle and
turn until snug.
3) Fully extend the antenna before driving.
Lock Button
Antenna
Connector
Antenna Storage Channel
(on opposite side)
1010
1010
10 wwwwww
wwwwww
www
.xmodsRC.com.xmodsRC.com
.xmodsRC.com.xmodsRC.com
.xmodsRC.com
Battery Notes
• When you notice the LED dims or the range of your car decreases, replace the battery.
• Dispose of old batteries promptly and properly.
• Do not burn or bury batteries.
• Use only fresh batteries of the required size and recommended type.
• Do not mix old and new batteries, different types of batteries (standard, alkaline, or rechargeable), or rechargeable
batteries of different capacities.
• If you do not plan to use the vehicle for several days, remove the batteries. Batteries can leak chemicals that can
destroy electronic parts.

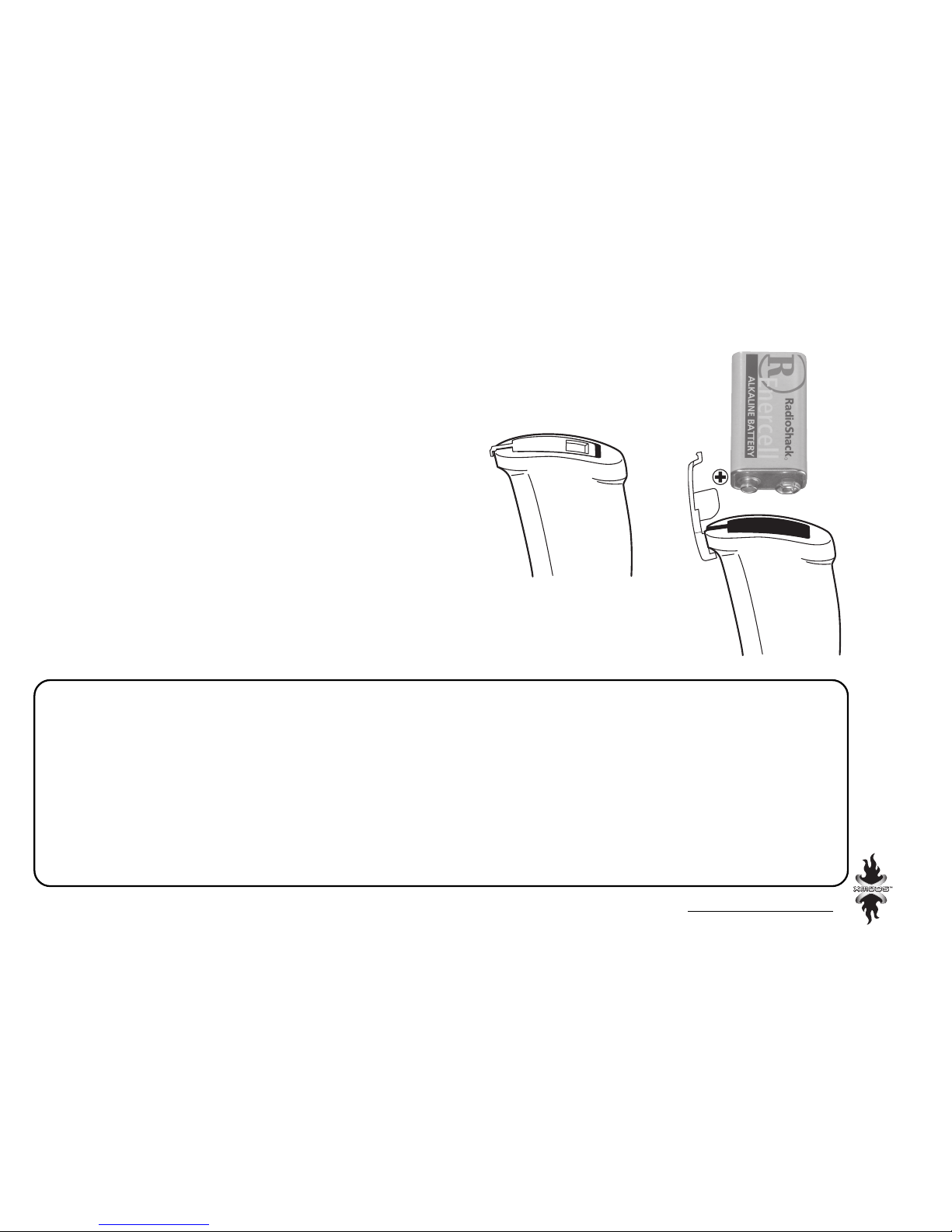

Installing the Battery
You’ll need to install a 9V battery. RadioShack recommends a 9V alkaline battery.
1) Make sure the power switch is in the off (rear)
position and the controller is unfolded.
2) Place your finger in the battery compartment
cover grip and slide until until the cover
unlatches.
3) Place one 9V battery in the compartment
according to the polarity symbols
(+ and -) marked inside.
4) Replace the cover and snap it shut. (Note: You cannot shut the cover
if the battery has been inserted incorrectly.)
