Raidon SafeTANK SL5640-LB2 Manuale utente

www.RAIDON.com.tw

Your Data Security Guardian

SL5640-LB2

User’s Guide

SafeTANK

V1.0 (February 2012)

www.RAIDON.com.tw

Your Data Security Guardian

About this User’s Guide

Congratulations on your purchase of the RAIDON SL5640 series product made by

Raidon Technology Co. ("RTC"). This User’s Guide (hereinafter referred to as "Guide")

introduces you to the RAIDON SL5640 series products. Read this Guide carefully before using

your SL5640 series product. Even though the information contained in this Guide has been

verified before release, actual specifications depend on the product purchased by you. The

product specifications and latest update information are available on our website at

www.RAIDON.com.tw or can be provided by your sales representative at any time and

without need for notice by RTC.

For any inquiries on RTC's products or latest product information, user’s guide, or firmware,

please contact us at [email protected]. RTC's service personnel shall reply to you at

the earliest opportunity.

Note: RTC's technical support and services are available to agents and dealers who bought

products directly from RTC. Consumers and/or users who did not get their products directly from

RTC are required to contact dealers from whom the product was purchased for better support

and faster responses. Please do not try to directly contact RTC for support if your product was

not purchased from RTC directly as you may get no reply at all.

www.RAIDON.com.tw

Your Data Security Guardian

Table of Contents

Chapter 1 Hardware devices

Chapter 2 Initial setup

Chapter 3 Introduction to user interface

1.1

1.2

1.3

Accessories and SL5640-LB2 at a glance

LCD message and light indicators

Hardware installation

3.1

3.2

3.3

3.4

Structure of user interface

Systems management

Permission management

3.5 Permission management

3.3.1 Disk / RAID setup

3.3.2 Device name

3.3.3 Setup date and time

3.3.4 Language

3.3.5 Network setup

3.3.6 Buzzer / fan setup

3.3.7 Power management

3.3.8 Event log

3.3.9 System settings backup and master reset

3.3.10 Firmware update

3.3.11 Systems information

3.3.12 iSCSI

3.4.1 User

3.4.2 Group

3.4.3 Public folder

3.4.4 Window AD

3.5.1 Apple network

3.5.2 Linux NFS service

3.5.3 FTP

3.5.4 SSH

3.6 Application services

3.6.1 Path for download

3.6.2 File manager

3.6.3 Multimedia service

3.6.4 Cloud Server (SyncBox)

3.7 External device

3.7.1 USB drive

3.7.2 USB printer

3.3.1.1 Disk and disk space

3.3.1.2 Information: display hard disk relevant information

www.RAIDON.com.tw

Your Data Security Guardian

Chapter 4 Appendices

Appendix A: BT downloads

Appendix B: AjaXplorer Windows Explorer

Appendix C: cloud server Syncbox

Appendix D: SearchNAS.exe (for Windows OS only)

www.RAIDON.com.tw

Your Data Security Guardian

Chapter 1 Hardware devices

1.1 Accessories and SL5640-LB2 at a glance

Your shipment package shall contain the components listed below:

•SL5640-LB2 main body

•AC power cord

•Network cable

•Quick installation guide

•CD (this Guide)

•Parts package

Please ensure that the SL5640-LB2 and its accessories are contained in the package and are not

damaged. Contact your dealer or sales representative for any uncertainties.

Note:

※After the Gigabit LAN port is connected to a Gigabit LAN, the light indicator to the left turns a steady

green while the one to the right turns orange.

※Press and hold the Reset key for 5 seconds to reset the system back to the factory default setting after

your system is in ready status.

※SL5640 dual Gigabit LAN Port, mainly as a Hub functions as a network expansion interface, a network

device can be connected through the SL5640.

※Do not connect two Gigabit LAN at the same time, this will result in the SL5640 unable to connect to

the network, select one Gigabit LAN Port can use.

Reset

USB

LAN 1

LAN 2

HDD Status LED

Tray Handle

Tray Button

LCD Monitor

DOWN

ENTER

ESC

Power LED

Fail LED

Fan

Reset to Default

USB Port

AC Power Connector

Power Switch

RJ45 Port

Lock Hole

Drive Position(1)

Drive Position(2)

Drive Position(3)

Drive Position(4)

Enter Esc

Front view Back view

www.RAIDON.com.tw

Your Data Security Guardian

1.2 LCD message and light indicators

1. SL5640 LCD key and LCD messages

＞LCD key

Left/right: toggle switch between left and right

ESC: back to last page

Enter: OK and go to the next page

＞LCD message

LCD message tree and description

LCD message tree overview

1-1 Main screen: display IP address

1-2 System information

2-1 RAID message

2-1-1 Display information on existing disk arrays

2-2 Network information

2-2-1 IP address of DHCP server

2-3 Disk information

2-3-1 The underlying message of the hard disk

XXX.XXX.XXX.XXX

PORT:80

Information

(Enter or Esc)

RAID Info

(Enter or Esc)

RAID Info

XXXXXXXXXXXXX

IP Info

(Enter or Esc)

Network Info

XXXXXXXXXXXXX

Disk Info

(Enter or Esc)

Disk Info

XXXXXXXXXXXXX

Level 1 Level 1 Level 1

1-1

1-2 2-1 2-1-1

2-2 2-2-1

2-3 2-3-1

www.RAIDON.com.tw

Your Data Security Guardian

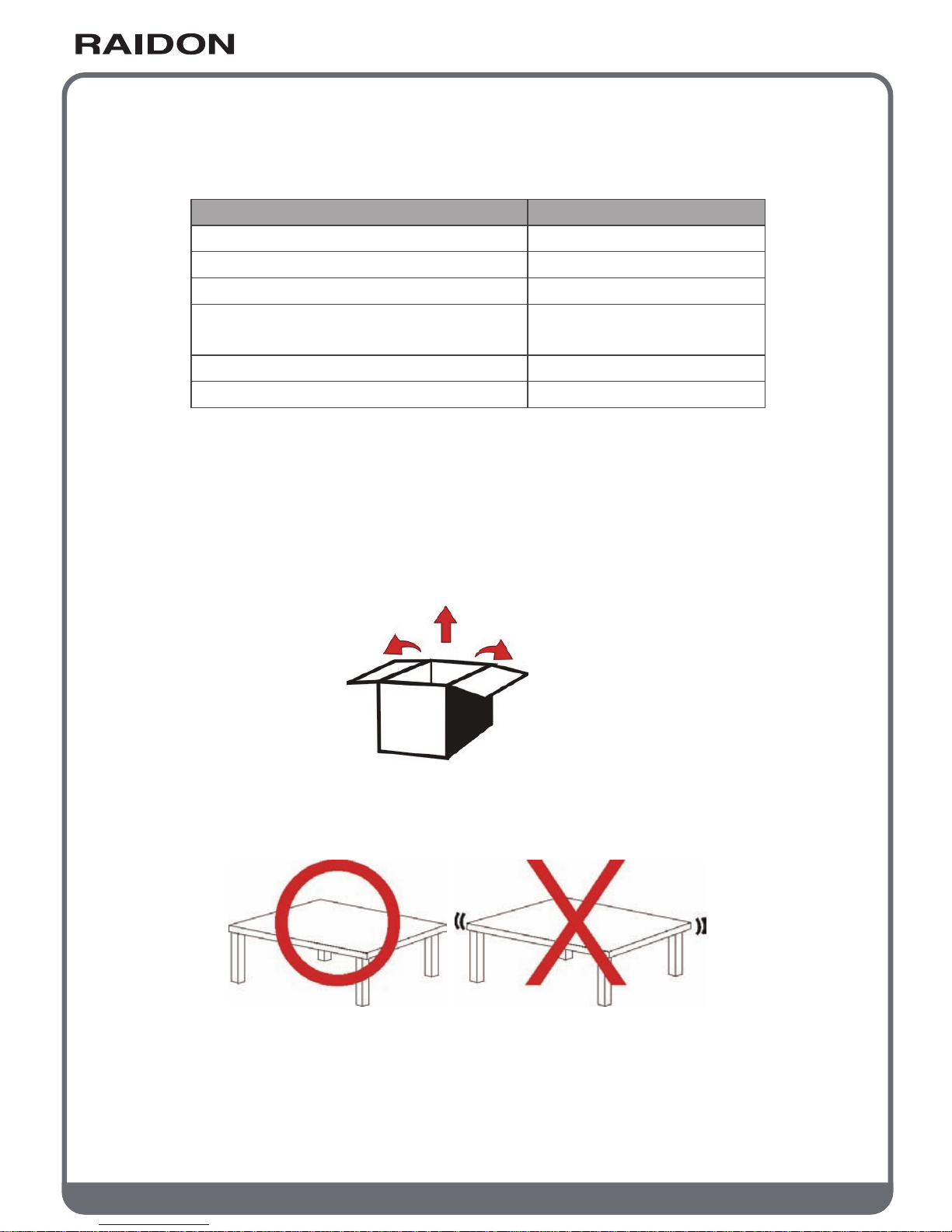

2. Light indicator

SL5640-LB2

Status

Power on/standby

Data access

Fan failure

Overheat (System temperature above 55℃or

CPU temperature above 85℃)

Hard disk failure

Rebuilding

Light indicator

Power light turns blue

HDD light flashes blue

Failure light turns red

HDD light turns red

HDD light flashes blue

1.3 Hardware installation

Install your SL5640 product by following the steps described below:

Step 1 Remove your product from the shipping package. (Please ensure that the SL5640-LB2

and its accessories are in the package and not damaged. Contact your dealer or sales

representative for any uncertainties.)

Step 2 Place your product on a flat and stable surface. Make sure that the ventilation fan is not

blocked and adequate clearance is kept around your product. (Please keep your product

away from water or any environment that can damage the product.)

www.RAIDON.com.tw

Your Data Security Guardian

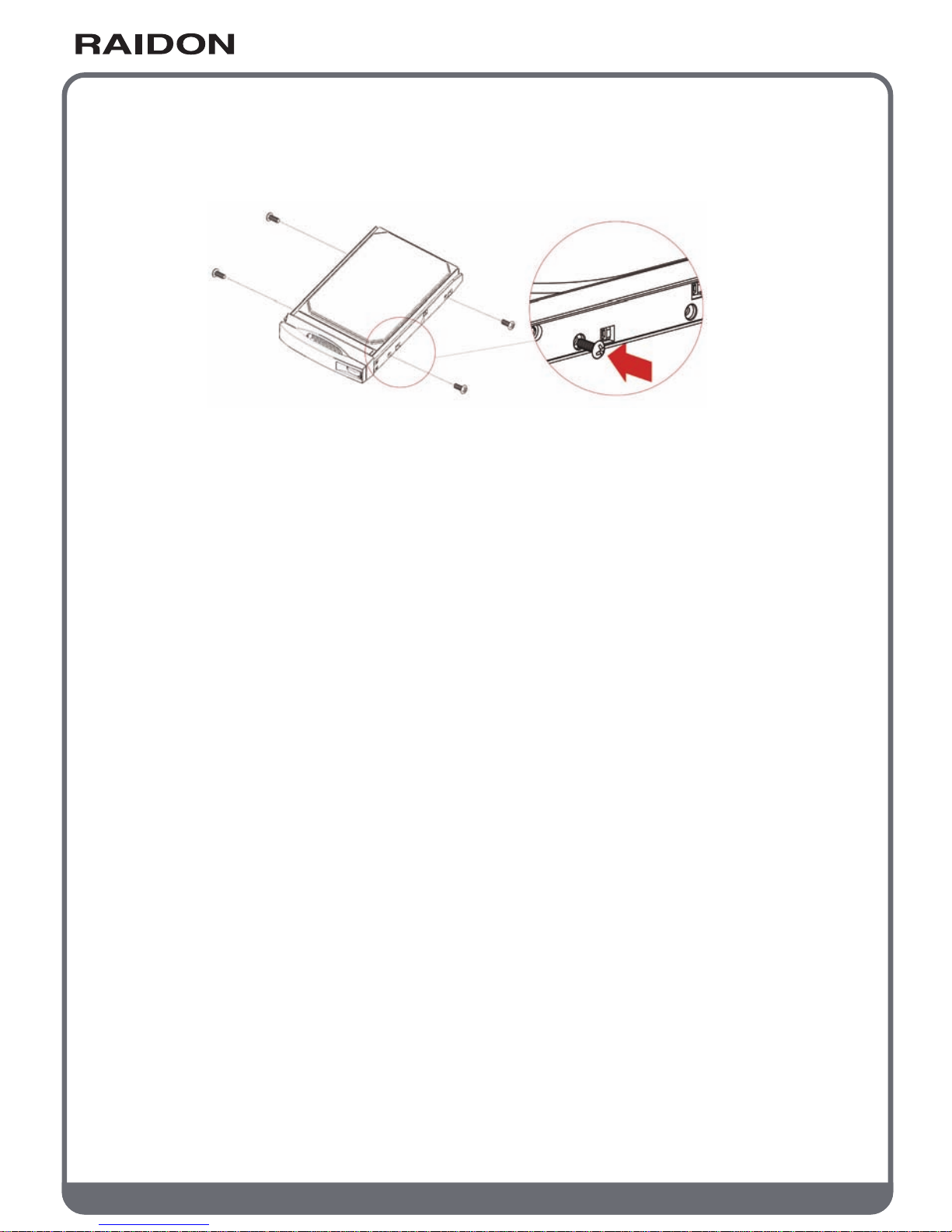

Step 3 Remove the tray and install the hard disk in it. Make sure that your hard disk is locked

with screws to the tray to avoid any damage to the hard disk caused by unexpected

movements.

Step 4 Insert the tray back into place and lock it firmly at the proper location.

Step 5 Connect your product to a Gigabit LAN through the Gigabit LAN port. Connect the power

cord.

Step 6 Power on your product for the required setup and application.

Step 7 See Chapter 3 on setting up your product for the relevant management interface.

Your SL5640 product employs a GUI for system management and setup. It takes about 1~2 minutes for

your SL5640 to start up. Your SL5640 cannot be discovered by your system before it has been started.

Step 1: Open your browser and enter the IP address

(a) To use auto IP (IP address assigned by the DHCP server):

After being connected to a local area network and powered on, the LCM displays the assigned IP

address. Open your browser and type the IP address to enter the Web GUI for setup.

You may use an IP detection utility (e.g., the SearchNAS.exe includes a CD with operating instructions

contained in Appendix D) to search for the IP address assigned to SL5640.

(b) To use static IP:

Your SL5640 product has a default IP address of 192.168.1.20. Please change the IP address of the

PC connected with your product to be in the same network segment (e.g., 192.168.1.xxx) before

opening your browser. Type in the default IP address to enter the Web GUI for setup and change the

IP address of the SL5640. See Chapter 3 on changing the IP address.

Note:

The SearchNAS.exe software contained in the CD supports the Windows system only.

Chapter 2 Initial setup

www.RAIDON.com.tw

Your Data Security Guardian

Step 2 : Enter the login screen

The login screen will be displayed after the IP address has been entered. Enter your account, pssword

and verification code to go to the setup screen.

Default account and password

User name: admin

Password: admin

Step 3 :

When using your SL5640 product for the first time, you are required to select one standalone hard disk

or create one disk array before doing other setup operations. Click on the Hard disk/RAID Setup in the

System Management to display the list of hard disks existing in the SL5640. Click on one of the four

options in the Hard Disk Management to set up the desired disk array. Once the disk array is created in

the system reboot, you can then make another setup after logging in the system again. See Chapter 3

for further information on the system setup.

www.RAIDON.com.tw

Your Data Security Guardian

Chapter 3 Introduction to user interface

3.1 Structure of user interface

See table below for the structure of user interface:

Disk drive / RAID setup

Device name

Date and setup time

Language

Network setup

Buzzer / fan setup

Power management

Event log

Systems settings backup and master reset

Firmware update

System message

iSCSI

User

Group

Public folder

WINDOWS AD

Apple network

Linux NFS service

FTP

SSH

Download path

File manager

Multimedia service

Cloud server (SyncBox)

USB disk drive

USB printer

Systems

management

External

device

Permission

management

Network

service

Application

service
