Golf Rotor Sod Cup Kit Installation Instructions
➊Align wide tab on ange cover with wide
space on case.
➌Using a Phillips head screw driver remove
screws from top of rotor.
➎Place sod cup on top of rotor and secure
with screws.
➋Press ange cover onto case ange working
from wide tab towards valve switch, until
ange cover snaps into place.
➍Align the adjustment ports on sod cup with
the adjustment screws on rotor.
➏Using a standard golf hole cutter cut a sod
plug. Trim plug to a sod depth of 1 ¼ inches.
Trim plug to clear nozzle relief ramp. Place a
small slice in the center of the plug to accept
the pull up tab.
Install sod into cup
and press rmly
into place. 1¼"
®Registered Trademark of Rain Bird Corporation © 2018Rain Bird Corporation 12/18 P/N: 213851
www.rainbird.com

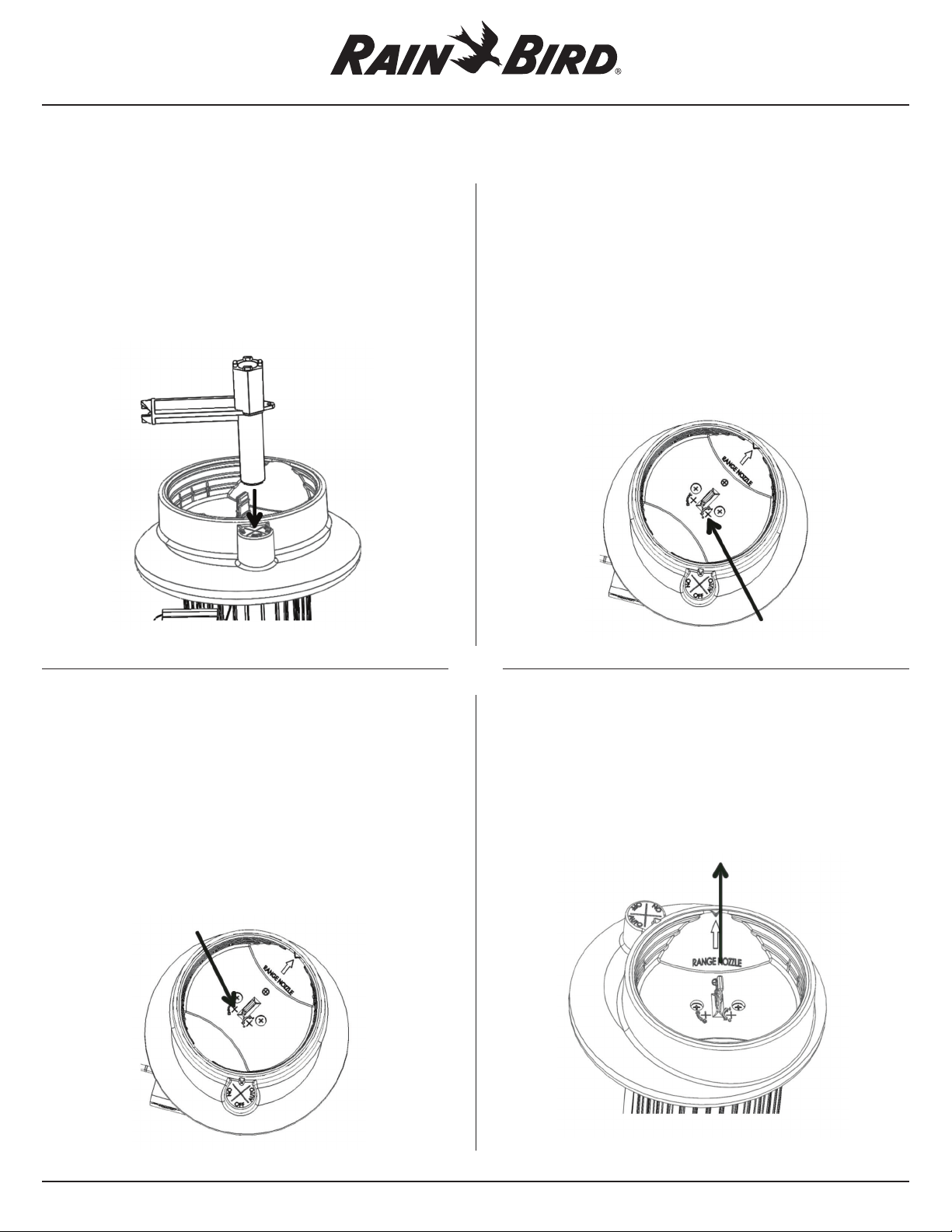

Golf Rotor Sod Cup Kit Rotor Adjustment
PRS / Valve Adjustment
Arc Adjustment
Full/Part Circle Adjustment
Nozzle Inspection
➊Access OFF/ON/Auto and PRS adjustment
through tooling tower.
➋Push tool through X shaped access port.
➊Remove sod plug from sod cup.
➋Using at head screw driver , press through
x shaped access port, adjust arc to desired
angle.
➌Replace sod plug.
➊Remove sod plug from sod cup.
➋Using at head screw driver, press through
x shaped access port, and select full or part
circle mode.
➌Replace sod plug.
➊Remove sod plug from sod cup.
➊Use pull up tab to pull sprinkler head up to
inspect nozzle.
