RAK7249 Quick Start Guide
Prerequisites
What Do You Need?
1. RAK7249 WisGate Edge Max
2. A Windows/Mac OS/Linux Computer
⚠
WARNING
The SIM card slot of the cellular versions is not hot-swappable. Make sure the gateway is switched off
before inserting or ejecting the SIM card.
What's Included in the Package?
Figure 1: RAK7249 Package Contents
📝
NOTE
The included type and number of antennas and the Backup Battery Kit is optional, depending on the
purchased bundle.
Product Configuration
Gateway Installation Guide
For details about the interfaces and connectors of RAK7249 WisGate Edge Max Gateway enclosure, refer to the
Datasheet.
Assembly
1. Fix the support plate on the base with three M3*6 screws.
Documentation Center
Figure 2: Fixing the support plate
2. Install the motherboard with four M3*6 screws.
Figure 3: Installing the motherboard
3. Install the LoRa card. The motherboard supports two LoRa cards. Slot one supports only SPI type, and slot two
supports only USB type.
Figure 4: Installing the LoRa card
4. If your board supports the cellular function, you can install your SIM card into the motherboard’s SIM card slot.
5. Installation of RF cables, Ethernet cable, and reserved hole plugs.
Documentation Center
Figure 5: Installing the cables and plugs
6. Connect the cables to the motherboard. The connectors on the motherboard are shown in Figure 6.
Figure 6: Connecting the cables to the motherboard
📝
NOTE
You must use the Wi-Fi MAIN connector to connect the Wi-Fi antenna.
7. If you have a Backup Battery Kit, connect with the backup battery to the motherboard.
8. Fix the M3 hexagon spacers on the plate with four screws, and then fix the battery charging PCB board on top
of them.
Figure 7: Fixing the battery charging PCB board
9. Fix the battery with cable ties beside the charging PCB board. If the cable tie is not long enough, two ties can
be connected.
Documentation Center
Figure 8: Fixing the battery
10. Fix the four M3*30mm hexagon spacers on the bottom plate.
Figure 9: Adding Spacers
11. Connect the cables as shown in Figure 10.
Connect the PH2.0 socket on the motherboard and the charging PCB board with the 2pin signal cable.
Connect the DC socket of the charging PCB board and the battery socket with a DC Plug cable.
Plug the output plug of the battery into the DC socket of the motherboard.
Figure 10: Connecting the cables
12. Fix the Charge Module in the enclosure and tighten with four screws.
Documentation Center
Figure 11: Fixing the Charge Module
13. Close the top cover with M4*12 screws. Make sure that the rubber seal is placed correctly in the groove
between the box and the lid to prevent leaks.
Figure 12: Closing the enclosure
Installation
Instructions on mounting and securing the mounting kit to the enclosure and the bearing pole.
1. Fix the included cross bracket on the bottom of the enclosure with four M6*12 bolts.
Figure 13: Mounting the cross bracket
2. Place two pieces of the clamp around the pole and tighten them with the included M6*110 bolts, washers, and
nuts.
Documentation Center
Figure 14: Mounting the clamp to the pole
3. Connect the pole clamp and the cross bracket by securing the last piece of the mounting kit in place using
M6*30 bolts, washers, and nuts.
Figure 15: Fixing the enclosure to the pole clamp
Weather Protection
To better protect the Ethernet cable gland and the antenna connector from the weather, you need to cover them
with PVC tape.
1. Clean the surface area of the connector that will be wrapped. Wrap a layer of PVC tape with a 50% overlap
according to the rotation direction of the connector. Continue wrapping the PVC tape to about 10 mm below the
end of the connector.
Figure 16: Wrapping with PVC tape
Documentation Center
2. Cut off about 50 cm waterproof tape. Stretch it to double the length. Wrap three layers around the connector
with a 50% overlap. Hold the tape in place with your hand for a few seconds.
Figure 17: Wrapping with waterproof tape
3. Wrap three additional layers with PVC tape with natural uncoiling force and a 50% overlap. Make sure to cover
the head and the tail of the connector.
Figure 18: Final PVC wrapping
Solar Panel and Battery Kit Installation
This document shows the step-by-step guide on how to set-up the Solar Panel and Battery Kit used for the
RAK7249 - Macro Outdoor Gateway. Such steps must be thoroughly read and understood to avoid damaging the
device.
Package List
Documentation Center
Figure 19: Solar Panel and Battery Kit Installation Package List
Specifications
Solar Panel
1. Dimensions
The dimension of the Solar Panel included in the kit is 665 x 815 millimeter. Provided in the image below are the
detailed dimensions of the solar panel for extended functions.
Figure 20: Solar Panel Dimensions
2. Electrical Characteristics
The table below is the electric characteristics of the Solar Panel included in the kit. It is best advised to have your
electric parameters within the set values to maximize its functions and to avoid damage that could furtherly affect
your RAK7249 - Macro Outdoor Gateway's performance.
Documentation Center
Maximum Power (Pmax) 80 WattsMaximum Power (Pmax) 80 Watts
Lithium Battery
1. Dimensions
The dimensions of the Lithium Battery included in the kit is 140 x 90 x 350 millimeter.
2. Operational Temperature
The operational temperature of the Lithium Battery is -20˚C ~ 60˚C. It is advised to have your ambient temperature
be within this temperature range to avoid failures or damage to the battery.
3. Electrical Characteristics
Nominal Output Voltage 12.6 Volts
Installation Guide
1. Install the bolts in the holes which are circled in red in the following image below. This will make an "H-shaped"
base, for the Solar Panel to be mountable on the top. The circular pipe in the middle of the shape is meant to fit
over a circular shaped pole, so the whole construction sits on top with the panel facing upwards on an angle.
📝
NOTE
Tighten the nuts and make sure that the rails that make up the base are holding tight against each other.
Voltage at Pmax (Vmp) 18 Volts
Current at Pmax (Imp) 2.2 - 5.5 Amperes
Open Circuit Voltage (Voc) 21.6 Volts
Short Circuit Current (Isc) 2.3-6.5 Amperes
Nominal Output Current 2 Amperes
Capacity 50 Ah (Ampere-hour)
Charge Voltage 18 Volts
Documentation Center

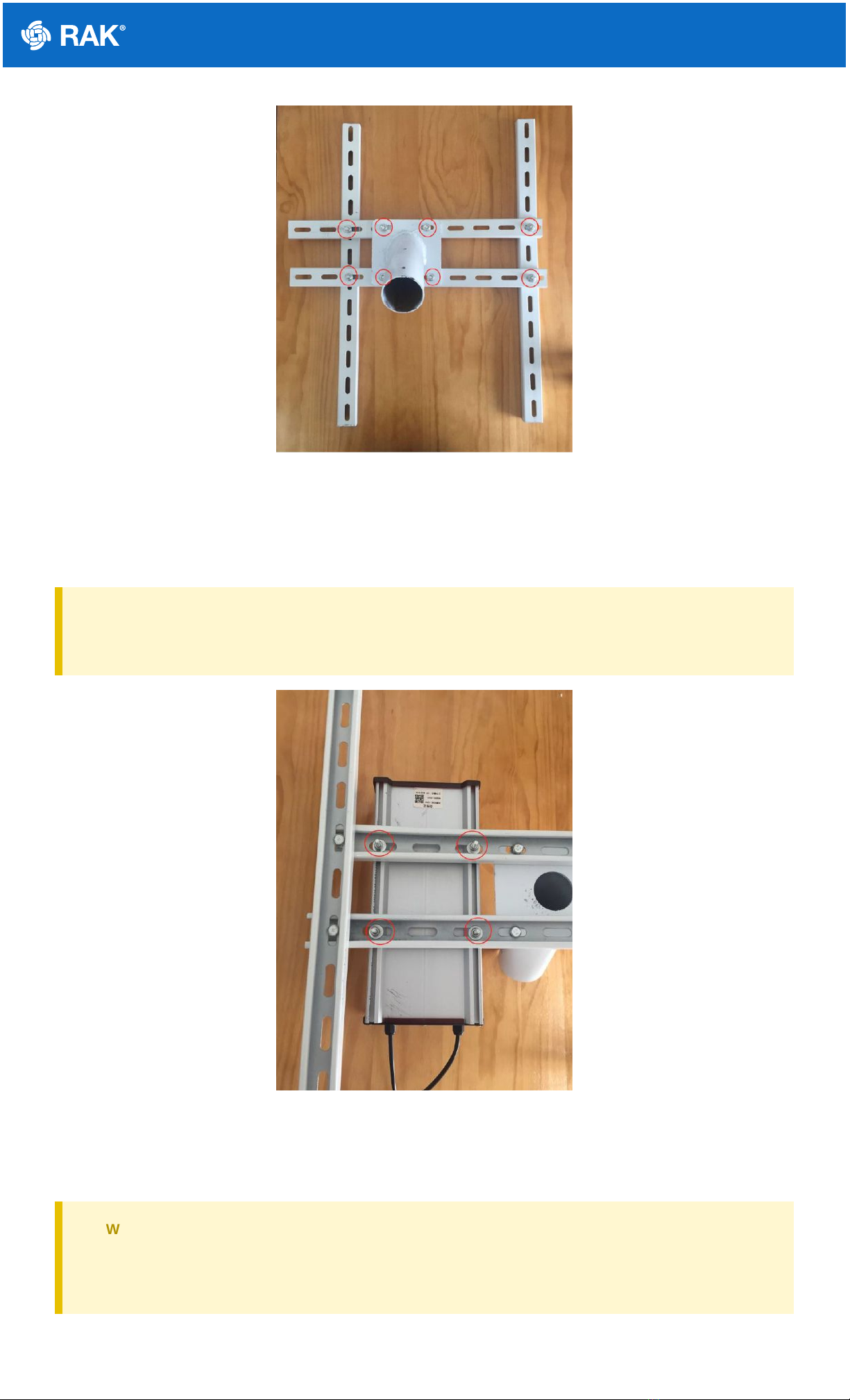

Figure 21: H-Shaped Nuts and Bolts Placement for the Bracket
2. Mount the battery on top of the two parallel rails in the middle. Make sure it is as close as possible to the middle
of the construction. Fasten it to the rails with four bolts, each having a washer and a nut. Refer to the image
below on how to insert the bolts into the railing that is part of the bottom of the battery casing.
⚠
WARNING
Tighten the bolts as possible as the battery is quite heavy.
Figure 22: Mounting the Battery to the Bracket
3. Connect the input port power cable of the Lithium Battery to the screw terminals on the back of the Solar Panel.
The image below shows the connection on the back of the solar panel.
⚠
WARNING
Make sure to follow the connection in the image below as interchanging the wires would reverse the
polarity. Reversing the polarity when connecting the battery is dangerous and may cause a fire.
