RAM Mounting Systems 3100 Manuale utente
Charging/Serial Dock for iPAQ Handhelds
(For iPAQ 3100, 3600, 3700, 3800, 3900, 5400 & 5500 Series)
Tel: (206) 763-8361 Fax: (206) 763-9615
Web Site: http://www.ram-mount.com
e-mail: [email protected]
NPI
National Products Inc. PLEASE SEE IMPORTANT INSTRUCTIONS
INSIDE BEFORE MOUNTING YOUR IPAQ !
For iPAQ Handheld Computers
™
OWNERS MANUAL
POWERED DOCKING CRADLE
RAM
RAM
RPR-182-CO2-INS
NPI has a Lifetime Warranty on all RAM Mounting Systems
and a Limited Warranty on all electronic components.
Detailed information regarding these warranties may be
accessed on our web site at www.ram-mount.com
PATENTED & PATENTS PENDING
PATENTED & PATENTS PENDING
Provides constant charging and power for iPAQ electronic device in 12
to 28 Volt DC environments. Supplied wire harnesses allow for null or
non-nullmodemcables. Includesfusedcoiledpowercordwithcigarette
lighter plug and straight type power cord for hard wire applications (add
to 2 Amp fused circuit only). Works with any brand or style expansion
pack,plustheHPkeyboardandallNavmanGPSsleeves.
Mounting Systems

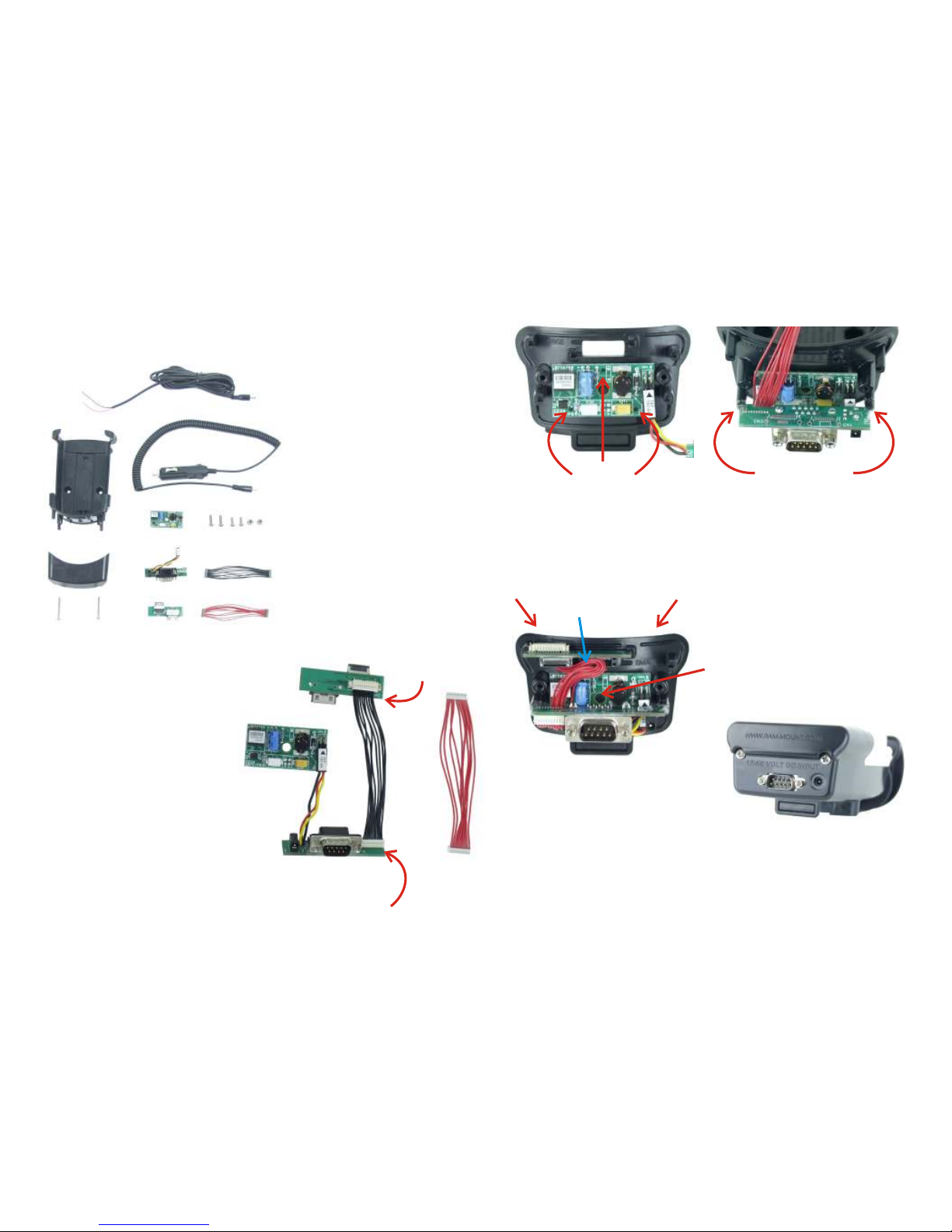

CONTENTS, DESCRIPTION & ASSEMBLY INSTRUCTIONS
Before proceeding with assembly of powered docking cradle, check the contents of
package to make certain all parts are included. If any parts are missing, please
A
B
C
D
E
F
G
H
J
K
L
A. 1 qty. RAM Main Plastic Housing
B. 1 qty. RAM PCB Plastic Cover
C. 2 qty. #8 X 1 1/4” Long Screws
D. 1 qty. 10’Long Power Cord
E. 1 qty. 10’Long Coiled Power
Cord With Cigarette Plug
F. 1 qty. Power Printed Circuit
Board
G. 1 qty. Input / Output Printed
Circuit Board
H. 1 qty. IPAQ Male Connector
Printed Circuit Board
J. 2 qty. of ea. #8-32 X 5/8” & 1/2”
Long Screws & #8 Nuts
K. 1 qty. Non-Null Modem Wire
Harness (BLACK)
L. 1 qty. Null Modem Wire Harness
(RED)
STEP 2 STEP 3
STEP 4
STEP 5
STEP 1
First determine what type of connection
yourequirefortheserialport. Weoffer2
different wire harnesses, a non-null-
modem (KBlack) and null modem (L
Red). To determine what type you
require, contact the manufacturer of
your electronic device that you are
attaching to the powered docking
cradle. Once determined, select the
appropriate colored wire harness and
attachitto thecorresponding PCB’sG&
Has shown in the STEP 1 photo. Note,
the ends have different numbers of
connectors so they can’t be reversed.
Attach the 10 qty. connector socket to
the GPCB & the 11 qty. connector
housing to the HPCB. Connect the 3
wire socket on the GPCB to the pins on
the FPCB. Make certain that the label
marked “TOP FACING” is toward you
asshownintheSTEP1photo.
Assemble power PCB (F) on the three
corresponding pins on the housing (A)
asshowninSTEP2photo.
AssembleInput / Output PCB (G)to the
two slotted posts on housing (A) as
shown in STEP 3 photo. Note: pre-
bend the wire harness to aid in holding
the PCB’s in place and note the
directionpathofthewires.
Using a pointer, or similar device, insert
it through the serial port hole in plastic
cover (B) to aid in holding the PCB’s in
place while aligning and attaching the
cover with the 2 screws (C). Gently
snug the screws until the cover (B)
toucheshousing(A).
The iPAQ Male PCB (H) has 2 different
sizedconnectors. Before assembly, try
the connector into your device to
determine which one is to be used.
Once that is determined, look on
housing (A) to see the Small & Large
lettering to indicate the side that the
PCB will be on. Then assemble it as
shown in STEP 4 photo. Note: pre-
bend the wire harness to aid in holding
the PCB’s in place and note the
directionpathofthewires.
F
G
H
K
L
11 qty. Connector
10 qty. Connector
Black
non-null
modem
Power
PCB
IPAQ Male Connector PCB
Input / Output
PCB Red
null modem
Locating
Pins
Large Side Small Side
Wire Path
No Wires
This Area
Slotted Posts
