RAMSET T2 Manuale utente

RAMSET T2 TOOL

OPERATORS

SAFETY & OPERATING

INSTRUCTION MANUAL

DANGER

READ AND OBEY ALL SAFETY AND OPERATING

INSTRUCTIONS BEFORE OPERATING TOOL.

GAS POWERED, LOW VELOCITY

PISTON TYPE FASTENING TOOL

SAFETY INTRODUCTION DANGER

!Read, understand and follow the instructions in

the tool manual before attempting to use the tool.

!Operators and Bystanders must wear eye and

hearing protection.

!Never close tool with hand over the fastener loading

end of the tool. A serious hand injury from penetration

by the piston or fastener could result.

!The gas in fuel cells is under pressure and the gas

is flammable.

!Do not open, puncture or burn fuel cells.

Store fuel cells in a well ventilated area, at temperatures

below 50° C (122° F) and out of the sunlight.

!Keep fuel cells away from flames, sparks and heat.

!Do not attempt to recharge, refill or recycle fuel cells.

!Never operate the T2 tool if flammable or explosive

materials are nearby.

Just as no one can merely read a book about driving an automobile and then hope

to drive one safely, no one should attempt to use the T2 gas powered tool without

adequate, competent personal instruction.

No automobile instruction book or instructor can forewarn a learner against all possibilities

and emergencies, nor can printed material detail all possible conditions surrounding the

use of Ramset tools and products.

Responsibility for the safe and proper use of this tool rests with the tool user

and the employer.

DANGER

THIS TOOL IS TO BE USED ONLY BY PROPERLY TRAINED

OPERATORS. ATTEMPTING TO HANDLE OR OPERATE THE T2 GAS

POWERED TOOL WITHOUT PROPER TRAINING CAN RESULT

IN SERIOUS INJURY TO THE OPERATOR OR BYSTANDERS.

DANGER

SAFETY INTRODUCTION 2

CONTENTS 3

SAFETY INSTRUCTIONS 4-7

FASTENING APPLICATIONS 8

TOOL OPERATING INSTRUCTIONS 9

PARTS SCHEMATIC 10-11

PARTS LIST 12-13

SERVICING/TROUBLESHOOTING 14

WARRANTY 15

TABLE OF CONTENTS

Preparation For Fastening

Acceptable Base Materials

The gas powered T2 tool is suitable for

use in the following base materials only:

• PouredConcrete

• StructuralSteel

• ConcreteBlockandHorizontalJoints

in Brick or Masonry Walls

Never attempt to fasten into any other

type of material. Fastening into other

materials can cause blindness or other

serious injury.

Never attempt to fasten into very hard

or brittle materials such as cast iron,

tile, glass, or rock of any type. These

materials can shatter, causing the fastener

and/or base material fragments to fly

free and cause serious injury to the tool

operator and others.

Never fasten into any base material that

does not pass the Center Punch test.

Failure to assure the suitability of the

base material can result in serious injury

to the eyes or other body parts.

Center Punch Test

ALWAYS WEAR SAFETY GOGGLES

WHEN PERFORMING THIS TEST.

1. Always check the material being

fastened into for hardness before

attempting any fastening operation.

2. Using a fastener as a center punch,

strike the fastener against the work

surface using an average hammer

blow and check the results.

Center Punch Test Results

1. If the fastener point is flattened,

the material is too hard for a

powder actuated fastening.

2. If the fastener penetrates the

material easily, the material is

too soft.

3. If the material cracks or shatters,

the material is too brittle.

4. If the fastener makes a small

indentation into the material, the

material is suitable for fastening.

SAFETY INSTRUCTIONS DANGER

Solid Concrete and

Precast Concrete

Structural Steel

Solid or Hollow

Block

Horizontal Joints

only in Brick Walls

Fuel Cells and Batteries

Fuel Cells

• Thefuelcellmustbeusedat

temperatures between -5° C

(23° F) and 49° C (120° F).

• Atthebeginningofeachfastening

cycle, a measured amount of gas

is injected into the combustion

chamber.

• Thefuelcellisdesignedwithan

internal reservoir that is under

pressure by a propellant.

• Whenthefuelcellisempty,a

small amount of propellant

remains inside the cell.

• Forsafetyandpropertoolfunctioning

it is important that only Ramset

supplied fuel cells be used in the

T2 tool.

Batteries

• Thebatterywillbecomedischarged

even if the tool is not being used.

• Removethebatteryfromthetool

when the tool is not to be used or

put it in the no contact position

in the tool as shown on page 6.

• Rechargethebatteryifithasnot

been used for a long period of time.

• Batteriesaresuppliedinan

uncharged condition so fully

charge them for first time use.

• Donotrechargebatteriesuntil

they are fully discharged.

• Ittakesabout1hourtorecharge

a battery.

• Useonlybatteriesandchargers

supplied by Ramset.

• BatteryCapacity—Maximum

1200 shots.

DANGER SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

DANGER 5

Ramset Fuel Cell

Ramset 6 V. Battery

Installing the battery

• Insertthebatteryintothetool

as shown on the right with the

clip toward the rear.

• NotetheLEDlightontheright

side of the handle. After installing

the battery:

- If the light flashes green the

tool is powered.

- If the light flashes red the battery

requires charging.

- If the light is solid green and

the fan is running, the tool is

ready to use.

- If the light is solid red and the

fan is not on the battery needs

recharged.

Installing the fuel cell

• Thereisacaplocatedontherearof

the tool handle that covers the fuel

cell. Twist the cap 1/8 turn clockwise

and remove it.

• Insertthefuelcell,nosefirst,allthe

way into the recess.

• Replacethecapbyliningupthe

lugs on the cap with the notches in

the tool handle, push the cap in and

twist it 1/8 turn counterclockwise

to the locked position.

SAFETY INSTRUCTIONS DANGER

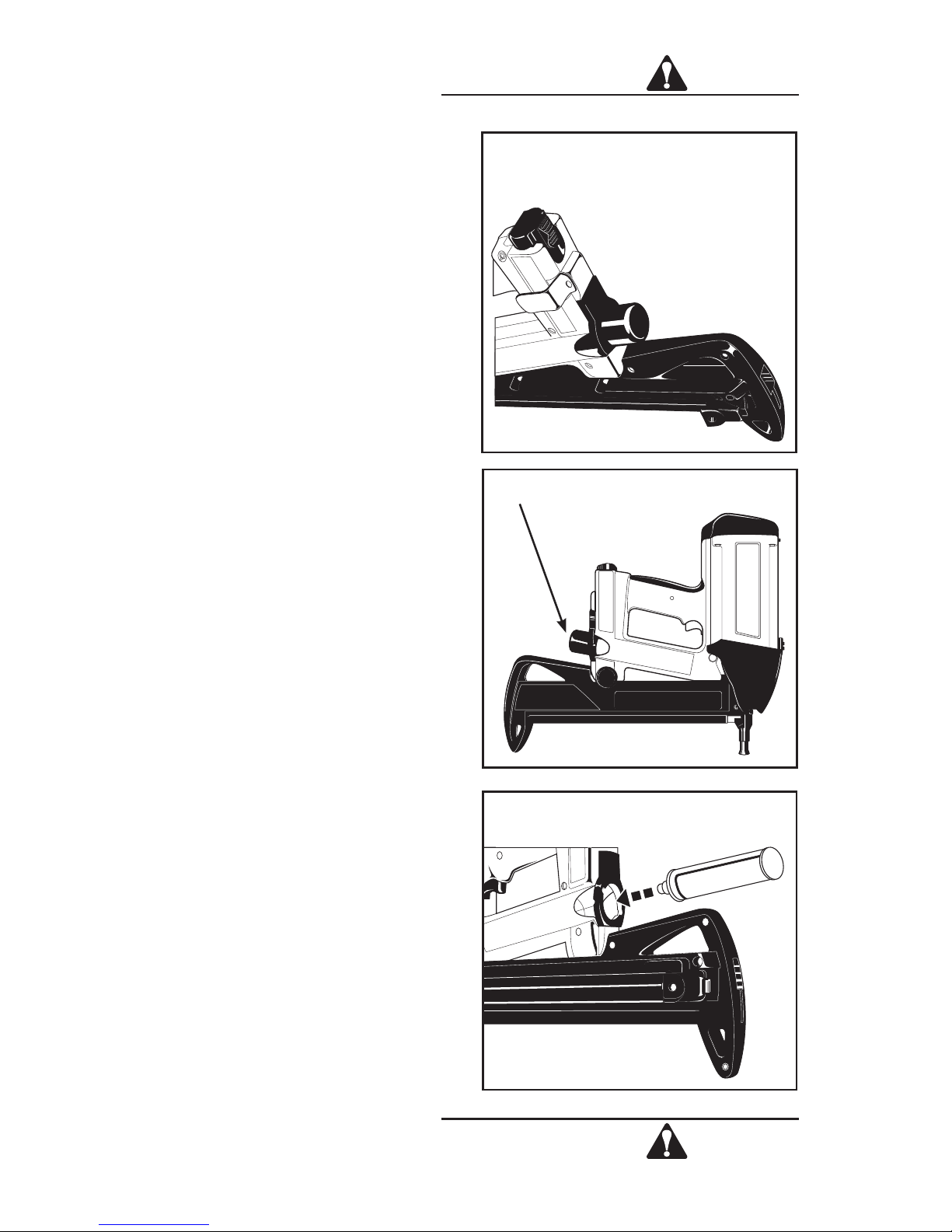

Battery is shown in the no contact

position. Push it fully down to lock it

in place.

Turn and remove cap

Insert fuel cell into recess

FAILURE TO FOLLOW

INSTRUCTIONS CAN

CAUSE INJURY TO THE

TOOL OPERATOR OR

TO BYSTANDERS.

• Usethetoolonlyinwellventilated

areas.

• Alwaysholdthetoolatrightangles

to the work surface.

• Neverattempttomakeafastening

at an angle to the work surface.

• Whilethetoolcanbeusedinany

position (floor, wall or ceiling) it is

important to have both the nose of

the tool and support foot in contact

with the work surface to minimize

spall and make the best quality

fastenings.

• Neverputyourhandoverthenose

end of the tool.

• Neverputyourhandonoroverthe

end of the tool to close the tool.

• Nevercarrythetoolwithyourfinger

on the trigger.

• Neverleavethetoolunattendedor

allow anyone to operate it without

first being trained.

• Neverengageinhorseplaywith

the tool.

• Alwayskeepthetoolpointedaway

from yourself or others.

• Neveroperatethetoolifexplosive

or flammable materials are nearby.

• Keepthetoolandsupplieslocked

up and out of the reach of children.

90°

The T2 tool may be used in

any position.

DANGER SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

DANGER 7

Keep tool locked up and

out of reach of children

Ceilings

Walls

Floors

Keep both the nose of the tool

and support foot in contact with

the work surface and hold tool

perpendicular to the work surface.

FASTENING APPLICATIONS

Your T2 tool can be used for a wide

range of fastening needs in a variety of

base materials. Reading and following

these important fastening guidelines will

help you get the best results from your

tool and fasteners, as well as help you

perform these fastening operations

safely and effectively.

T2 fastenings are permanent

fastenings so attempting to remove

a fastener from concrete or steel

may result in a serious injury.

Fastening to Concrete

When fastening into concrete, always

maintain a minimum spacing of 3

between fastenings and 3 from any

free edge. Concrete thickness should

be at least three times the intended

penetration depth into the concrete.

Driving fasteners too close to an

edge or too close to each other

can cause the concrete edge to

fail or fasteners to fly free.

Fastening to Concrete

Block or to Masonry Walls

Take care to observe a 3 edge distance

to avoid cracking the block and over

penetration of the fastener to avoid a

loss of holding value. Fastenings may

also be made into the horizontal joint

but not into the vertical joint.

Fastening to Steel

Your T2 tool can be used for fastening

on the flat surfaces of structural steel.

When fastening into steel, always maintain

a minimum spacing of 1-1/2 between

fastenings and 1/2 from any edge.

FASTENING APPLICATIONS

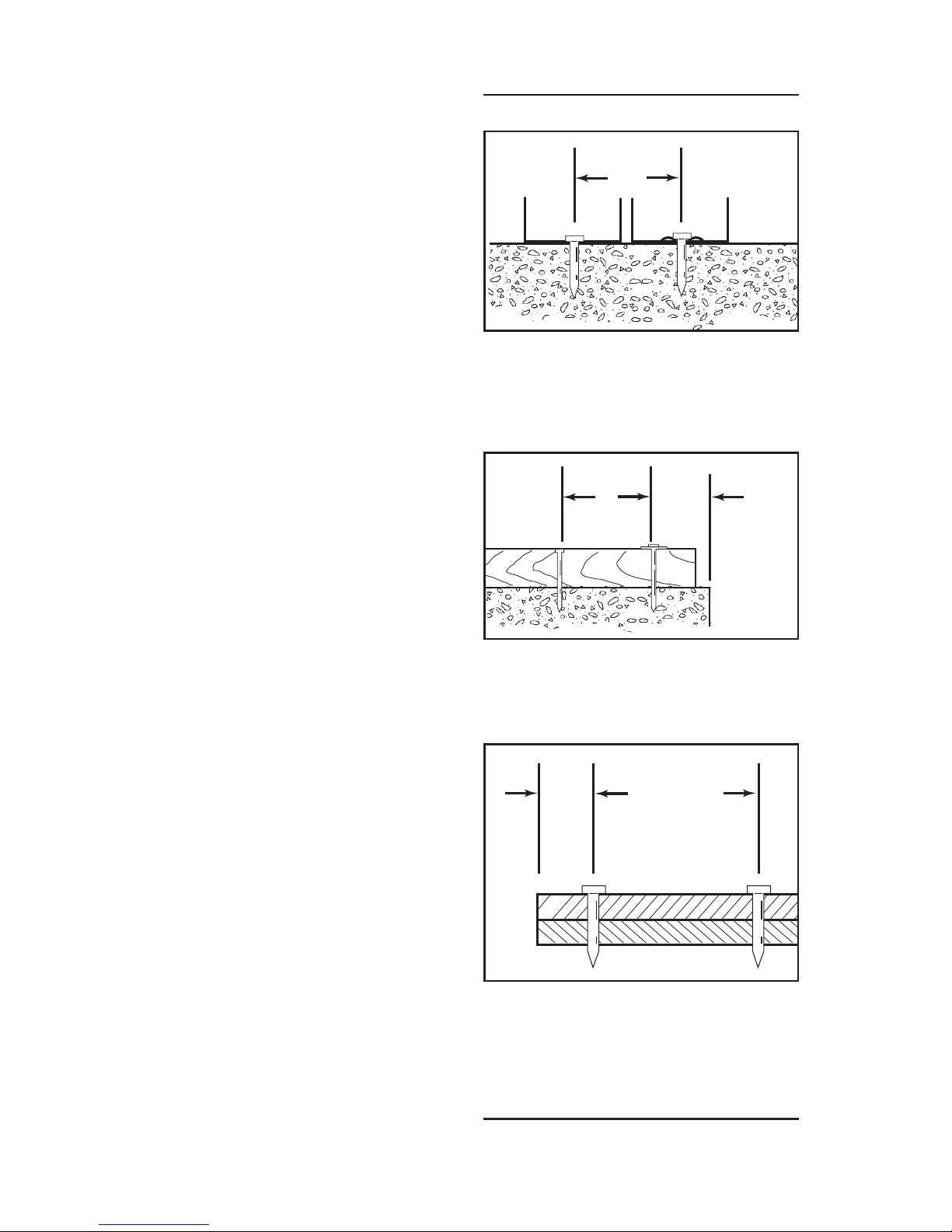

3" MIN.

PENETRATION - THIN GAUGE

METAL TO CONCRETE

MIN.

SPACING - THIN WOOD

STRIP TO CONCRETE

1/2"

MIN.

1-1/2"

MIN.

SPACING

STEEL TO STEEL

TOOL OPERATION

Always check the tool first to make sure

that it does not contain a fastener. If the

tool contains a fastener from a previous

application, remove both the battery and

the fuel cell before attempting to remove

the fastener.

Operating the T2 Tool

Insert a charged battery into the tool with

the battery clip toward the rear of the tool.

2. Insert the Ramset fuel cell into the tool

as described on page 6.

3. Pull the magazine follower back to the

locking position.

4. Insert the nail strips into the opening in

the back of the magazine.

5. Slightly pull back on the magazine

follower while pressing the button

at the back of the follower. This will

release the follower making contact

with the back of the last nail strip.

6. Place the tool in the spot where you

want to make the fastening.

With the tool in position and perpendicular

to the work surface; press down on the

tool.

8. Note that the fan motor is running and

the LED light on the side of the handle

is a solid green color indicating the tool

is ready to make a fastening.

9. Pull the trigger to make the fastening.

10. The tool is ready for the next fastening.

To avoid overheating the tool do not

hold your hand over the air intake

section on the top end of the tool.

Removing The Fastener Magazine

On occasion the fastener magazine may

need to be removed to clear a fastener

jam. To do so, unscrew the knob at the

rear of the tool. Then press the knob. Slide

the magazine rearward to remove it from

the tool.

TOOL OPERATING INSTRUCTIONS

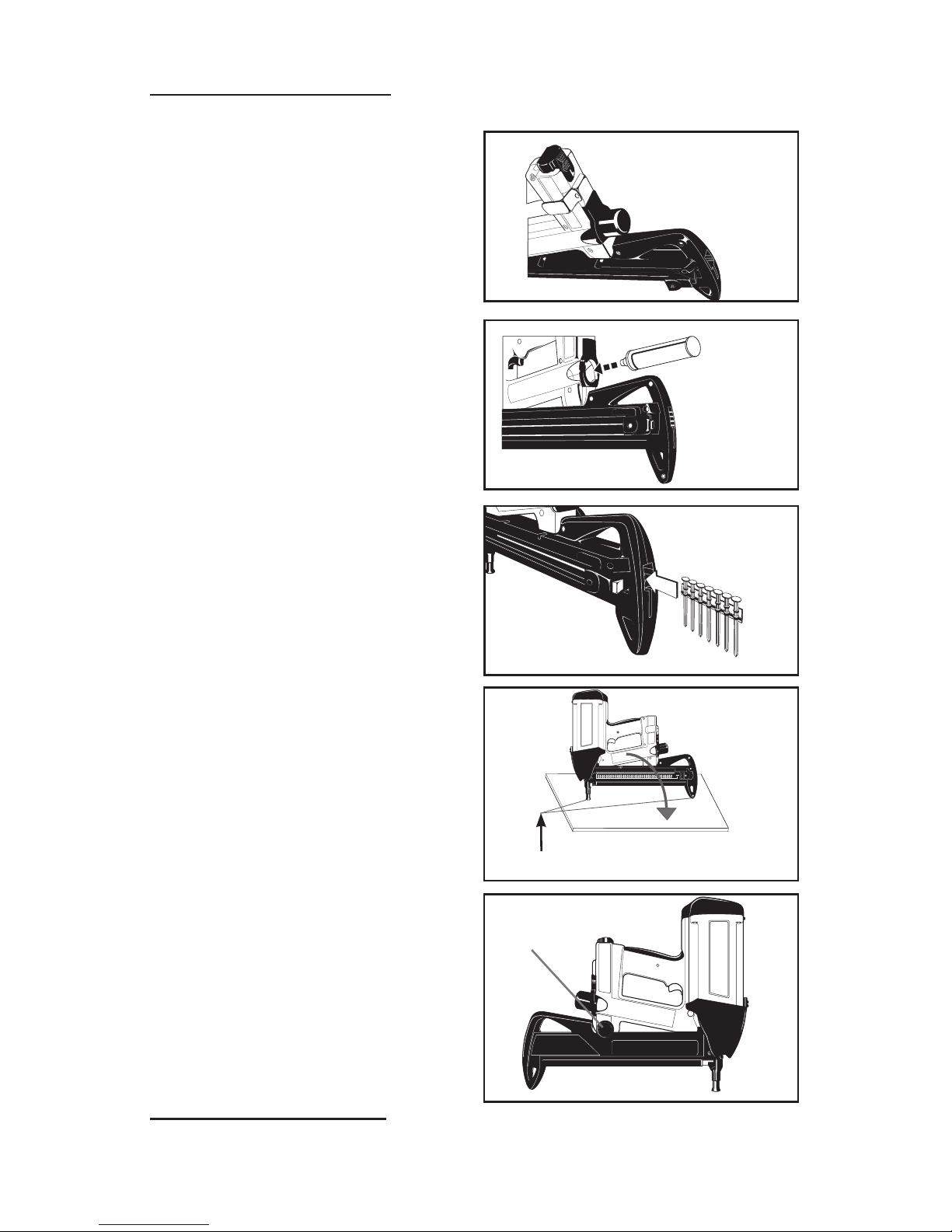

90°

Insert battery

Insert

fuel cell

Insert

fastener

Knob

Hold tool perpendicular

In contact with work surface

RAMSET T2 TOOL SCHEMATIC

PARTS SCHEMATIC

Altri manuali per T2

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali RAMSET Utensili elettrici

RAMSET

RAMSET SA270 Guida alla manutenzione e all'assistenza

RAMSET

RAMSET COBRA+ Guida all'installazione

RAMSET

RAMSET InsulFast GT3 Manuale utente

RAMSET

RAMSET MD380 Guida alla manutenzione e all'assistenza

RAMSET

RAMSET RT400 M Guida alla manutenzione e all'assistenza

RAMSET

RAMSET D60 Manuale utente

RAMSET

RAMSET HD22 Specifiche

RAMSET

RAMSET CUAR18 Manuale utente

RAMSET

RAMSET RA27 Manuale utente

RAMSET

RAMSET XT540 Guida alla manutenzione e all'assistenza

RAMSET

RAMSET TF1200 Manuale utente

RAMSET

RAMSET GYPFAST Guida alla manutenzione e all'assistenza

RAMSET

RAMSET Twist Lok TS60P Manuale utente

RAMSET

RAMSET D60 Guida alla manutenzione e all'assistenza

RAMSET

RAMSET TrakFast TF1100 Manuale utente

RAMSET

RAMSET RW150ES Manuale utente

RAMSET

RAMSET LOW VELOCITY POWDER ACTUATED TOOL Guida all'installazione

RAMSET

RAMSET D45A Manuale di istruzioni

RAMSET

RAMSET M70 Manuale utente

RAMSET

RAMSET GYPFAST Manuale utente

RAMSET

RAMSET D45A Guida alla manutenzione e all'assistenza

RAMSET

RAMSET T2 Guida alla manutenzione e all'assistenza

RAMSET

RAMSET FrameBoss pat003 Manuale utente

RAMSET

RAMSET T4 Manuale utente

Manuali Utensili elettrici popolari di altre marche

AEG

AEG OMNI-JS Manuale utente

SIP

SIP 01533 Manuale utente

Ribimex

Ribimex PRS499 Manuale utente

3M Fiber Optic Connector Crimp Tool Manuale utente

Ryobi

Ryobi P524 Manuale utente

ROJEK

ROJEK FSN 300A Manuale utente

Kemper

Kemper 1740PRO Manuale utente

WABCO

WABCO OptiTire Manuale utente

EINHELL

EINHELL TE-MS 18/210 Li Manuale utente

Orgapack

Orgapack OR-T 85 Guida rapida

TOUGHCUT

TOUGHCUT Diamond 400 Manuale utente

Yaros

Yaros PB-3603 Manuale utente

Fein

Fein BSS 2.0 E Guida all'installazione

Baileigh Industrial

Baileigh Industrial SS-2725 Manuale utente

Milwaukee

Milwaukee 2674-20 Manuale utente

Fein

Fein BLs 1.6 Manuale utente

Princess

Princess Electric Multi Sharpener Manuale utente

FOREDOM

FOREDOM K.1050 Manuale
