Badger LF User Manual
This manual contains installation, operation,
care, and repair instructions and user service
information for the RAMVAC® Utility Badger LF
dental vacuum system.
The main purpose of the Badger LF is to provide
a positive displacement, oil-less dry vacuum
system intended for use in a dental facility and
to be used by trained professional dental care
personnel only.
Badger LF is designed to provide trouble-free service
when installed, operated and cared for according to
the procedures set forth in this User Manual.
Vacuum is supplied to the system by a durable oil-
less rotary vane pump. A space-saving integrated
separation tank keeps liquid and foam out of the
pump. The E2 control provides precise electrical
control over run-time and shutdown operations
while vacuum is maintained at a uniform level by
the RAMVAC vacuum level control valve.
To ensure proper installation of the Badger
LF, carefully read all instructions contained
in this manual prior to installing, operating,
and servicing. For safety, pay close attention
to all notices, warnings, cautions and notes.
Section I Introduction
Safety Information
Classications
After the Badger LF is installed, please review the
features, operation procedures and care guide-
lines with the doctor's sta. Leave this manual in
the doctor's oice for future reference.
RAMVAC vacuum units are certied to ANSI/AAMI,
EX606-0-1:2005(R2012) and certied to CAN/CSA
Standard C22.2 No. 60601-11:08, and comply with
NFPA 99c Level 3 vacuum requirements, and are
manufactured in a FDA Registered ISO 13485:2003
certied facility.
– Type of protection against electric shock:
Class 1 Equipment
– Degree of protection against the ingress of
water: Ordinary
Here’s what you need to do to insure the safety
potential of this equipment is achieved:
• Make sure your equipment is installed ac-
cording to our written instructions and the
Installation Checklist is completed. If you have
purchased your RAMVAC from an authorized
dealer, the dealer is responsible for presenting
you with the completed checklist.
• Exhaust from dental vacuum systems can be
hazardous. Make sure the exhaust pipe is ter-
minated outside your building according to our
written instructions.
• Nitrous oxide and oxygen can be safely scav-
enged in the small concentrations typically
encountered in dental analgesia. The additional
air drawn into a properly installed and operated
Vacuum Unit will dilute these agents.
• Never use your RAMVAC to remove pure nitrous
oxide, oxygen or other oxidizing agents directly
from storage vessels or supply hoses. Large
concentrations may cause a re in the Vacuum
Unit and may cause an exhaust hazard.
• Never use this equipment in an OXYGEN RICH
ENVIRONMENT. Large concentrations may
cause a re in the Vacuum Unit and may cause
an exhaust hazard.
• Never use your RAMVAC for housekeeping
functions.
• Never use your RAMVAC to collect lab dust.
3
www.DentalEZ.com 866-DTE-INFO (opt 4)
3
www.DentalEZ.com
Installation by an authorized RAMVAC dealer
service technician is recommended.
NOTICE
Do not modify the Badger LF without
permission from RAMVAC. Modication will void
the warranty and could result in serious injury.
WARNING
For any questions about an order, please
contact a RAMVAC customer service
representative at 866-DTE-INFO.
NOTICE
Section I Introduction
= Caution
= Warning
= Biohazard
= Hot Surfaces
= General Mandatory Action
= Refer to Manual (follow instructions)
= Box Must Remain Upright
=
Do Not Place Box On Unlevel Surface
= Do Not Stack Box
=
Box Contents Safe Temperature Range
= Box Contents Safe Humidity Range
= Protective Earth
= Hazardous Moving Parts
Explanation of Signs & Symbols
-29ºC
(-20ºF)
74ºC
(165ºF)
0%
95%
-29ºC
(-20ºF)
74ºC
(165ºF)
0%
95%
-29ºC
(-20ºF)
74ºC
(165ºF)
0%
95%
-29ºC
(-20ºF)
74ºC
(165ºF)
0%
95%
-29ºC
(-20ºF)
74ºC
(165ºF)
0%
95%
Specications
The Badger LF Vacuum System must be
switched by a low voltage switch. It cannot be
switched with High Voltage.
NOTICE
Voltage 208-230 VAC, Single Phase
Frequency 60Hz only
Horsepower 1.5 HP
Full Load Amperes 6.2 Amps (Hi EFF motor)
Switching (low voltage) 24 VDC
Preset Vacuum Level 23.7 kPa (7" Hg)
Maximum Vacuum Level 50.8 kPa
Gauge Accuracy ASME/ANSI B40.1 Grade B (+/-3/2/3%)
Dimensions (WxDxH) 62.74 cm x 45.72 cm x 59.06 cm (24.7" x 18" x 23.25")
Floor to Drain Center Line 19.7 cm (7.75")
Weight 79.4 kg (175 lbs)
Tank Capacity 18.9 Liters (5 gallons)
Operating Temperature 4.4°C to 40°C (40°F to 104°F)
Storage Temperature -17.8°C to 65.6°C (0°F to 150°F)
Db Level 72db LF1 / 74db LF2
BTU Rating 900 btu/hr
Humidity in Transport/Storage/Operation 0% to 95% RH, no condensing moisture
Altitude in Operation 70-105 kPa (Sea level to 2,743m(9,000ft))
Altitude in Transport/Storage 50-105 kPa (Equates to 18,000 to - 1,000ft. elevation range
4
www.DentalEZ.com 866-DTE-INFO (opt 4)
4
www.DentalEZ.com
Badger LF User Manual
Packaging
It is recommended to leave the unit attached
to the shipping pallet during transport until
nal destination.
NOTICE

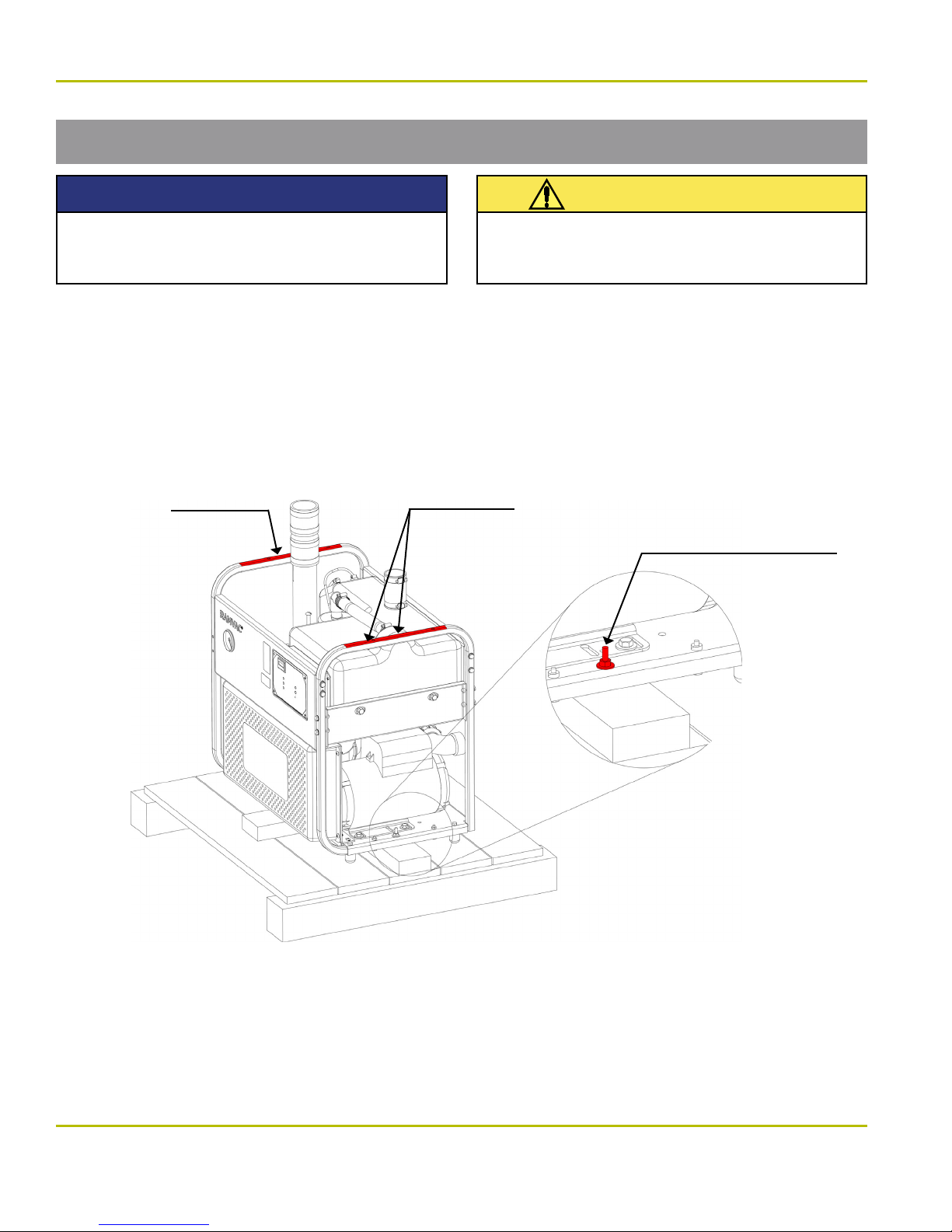

1. Carefully remove the shipping carton from the pallet containing the Badger LF.
2. Visually inspect the entire unit for damage. If shipping damage is found, immediately contact the
freight carrier and supplier.
3. Using a 7/16" wrench, unbolt both sides of Badger LF from the pallet.
4. To lift and handle the unit, grasp the frame rails shown in the gure below.
Lifting point Lifting points
5. Verify additional parts shipped with the Badger LF Vacuum Unit for use at installation:
This unit is heavy. Never attempt to lift or
handle without assistance.
CAUTION
Section I Introduction
Use 7/16" wrench to
remove nut and washer
from both sides of pallet
• Installation Kit
• Facility Plumbing Adapter Kit
• Drain Plumbing Adapter Kit
• Badger LF Installation Packet
• Badger LF Doctor's Packet
• SlugBuster Starter Pack
• 2 cans SlugBuster Powder
• 2 Gallon SlugBuster Mixing Jug
• Badger LF Muler Kit
5
www.DentalEZ.com 866-DTE-INFO (opt 4)
5
www.DentalEZ.com
Section II Installation

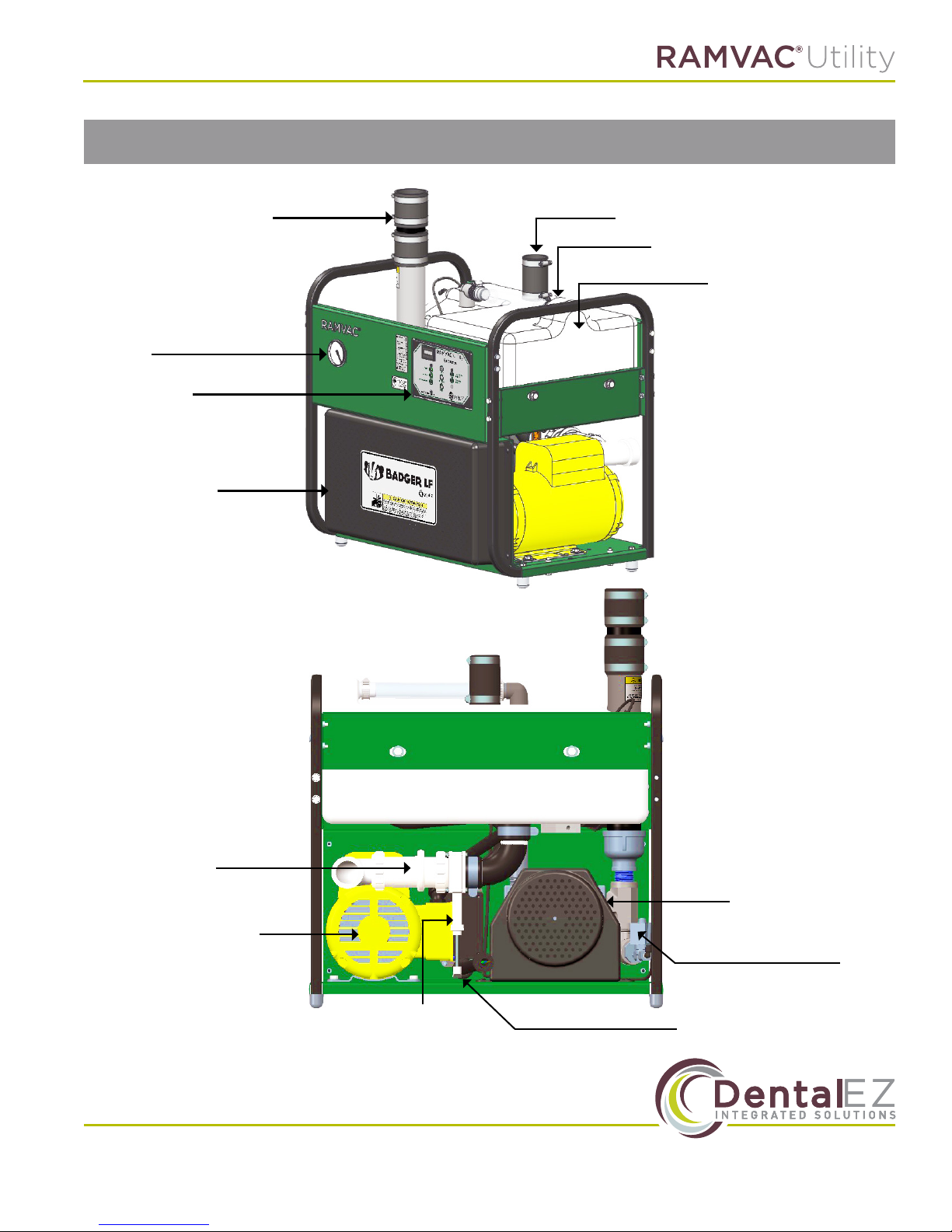

Product Features
Drain Check
Valve
Motor
Drain
Slide Valve
Pump
Exhaust
Drain Solenoid Valve
Power Conduit Whip
Exhaust
Vacuum Gauge
Belt Guard
E2 Control
Separation Tank
Tank Inlet
Tank Outlet
6
www.DentalEZ.com 866-DTE-INFO (opt 4)
6
www.DentalEZ.com
Badger LF User Manual
Vacuum and Drain Plumbing
Drain Line Options
NFPA 99c Edition
Tank Drain Line
• Waste Pipe, Slide Valve, and Drain Check Valve
- 1-1/2” PVC Schedule 40 with DWV ttings.
- Min. slope ¼” per 10 ft (2 mm per 1m).
- Use only RAMVAC supplied 1 -1/2” drain check valve.
• Trap and Drain Branch
-Trap and drain branch line 2 sizes larger than waste pipe.
-Trap seal minimum 4” deep.
• Vents
-Trap vent size no less than half the trap and drain branch size.
-Vents no smaller than drain check valve.
-Vents must extend minimum of 6” above tank top before
turning horizontal.
• Follow NFPA 99c Edition, RAMVAC Instructions,
and local codes.
To
Sewer
Vent Trap Vent
Waste Pipe
Drain Branch
Trap
To
Sewer
Drain Branch
Trap
Vent Trap Vent
Slide Valve
(must be open)
Facility Vacuum Lines
• Build Like a Drain Line:
- Use DWV Fittings
- Minimum slope ¼” per 10 ft (2 mm per 1m)
• Can be adapted to t facility plumbing from 3/4” to 2”
• If an in-line low spot is unavoidable, place it in a
known location and incorporate a clean-out.
• For overhead piping, contact RAMVAC.
• For nitrous oxide scavenging, contact RAMVAC.
• Follow NFPA 99c Edition, RAMVAC Instructions, an
local codes.
Section II Installation
Drain
Check
Valve
7
www.DentalEZ.com 866-DTE-INFO (opt 4)
7
www.DentalEZ.com

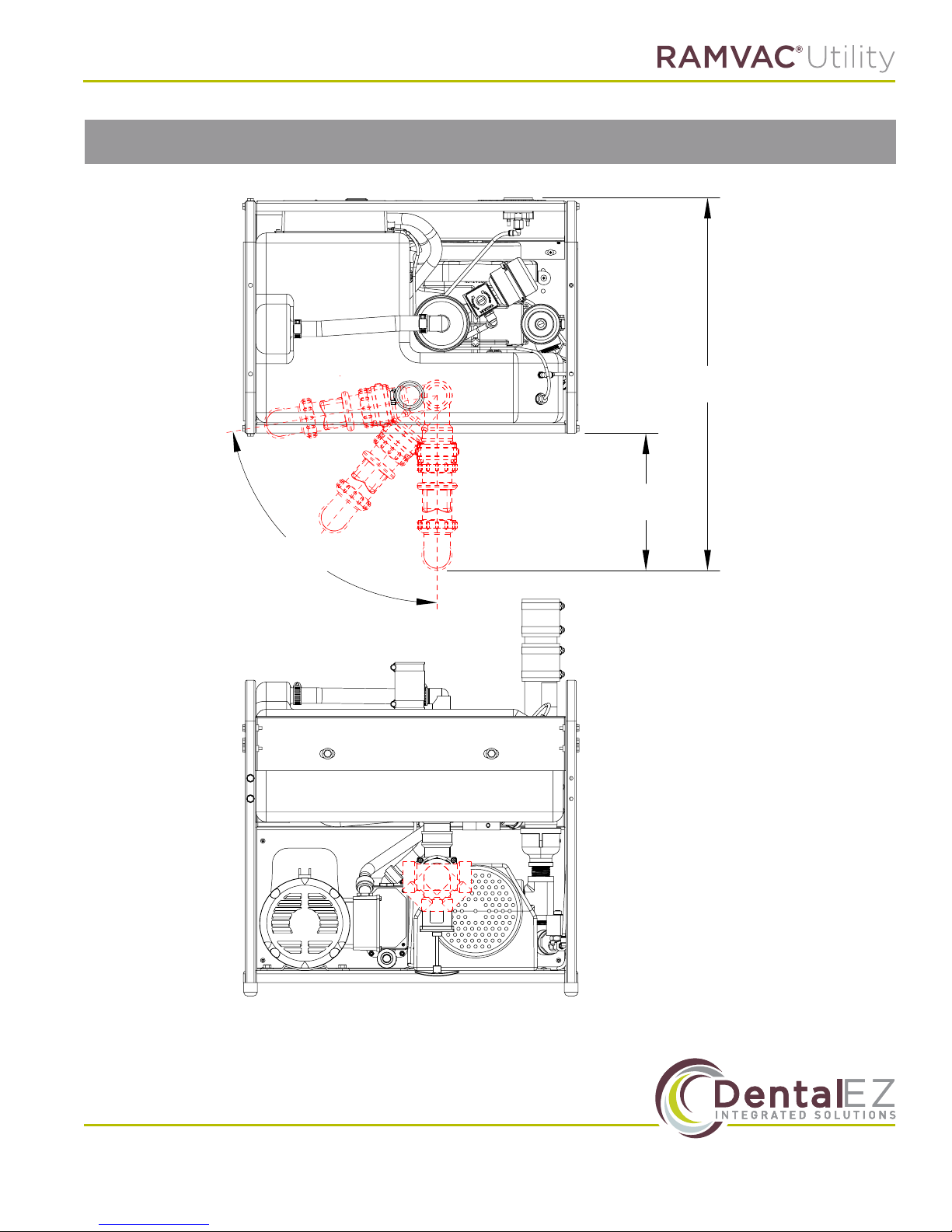

Drain Valve Plumbing Options
Section II Installation
27.25"
10"
80˚
8
www.DentalEZ.com 866-DTE-INFO (opt 4)
8
www.DentalEZ.com
Badger LF User Manual
Section II Installation
20.5"
3.25"
9
www.DentalEZ.com 866-DTE-INFO (opt 4)
9
www.DentalEZ.com
Section II Installation
3.25"
20.5"
