Rand McNally TND 525 Manuale utente

Quick Start Guide.......................1

Guide de Démarrage Rapide.... 18

Guía de Inicio Rápido............... 36

Important Information About Your IntelliRoute®TND™525

RAND MCNALLY DOCK: Keep your device up to date by downloading the Rand McNally Dock for your home

computer at www.randmcnally.com/dock and connecting your device with the USB cable provided.

POWER BUTTON: Press and hold the orange power button to turn the device on or off. The power button

can also be used for quick access to certain features while the device is running. See Preferences > General >

Quick Power Press for options. A red light indicates the battery is charging; a green light indicates the battery is

fully charged.

RESET: Use the reset button on the back of the device to restart. This will cancel the current route, but

preferences, address book, and other personal data will be saved.

LEARN MORE: Access Tutorial & Tips under Preferences > General on your device for more information,

or visit www.randmcnally.com/support to download the user manual.

Some screens include help tips. Tap this button to access.

WARNING: This product contains chemicals known to the State of California to cause cancer and/or other harm.

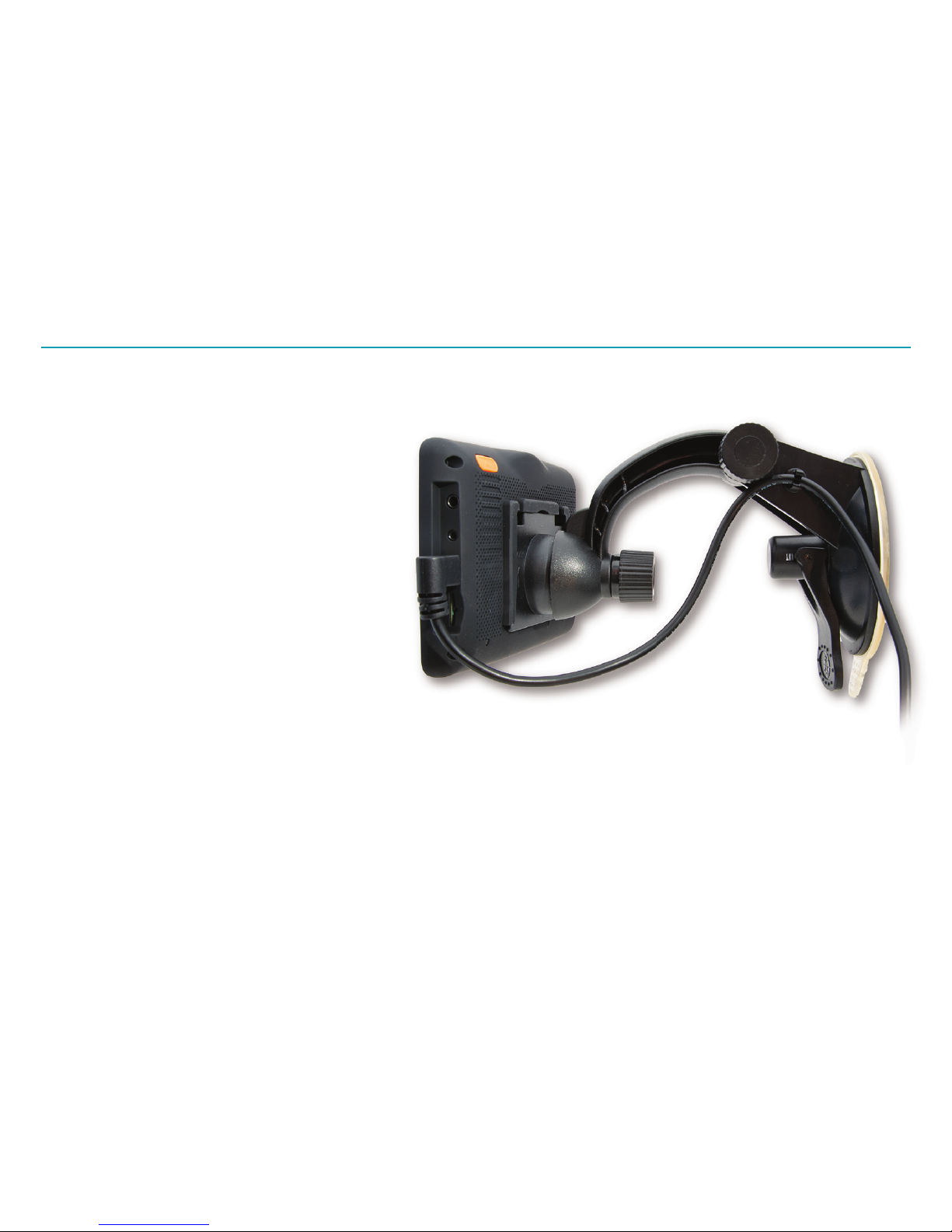

Install the Mount

NOTE: Follow all local regulations governing the placement of the mount. Select an area with a line of sight to the

sky and GPS satellites to ensure reliable GPS information.

1. Clean and dry the mounting area.

2. Remove the suction cup protective ﬁlm.

3. Adjust the angle of the mount using the

thumbscrew.

4. Pull the suction cup lever up to release

suction.

5. Plug the power cord into the device and

the vehicle’s 12-volt power source.

6. Slide the device onto the mount.

7. Place and hold the mount suction cup against the

mounting surface.

8. Press the suction cup lever down until it snaps into place.

9. Adjust the device so that it can be easily seen and does not block the driver’s line of sight.

Main Menu

1Enter truck information and access

truck-speciﬁc use tools.

2Show location on the map and

view navigation instructions.

3Choose a destination.

4Select device, route and map

preferences.Access the tutorial.

5Mute/unmute the speaker.

6Adjust speaker volume.

7Indicates charge when running on

battery.

8Change driver proﬁle, trailer load,

or driver status.

Note: You can select different color schemes in Preferences > General > Skin Style. The following screen

images appear in the “Ice” style. Some screens may appear different, based on model number.

Note: From other screens, tap the Main Menu icon in the bottom right corner to return to the Main Menu.

Enter Truck Information and Set Warnings

1. Tap Truck Tools > Truck Info or Warnings.

2. Tap and to view options.

3. Tap the option button to be changed.

4. Enter new settings.

5. Tap to save changes.

Set Routing and Device Options

1. Tap Preferences.

2. Tap the General, Route or Map tab.

3. Tap and to view options.

4. Tap the option button to be changed.

5. Enter new settings.

6. Tap to save changes.

On the left,

tap on an

option

On the left,

tap on an

option

On the

right,

enter

settings

for the

option

On the

right,

enter

settings

for the

option

Destination

1Route to a new location. (See page 6.)

2Return to a previously entered address.

3Access the Address Book.

4Plan a multi-stop trip.

5Route to a point of interest. (See page 10.)

1 2 3

4 5

Route to a New Location

1. Tap Choose Destination > New Location.

2. Tap Address.

3. Enter the name of the city. (NOTE: As you type,

the keyboard displays only the next possible letter.)

4. Prompts appear in the top bar. Tap the city to

select. Or, tap List to view cities beginning with

the letter(s) you entered.

5. Enter the street name. (NOTE: If the letters you

need do not appear, tap Expand Search.)

6. Enter the house number. (NOTE: To enter the

house number before the street, tap the house

number button in the previous step.)

See Conﬁrm Destination Window (page 7.)

Tips

• You can also route to a new location by City

Center, Intersection, or Latitude/Longitude,

or choose Address > Zip Code Search.

• View recent destinations by tapping Choose Destination > History. View recent cities by tapping Choose

Destination > New Location > Address > History.

• View saved locations by tapping Choose Destination > Address Book.

Conﬁrm Destination Window

1Destination address.

2Begin route to destination.

3Compare a primary and alternate route and

choose one.

4Add the location as a via point on the way to

a previously entered destination.*

5Save the location to the Address Book.

6Cross reference to printed Rand McNally

Motor Carriers’ Road Atlas.

7View the map.

8Change the starting location for a route to the

location displayed here.

9Return to Main Menu.

10 Return to previous window.

*To manage via points, Tap Choose Destination >

Multi-Stop Trips. You can add up to 50 destinations in

a multi-stop trip, and optimize routing for trips of up to

10 stops.

NOTE: This window may include

additional buttons based on the

type of destination selected.

6 7

Route Map Window

1Repeat spoken next-maneuver instructions.

2Name of street you will turn onto next.

3Show arrival time, remaining time, or other

options.

4Slide out to show upcoming exit information.

5Directions list slideout. Tap Route Display

Options to select detail view, highway view,

trip summary, or summary map view.

6Zoom in/zoom out.

7Return to Main Menu.

8Current direction.Tap to select a map display option (Heading Up, North Up, or 3D View).

9View current road name, upcoming cross road name, or city, county and state.Also displays advanced lane

guidance.Tap to change.

10 View and save current location, detour, or cancel a route.

11 Tap on the current speed to display the Virtual Dashboard. (NOTE: Turns red for speed warnings; set in

Truck Tools > Warnings.)
