ROBOTIC POOL CLEANER
Raptor HJ3010
USER MANUAL
Subject to update by manufacturer
without prior notice
2
Important Precautions
1. In order to prevent severe damage to the cleaner, never power on the unit when it
is outside of the swimming pool.
2. The power cord must be connected to an appropriate earthed socket.
3. Do not operate the cleaner when people are in the pool.
4. Hold the top handle when putting the cleaner into water or lifting out of the
water, do not pull the cable.
5. Before power on, make sure to empty the trapped air inside the cleaner (no more
air bubbles coming from the cleaner and the cleaner is fully submersed on the
pool bottom).
6. Before power on, make sure the filter be assembled in position and cable be
fully released to avoid any winding, which could affect the cleaner’s
performance or cause damage.
7. Remote control should be hold vertically for a maximum control distance.
8. Please clean and wash the filter bag every time after use.
9. The cleaner should be stored in a cool and ventilated place, away from direct
sunlight when not in use.
10. The power supply unit should be placed in a shaded area during working. In
order to avoid overheating and potential damage of components, never cover the
power supply unit.
11. Only authorized after sales service personnel should open the cleaner’s power
supply unit and motor assembly, otherwise the warranty will be invalidated.
12. In order to avoid any accident/damage, it is strongly recommended to connect
the caddy with a fixed holder beside the swimming pool by using the safety rope
(included in the package).
13. Do not use the cleaner beyond the working environment/conditions stated in this
manual.
14. After power off the machine, must wait until at least 30 seconds to restart it.
15. For different season different density of the filter net need to be chosen. More
detail please contacts your local distributor.
16. This machine is for clean the pool only not for other purpose.
17. It may cause minor pollution in case of the leaking from the oil seal.
Please read this instruction manual carefully before use and keep it for future
reference.
3
Contents
Ⅰ.Introduction····················································································P 4
II.Safety· ··················································································· ··P 5
III.Specifications·················································································P 5
.Ⅳ Components of Swimming Pool Cleaner·················································P 6
Ⅴ. Preparation Before Operating······························································P 9
Ⅵ. Instruction of Operating panel ··························································P 10
Ⅶ. After Use of Cleaner·····································································P16
Ⅷ. Caddy assembling···········································································P18
Ⅸ. Packing List················································································P19
Ⅹ. Warranty ·····················································································P20
4
Ⅰ.Introduction
The Raptor HJ3010 (Basic model) robotic pool cleaner is a new type of highly efficient
and energy-saving swimming pool cleaning robot. Through its advanced computer
controlled program, it can clean the pool walls and bottom automatically. At the same
time, it filters the pool water and gets rid of suspended particles without replace the pool
water. It’s total environmental-friendly.
For safe operation, the cleaner works on 24V direct current. Please read this user
manual carefully before use.
Features:
◆ 24V DC guarantees safety
◆ Smart program of cleaning route
◆ Manual/auto control to move forward/backward, turn left/right
◆ Control on smart phone apps through wifi (optional)
◆ Full coverage of pool floor, walls and waterline, multiple choice of pool floor
only, walls only, once for each of pool floor and walls, or even triple for pool floor
and once for pool walls
◆ Powerful vacuum filter system to catch leaves, hair, mud, dust, algae and other
fine particles on the floor.
◆ Light weight, detachable filter container
◆Filter bag full load alarm
◆Out of water sensor and alarm, cable defect alarm, motor defect alarm, switch
power defect alarm; all of these fault diagnosis shows on the display screen
◆Fit for all types of pool
5
Ⅱ. Safety
1, Power supply unit position：
Power supply unit need to be placed in proper position so as to reach the distal end of
pool for the cleaner, meanwhile as least 3.5m from pool edge.
2,important：
Before power on, make sure local voltage/frequency matches the rated
voltage/frequency of the cleaner
Rated input voltage：110VAC (120VAC) / 220VAC (230VAC)
Frequency：50Hz/60Hz
Ⅲ. Specifications
1．Rated input voltage： 220VAC (230VAC)/ 110VAC (120VAC)
2．Frequency：50Hz/60Hz
3．Output voltage：DC24V
4. Power：200W
6. Remote control frequency：433M
7．Cable length： 20m
8．Roller length：465mm
9．Max cleaning area：Appr. 270 ㎡
10．flow rate：20m³/h
11．Filter net density： 180um (250um optional)
12．Pool water temperature：10℃-32℃
14. Moving speed：MAX 12.5m/min
15. IP grade：Cleaner IPX8
Power supply unit IPX5
16. Cleaner weight：12.5kg (Without cable)
6
Ⅳ. Components
1. The cleaner consists of power supply unit, caddy, cleaner and remote control,
with Bluetooth control function.

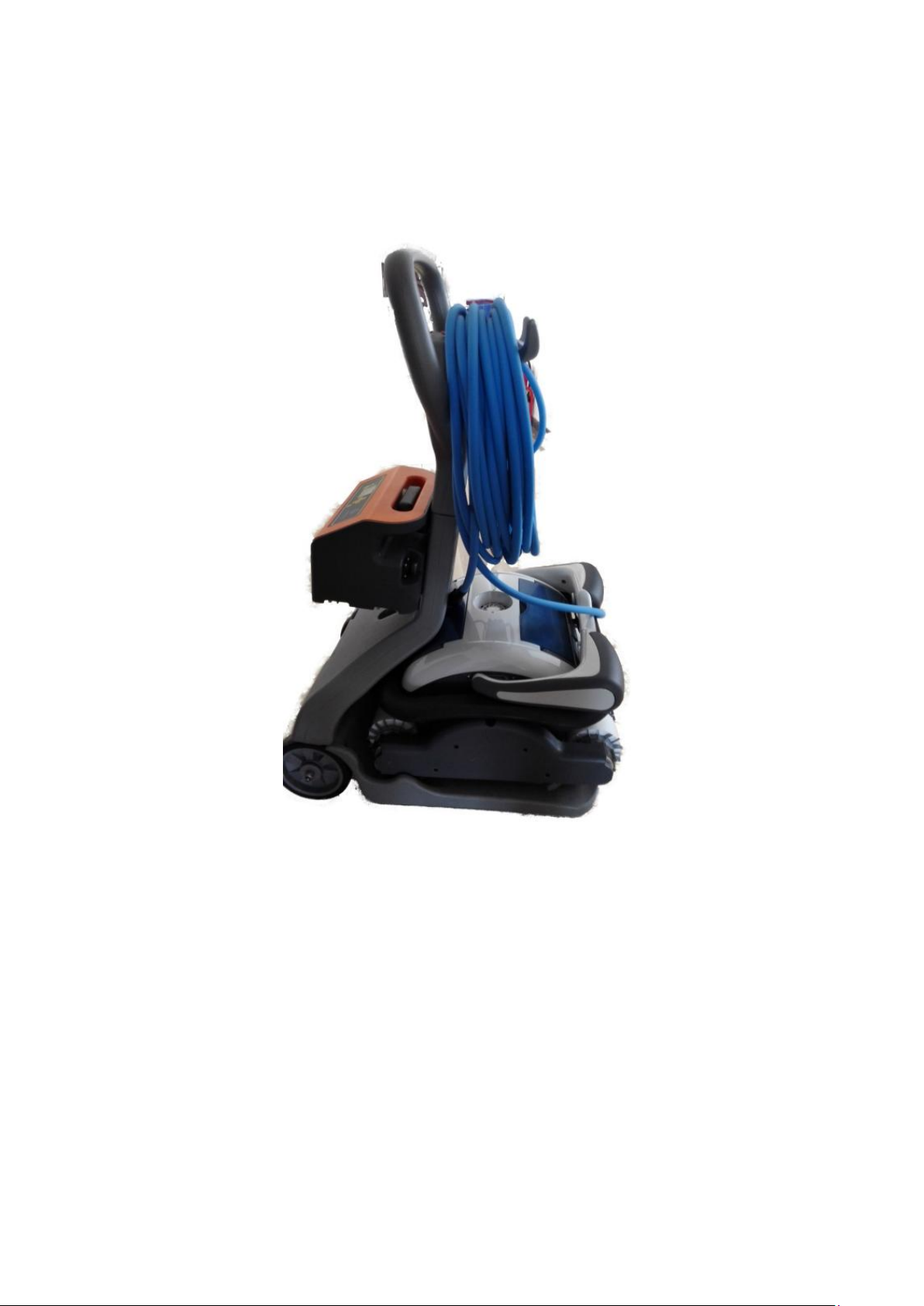

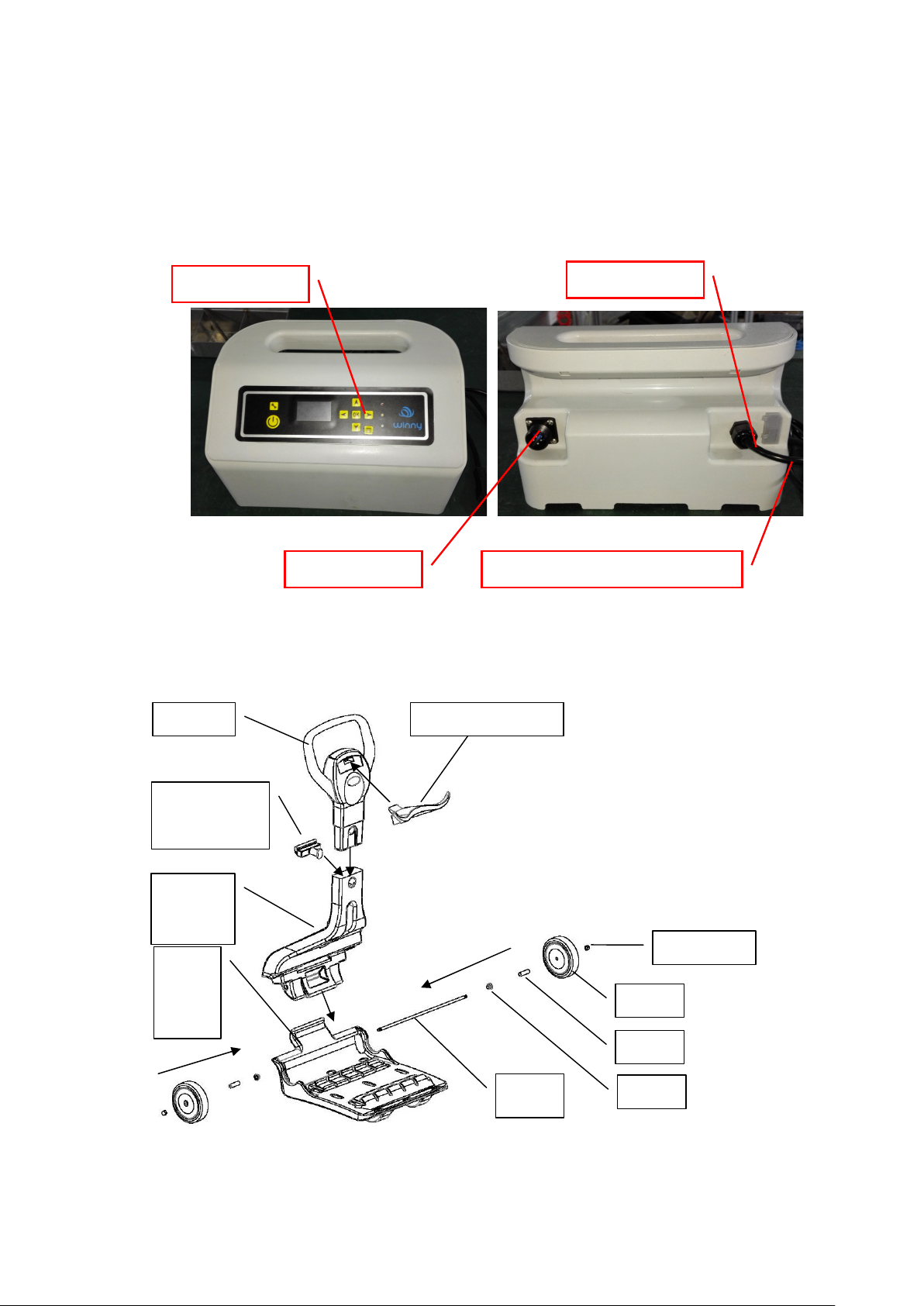

Pic. 4-2 Caddy
图4-2 清洁机
Handle
Cable bracket
1
2
2
3
4
5
Nut
Whee
cover
Sleev
Axle
Chasi
ssis
Middle
part
Power unit
bracket
Pic.4-1 Power supply unit
Power line
Usb transmission interface Cable socket
Control board
7
Remote control

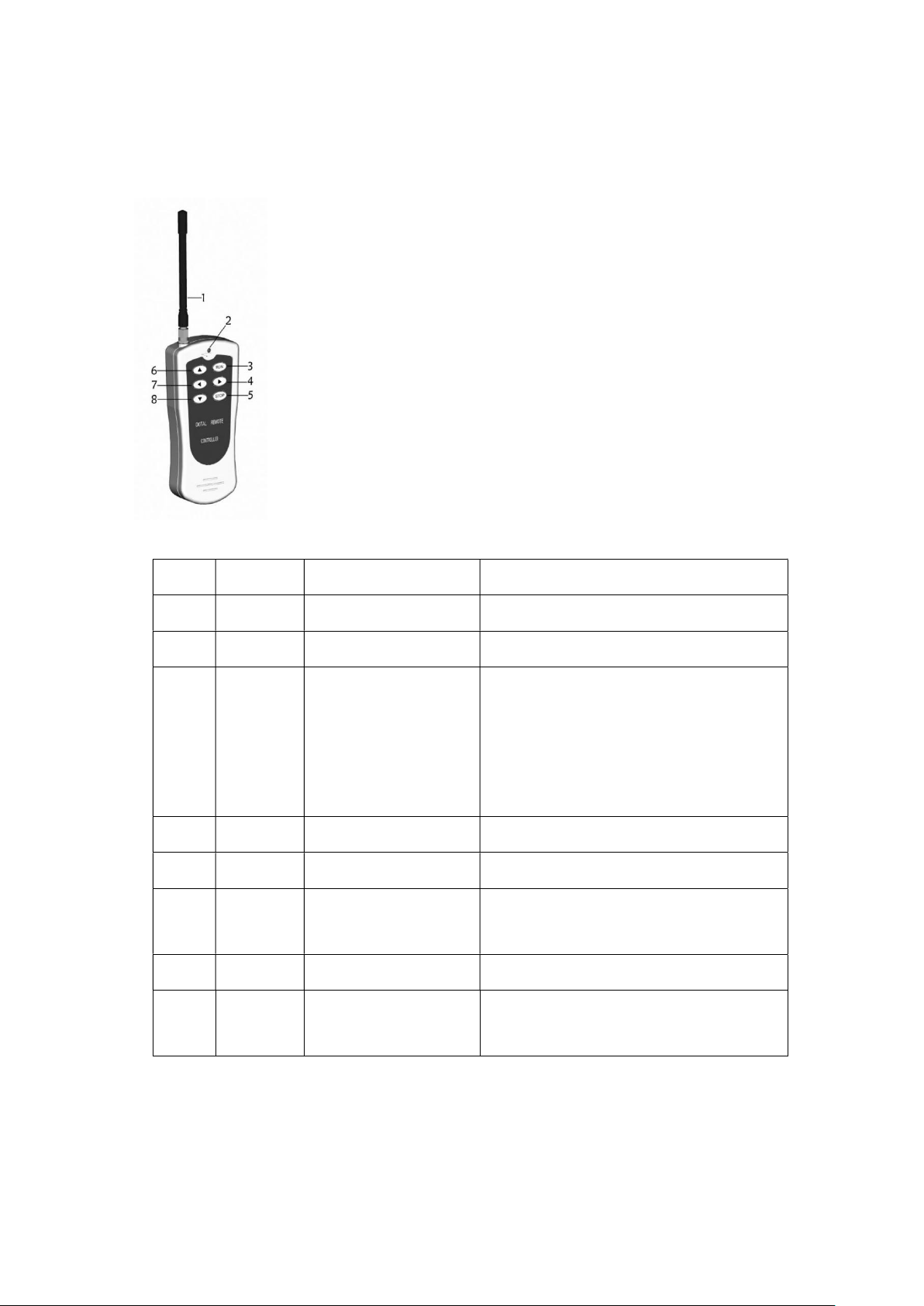

Pic. 4-3 Remote control
No. Symbol Description Function
1 Antenna
2 Indicator light
3 RUN
triple pool floor then
once
pool
wall,
working
time-2 hours
Press this button, robot runs
automatically as per preset programme
4
▶
Keep pressing Turn right
5 STOP Stop Robot stops
6 ▲ Press once or keep
pressing Move forward
7
◀
Keep pressing Turn left
8 ▼ Press once or keep
pressing Move backforward
8
Bluetooth control
item
Function Detail
1 Connection status ●Disconnected: white
●Connected: Purple
2 Signal search Press to search blue signal
3 Forward Press to let the cleaner move forward
4 Backward Press to let the cleaner move
backward
5 Left Press to let the cleaner turn left
6 Right Press to let the cleaner turn right
7 Stop Stop
8 Cleaning mode
●Pool floor: only cleaner pool floor
●Pool wall: only cleaner pool walls
●One floor one wall: clean pool
floor and pool wall each for once,
●Three floor one wall: cleaner pool
floor for
9 Auto mode start/stop
●Auto Play: cleaner works in auto
mode
●STOP: Stop auto mode

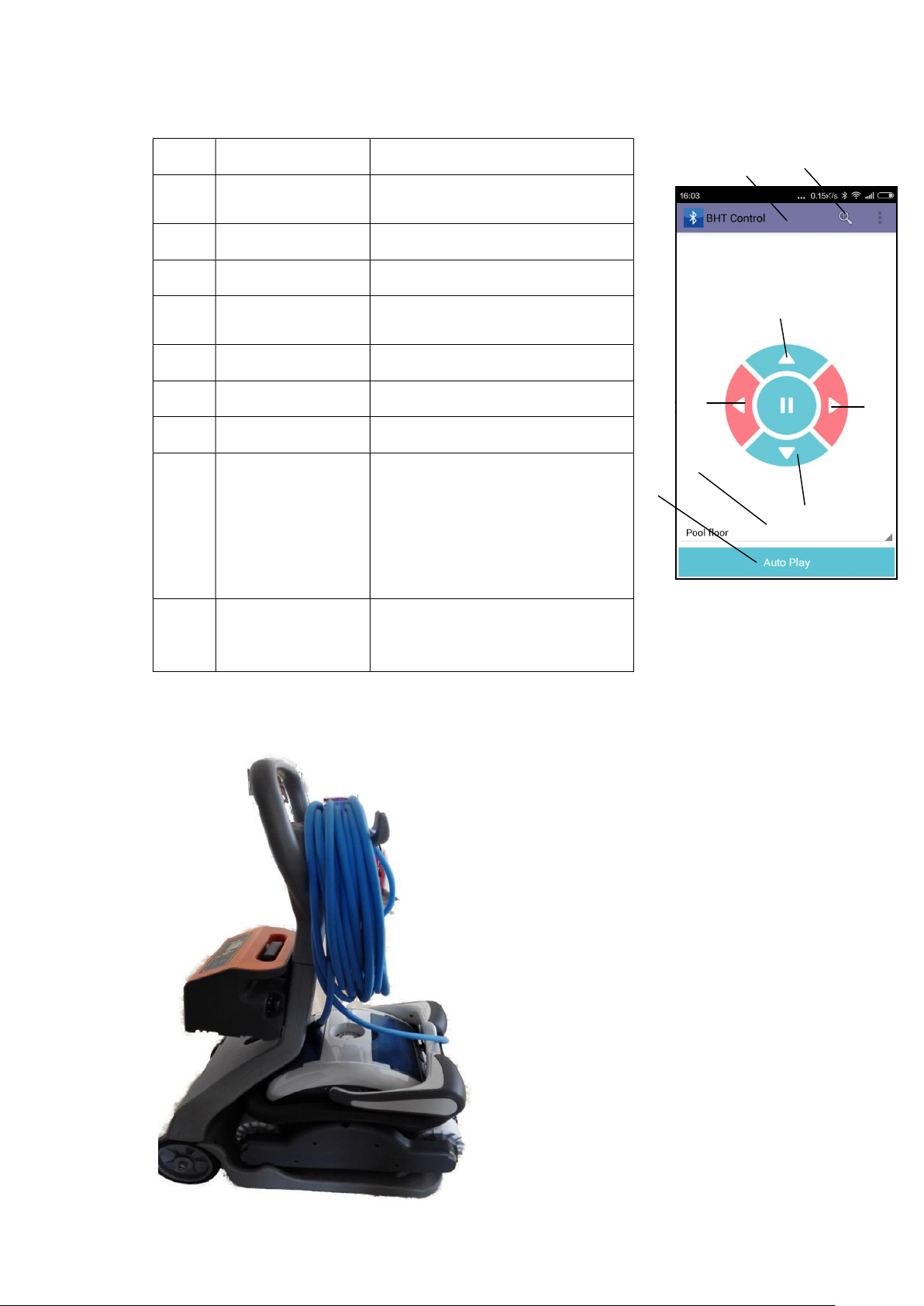

Pic. 4-5 Overview
4
Pic.4-4 Bluetooth control
1
3
5
6
7
8
9
4
2
Pic 4-4 Bluetooth control
9
Ⅴ. Preparation before start

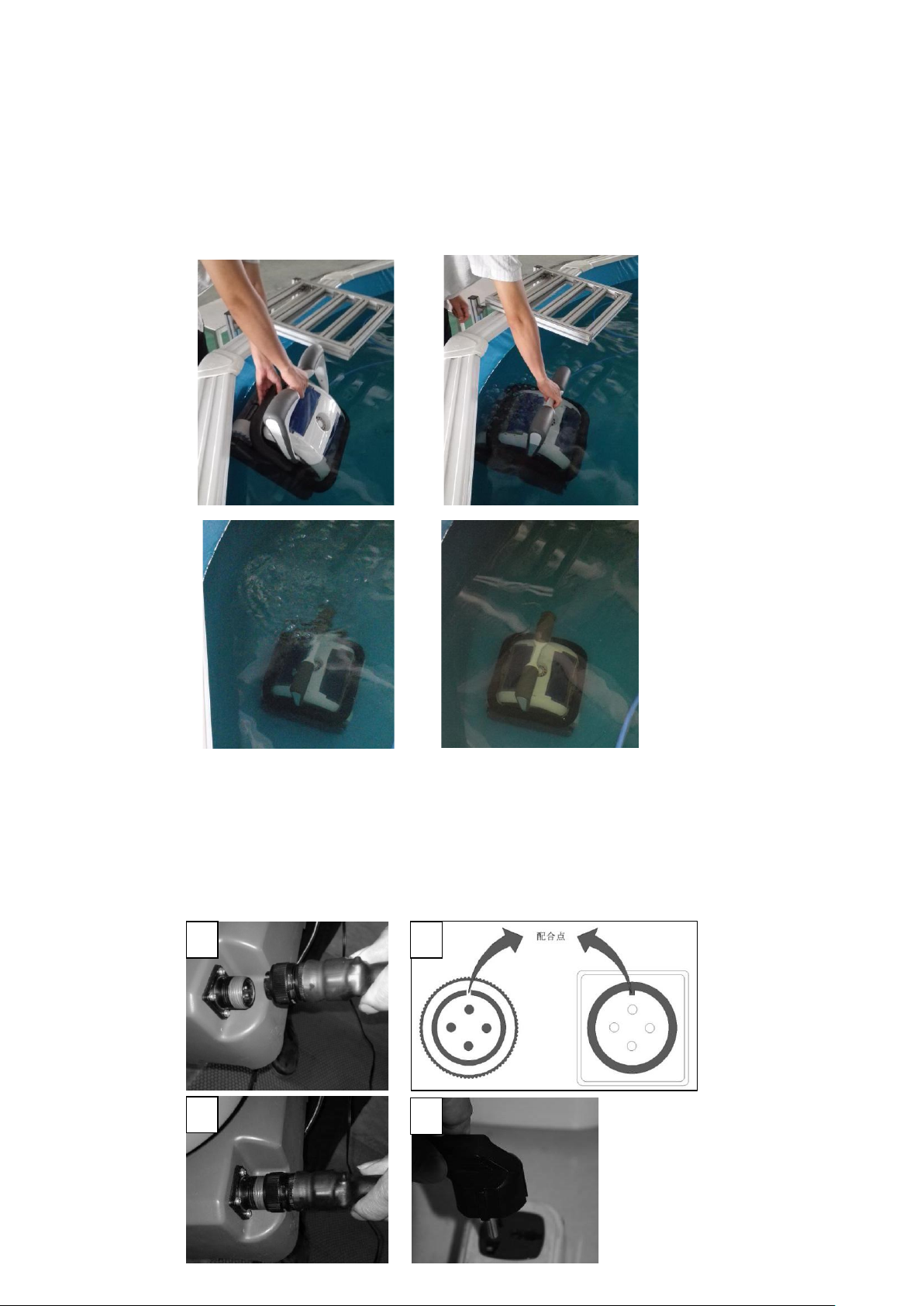

1、Hold the top handle and put the cleaner into the pool, Make sure to empty the trapped
air inside, then The cleaner can immerse into the pool floor.
2、Power Connection
Once the cleaner immersed into the pool floor, connect the cable with the power supply
unit, and fasten the nuts on both sides, then plug into your power socket; (make sure to
plug it in the correct direction and position), . The cleaner is ready to work
2
3
1
4
10
Ⅵ. Operation

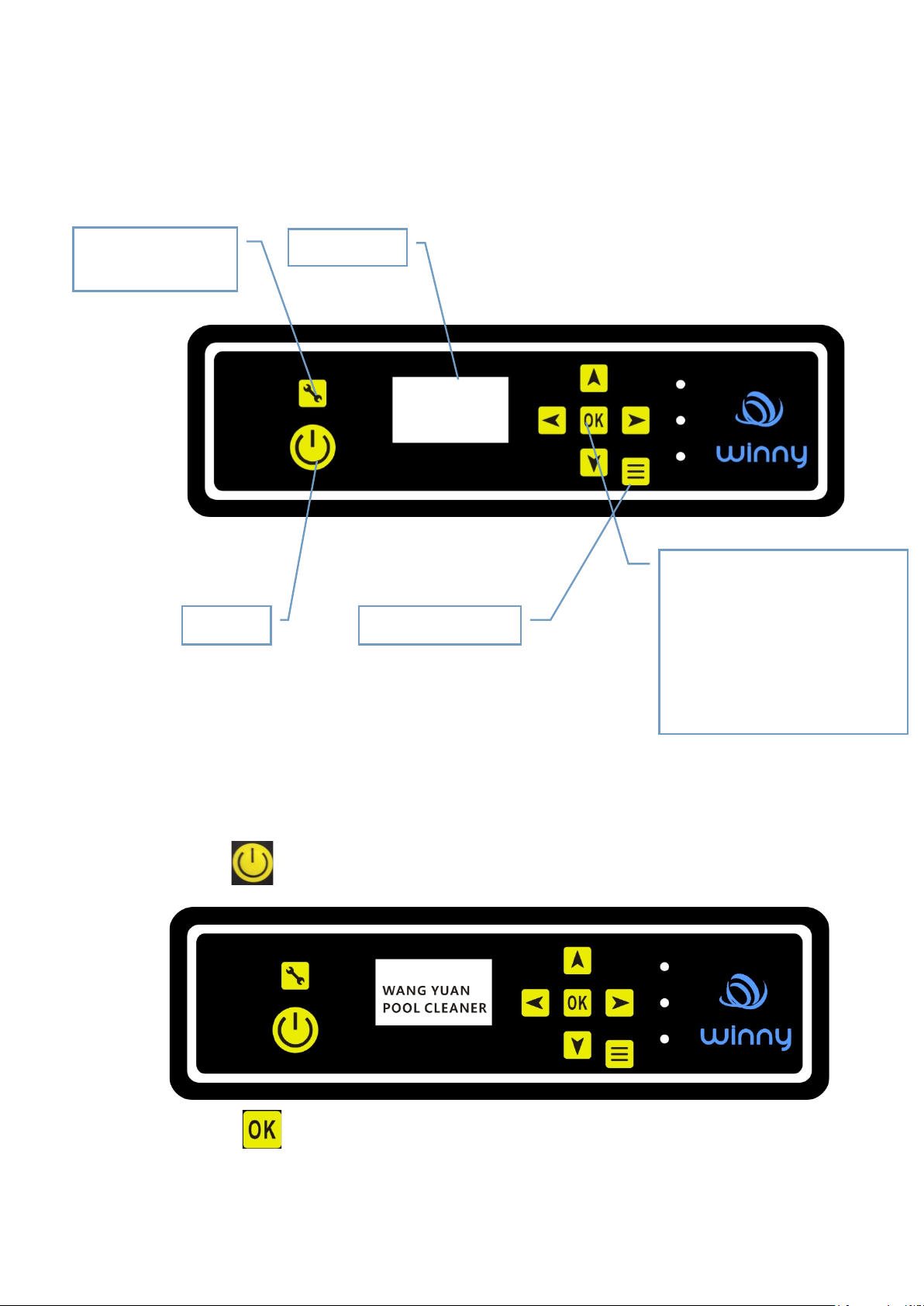

1、Panel
2、Detail
2.1，Press button to power on
2.1.1 Press button machine will running as【DEFAULT】setting.（2 hours
working cycle, three times of bottom one time wall ）
Power
Parameter(for
maintains only)
Display
Back or delete
Setting buttons:
1. “up” / “down” for different
modes
2. “left”/ “right” for detail
parameter
3. “ok” for confirmation or
quick start button
Indice
