Ratoc Systems CBS52U Manuale utente
CBS52U
User’s Manual
Dec. 2002
Rev.1.0
PC Card Adapter
1
CBS52U
1. Introduction........................................................................... 3
1-1. Package Content .......................................................................................3
1-2. System Requirements ...............................................................................3
1-3. Restrictions ................................................................................................3
2. Installation............................................................................. 4
2-1. Installing on Windows XP........................................................................4
2-2. Confirmation of the driver installation...................................................5
2-3. Installing on Windows Me/2000/98SE....................................................6
(1)Running [Setup.exe] at the CD-ROM ..................................................7
(2)Installing the CBS52 into an available PCI slot .................................8
(3)Installing the driver................................................................................8
(3-1)Windows Me...................................................................................9
(3-2)Windows 2000 ................................................................................9
(3-3)Windows 98SE ...............................................................................9
(4)Driver Confirmation .............................................................................10
(4-1)Driver Confirmation for Windows Me/98SE ...........................10
(4-2)Driver Confirmation for Windows 2000 ...................................11
3. Troubleshooting................................................................... 13
4. Registration and Tech-support .......................................... 15
4-1. How to Register.......................................................................................15
4-2. Software Update and Support ...............................................................15
Appendix.................................................................................. 16
2
3
1. Introduction
1-2. System Requirements
-PC with an availabe PCI slot
-Windows XP/Windows Me/Windows 2000/Windows 98SE
This User’s Guide describes how to install the RATOC CBS52U PC Card Adapter
(called CBS52U in this User’s Guide).
The information in the README.TXT file on the CD-ROM may include the latest information.
Be sure to read the file as well. Refer to our web site for the information on Linux.
(http://www.ratocsystems.com/english/)
Check the package contents:
-REX-CBS52 PCI Board
-CD-ROM
-User’s manual
NOTE
If any of these items are missing from the CBS52U retail package, contact your supplier
immediately.
1-1. Package Content
1-3. Restrictions
1. There may be some PC Cards which don’t run with the CBS52. Refer to our web site
for our latest information(http://www.ratocsystems.com/english/).
2. You need to prepare the followings before you install the CBS52.
1) You need to finish updating the latest BIOS in your PC.
2) You need to finish updating the latest Service Pack for your OS.
3. ZV/Multi-function PC Cards don’t run with the CBS52.
4. The CBS52 doesn’t support ACPI mode of Windows 98SE.
5. The CBS52 doesn’t run on SOTEC PC STATION M760, COMPAQ PROLINEA590, DELL OptiPlex GXPro.
6. The CBS52 doesn’t run on P3C series mother board made by ASUS, GA-7ZXR made by GIGABYTE.
7. Multi-processor, Dual CPU aren’t supported.
8. The CBS52 may not run on a modified PC.
9. The CBS52 may not run with a server computer.
10. The other PC Card Adapters other than the CBS52 must not be used with the CBS52 simultaneously.
11. The specifications of hardware/software are subject to change without notice.
4
2-1. Installing on Windows XP
2. Installation
This chapter describes how to install the CBS52.
IfyouhaveWindowsXP, proceedto 2-1.
If you have WindowsMe,2000,98SE proceed to 2-3.
If you install the CBS52 on Windows XP, you don’t need the bundled
CD-ROM. Don’t use the CD-ROM.

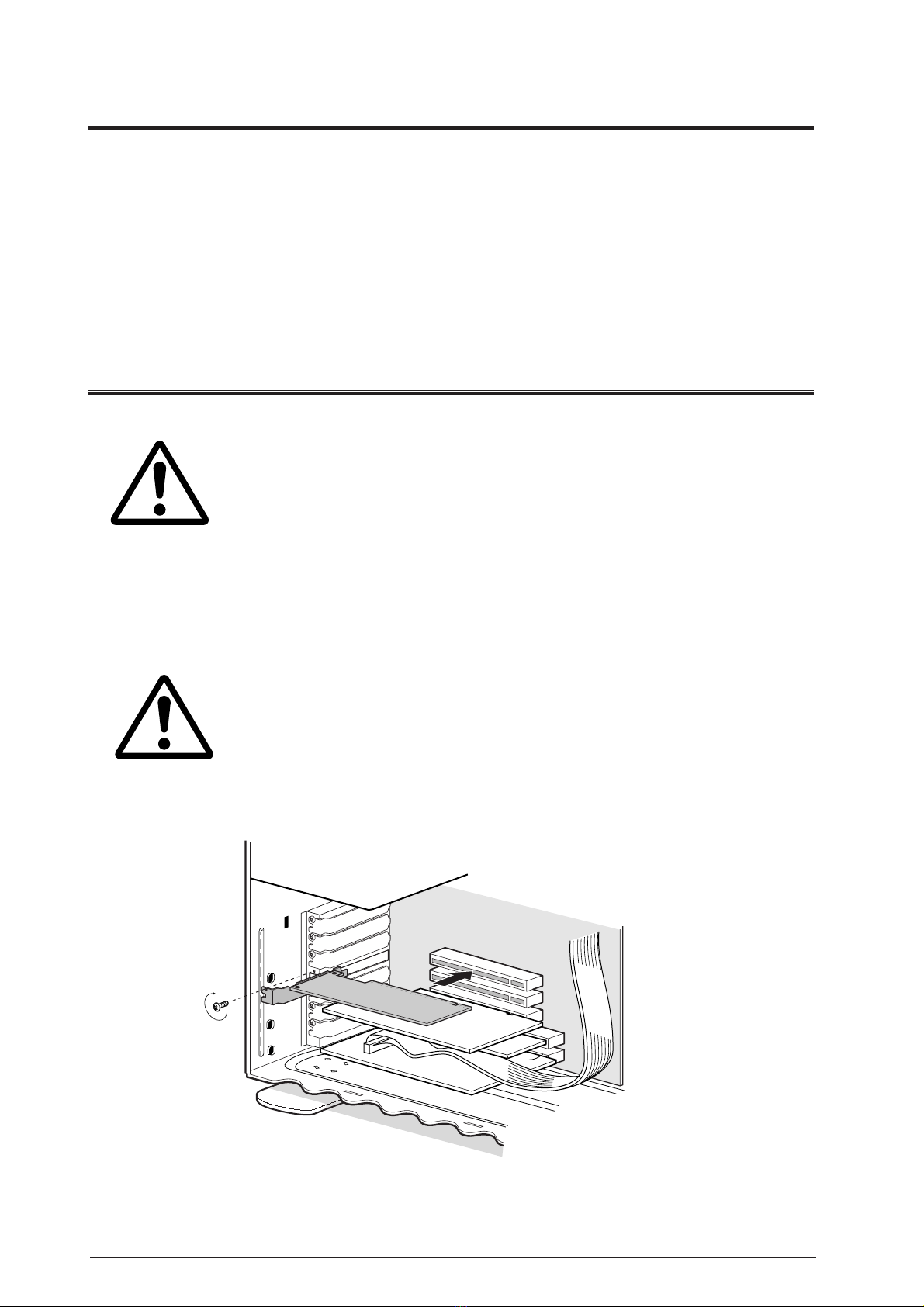

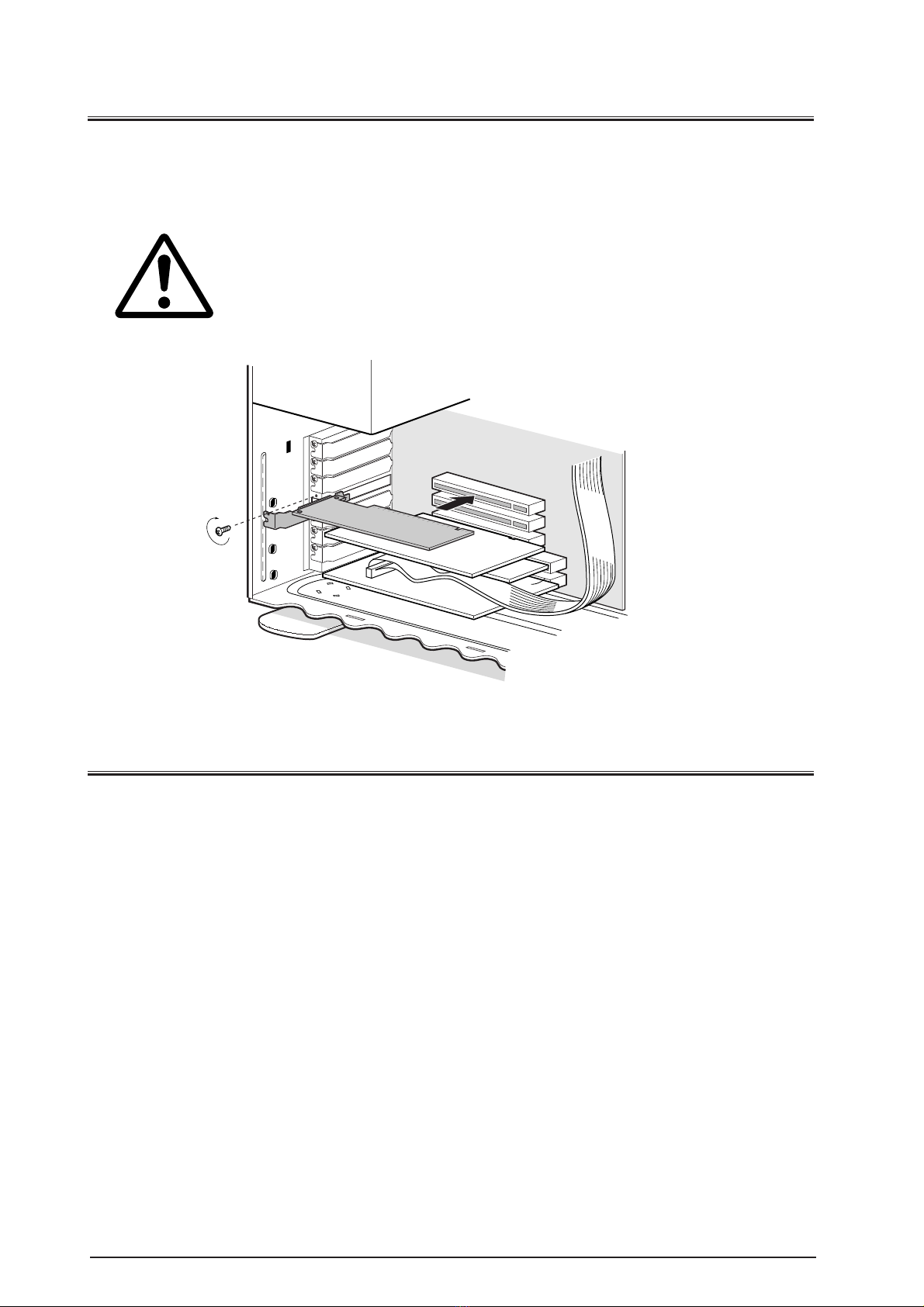

1. Intall the CBS52 straight into an available PCI slot.
2. Install the CBS52 into the PCI slot until the board seats firmly.
3. Fasten the CBS52 with screws, as shown below.
Turn offthe PCandinstalltheCBS52 into anavailablePCIslot.
After installing it, turn on the PC.
5
2-2. Confirmation of the driver installation

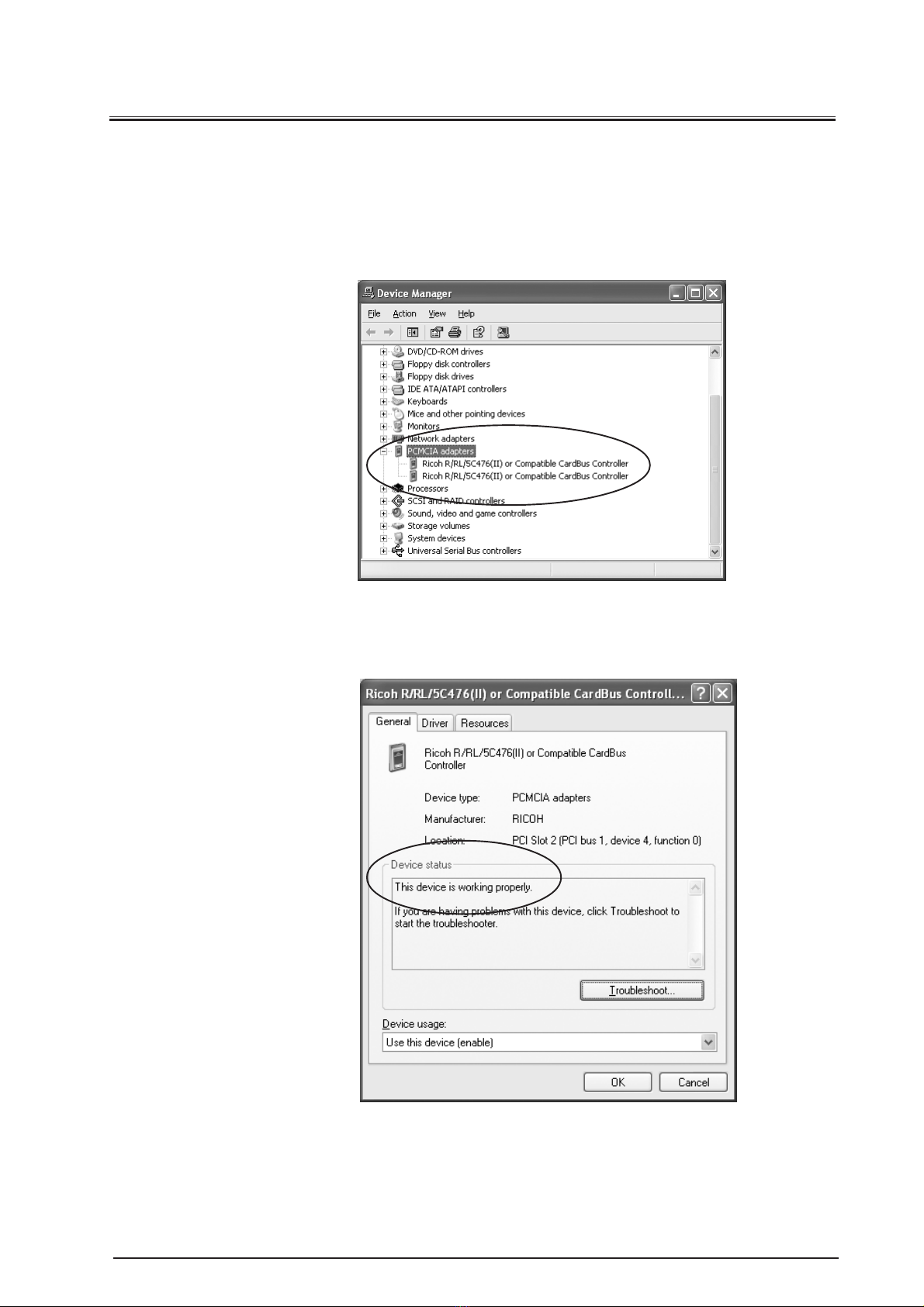

1. Right-click on [MyComputer]and select[Properties].Click the [Hardware]taband
click the [Device Manager] button. Check there are two [Ricoh R/RL/5C476(II) or Compatible
CardBus Controller] strings under the [PCMCIAadapters]. Double-click a [RicohR/RL/5C476(II)
or Compatible CardBus Controller] string.
2. If youcanfinda [Thisdeviceisworkingproperly]under the [Devicestatus], you have
completedtheinstallationsuccessfully.
6
2-3. Installing on Windows Me/2000/98SE
If you use a 16bit PC Card on Windows Me/2000/98SE, you need to install the
driver from the bundled CD-ROM before installing the CBS52 into a PCI slot.If
you don’t use a 16bit PC Card, you don’t need to install the driver from the bundled
CD-ROM.
Follow the steps through:
(1) Running [Setup.exe] at the CD-ROM
(2) Installing the CBS52 into an availabe PCI slot
(3) Installingthe driver
(4) Driverconfirmation
7

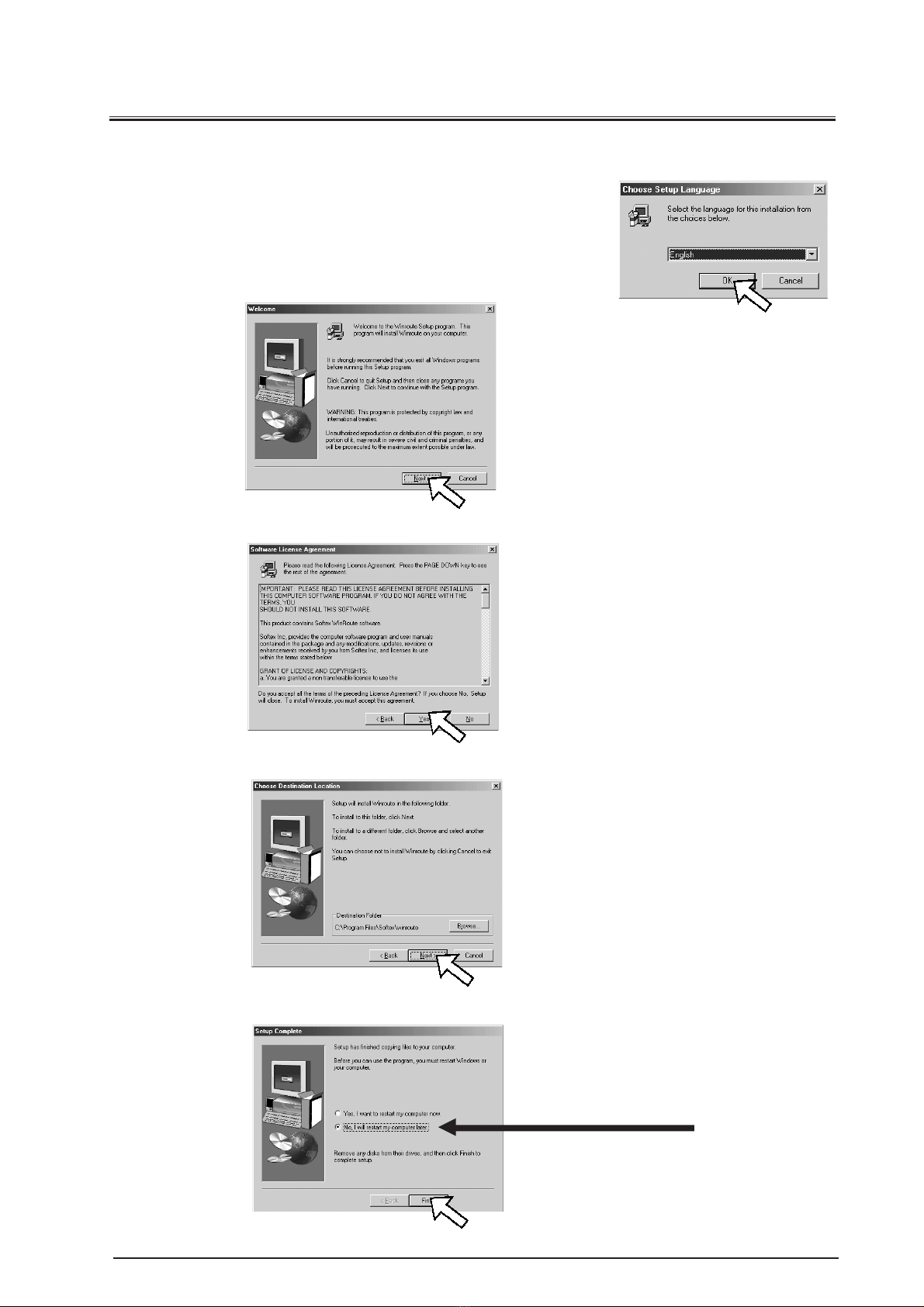

(1)Running [Setup.exe] at the CD-ROM
Run [Setup.exe] at the CD-ROM before you install the CBS52.
1. Close otherprogramsrunning on yourPC. Run[Setup.exe].
2. Theinstallationprogramwillstart.Click[Next].
3. Ifyouagreeon theLicenseAgreement,click [Yes].
4. Confirm thedestinationof the program,and click [Next].
5. Select [No,Iwillrestartmycomputerlater]andclick[Finish]. Shut downyourPC.
8
(2)Installing the CBS52 into an available PCI slot
1. Intall the CBS52 straight into an available PCI slot.
2. Install the CBS52 into the PCI slot until the board seats firmly.
3. Fasten the CBS52 with screws, as shown below.
Turn offthe PCandinstalltheCBS52 into anavailablePCIslot.
After installing it, turn on the PC.
(3)Installing the driver
If you have WindowsMe, proceed to (3-1).
If you have Windows2000,proceed to (3-2).
If you have Windows98SE proceed to (3-3).
9
(3-1)Windows Me
If you startyour PC after installingtheCBS52, you are requested to restartyour PC, as
shown.Click [Yes] to restart your PC. Proceedto(4-1)DriverconfirmationforWindows
Me/98SE.
(3-2)Windows 2000
If you startyour PC after installingtheCBS52, you are requested to restartyour PC, as
shown. Click [OK]torestartyour PC. Proceed to(4-2)DriverconfirmationforWindows
2000.
(3-3)Windows 98SE
1. IIfyoustartyourPCafterinstallingtheCBS52,thefollowingwizardwillappear.
Select [No] and click [Next].
2. Select [No]and click [Next].
