Raven Case SPX 3150 Manuale utente
Case SPX 3150/3185/3200
Sprayer with Raven SCS 460
Console
AccuBoom™
Installation Manual
P/N 016-0171-081 Rev B 01-16
Copyright 2009, 2016
Manual #016-0171-081 Rev. B 07/08
CHAPTER
1
INTRODUCTION
____________________________________________________________
Congratulations on your purchase of the Raven AccuBoom system! This
system is designed to provide worry free turn on and turn off of your
booms with respect to the as-applied coverage map. The following
instructions are designed to assist you in the proper installation of the
AccuBoom system. See your Console Operation Manual for instructions
on setting up the software and using the AccuBoom system.
Important! All boom switches must remain
in the OFF position while AccuBoom control
is in operation.
COMPONENTS
NEEDED
•CAN AccuBoom Control Node: P/N 063-0172-316
•CASE3150/3185/3200 CAN AccuBoom Cable: P/N 115-1001-011
•6’ CAN Tee Cable: 115-0171-326
•AccuBoom installation Manual, CASE SPX3150/3185/3200:
P/N 016-0171-081
Important: If no CAN system currently exists
on the machine you are installing AccuBoom
on, you will need these additional
components:
Kit, CANBus, Terminators & Power Adapter
“T” – P/N 117-0159-923
1
Manual #016-0171-081 Rev. B 07/08
Notes:
2
Manual #016-0171-081 Rev. B 07/08
CHAPTER
2
INSTALLATION
___________________________________________________________
Use the following procedure to properly install the AccuBoom system on
a CASE SPX3150/3185/3200 sprayer.

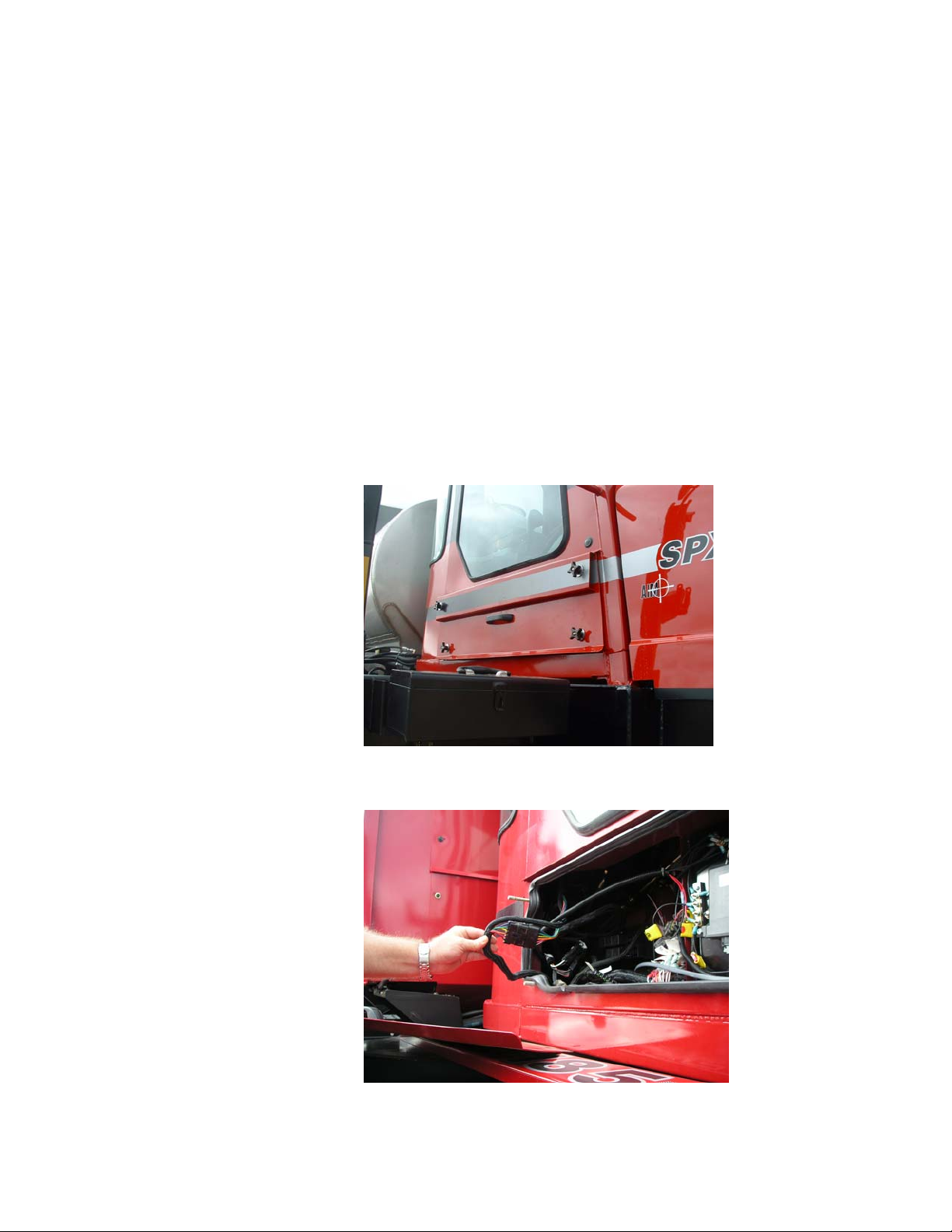

1. Open the access door located on the left side of the cab.

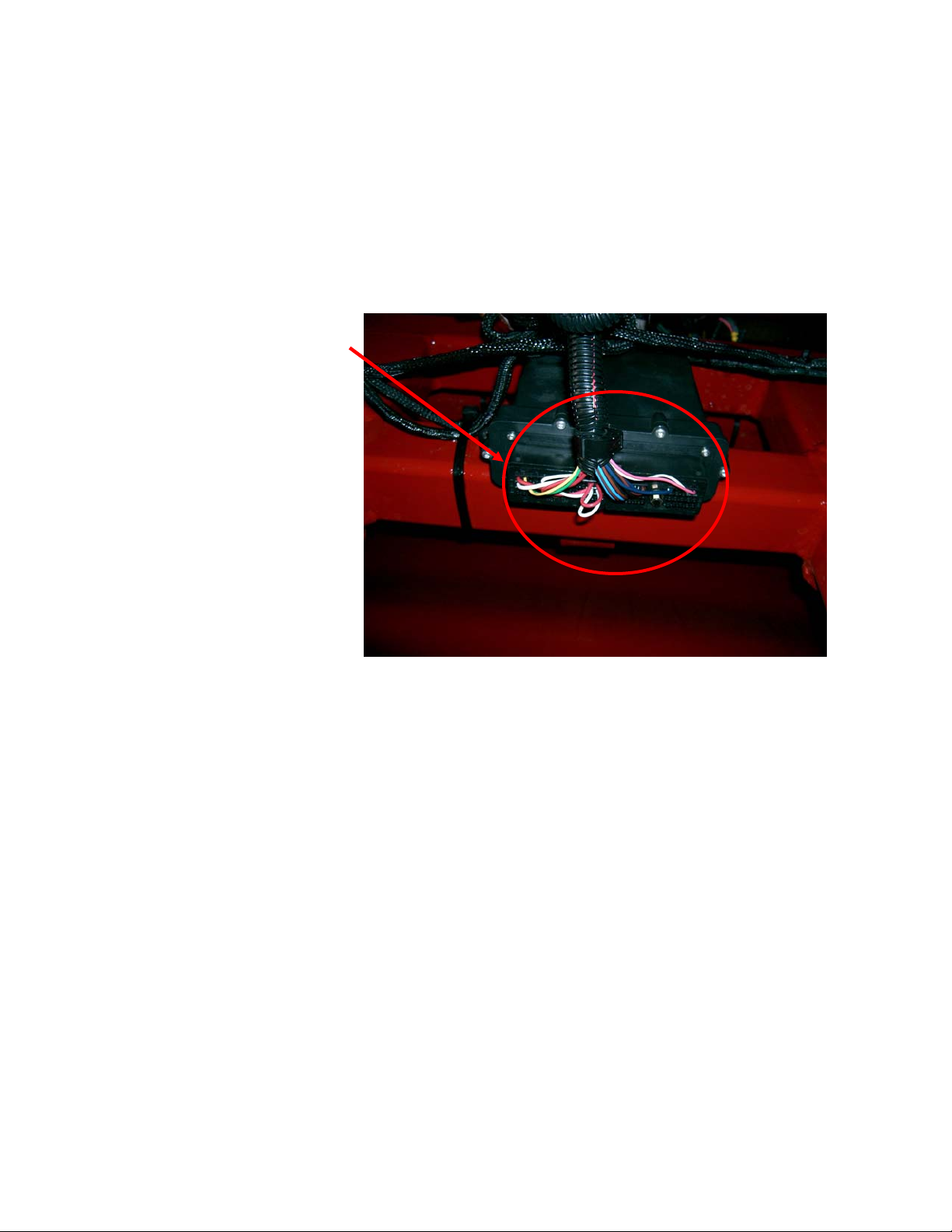

2. Locate the boom control cable located toward the rear of the cable
compartment.
3
Manual #016-0171-081 Rev. B 07/08

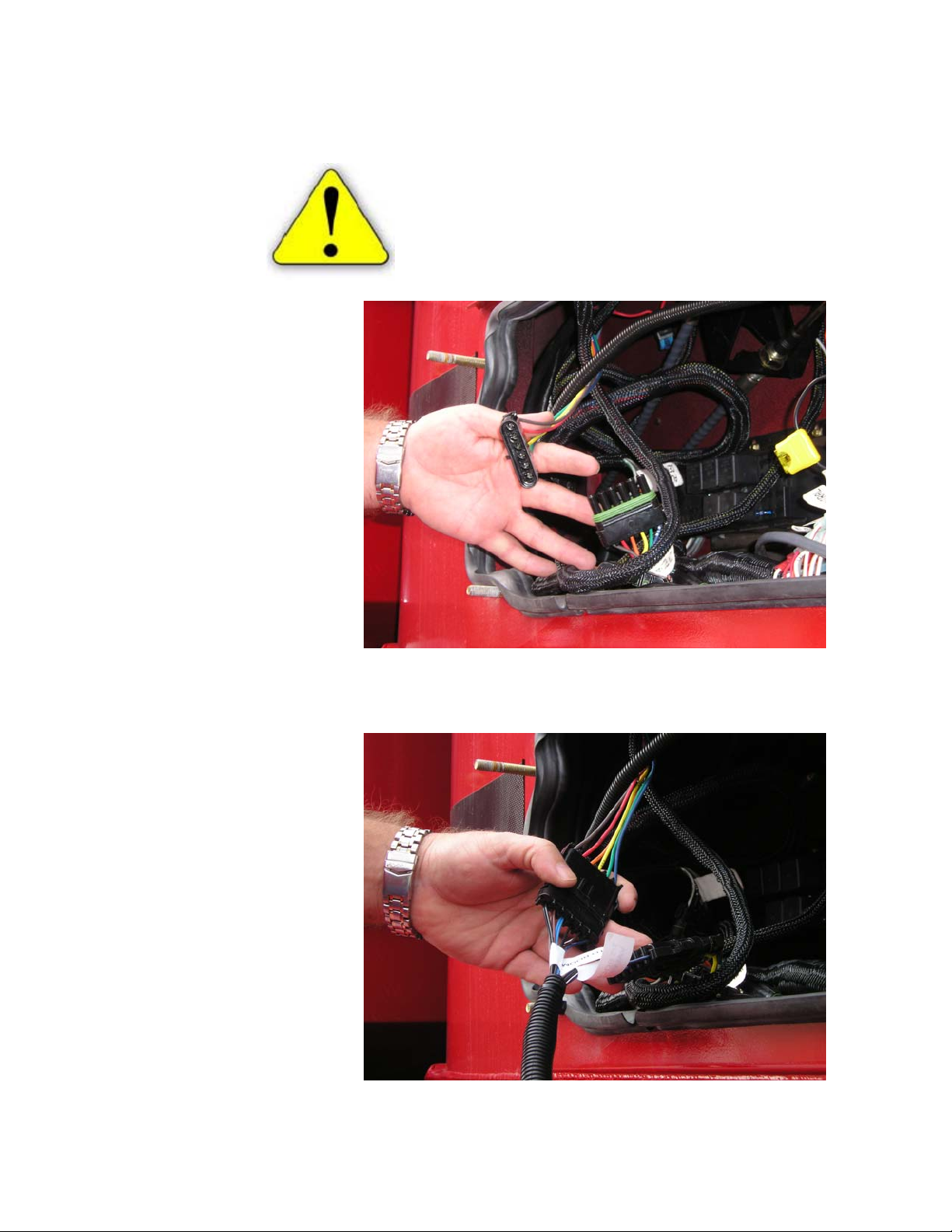

3. Disconnect the 6 pin boom connections.
Important! There may be two sets of 6 pin
connectors. Be sure you have located the
connectors coming from the boom switches.
4. Plug the mating connectors from the CAN AccuBoom cable P/N 115-
1001-011 to the corresponding connectors previously disconnected.
4
5. Mount the CAN AccuBoom node in a suitable located in the cable
compartment.
6. Connect the AccuBoom cable to the AccuBoom node.
a. Connect the rectangular connectors from the AccuBoom Cable P/N
115-1001-011 to the CAN Accuboom Node P/N 063-0172-316.
7. Connect supplied CAN Tee cable (115-0171-326) to the CAN
connection on the CAN AccuBoom cable P/N 115-1001-011.
8. If using a Viper or Viper Pro console connected serially to the
SCS 460, connect the orange wire from the AccuBoom harness
(115-1001-011) to the Master Apply Switch so that the orange
wire is supplied power when the Master Apply switch is in the
“ON” position. If you are not using a Viper or Viper Pro connected
serially to the SCS 460, orange wire is not needed for installation.

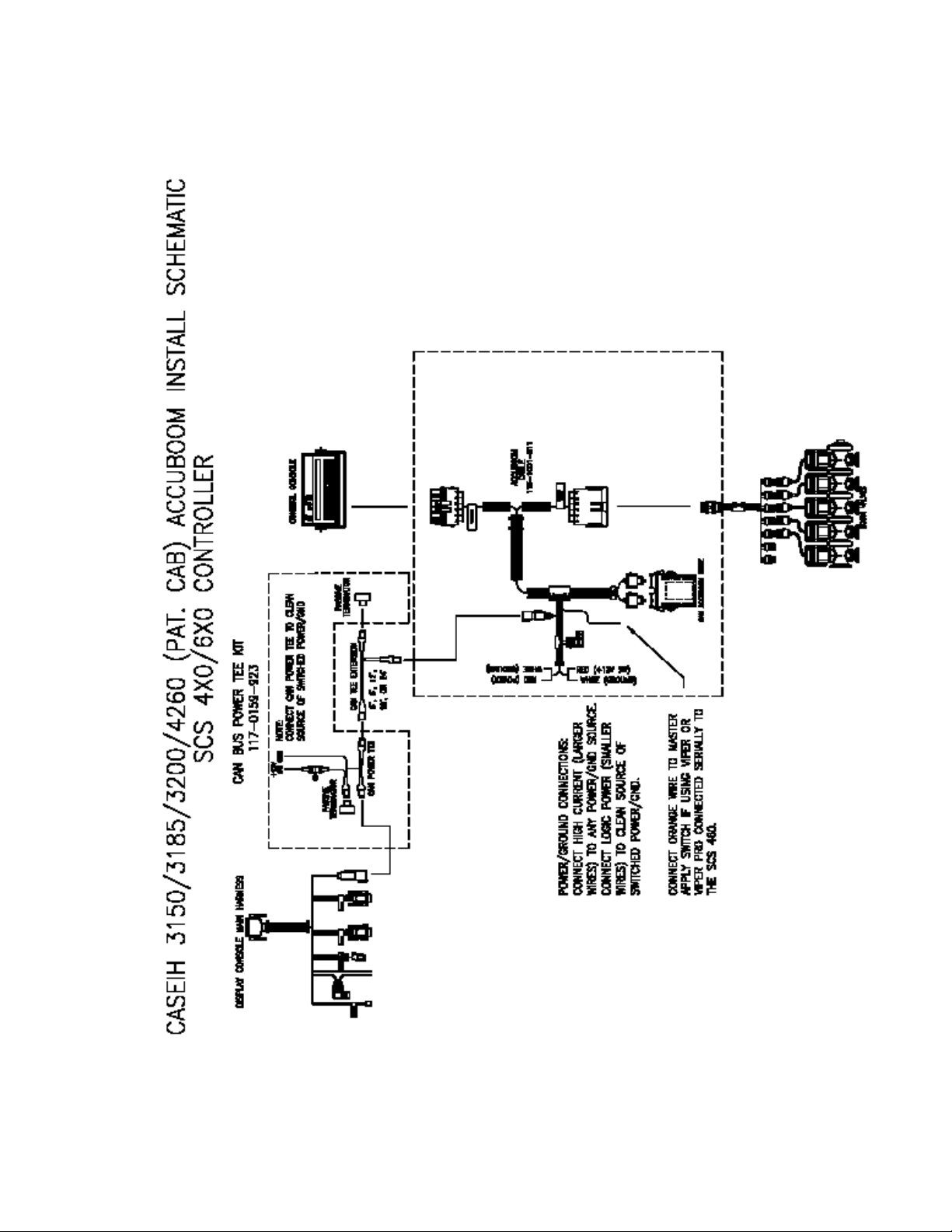

Node Connection
Manual #016-0171-081 Rev. B 07-08
5
Manual #016-0171-081 Rev. B 07/08
6
Manual #016-0171-081 Rev. B 07/08

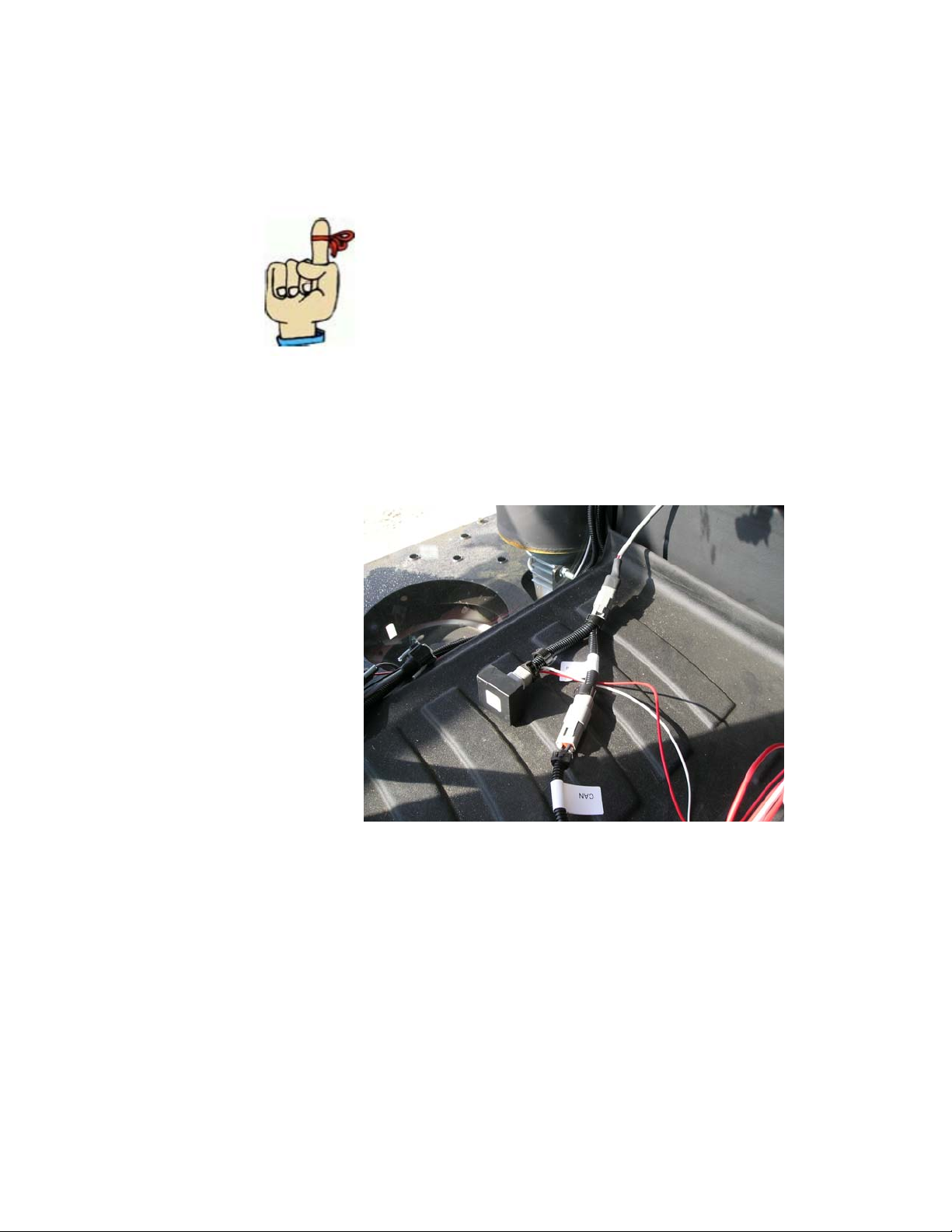

9. Connect a CAN terminator P/N 063-0172-369 to the end of the CAN
cable P/N 115-0171-362.
Note: If the machine already has a CAN
system installed, remove the terminator from
the existing CAN system and move it to the
CAN cable previously installed. If no CAN
system exists on the machine, refer to Chapter
3 and use on of the terminators contained in
the CAN Tee With Power kit P/N 117-0159-
923.
10. Connect the CAN system.
a. Connect the single end of the CAN cable P/N 115-0171-326 to
the CAN bus or to the CAN PWR Tee system installed in
Chapter 3.
11. Connect power and ground.
a. Wire the red power wire to a clean source of switched 12 volt
power.
b. Connect the white ground wire directly to the battery ground.
12. The CAN AccuBoom installation is now complete.
7
Manual #016-0171-081 Rev. B 07/08
Notes:
8
