RaxGo RGFSBR1 Manuale utente
Sku: RGFSBR1
User Guide
FREESTANDING,
ADJUSTABLE
BIKE STORAGE RACK
TM
833-722-0121
raxgo.com
support@raxgo.com
Sku: RGFSBR1
User Guide
Thank you for purchasing the
Freestanding, Adjustable Bike Storage Rack.
This User Guide is intended to provide you with guidelines
to ensure that operation of this product is safe and does
not pose risk to the user. Any use that does not conform to
the guidelines described in this User Guide may void the
limited warranty.
Please read all directions before using the product
and retain this guide for reference. This product is
intended for household use only. It is not intended for
commercial use.
This product is covered by a limited one-year warranty.
Coverage is subject to limits and exclusions.
See warranty for details.
FREESTANDING,
ADJUSTABLE
BIKE STORAGE
RACK
INTRODUCTION 1
TM
INTRODUCTION 1SAFETY PRECAUTIONS 2
SAFETY PRECAUTIONS
Remove all packaging materials before using this device.
Please keep all packaging materials out of reach of
children and pets.
Properly dispose of all packing materials immediately
after unpacking product, as the bags used for packaging
could present a suffocation or choking hazard.
Read all instructions carefully before attempting to install
or use this product. Improper usage or installation could
result in injury or a reduction in efficacy.
Do not let children play on or around the rack as this can
cause accidents, injuries, or damage the rack.
Do not exceed the weight limit of the rack, or else you
could damage your rack.
WARNING: CHOKING HAZARD – Small parts: This
product contains small parts and is not suitable for
children under 3 years old.
SAFETY PRECAUTIONS 3
SAFETY PRECAUTIONS
Do not step, climb, or hang on the rack.
Do not attempt to modify the rack or perform repairs on
your own. If the rack is faulty or becomes damaged, you
should take it to an authorized serviceperson for repairs.
This rack is intended for use with a bike only. Do not
attempt to mount other objects/persons on the rack.
Do not attempt to suspend more than one (1) bike at a
time on this rack. Overloading the rack could result in
damage to the rack and/or your bike.
PARTS LIST 4
PARTS LIST
b
c
a
Included tool : Allen wrench Hooks with hand knob
screws
6 PCS
Bike rack Hanger Hooks with hand knob
screws
Screws, cylinder nuts,
and washers
1 PC 2 PCS1 PC
2 PCS
PARTS LIST
PARTS LIST 5
abc
ASSEMBLY INSTRUCTIONS
1. Remove the two (2) screws and cylinder nuts from the bike rack (a).
2. Place the hanger (b) against the bike rack (a). Then, fasten it to the rack (a)
using two (2) screws, cylinder nuts, and washers (d), use the included allen
wrench if needed.
ASSEMBLY INSTRUCTIONS 6
a
a
a
b
3. Remove the hand knob screws from the hooks (c). Then, insert the two (2) hand
knob screws through the elongated holes on both ends of the hanger (b).
4. Place the hooks (c) onto the hand knob screws from the other side of the hanger
(b). Then, tighten the hand knob screws so the hooks (c) are securely in place.
ASSEMBLY INSTRUCTIONS 7
c
cc
b
b
OPERATING INSTRUCTIONS 8
OPERATING INSTRUCTIONS
•Pull out the lever on the bottom locking mechanism to adjust the feet of the rack.
Push the lever back in place to lock the rack’s feet in its current position.
•Pull out the lever on the top locking mechanism to adjust the extendable pole
of the rack. Push the lever back in place to lock the rack’s pole in its current
position.

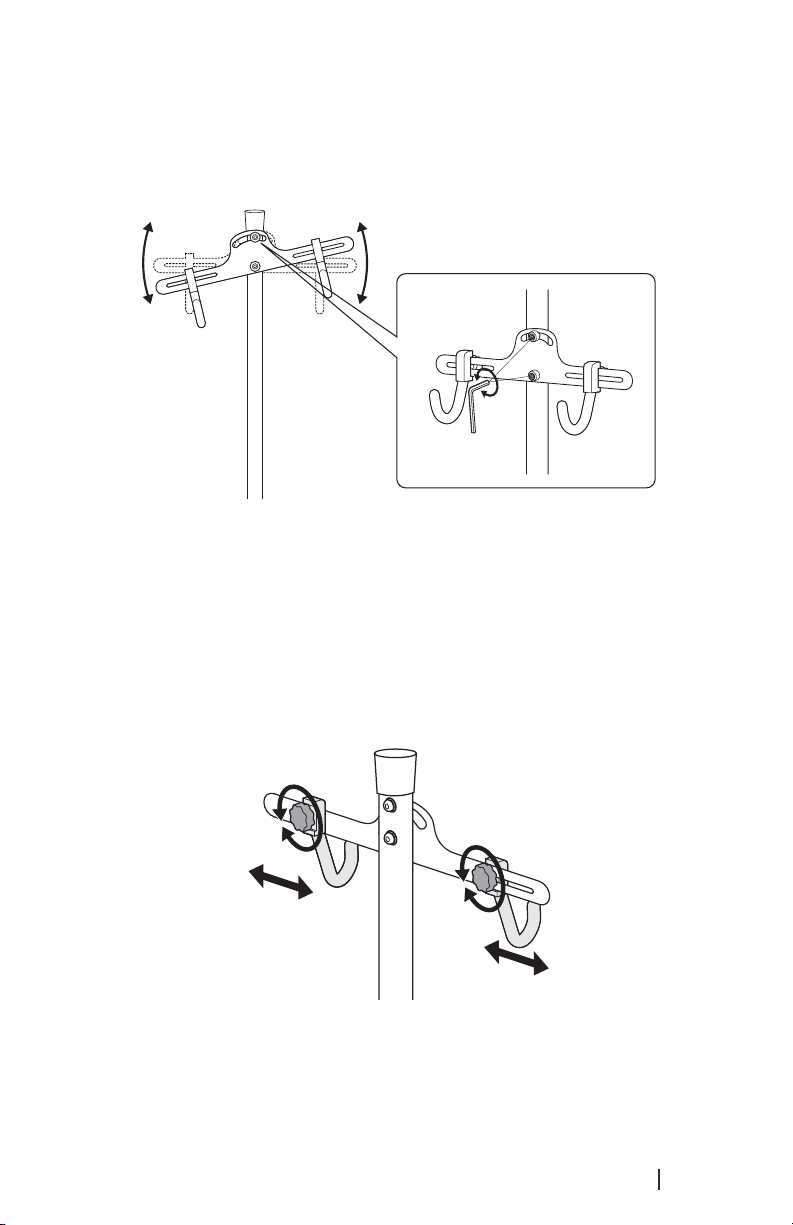

•Tilt the hanger left or right to adjust the position of the hooks. Loosen the screws on the
hanger with the allen wrench (if needed) to adjust the hanger.
•Loosen the hand knobs on the hooks to move them left or right along the elongated holes to
adjust the distance between the hooks. Tighten the hand knobs to set the hooks in place.
OPERATING INSTRUCTIONS 9
