Raymarine Mn100 Manuale utente

Digital Display

Important

Due to the wireless communication systems used in Micronet

instruments they are only recommended for use on boats up to 18 metres

(60 ft.) Before installing to a boat of aluminium or steel construction,

please contact your Raymarine dealer.

Like any other electronic instruments your Micronet system is designed

to serve only as an aid to navigation and it remains the skippers

responsibility to maintain a permanent watch and be aware of developing

situations.

EMC Conformance

All Raymarine equipment is designed to the best industry standards for

use in the recreational marine environment. The design and

manufacture of Raymarine equipment conforms to the appropriate

Electromagnetic Compatibility (EMC) standards. Correct installation is

required to ensure that performance is not compromised.

mn100 Digital Display

www.raymarine.com

1 Information Page

1.1 Introduction - 2

1.2 Specifications - 2

1.3 Power Management and Battery Life - 2

1.4 Safety and Disposal - 4

2 Operation

2.1 Display Information - 5

2.2 Switching the System On and Off - 5

2.3 Backlighting - 6

2.4 Audible Signals and Alarms - 6

2.5 Utilities - 8

2.6 Chapter and Page Operation - 9

2.7 Chapter and Page Description - 11

3 Setup and Calibration

3.1 Entering Setup and Calibration Mode - 18

3.2 Chapter and Page Setup and Calibration - 18

3.3 Editing Values - 18

3.4 Setup Page Description - 20

3.5 Calibration Page Description - 23

4 Seatrial and Calibration

4.1 Depth Offset - 29

4.2 Speed Calibration - 30

4.3 Wind Calibration - 31

4.4 Compass Calibration and Alignment - 32

5 Installation

5.1 Tools List & Parts - 33

5.2 Precautions and Positioning Advise - 33

5.3 Bracket Mounting - 34

5.4 Surface Mounting - 35

5.5 External Power Connections - 36

6 Maintenance and Fault Finding

6.1 Care and Maintenance - 37

6.2 Fault Finding and Technical Support - 37

7 Warranty Information

Contents

www.raymarine.com

1 Information

1.1 Introduction

Your Micronet display is powered for life by the environment. Although

feature packed and highly visible in all conditions, current demand is so

low, and the supply so efficient, that the solar-powered display is self

sufficient. Combined with other displays in the Micronet range this

display becomes part of a complete navigational system.

1.2 Specifications

Height of digits: 38mm (1.5")

Backlighting: 3 levels with daylight shutoff

System-wide or local control

Power: Solar Powered

300 hrs autonomy by day, 7 nights at brightest backlighting,

20 nights at economy backlighting without charge

Units of display: Boat Speed (knots, km per hour, statute miles per hour)

Distance (nautical miles, statute miles, kilometres)

Depth (metres, feet, fathoms)

Wind Speed (knots, metres per second, Beaufort)

Alarm: Audible Alarm for Depth, Wind

Weight: 285g (0.63lbs)

Operating Temp.: -10oto +60oC (14oto 140oF)

Frequency: 868 MHz or 916 MHz

This unit can be controlled using the T113 Remote Display

1.3 Power Management and Battery Life

What makes your mn100 display possible is Raymarine’s revolutionary

approach to power management. By reducing the amount of power

being used by the electronics and maximizing the potential of the sun to

provide power, a mn100 display becomes a virtually perpetual device.

Power status is indicated by two icons on the display:

Battery Level and Charge Rate

Used together these icons will show the condition of the power supply.

mn100 Digital Display

2www.raymarine.com

Information

If using the displays at night, power usage can be reduced dramatically

by switching the Backlighting to level 1 or Off. If Backlighting is not

required on displays located below decks it is best to set them to "Local"

Backlighting control (see page 26 -s35) so that power is not being

wasted in displays which may not be visible from the one being viewed.

If the internal battery is fully charged then it does not matter how

much the display is subjected to bright sunlight no further charging

is required and the Charge Rate Indicator will remain low.

If the displays are to be stored for a long period of time before next

use (Over Winter) ensure that the batteries are fully charged before

storage. If necessary connect to a 9 to 30V DC power supply for 24

hrs prior to storage, using the external power leads.

www.raymarine.com

Bright Sunny Day

Overcast Day

Night

Battery is charged and being

topped up by the sun. (see Note)

Battery is low and being charged

by the sun.

Battery is charged and requires no

further charging.

Battery is low but maintaining it’s

level.

Battery is charged but is not

charging.

Battery is low with no charging.

It is recommended that the

instrument be left in daylight for

some time for the battery to

recover, or charge from an external

9-30V power source. A fully

discharged battery will recharge in

approximately 12 hours of direct

bright sunlight.

LOW Power

Sleep Mode

If there is no boat speed or change in heading registered on the system

for a period of 12 hours your Micronet display will switch off to conserve

power. A "POWER SAVE" alarm will sound before the system switches

off. Pressing any button within 10 seconds of the alarm sounding will

allow the system to remain switched on.

Backlighting will automatically shut down/off when operated in daylight.

AArrttiiffiicciiaalllliigghhttWWIILLLLNNOOTTrreecchhaarrggeetthheebbaatttteerryy. Placing your Micronet

display close to an artificial light will seriously damage the display.

Only recharge in natural daylight.

Applying External Power

In cases where displays are mounted permanently below decks it will be

necessary to apply an external power source to prevent complete

discharge of the built in battery.

Connections on the rear of the display allow a 9V to 30V DC power

source to be connected. Connections can be made to the vessels DC

system or to a 9V battery pack. It is recommended that permanent

connection is only made when the displays are permanently fixed to the

vessel and not when the clip brackets are used.

Connection to a 9V (PP3) battery will fully recharge the internal battery

over a period of 24 hours.

1.4 Safety and Disposal

Your Micronet display contains Manganese Lithium Dioxide batteries

which should be disposed of correctly. Do not dispose of any instrument

in domestic waste. Refer to regulations in force in your country.

If in doubt return the instrument to Raymarine Ltd. for correct disposal.

mn100 Digital Display

4www.raymarine.com

2 Operation

Important:

Ensure that the "Auto Network" procedure described on the yellow

instruction sheet and full Setup and Calibration has been performed

correctly before attempting to use your Micronet system.

2.1 Display Information

2.2 Switching the System On and Off

To switch your Micronet system on or off select any display and press

the button for 2 seconds.

Operation

Chapter

Button

Hold

down for

on/off

Set-up

Button

Prompt

Alarm

Indicator

(Flashes)

Battery

Level

Set Button Page and Adjust Buttons

Hold down

for

Backlighting

Descriptive

Text

Charge

Rate

www.raymarine.com

Switch on Switch off

2.3 Backlighting

At any stage of the display’s operation press and hold for 2 seconds the

button to access the lighting control.

Pressing the and buttons will scroll through setting

OFF, 1, 2 and 3 whilst changing the backlighting.

Depending on the display setup (see page 26 –s35),

Backlighting on the whole system or just the single display

will be altered.

Backlighting is automatically switched off in daylight as part of the

display’s power saving feature and will not operate in daylight.

2.4 Audible Signals and Alarms

At stages during its operation your Micronet system will beep to indicate

alarms or moments of importance.

Power-up Once operating as part of a network the display will issue a single

beep as it is switched on by pressing the button for 2

seconds.

Button Press A single beep is issued each time a button is pressed. A second

beep is issued after a 2 second hold down of the button.

Timer A single beep will be issued at each minute of the countdown.

With 1 minute left to go a beep will sound every 10 seconds.

With 10 seconds to go a beep will sound every second.

Countdown complete will be indicated by a single burst of three

beeps.

Alarm Continuous bursts of three beeps will indicate an alarm.

The alarm activated will be indicated on the digital display,

accompanied by the flashing symbol.

Pressing any button will silence the alarm. See fault finding section

on p37.

Depth Shallow Alarm

The water depth has fallen below the preset alarm level.

The depth value that triggers the alarm is affected by any

keel or waterline offsets that have been added.

See page 22 s11

to set the alarm function.

This alarm does not sound as the depth increases above the preset

alarm level.

mn100 Digital Display

6www.raymarine.com

Operation

Depth Deep Alarm

The water depth has increased above or fallen below the

preset alarm level.

The depth value that triggers the alarm is affected by any

keel or waterline offsets that have been added.

See page 22 s12 to set the alarm function.

Wind High Alarm

The wind speed has increased beyond the preset alarm

level.

See page 22 s13 to set the alarm function.

This alarm does not sound as the wind speed decreases

below the preset alarm level.

Cross Track Error Large Alarm

A large cross track error has been alerted by the GPS.

See page 22 s14 to set the alarm function.

Waypoint Arrival Alarm

A waypoint arrival signal has been received from the GPS.

The waypoint name is shown on the top line of the display.

See page 23 s15 to set the alarm function

www.raymarine.com

mn100 Digital Display

8www.raymarine.com

2.5 Utilities

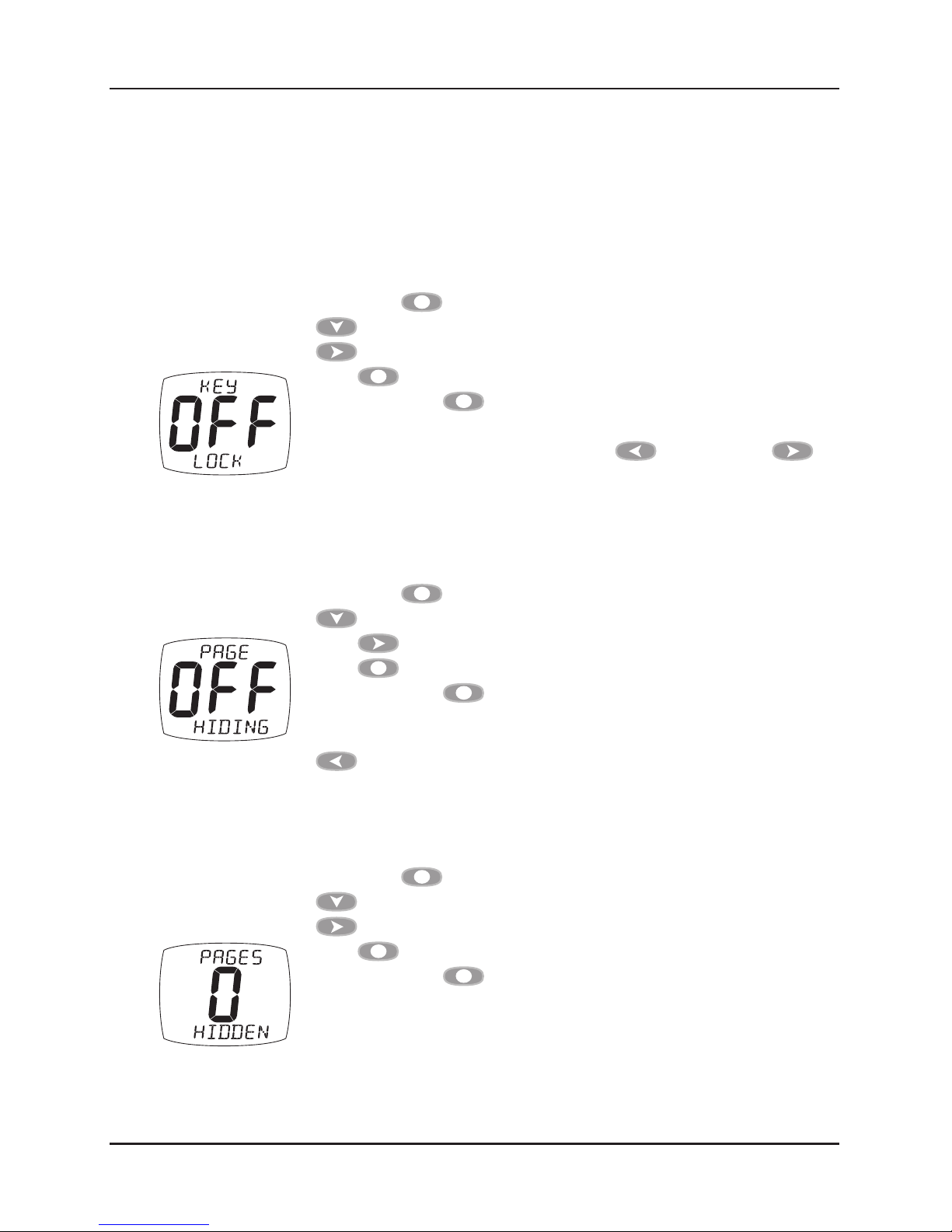

Keylock The Keylock feature protects from accidental key presses and is

intended for use in high activity applications such as crewed race

yachts. If your display is mounted in a position where keys may

be pressed accidentally (eg the companionway of a race yacht),

then you can enable keylock as follows:

Press and hold to enter set up

Press repeatedly to reach the OPTIONS chapter

Press repeatedly to reach the Key Lock page

Press to activate keylock

Press and hold to exit setup.

Once keylock is activated, pressing a key causes the unit to

give the unlock key prompt. Press followed by to

unlock the keys (this will allow the keys to function for one

minute, after which the keys will automatically relock).

Page Hiding To hide unwanted pages and configure an instrument to your

needs:

Press and hold to enter set up

Press to reach the OPTIONS chapter

Press to reach the Page Hiding page

Press to activate page hiding for 5 minutes

Press and hold to exit setup.

Once page hiding is activated:

Press for 2 seconds to hide a page.

A period of 5 minutes is allowed during which you can select

pages to hide.

Page Unhide To clear Page Hiding and return to all pages visible:

Press and hold to enter set up

Press to reach the OPTIONS chapter

Press to reach the Pages Hidden page

Press . to return to all pages visible

Press and hold to exit setup.

Altri manuali per mn100

Indice

Altri manuali Raymarine Monitor

Raymarine

Raymarine ST40 Guida utente

Raymarine

Raymarine ST40 Depth Instrument Guida utente

Raymarine

Raymarine E-Series Manuale utente

Raymarine

Raymarine gS Series Manuale utente

Raymarine

Raymarine Raytheon R21 Series Manuale utente

Raymarine

Raymarine E140 Manuale utente

Raymarine

Raymarine St290 Manuale utente

Raymarine

Raymarine gS Series Manuale utente

Raymarine

Raymarine eS Series Manuale utente

Raymarine

Raymarine E-Series Manuale utente

Raymarine

Raymarine LightHouse Sport Istruzioni per il montaggio

Raymarine

Raymarine C-Series Manuale utente

Raymarine

Raymarine i70 Manuale utente

Raymarine

Raymarine AXIOM+ Series Manuale utente

Raymarine

Raymarine LIGHTHOUSE 4 Manuale utente

Raymarine

Raymarine hsb2 PLUS Series Guida utente

Raymarine

Raymarine M1500 Guida utente

Raymarine

Raymarine G170 Manuale utente

Raymarine

Raymarine AXIOM XL 16 Manuale utente

Raymarine

Raymarine ST70 Instrument Istruzioni per il montaggio

Raymarine

Raymarine e7D Manuale del proprietario

Raymarine

Raymarine gS Series Manuale utente

Raymarine

Raymarine AXIOM Series Manuale utente

Raymarine

Raymarine ALPHA Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione

Raymarine mn100 Manuale utente

Manuali Monitor popolari di altre marche
