INSTRUCTION MANUAL

Contents

1-2

3-4

15-17

18-21

22-26

Getting Started

Front View

Rear View

Remote Control Key Functions

Select input source

Picture menu

Picture Settings

Advanced Picture Settings

SOUND MENU

Sound Settings

Equalizer Settings

CHANNEL MENU

Channel List

Favorite List

Channel Setting

Auto Channel Search

PARENTAL CONTROL

V-CHIP

Caution & Important Safety Precautions

Desktop TV Bracket Installation & Assembly

Main Menu Description 9-10

PC Settings

CHANGE PASSWORD

Canada V-CHIP

TV Rating

Contents

Setup Menu

Closed Caption

Menu Language

Digital CC Style

OTHERS MENU

Blue Back

No Signal Power Off

All Reset

Audio Only

Clock

Help

Specifications

Caution

The lightening flash with arrowhead symbol, within an equilateral triangle is

intended to alert the user to the presence of un-insulated "dangerous voltage"

within the products enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the user to

the presence of important operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

Cor rect disposal of this Product

W aste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life,

should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste

collection/recycling centre.

In the European Union there are separate collection systems for used electrical

and electronic products. Please help us to conserve the environment we live in!

Important Safety Precautions

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.2

Caution:

These servicing instructions are for use by qualified service personnel only. To reduce the risk of

electric shock do not perform any servicing other than that contained in the operating instructions.

unless you are qualified to do so.

19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as

recommended by the manufacturer.

Desktop TV Bracket Installation & Assembly

,wall mount is not included in this package.

100MM

Desktop TV Bracket Installation & Assembly

Note:Instruction manual for the TV stand assembly.

1.Take out the TV unit and base (with stand poles) from the

giftbox, make sure the 4 screw holes on the stand poles and

that of at the lower central part of the back cabinet are in right

direction and keep in order.

2.Assemble the base on the TV unit with the 4 screws (BM5*10)

which are attached in the accessory box

Screw Hole

Base( with stand pole)

TV set

BM5*10 Screw

Getting Started

Getting started

Front view

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

(IR) Infrared Receiver: Receives IR signals from the remote control.

(Power on/Standby) LED Indicator: Press to turn on and off

VOL

SOURCE External signal input selection

item selected.

and confirm the

The functions of the buttons on the are as follows:TV

CH+/-:When watching TV: select channels.

MENU:

1.Press Menu.

2.Press SOURCE to enter.

3.Use CH+/- to shift UP/DOWN.

4.Press SOURCE to confirm,then press VOL+/-to adjust.

5.Press SOURCE to confirm

Getting Started

COAXIAL

VIDEO

R F

(Left Side)

(Back Side)

Name Function Description

Connect to ANT or cable source

POWER SOCKET

HDMI IN Connect to HDMI of DVD or other equipment

PC AUDIO IN PC audio input

VGA IN VGA signal from computer output

YPBPR Connect to the composite terminal of your DVD/VCR

DC 12V 3A

EARPHONE

For Upgrade Use.

USB

AV INPUT

Earphone output

COAXIAL Digital Audio Output

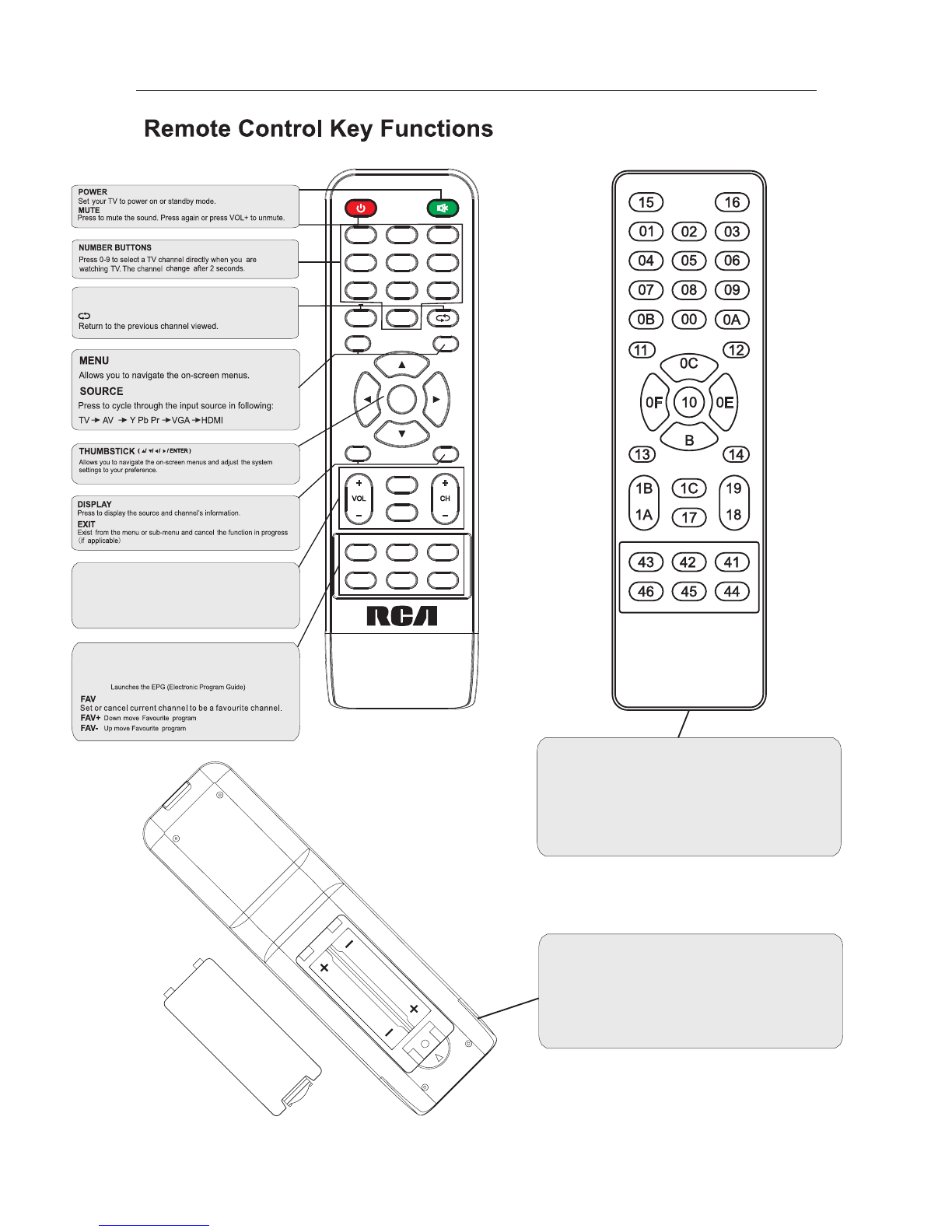

Remote Control Key Functions

S.MODE: Press to cycle through the different sound settings

P.MODE: Press to cycle through the different picture settings

CH +/- : Pr es s to scan thr ou gh or to sel ec t a chann el .

V +/-: Pr es s to increa se / decrea se the sou nd level .

Pres s "- " to ent er a pr og ram numb er for mul tipl e pr og ram

chann el , such as 2- 1 et c.

SLEEP: Select amount of time before TV turn

off

automatically.

MTS:

Pres s to selec t the audi o mod e, you can selec t stereo ,

Mon o, or SAP (sec on d au di o pr og ram) .

GUIDE:

ENTER

MENU SOURCE

EXIT DISPLAY

P.MODE

S.MODE

SLEEP MTS GUIDE

FAV FAV- FAV+

Universal remote code

This is the code for remote control of

RLED2265A,if you want to change to a

universal remote control,you can edit

this code into your universal remote control.

(1)Open the battery compartment cover

on the back side

(2)Insert two 1.5V batteries of AAA type

with correct polarity

(3)Close the battery compartment cover

on the back side

Universal Remote Control code:007F

(Universal Remote control is not included)
