Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Battery Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Battery Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Code Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Power-on Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Product Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

LCD Touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

LED Indicator Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Setup Routine and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Device Control Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Code Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Library Code Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Code Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Code Autosearch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Code Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Key Label Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Learned Key Reference Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Learn Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Learning Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Code Learning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Learn Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Clear All Stored Learned Commands Under A Mode . . . . . . .18

Master Clear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Smart Macro Key Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Program A Smart Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Delete A Smart Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Method 1 (From Normal Operation) . . . . . . . . . . . . . . . . . . . . . .21

Method 2 (From Setup Routine) . . . . . . . . . . . . . . . . . . . . . . . . . .22

TV or CD/Audio Volume Punch-through . . . . . . . . . . . . . . . . .22

VCR Punch-through . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Record Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Additional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Keypress Beep Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

LCD Touchscreen Display Time . . . . . . . . . . . . . . . . . . . . . . . . . .23

Backlighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Master Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

RCAAll Power Off Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Helpline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Limited 90-Day Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Battery Installation

To install the batteries:

1. Turn the to the bottom side, pull on the tab and lift off

the cover.

2. Insert the batteries, matching the batteries to the (+) and (-)

marks inside the battery compartment.

3. Slide the battery cover back into place.

Battery Saver

Your RCU900RF saves battery power by automatically turning off

if any button is pressed for more than 30 seconds. This saves

your batteries should your remote get stuck in a place where the

buttons remain depressed, such as under a book or between the

sofa cushions.

Code Saver

With the RCU900RF, you don’t have to worry about losing

programmed information when you change batteries.

All programmed parameters are retained indefinitely in

the event of battery replacement.

Power-on Default

When you replace batteries, your RCU900RF remote always

powers on in the TV Mode. If your TV, VCR and satellite

receiver are RCA, ProScan or GE brands, you may not even need

to set up the RCU900RF to control them. In these instances, the

remote should work as soon as the batteries are installed.

Universal Touchscreen Learning Remote

Congratulations on your purchase of the RCU900RF by

RCA. The RCU900RF is one of the most sophisticated, yet easy

to use, remote control units available today. With the RCU900RF,

juggling multiple remote controls is a thing of the past!

Your RCU900RF controls up to eight devices, including the most

popular brands of TV, VCR, DVD, SAT/CBL, CD and

audio equipment. The RCU900RF has the ability to learn

commands from your existing remotes, and the Smart Macro

feature allows multiple commands to be executed with a single

keypress. The RCU900RF is easy to use, easy to program, and it

gives you total control—at the touch of your fingertips!

Battery Information

Your RCU900RF Universal Learning Remote with Touchscreen

requires four AA alkaline batteries (sold separately).

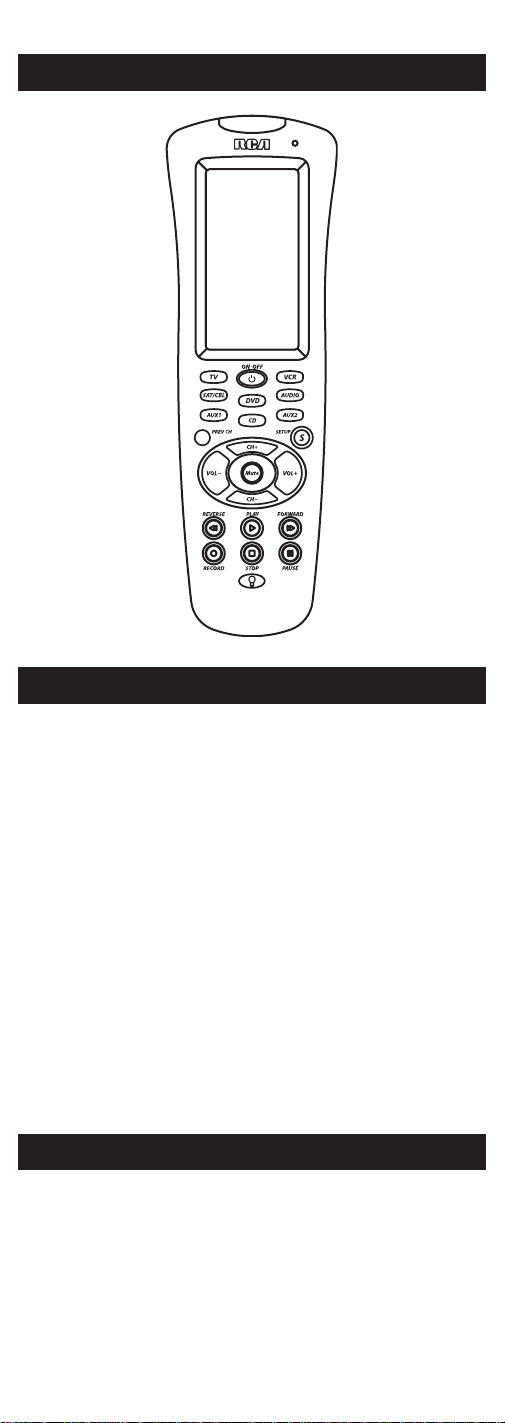

The LCD (Liquid Crystal Display) touchscreen on your RCU900RF

acts as a “virtual keypad.” This touchscreen makes it easy to

program and use your remote with many devices. Once you

select a device key, you put the remote in that device mode and

it will remain in that mode until you press another device key.

When you put the remote in a specific device mode, the menu

that is activated on the touchscreen will be the menu for that

mode. For example, if you put the remote in TV Mode, the menu

you see on the touchscreen is for the TV Mode. For each mode,

the LCD touchscreen includes two control screens, and you can

easily switch between the two by pressing the SCREEN key at

the upper right-hand corner of the LCD touchscreen. Each LCD

touchscreen has an 18-position segmented keypad.

The LCD touchscreen remains blank when the remote is not in

use. The LCD touchscreen turns on automatically when you

press the SETUP key, any device key or the LIGHT key on the

rubber keypad, or any LCD touchscreen key. The remaining

rubber keys do not activate the LCD touchscreen.

LCD Touchscreen

LED Indicator Light

The LED (Light Emitting Diode) indicator light, located at the

upper right-hand side of the RCU900RF, lights up whenever a

rubber key or any LCD touchscreen key is pressed. The LED

indicator flashes and beeps three times (approximately two

seconds) to indicate any error condition.

Setup Routine and Procedures

The SETUP key is located towards the middle of the RCU900RF

unit, on the right-hand side of the rubber keypad. The SETUP

key is used to walk you through the steps in setting up the

remote. To enter the Setup Mode, press and hold the SETUP key

until the LED indicator light remains on. At that time, the Main

Setup Screen appears. Setup is used for Library Code Entry,

Code Search, Code Identification and other functions.

During a Setup function, if no button is pressed for 60 seconds,

the unit automatically exits from the Setup process. The LED

indicator light flashes an error in this instance, and any

operation that is not completed when the time-out occurs is

not programmed.

During the Setup function, if you press any key not shown on

the touchscreen or a key not expected as part of a Setup routine,

the RCU900RF ignores that keypress. Pressing the LCD CLEAR

key in a Setup routine returns the touchscreen to the Main Setup

Screen. When you press the CLEAR key, any changes made up

to that point are discarded. Also, where specifically indicated,

pressing the SETUP key in a Setup routine discards any changes

and returns the remote to the Main Setup Screen.

To exit the Setup function and return to normal operation, press

the CLEAR key on the Main Setup Screen.

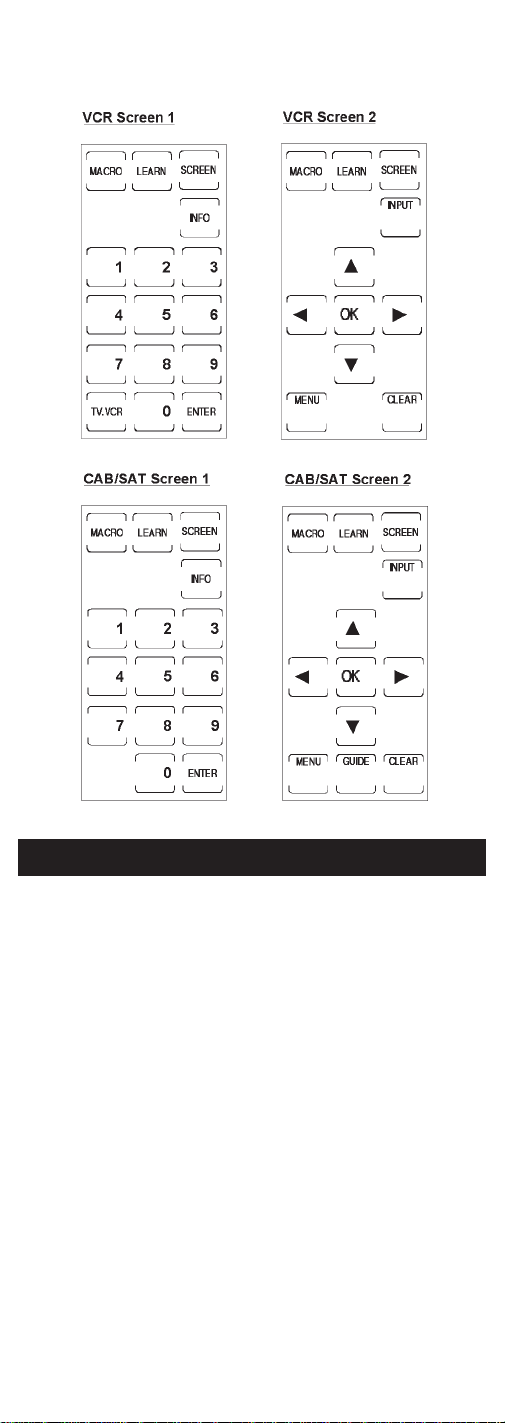

Device Control Screens

Your RCU900RF displays different control screens for each device.

There are two screens needed to control each device. You can

easily switch between these two screens by simply pressing the

LCD SCREEN key at the top right of the touchscreen.

In order for the RCU900RF to control your devices (TV, VCR, DVD,

etc.), you must program it with the library code for each device.

This enables the RCU900RF remote to control your device with the

proper commands. If your TV, VCR, DVD, or satellite receiver is

an RCA, ProScan or GE brand, the RCU900RF may not need any

programming to control them. To program the remote with the

codes for your devices, you can use one of three methods:

Library Code Entry, Code Search or Code Autosearch.

Library Code Entry

You can enter codes in your RCU900RF from the Code List using

the SETUP key on the rubber keypad. (See the Code List of the

most popular brands on page 29.) When you enter a valid code

for any given mode (e.g., when you enter a code for a TV), the

Default Key Label Screen is used and any previously Learned

functions for that mode are deleted. The mode is reset to its

power-on default state. However, Macro settings remain

unchanged and now include the new code just entered.

Code Entry

Library Code Entry (continued)

To enter a code directly from the Code List, follow these steps:

1. Manually turn on the device to be

controlled (TV, VCR, DVD, etc.).

2. Press and hold the SETUP key on

the rubber keypad until the LED

indicator light remains on and the

touchscreen shows the Main Setup

Screen. This process takes

approximately 2-3 seconds.

3. Release the SETUP key.

4. Press and release the LCD CODE

key. The LED indicator light blinks

off once to indicate acceptance of

the keypress.

5. The touchscreen now shows the

Device Setup Screen. Press and

release the device key on the rubber

keypad for the device whose code

you want to enter (TV, VCR,

SAT/CBL, etc.). The LED indicator

light blinks once to indicate

acceptance of the keypress.

6. For AUX1 or AUX2, press the AUX

device key, followed by the desired

device key to be programmed under

AUX (TV, VCR, SAT/CBL, etc.).

7. The touchscreen now shows the

Code Setup Screen. Find the

three-digit code for your device

brand from the Code List at the back

of the manual. If your brand has

more than one code listed, begin with

the first code. Enter the three-digit

code from the Code List. When a

valid code from the list is entered, the

LED indicator light blinks off after

the last digit is entered. For an

invalid code, the LED indicator light

flashes rapidly and beeps for two

seconds before going off. In both

cases, the touchscreen returns to the

Main Setup Screen.

8. Before the code can be tested on the

chosen device, you must exit back

to normal operation by pressing

the CLEAR key on the Main

Setup Screen.

9. With the device on, aim the RCU900RF

at the device and press the ON•OFF

or the CH+key on the rubber

keypad. If you have entered the

correct number for your device, it

will respond to the ON•OFF or CH+

key. If the device responds, no

further programming is required.

10.If your device does not respond, try

the next code in the list for your

brand by repeating the procedure

starting at step 2. If no other codes

exist for your brand, try the Code

Search or Code Autosearch methods.

Code Search

If the device you wish to control does not respond to any of the

codes you have entered using the Library Code Entry, you can

search the entire code library for a particular device that might

not be listed in the Code List or might be listed under a

different brand.

When you enter a valid code for any given mode (e.g., when

you enter a code for a TV), the default key labels are displayed

on the touchscreen and any previously Learned functions for

that mode are deleted. The mode is reset to its power-on default

state. However, Macro settings remain unchanged and now

include the new code just entered.

To search for a specific code in the Code List, follow these steps:

1. Manually turn on the device to be

controlled (TV, VCR, DVD, etc.).

2. Press and hold the SETUP key on

the rubber keypad until the LED

indicator light remains on and the

touchscreen shows the Main Setup

Screen. This process takes

approximately 2-3 seconds.

3. Release the SETUP key.

4. Press and release the LCD CODE

key. The LED indicator light blinks

off once to indicate acceptance

of the keypress.

5. The touchscreen now shows the

Device Setup Screen. Press and

release the device key on the rubber

keypad for the device whose code

you want to enter (TV, VCR, SAT,

etc.). The LED indicator light

blinks once to indicate acceptance

of the keypress.

6. For AUX1 or AUX2, press the AUX

device key. Select the desired device

key to be programmed under AUX

(TV, VCR, SAT/CBL, etc.).

7. The touchscreen now shows the

Code Setup Screen. Press and release

the LCD SEARCH key.

8. The touchscreen shows the Search

Setup Screen. Press the ON•OFF key

on the rubber keypad repeatedly,

until the device to be controlled

responds to the command and

turns off.

Note: The Code Search starts from the

currently stored code under that

mode. For example, if the device code

list contains 100 codes and the

currently stored code is 050, the Code

Search starts from 051 and continues

to 100 before looping back to 000 and

finishing at 050. This speeds up the

process of finding the correct code for

Code Search (continued)

your device, since you may discover

that some codes can turn on and

off your device but are not able to

control its other functions. This

process allows you to bypass codes

you’ve already tried.

Note: If your device responds and

you accidentally overshoot that code

by pressing the ON•OFF key again,

press the CH-key or DOWN

ARROW key to backtrack through

the code library. You can change the

direction to forward once again by

pressing the ON•OFF, CH+, UP

ARROW, or LCD PLAY keys.

9. Once the device to be controlled

responds to the commands,

press and release the LCD OK key

to install the code. The touchscreen

returns to the Main Setup Screen. The

Code Search entry is now complete.

Code Autosearch

Your RCU900RF has the ability to automatically scroll through

the entire code library by using the Autosearch feature.

To start a Code Autosearch, follow these steps:

1. Manually turn on the device to be

controlled (TV, VCR, DVD, etc.).

2. Press and hold the SETUP key on

the rubber keypad until the LED

indicator light remains on and the

touchscreen shows the Main Setup

Screen. This process takes

approximately 2-3 seconds.

3. Release the SETUP key.

4. Press and release the LCD CODE

key. The LED indicator light blinks

off once to indicate acceptance of

the keypress.

5. The touchscreen now shows the

Device Setup Screen. Press and

release the device key on the rubber

keypad for the device whose code

you want to enter (TV, VCR,

SAT/CBL, etc.). The LED indicator

light blinks once to indicate

acceptance of the keypress.

6. For AUX1 or AUX2, press the AUX

device key. Select the desired device

key to be programmed under AUX

(TV, VCR, SAT/CBL, etc.).

7. The LCD touchscreen shows the

Code Setup Screen. Press and release

the LCD SEARCH key.

8. The LCD touchscreen shows the

Search Setup Screen. Press the

ON•OFF key on the rubber keypad

just once. If you do not press any

other keys, the Autosearch feature

automatically starts in six seconds.

Indice

Altri manuali RCA Telecomando universale

RCA

RCA CRK76 Manuale di installazione

RCA

RCA RCR412 Manuale utente

RCA

RCA RCR504BR Series Istruzioni operative

RCA

RCA RCRPS02GR Guida utente

RCA

RCA RCRST02GR Manuale utente

RCA

RCA RCU 300 - SystemLink3 Universal Remote Manuale utente

RCA

RCA RCU800 - Universal Remote Control Guida per l'amministratore

RCA

RCA RCR815 - Universal Remote Control Manuale utente

RCA

RCA RCU404 - RCU 404 Universal Remote Control Manuale utente

RCA

RCA RCR815 - Universal Remote Control Manuale utente

RCA

RCA RCR3273R Manuale utente

RCA

RCA RCU900 - LCD Touch Screen Learning Universal Remote... Manuale utente

RCA

RCA RCR412BN Manuale utente

RCA

RCA RCRN04GR Manuale utente

RCA

RCA RCU811 - Learning Remote Guida per l'amministratore

RCA

RCA RCR4258N Manuale utente

RCA

RCA RCU800 - Universal Remote Control Manuale utente

RCA

RCA RCU310BB - Universal Remote Control Manuale utente

RCA

RCA RCU600WMS - Universal Remote Control Manuale utente

RCA

RCA RCRPS04GR Guida per l'amministratore

RCA

RCA RCR311B Manuale utente

RCA

RCA RCR450 - Universal Remote Control Manuale utente

RCA

RCA RCR4283N Manuale utente

RCA

RCA RCR3273 Manuale utente

Manuali Telecomando universale popolari di altre marche

Pronto

Pronto Peel Manuale utente

GE 24929 Manuale utente

Radio Shack

Radio Shack Wireless Remote Control System Manuale utente

AUVIO

AUVIO Universal Home Theater Remote Manuale utente

Philips

Philips Icon SRU4106 Manuale utente

THOMSON

THOMSON ROC4309 Manuale utente

Philips

Philips pm625S Manuale utente

GE RM94931 Manuale utente

Blackweb

Blackweb BWB17AV002 Manuale utente

Marmitek

Marmitek DoorGuard 300 Manuale utente

Chunghop

Chunghop RM-L618 Manuale utente

GE RM24965 Manuale utente

Anderic

Anderic KTN828 Manuale utente

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Manuale utente

Medion

Medion E74023 Manuale utente

intensity

intensity RM02A Manuale utente

GE RM24950 Manuale utente

Sky

Sky MY Manuale utente
