Rear view safety RVS-SA150 Manuale utente
Reverse With Condence ™ 1
3.5" HUD Heads Up Display
RVS-SA150
Instruction Manual
Rear View Safety
2
Introduction.............................. 03
SafetyInformation.............................. 04-05
DisplayFunctions........................... . . . 06
SystemIntroduction.............................07-08
SystemAdjustment..............................09-10
ReectiveFilm...................................11
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Warranty.......................... . . . . . 14
Disclaimer.......................... . . . . . 15
TABLE OF CONTENTS
Reverse With Condence ™ 3
NOTE!
Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a RVS-SA150 Heads Up Display
With this manual you will be able to properly install and
operate the unit.
INTRODUCTION
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and/or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
Rear View Safety
4
SAFETY INFORMATION
If you have questions about this product, contact:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: 1.800.764.1028
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
Reverse With Condence ™ 5
SAFETY INFORMATION
Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot/moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Rear View Safety
6

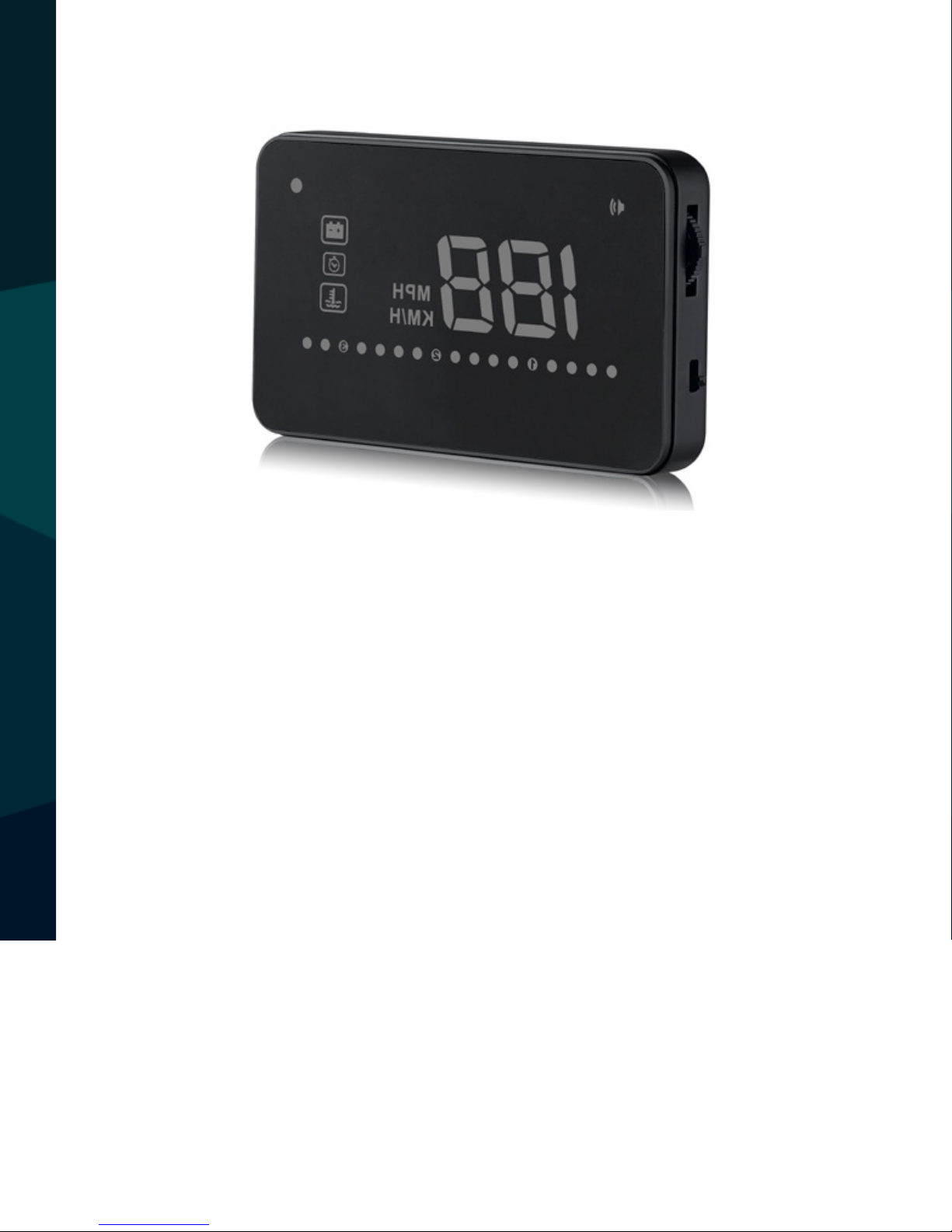

DISPLAY FUNCTIONS
1) Light sensor
2) Voltage icon
3) Driver fatigue alarm
4) Water temperature Icon
5) Speed unit (KM/H)
6) Speed unit (MPH)
7) RPM (1 circle is 200R)
8) Speaker (can be turned on/o)
9)Speed,water temperature, voltage(can be toggled)
Display Functions
Reverse With Condence ™ 7
SYSTEM INTRODUCTION

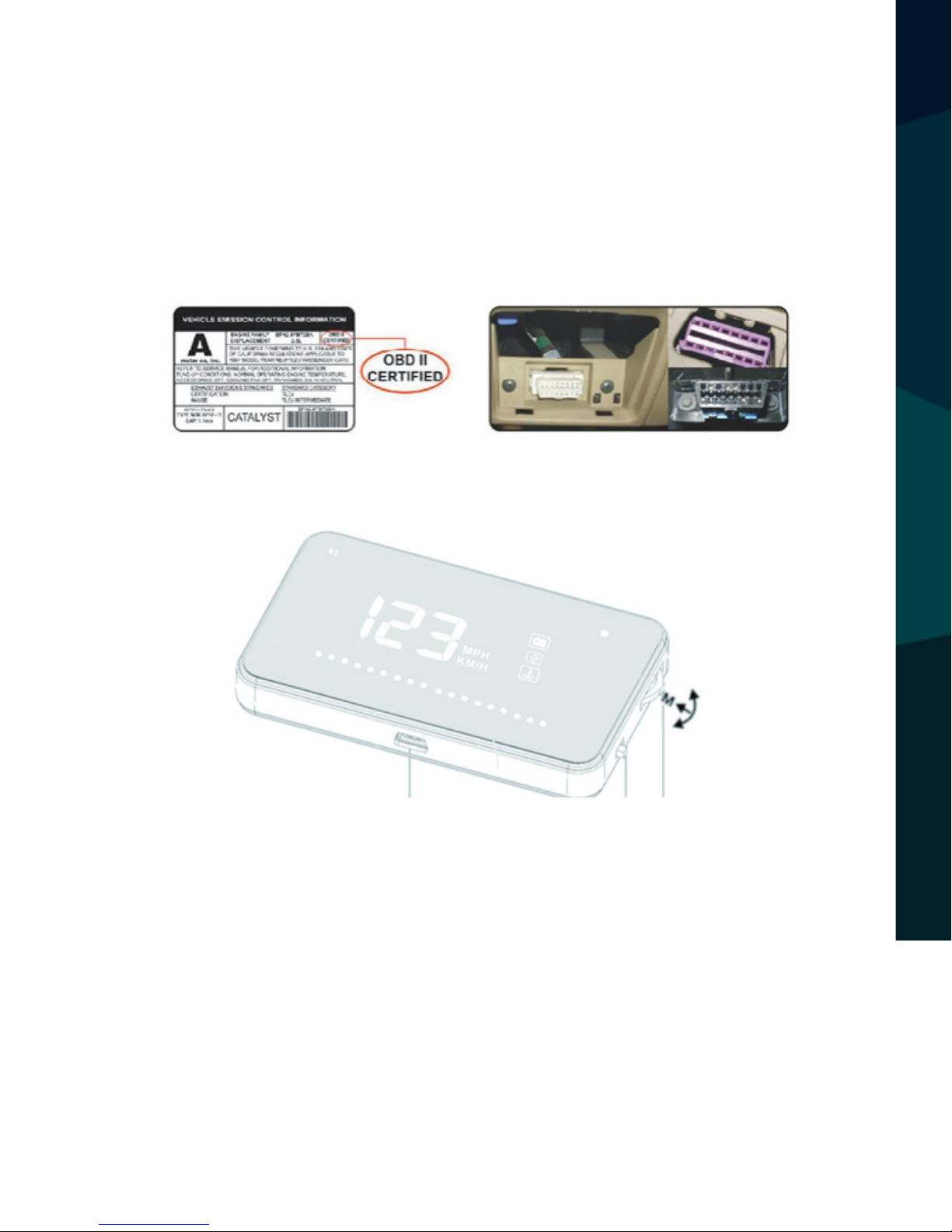

HUD Installation
1. RVS-SA150 is compatible with ODBII/EUODB vehicles (see below)
2. Find vehicle 16 pin diagnostic link and connect it to the Heads Up Dis-
play
HUD Function
1. OBDII cable input
2. Power button
3. Rotatable Control Switch
A. Up button: Move control switch up
B. Ok button: Press button
C. Down button = Move control switch down
1 2 3
Rear View Safety
8
SYSTEM INTRODUCTION
Vertically short press button:
Toggle water temperature, voltage, and speed icons
Pull down setting button (5 seconds):
toggle alarm volume on/o
Reset setting:
When the HUD is o long press the setting button/turn on HUD on.This
resets settings
Clear the fault code:
Turn on the HUD and waiting for it scans the OBD2 program successful-
ly,long pull up the setting button,full screen will be on, and it means
clear the fault codes completed. Long pull up the button again to exit
Menu Setting:
The rotatable control switch can be moved in three ways: Up, Vertical,
Down.
Vertical long press in (5 seconds) to enter the menu setting. Vertical
short press to toggle menu option, toggle up/down the rotatable con-
trol switch to increase/decrease the parameter value. After adjustment,
vertical long press (5 seconds) to save and exit.
Reverse With Condence ™ 9
SYSTEM INTRODUCTION
Menu Parementers Adjustement Range Explanation Default State Display
1 Speed 50-150 Move up/
down to
toggle
speed
107
2 Brightness
Adjustment
0-5 0: Auto
brightness
5: Brightest
0
3Water Temp
Alarm
50-150 Alarm will
alert user
when temp
reaches 120
120
4Low Voltage
Alarm
100-150 Alarm will
alert user
when volt-
age is less
than 11v
120
5 RPM Alarm 10-75 HUD gives
alarm when
over 5000
rmp
50
6 Speed Alarm 0-199 If default
value is
changed,
there are
3 levels of
alarms (50,
80, 120)
150
Menu Parementers Adjustement Range Explanation Default State Display
1 Speed 50-150 Move up/
down to
toggle
speed
107
2 Brightness
Adjustment
0-5 0: Auto
brightness
5: Brightest
0
3Water Temp
Alarm
50-150 Alarm will
alert user
when temp
reaches 120
120
4Low Voltage
Alarm
100-150 Alarm will
alert user
when volt-
age is less
than 11v
120
5 RPM Alarm 10-75 HUD gives
alarm when
over 5000
rmp
50
6 Speed Alarm 0-199 If default
value is
changed,
there are
3 levels of
alarms (50,
80, 120)
150
Rear View Safety
10
SYSTEM ADJUSTMENT

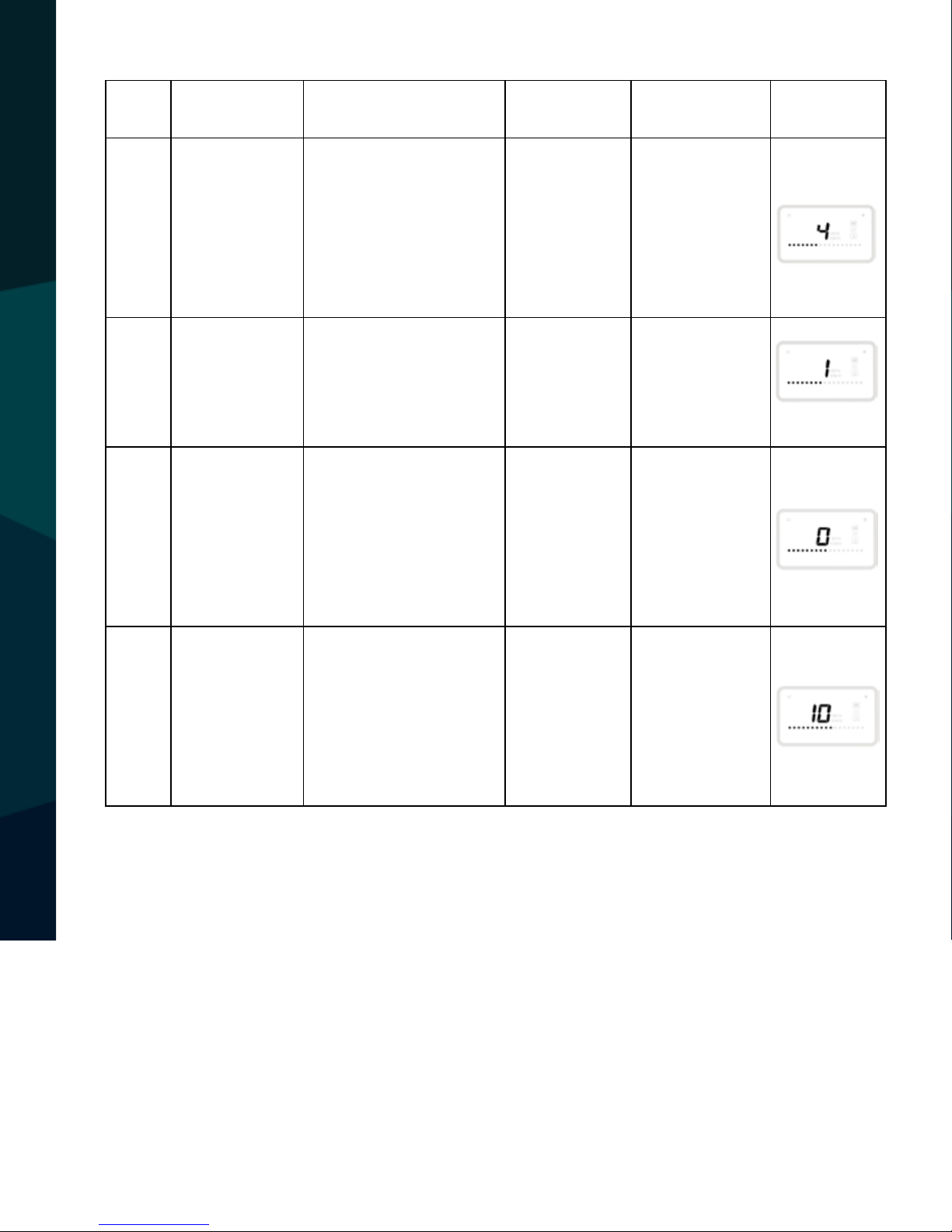

Menu Parementers Adjustement Range Explanation Default State Display
7 Driver Fa-
tigue
0-10 0 is o. 4
will give
user an
alarm every
4 hours
4
8 Speed Unit 1-2 1: KM
2: MPH
1
9 Power on
Voltage
0-150 If HUD can-
not power
o, adjust
to 13.2 -
14.0 v
0
10 Delayed
Shutdown
10-180 Alarm will
alert user
when volt-
age is less
than 11v
10
