Recom RCM-4-TP-D Manuale utente

Grid-connected PV Inverter

Three Phase Dual MPPT

RCM-4-TP-D/RCM-5-TP-D/RCM-6-TP-D/RCM-8-TP-D/

RCM-10-TP-D/

RCM-12-TP

-D

/RCM-15-TP

-D

/ RCM-17-TP

-D

RCM-20-TP/ RCM-25-TP

-D

User Manual

RECOM TECHNOLOGIES

CONTENTS

1. Preface ......................................................................................................................5

1.1 Overview ....................................................................................................... 5

1.2 Target Groups ............................................................................................... 5

2. Safety Instructions ............................................................................................5

2.1 Safety Notes .................................................................................................5

2.2 Statement .....................................................................................................5

2.3 Important Safety Matters ............................................................................6

2.4 Symbols Explanation ...................................................................................7

3. Product Introduction .......................................................................................9

3.1 Basic Features ..............................................................................................9

3.2 Appearance Introduction ..........................................................................10

3.3 Display Interface ........................................................................................12

3.4 Packing List .................................................................................................13

4. Product Installation .......................................................................................13

4.1 Selection of Installation Location .............................................................13

4.2 Mounting the Inverter ................................................................................15

4.3 Electrical Connection ................................................................................17

4.4 Monitoring Device Installation ..................................................................22

4.5 RS485/DRED Connection ...........................................................................23

4.6 System Layout of Units without Integrated DC Switch ...........................26

5. Start and Stop ....................................................................................................27

5.1 Start Inverter ..............................................................................................27

5.2 Stop Inverter ..............................................................................................27

6. General Operation ...........................................................................................28

6.1 Display Operation .....................................................................................28

6.2 Auto-Test ....................................................................................................29

7. Troubleshooting ...............................................................................................30

7.1 Fault Messages ..........................................................................................30

7.2 Maintenance ..............................................................................................31

8. Technical Parameters ....................................................................................32

Attention

The products, services or features you purchase are subject to the commercial

contracts and terms of RECOM TECHNOLOGIES. All or part of the products, services or

features described in this document may not be within your purchasing or using scope.

Unless otherwise agreed in the contract, the Company shall not make any express or

implied declaration or guarantee of the contents of this document.

Due to product version upgrades or other reasons, the contents of this document will

be updated periodically. Unless otherwise agreed, this document serves only as a

guide to use, and all statements, information and recommendations in this document

do not constitute any express or implied guarantee.

RECOM SILLIA SAS

Address: 4 Avenue Pierre Marzin, Lannion, 22300, France

Website: www.recom-solar.com

Service Mail: info@recom-solar.com

Hotline: +33 255030861

1. Preface

1.1 Overview

This manual is an integral part of RECOM RCM 4~25-TP series three-phase inverters (hereinafter

referred to as the inverters). It mainly introduces the assembly, installation, electrical

connection, debugging, maintenance and troubleshooting of the products. Before installing

and using inverters, please read this manual carefully, understand the safety information and

be familiar with the functions and characteristics of inverters.

1.2 Target Groups

This manual is applicable to the electrical installers with professional qualifications and

the people who bought this inverter. If there are any problems in the installation process,

please call RECOM TECHNOLOGIES service telephone at +33 255030861 or email RECOM

TECHNOLOGIES at technical@recom-solar.com for consultation.

2. Safety Instructions

2.1 Safety Notes

2.1.1 Before installation, you should read this manual carefully and follow the instructions in

this manual strictly.

2.1.2 Installation operators need to undergo professional training or obtain electrical related

professional quali󽗉cation certi󽗉cates.

2.1.3 When installing, do not touch any part of the inner part of the inverter except the

terminals.

2.1.4 All electrical installations must conform to local electrical safety standards.

2.1.5 If the inverter needs maintenance, please contact the local designated personnel for

system installation and maintenance.

2.1.6 To use this grid-connected inverter for power generation needs the permission of the

local power supply authority.

2.1.7 During the operation of the inverter, the surface temperature may be higher and there is

a risk of burns. Do not touch.

2.1.8 When installing photovoltaic panels in the daytime, the photovoltaic panels should be

covered with opaque materials to avoid the risks and danger of high voltage at the panel end

in sunlight.

2.2 Statement

RECOM TECHNOLOGIES has the right not to undertake quality assurance in any of the

following circumstances:

2.2.1 Damages caused by irregular transportation.

2.2.2 Damages caused by incorrect storage, installation or use.

2.2.3 Damages caused by installation and use of equipment by non-professionals or untrained

personnel.

2.2.4 Damages caused by failure to comply with the instructions and safety warnings in the

products and documents.

2.2.5 Damages caused by running in an environment that doesn't meet the requirements

which stated in the documents.

2.2.6 Damages caused by operation beyond the parameters speci󽗉ed in applicable technical

speci󽗉cations.

2.2.7 Damages caused by unauthorized disassembly, alteration of products or modi󽗉cation of

software codes.

2.2.8 Damages caused by abnormal natural environment (force majeure, such as lightning,

earthquake, 󽗉re, storm, etc.).

2.2.9 Any damages caused by the process of installation and operation which don’t follow the

local standards and regulations.

2.2.10 Products beyond the warranty period.

2.3 Important Safety Matters

The following symbols may appear in this manual, which represent the following meanings:

Danger

Warning

Caution

Used to warn of urgent dangerous situations, if not avoided, it

could result in death or serious personal injury.

DescriptionSymbol

Used to warn of potentially dangerous situations, if not avoided, it

may result in death or serious personal injury.

Used to warn of potentially dangerous situations, if not avoided, it

may result in moderate or minor personal injury.

Attention

Used to transmit the safety warning information about equipment

or environment, if not avoided, it may cause equipment damage,

data loss, equipment performance degradation or other

unpredictable results. "Attention" does not involve personal

injury.

Note Used to highlight important information, best practices and

tips, etc. it's not warning, doesn't involve personal injury and

equipment damage information.

2.4 Symbols Explanation

This chapter mainly elaborates the symbols displayed on the inverter, nameplate and packing

box.

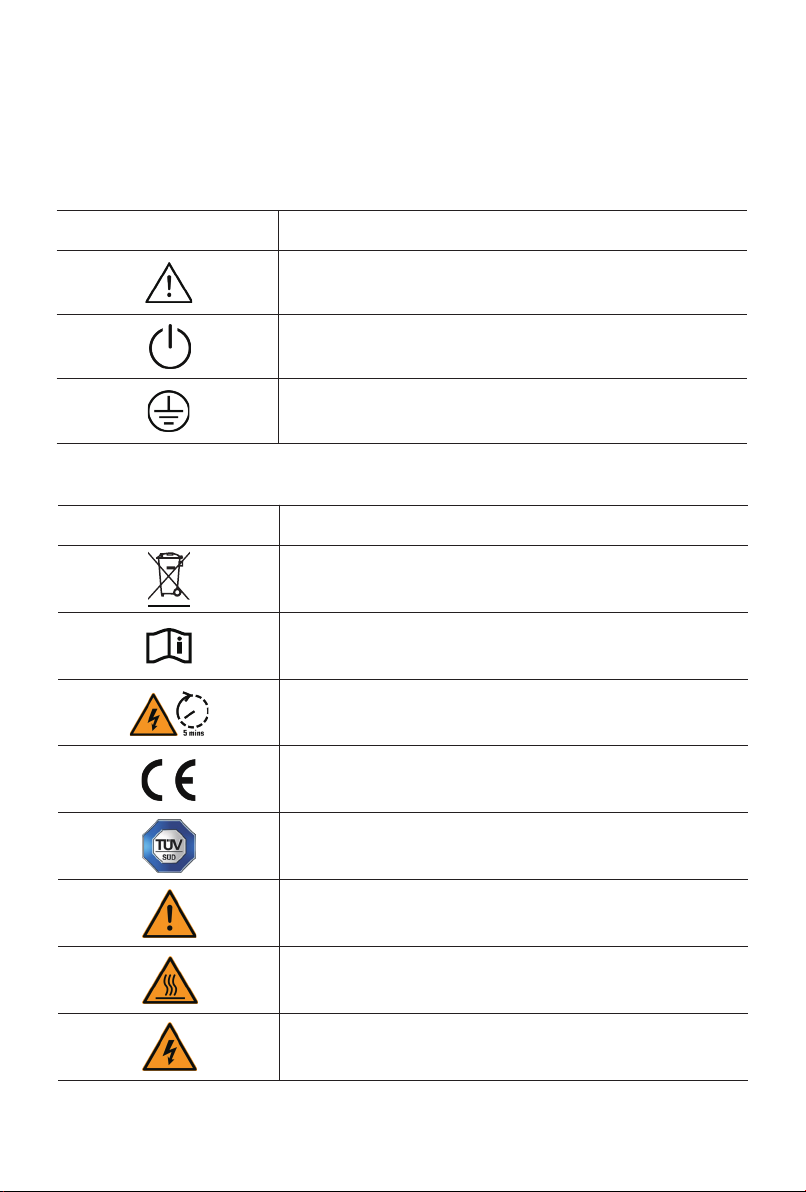

2.4.1 Symbols on the Inverter

DescriptionSymbol

Inverter running indicator.

Grounding symbol, the inverter casing needs to be properly

grounded.

2.4.2 Symbol on the Inverter nameplate

The inverter cannot be disposed of with household waste.

DescriptionSymbol

Please read the instructions carefully before installation.

Do not touch any internal parts of the inverter until 5 min after

being disconnected from the mains and PV input.

CE mark, the inverter complies with the requirements of the

applicable CE guidelines.

Danger. Risk of electric shock!

TUV certi󽗉cation.

The surface is hot during operation and no touch is allowed.

Electric shock hazard, it is strictly forbidden to use the person to

disassemble the inverter casing.

Inverter status indicator.

Handle with care.

DescriptionSymbol

This side up.

Keep dry.

Stacked layers.

2.4.3 Symbol on the Packing box

RECOM

RCM Series

RECOM

RCM Series

RECOM

RCM Series

RECOM

RCM Series

RECOM

RCM Series

TN-C-S

TN-S TN-C

3. Product Introduction

3.1 Basic Features

3.1.1 Function

The RECOM RCM 4~25-TP-D series is a three-phase grid-connected PV inverter which used to

e󽗋ciently convert the DC power generated by the PV string into AC power and feed it into the

grid.

3.1.2 The RCM 4~25-TP-D series inverter contains 10 models which are listed below:

RCM-4-TP-D, RCM-5-TP-D, RCM-6-TP-D, RCM-8-TP-D, RCM-10-TP-D, RCM-12-TP-D,

RCM-15-TP-D, RCM-17-TP-D, RCM-20-TP-D, RCM-25-TP-D

3.1.3 Applicable grid type

The applicable grid types for the RECOM RCM 4~25-TP-D series are TN-S, TN-C, TN-C-S, IT and

TT. When applied to the TT grid, the voltage of N to PE should be less than 30V. See Figure 3-1

for details:

3.1.4 Storage conditions

1) Inverter must be stored in its original packaging.

2) The storage temperature should be in the range of -30 ° C and + 60 ° C , and the relative

humidity stored is less than 90%.

3) If a batch of inverters needs to be stored, the height of each pile should be no more

than 6 levels.

Transformer Transformer Transformer

Transformer Transformer

Figure 3-1 Applicable grid type

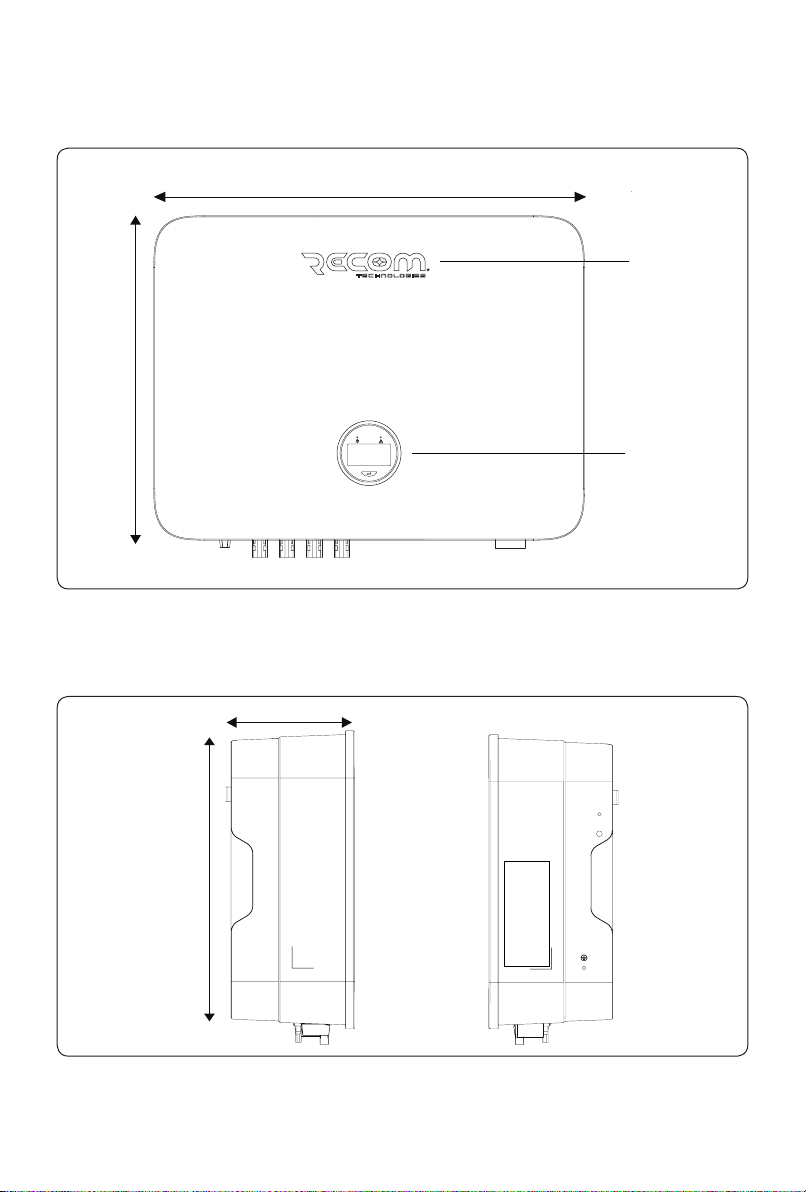

Figure 3-2 Front view

Figure 3-3 Side view

3.2 Appearance Introduction

3.2.1 Inverter front view, as shown in Figure 3-2:

3.2.2 Inverter side view, as shown in Figure 3-3:

410mm

175mm

Name

Plate

Logo

Display

550mm

410mm
