Record HA8-LP Manuale utente
Record HA8-LP
Low Energy Door Operator
Mechanical Setup –Quick Start Guide

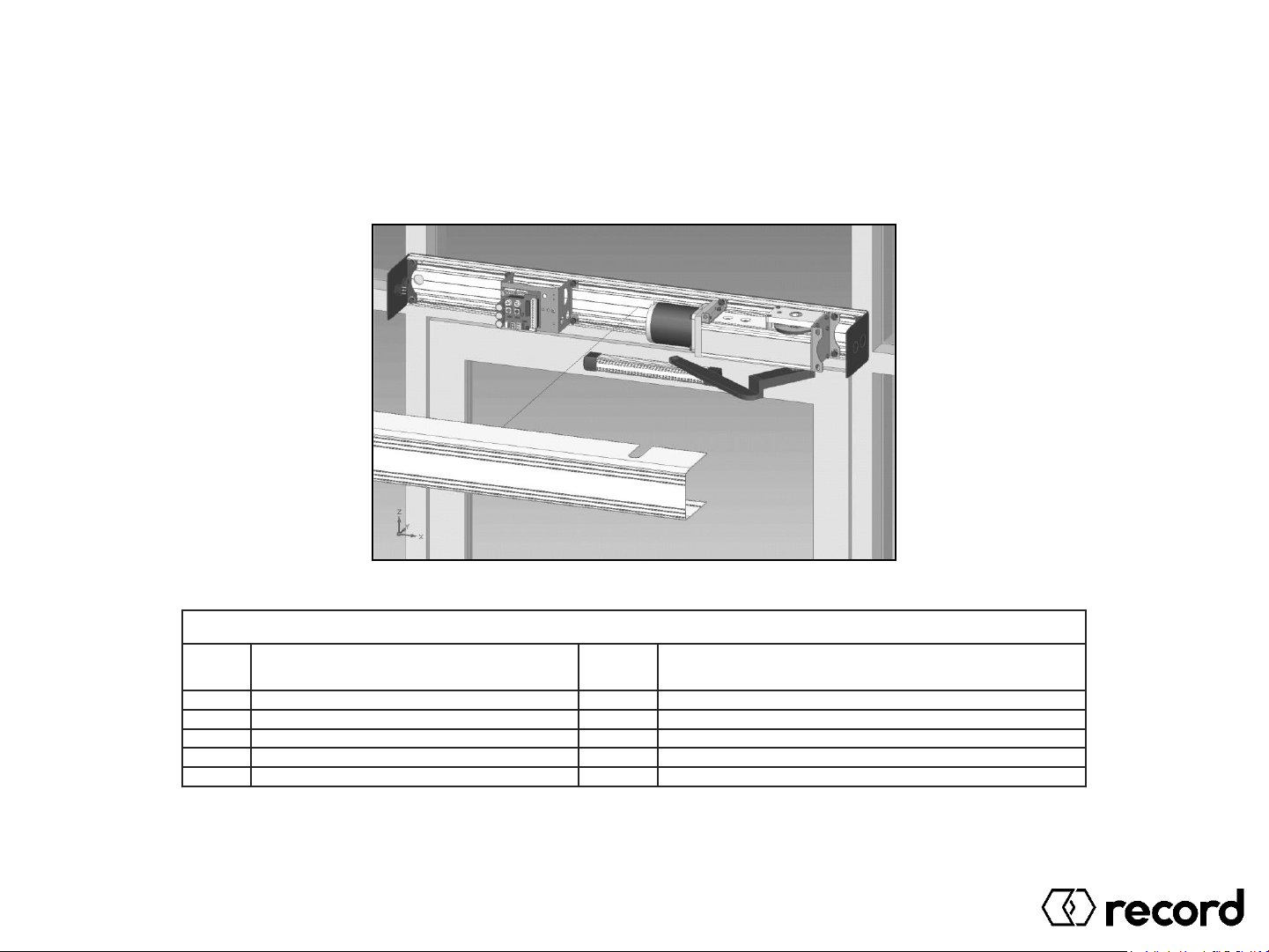

Recommended Tools
Item
No.
Description
Item No.
Description
1
Allen Wrench Set
6
Flat Screwdriver, Philip Screwdriver, 5/16” Hex. Nut Driver
2
Power Drill and Drill Bits
7
Additional Fasteners Depending on Surface
3
Level
8
Shims
4
Tape Measure
9
Hand Saw/Power Saw
5
Wire Stripper
HA8-LP
Low-Energy Swing Door Operator
HA8-LP

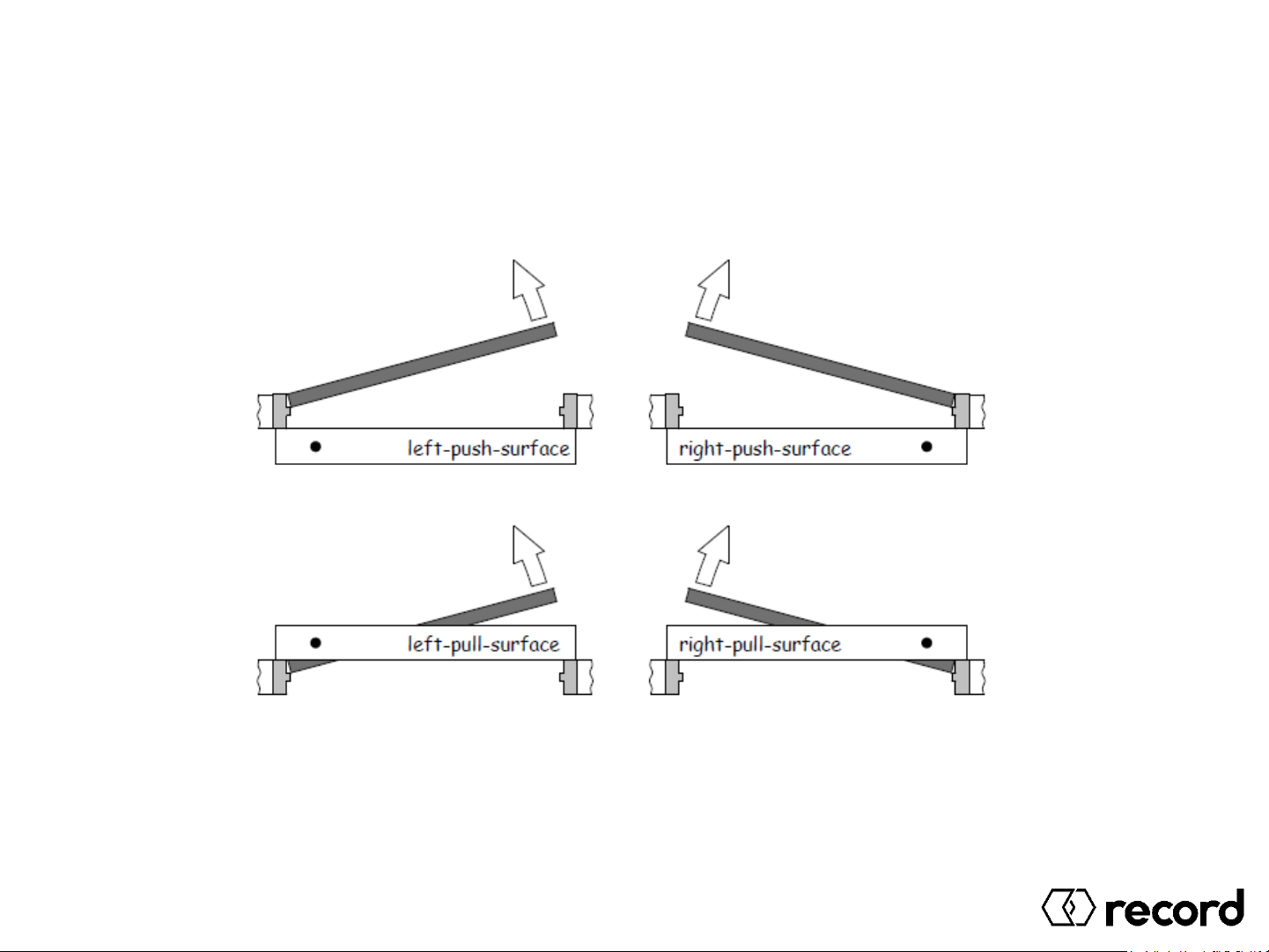

Handing Chart
Installation of the Back Plate

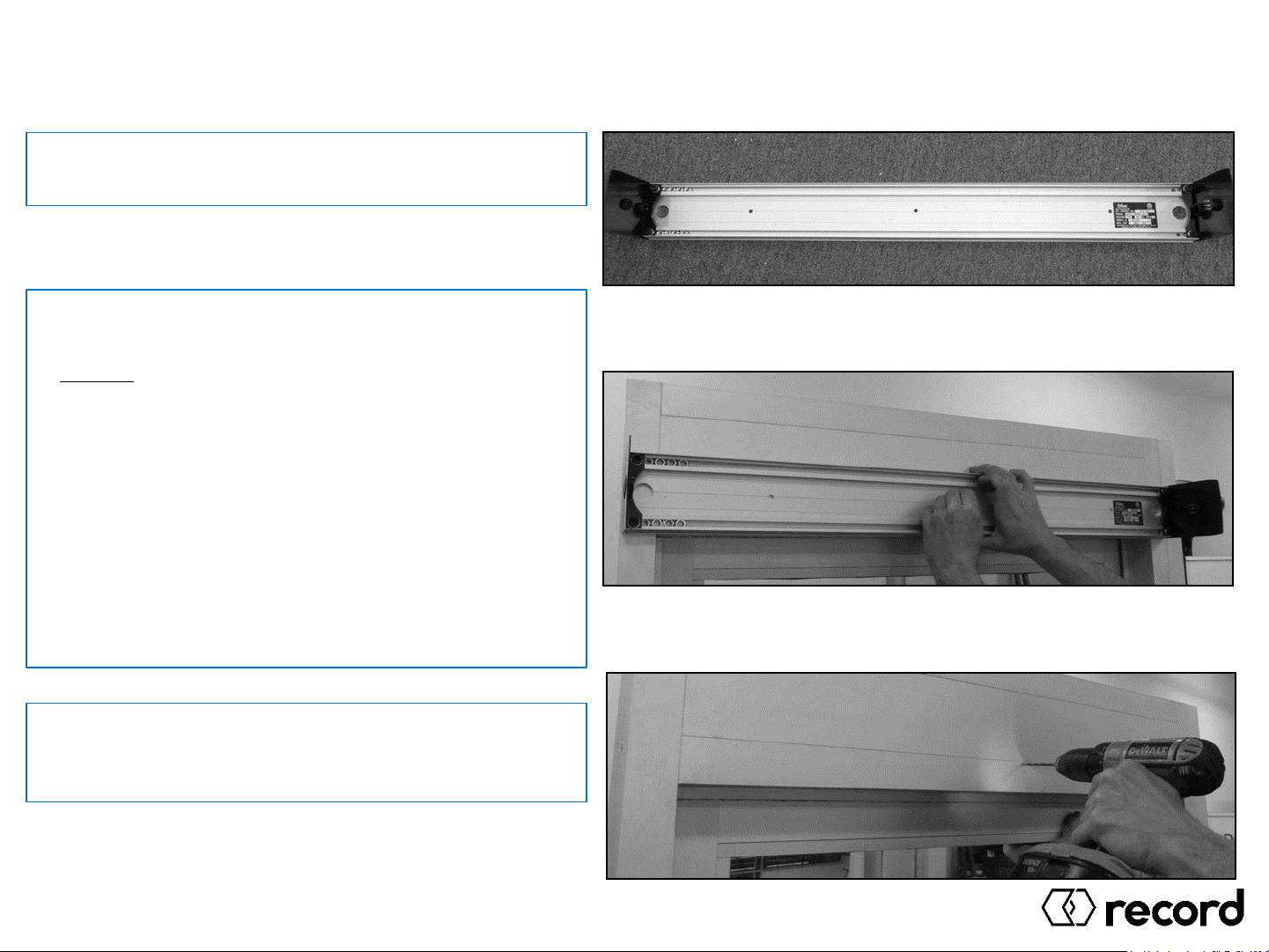

Step 3) Drill center mount hole to hang back
plate
Step 1) Remove motor/ gear box and
controller from back plate
Step 2) Position Back Plate above door
and onto the frame.
Notes:
•vertical position
•push arm application - flush with
bottom of frame.
•pull application - 1.375” above
bottom of frame (enough to clear
spindle and safety screw).
•horizontal position
•centered on door frame, assuming
back plate length = door width + 3”
shims

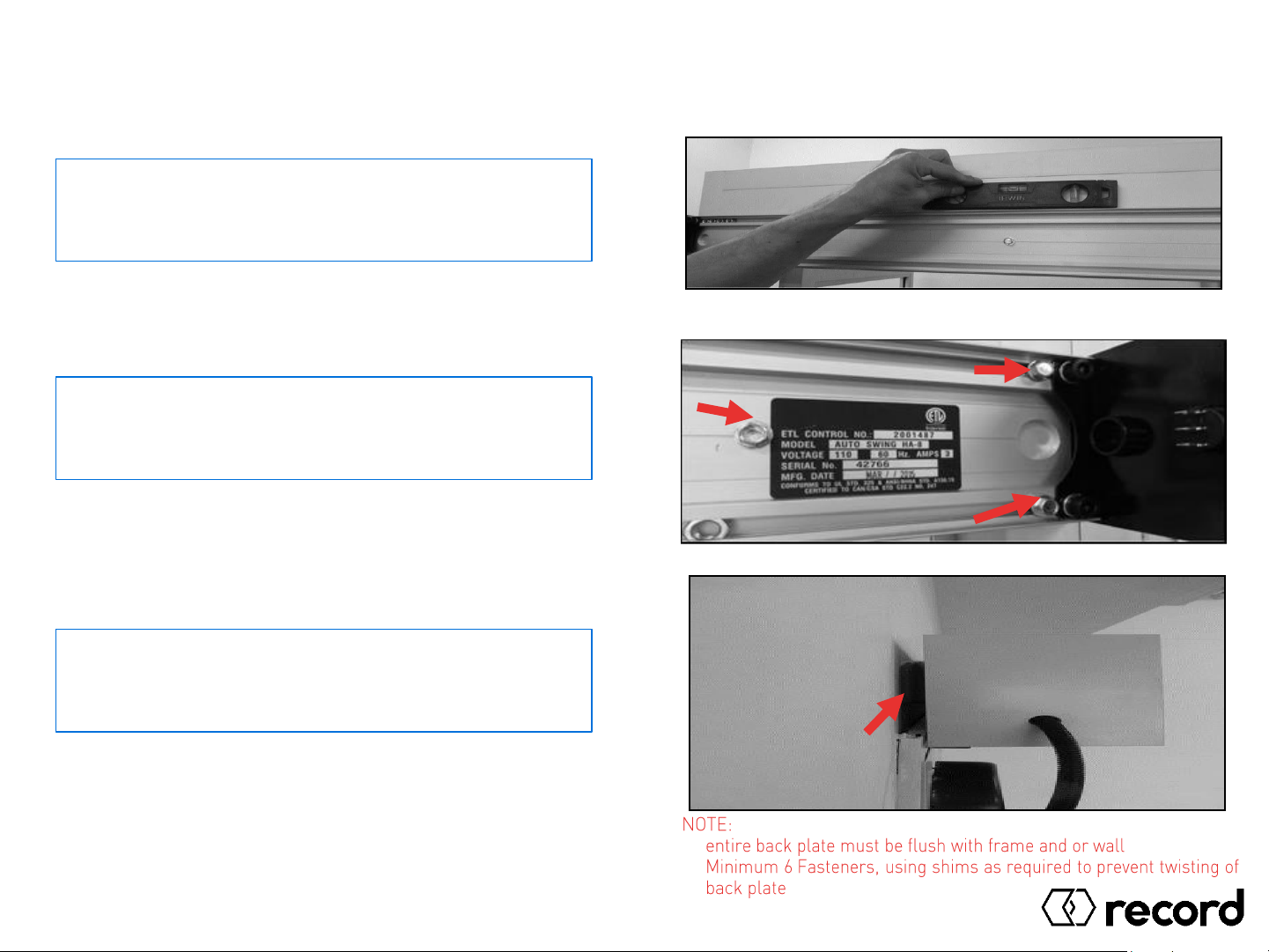

Step 4) Ensure Back Plate is positioned level
and complete the fastening to frame
and wall. See Figure 4
•
•
Step 5) Fasten Back plate to door jamb and
wall using three fasteners per side
as shown in figure 5
Figure 5
Figure 6
Figure 4
Step 6) Shims provided by installer shown
and placed behind back plate. See
figure 6
Installation of the Back Plate
Step 7) Use the pre drilled holes in the
back plate to locate and pull
the 120vac building power
supply through.
Installation of Power and Motor/Gearbox

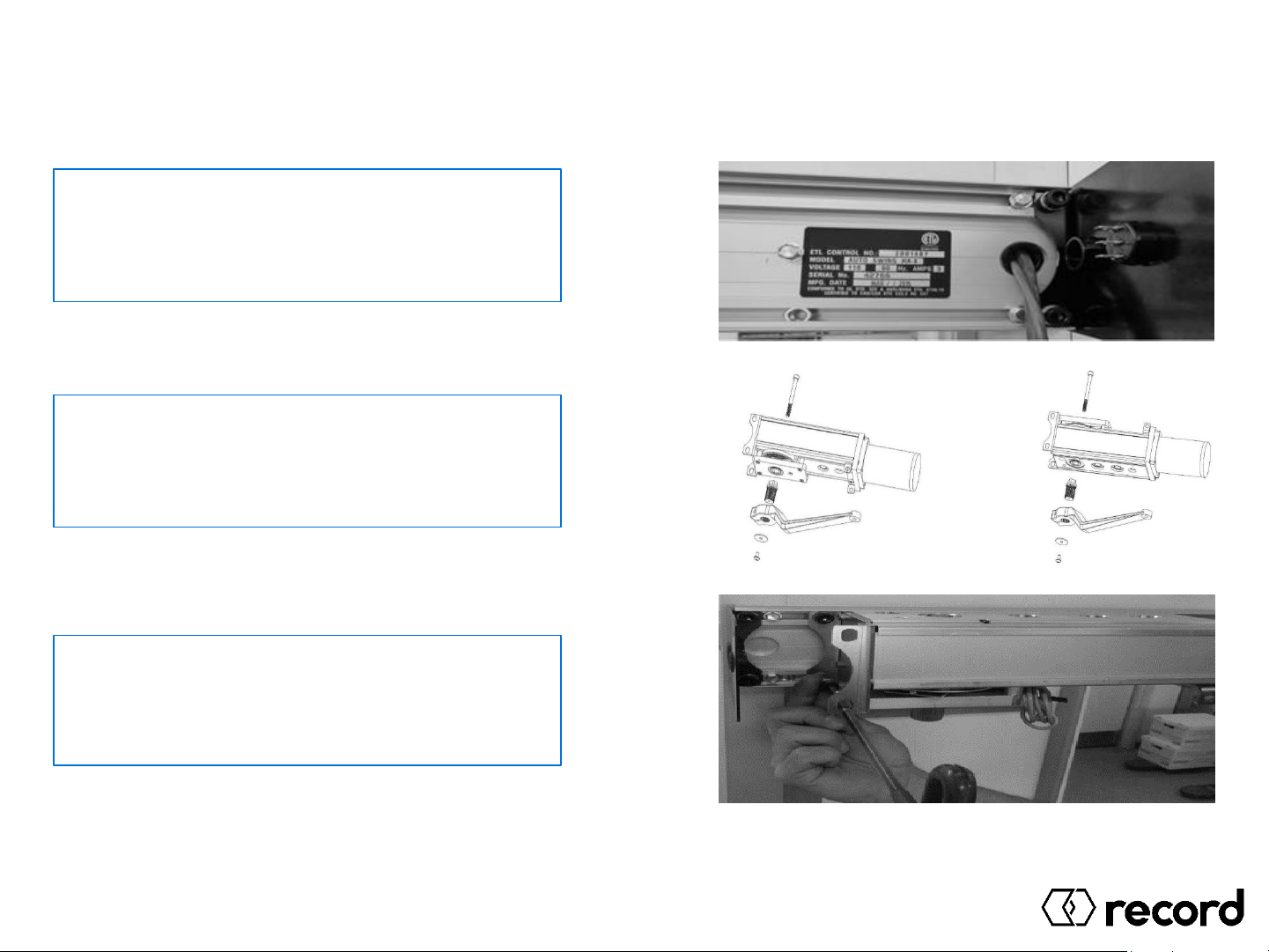

Step 8) Attach supplied Splined spindle
to gear box. Use ¼-20 socket
screw to fasten spindle to
output shaft. (Note Handing Chart)
Step 9) Re-attach the motor and
gearbox back to the back plate.
(Note output shaft must be aligned with cut
out in the cover)
LH RH

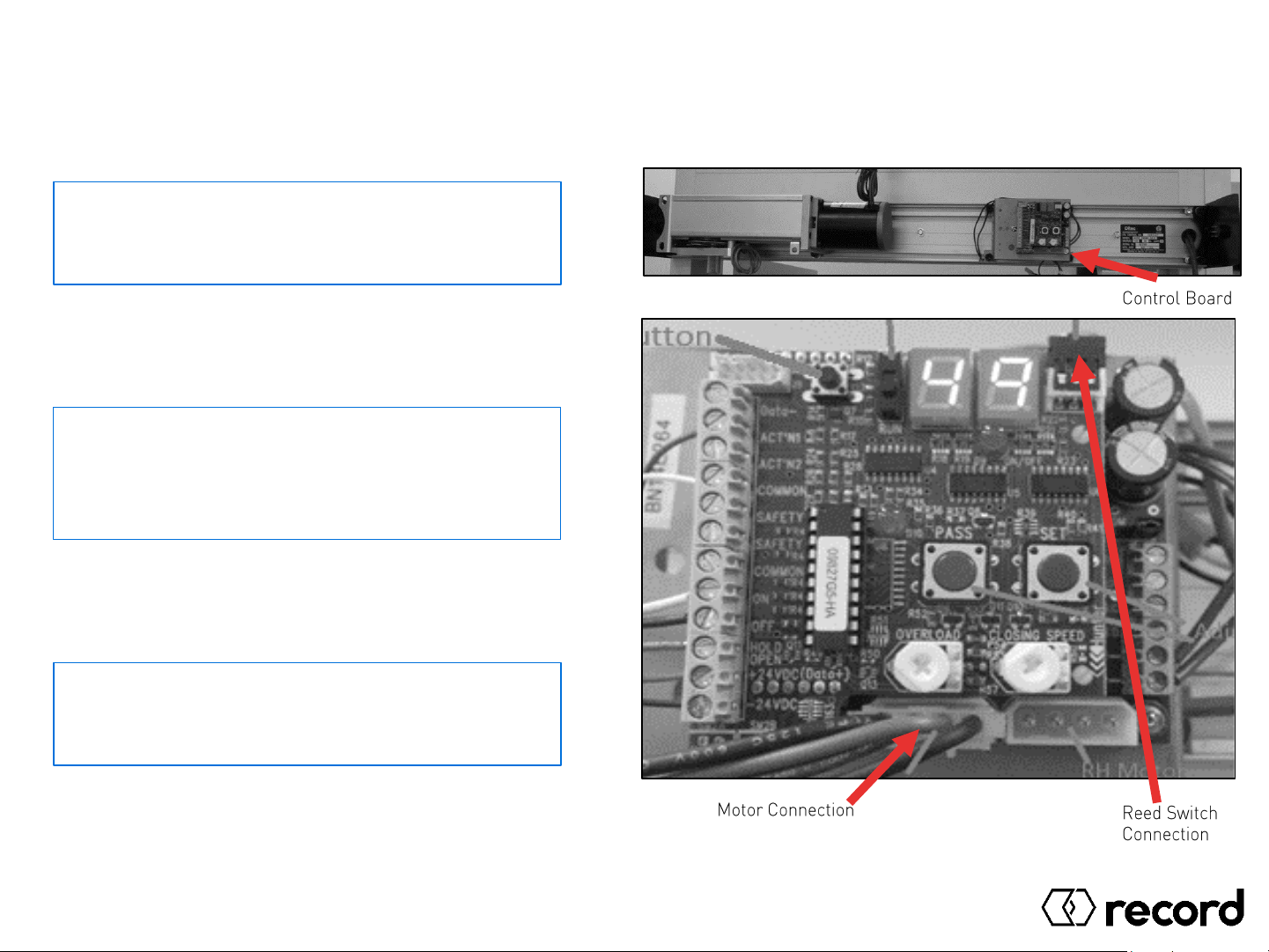

Step 10) Position the control board on to
the back plate and fasten using
the provided four screws.
Installation of Control Board
Step 11) With power off, connect the
building power to the control
board using two wire nuts to
secure.
Step 12) Next connect the motor wires to
the control board and the reed
switch cable. See Figure 11. Figure 11

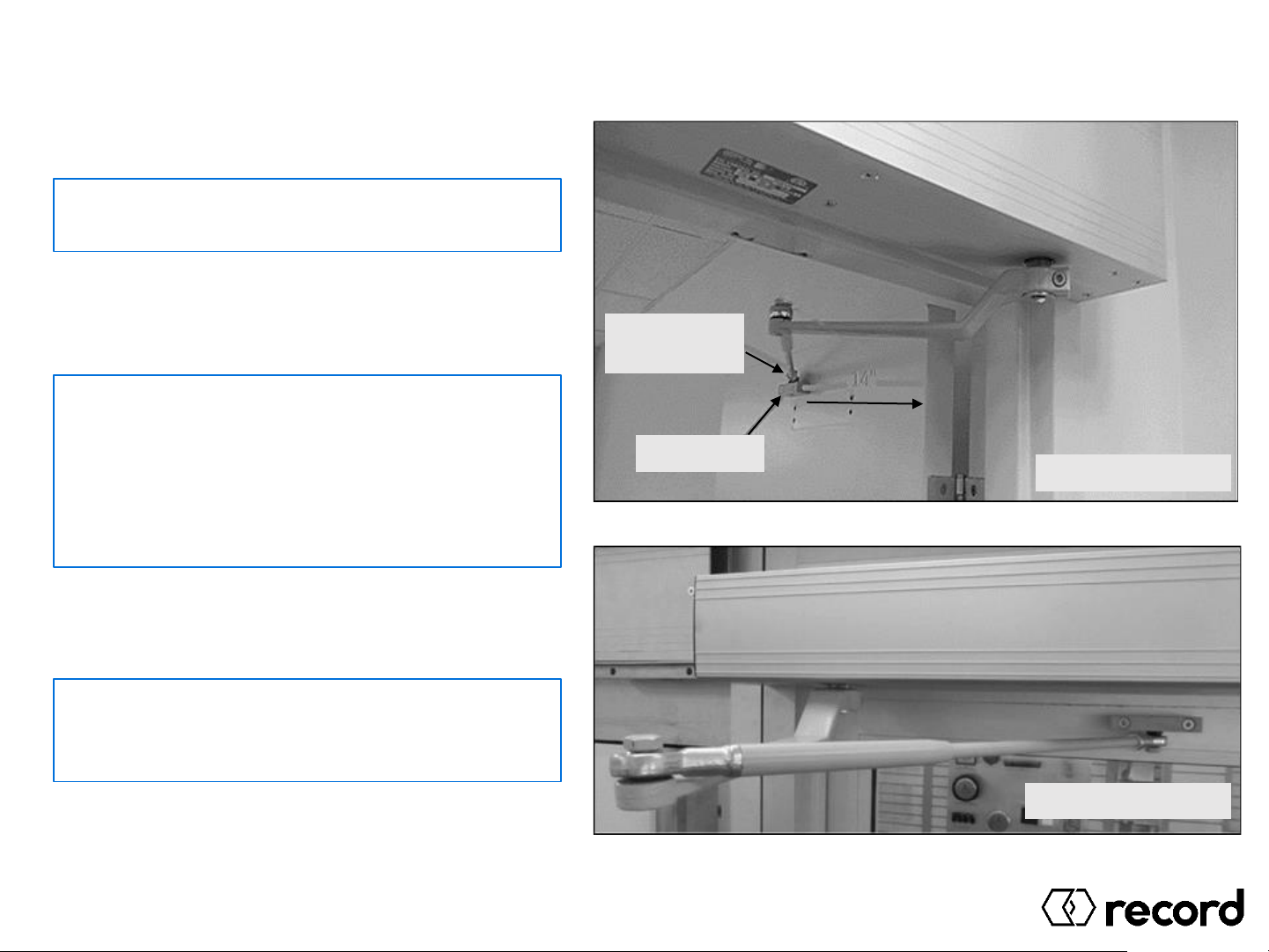

Installation of Push Arm
Step 13) Open door to desired opening
degree
Step 14) With door open measure over
from edge of door 14” and arm
parallel to bottom of jamb,
mark shoe holes onto door.
This is where the arm shoe will
be located on the door.
Step 15) With door still open, also
measure and cut excess rod
length.
14”
Cut Rod to
Length
Arm Shoe Door Shown Open
Door Shown Closed
Installation of Push Arm
Step 16) Setting Pre-load
1. Remove Arm from output shaft
2. Toggle hold open button on end cap
3. Verify that pinion output shaft turns in
the right direction
4. When spindle stops, open the door
and connect main arm to spindle
output shaft and tighten
5. Turn hold open off
6. Door should close and latch the door
Door Shown Open
Door Shown Closed
Note:
Inspect that arm is not binding or rubbing
on door.
Keep ARMS level during installation.
External door or floor stop is required.
Do not use ARM as door stop.

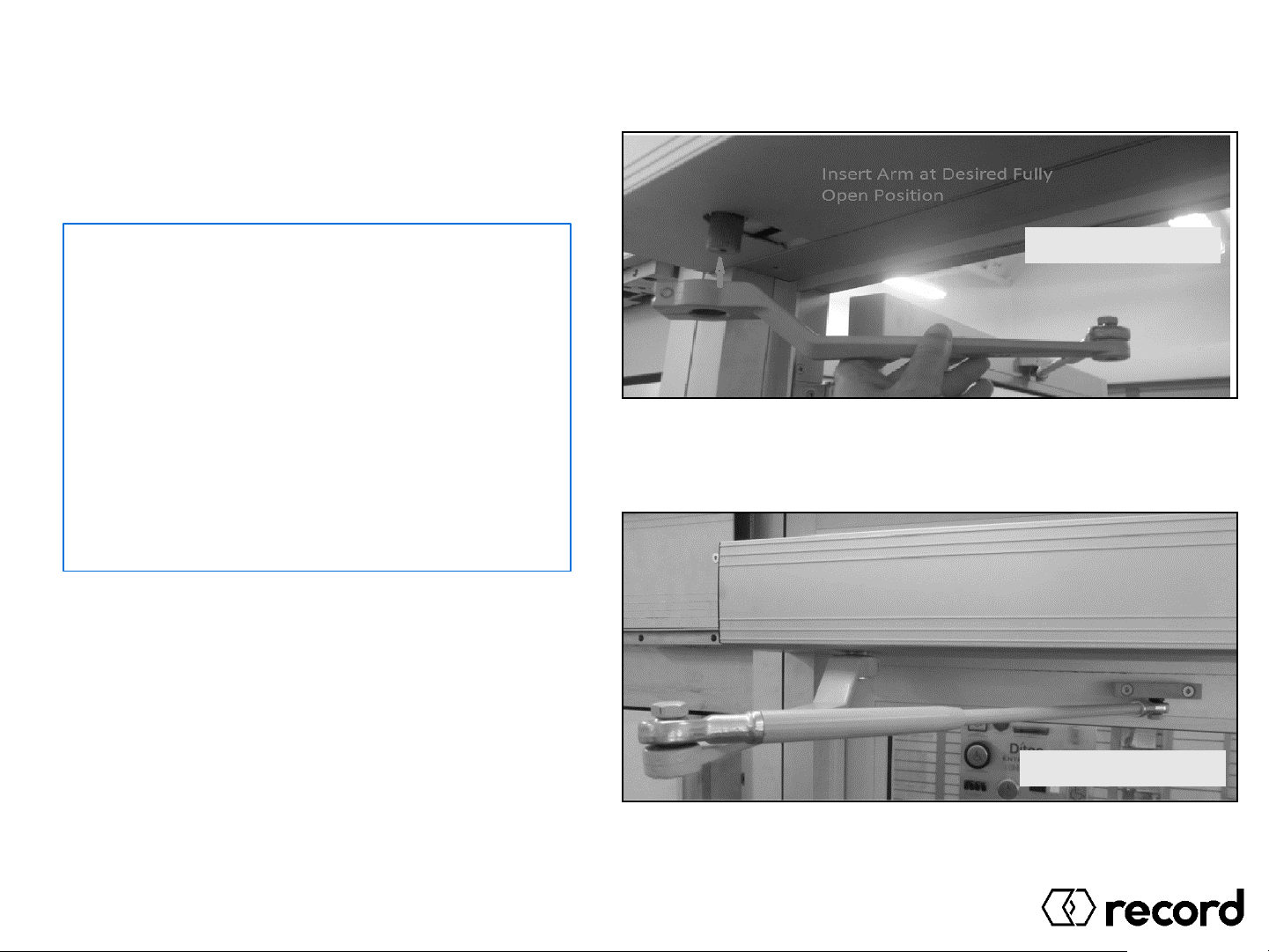

Installation of Pull Arm
Step 17) Pull Arm
1. Toggle hold open button on end cap
2. Verify that pinion output shaft turns in
the right direction
3. When spindle stops, open the door
and connect main arm to spindle
output shaft and tighten. Mark Spot
where Roller touched the door. See
Figure 12
4. Turn hold open off and Close door.
Mark where roller touches the door

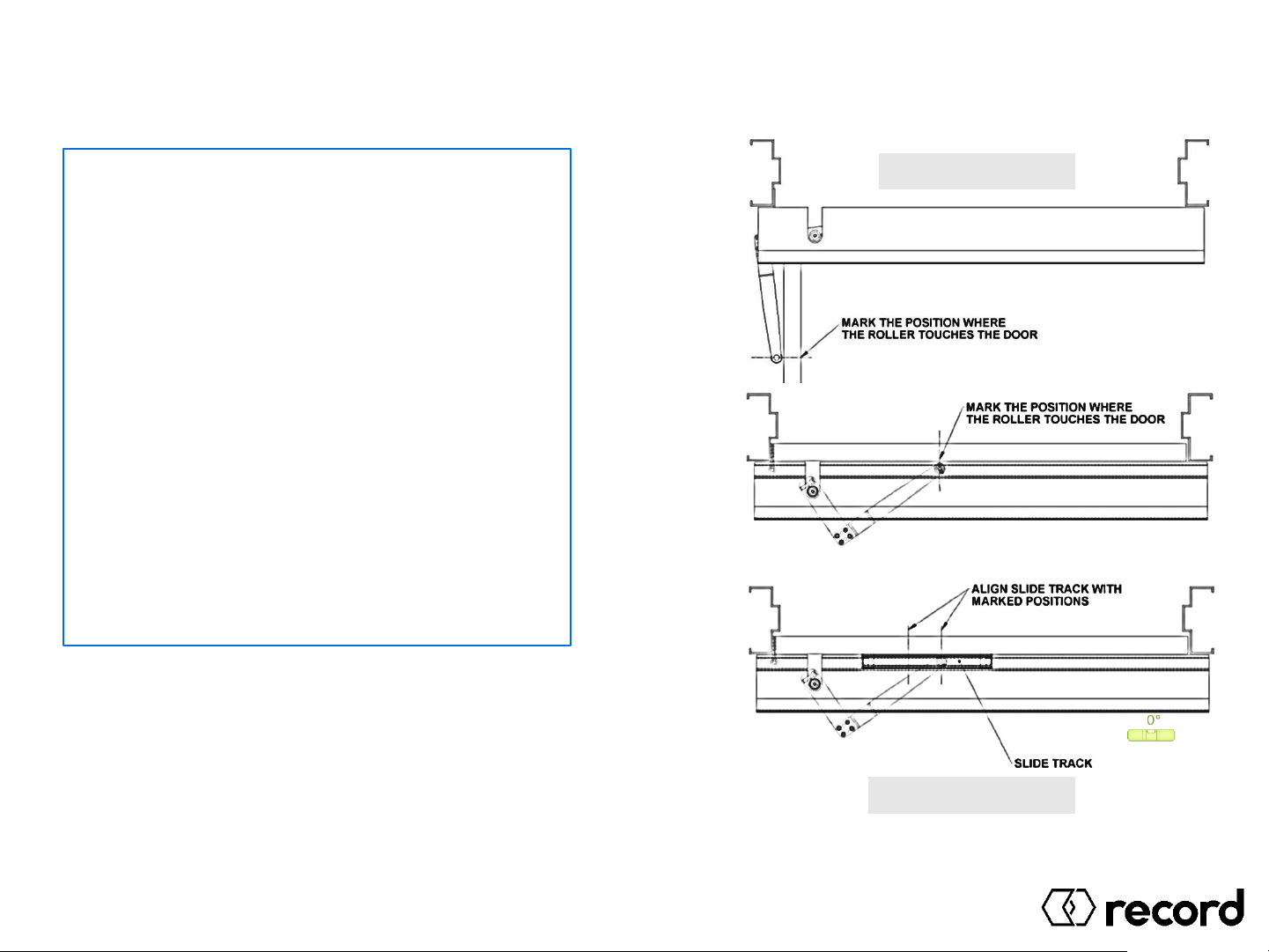

5. Center track on the two marks. See
Figure 12a
6. Keep track level when mounting to the
door.
Note:
Inspect that arm is not binding or rubbing on door.
Keep TRACK Level during mounting.
External door or floor stop is required.
Do not use track as door stop. Door Shown Closed
Figure 12
Door Shown Open
Figure 12a
