DF250RTR Assembly Guide
Table of content
1. Remove Cardboard Box
2. Remove Metal Crate
3. Layout all parts
4. Install Handlebar
5. Attach Speedometer Assembly
6. Attach Left Side Combination Switch
7. Attach Left Side Clutch Lever Assembly
8. Remove Front wheel shaft from the crate
9. Install Front Wheel
10. Install Front Brake Caliper
11. Install Foot Gear Lever
12. Install Mirrors
1. Remove Cardboard Box

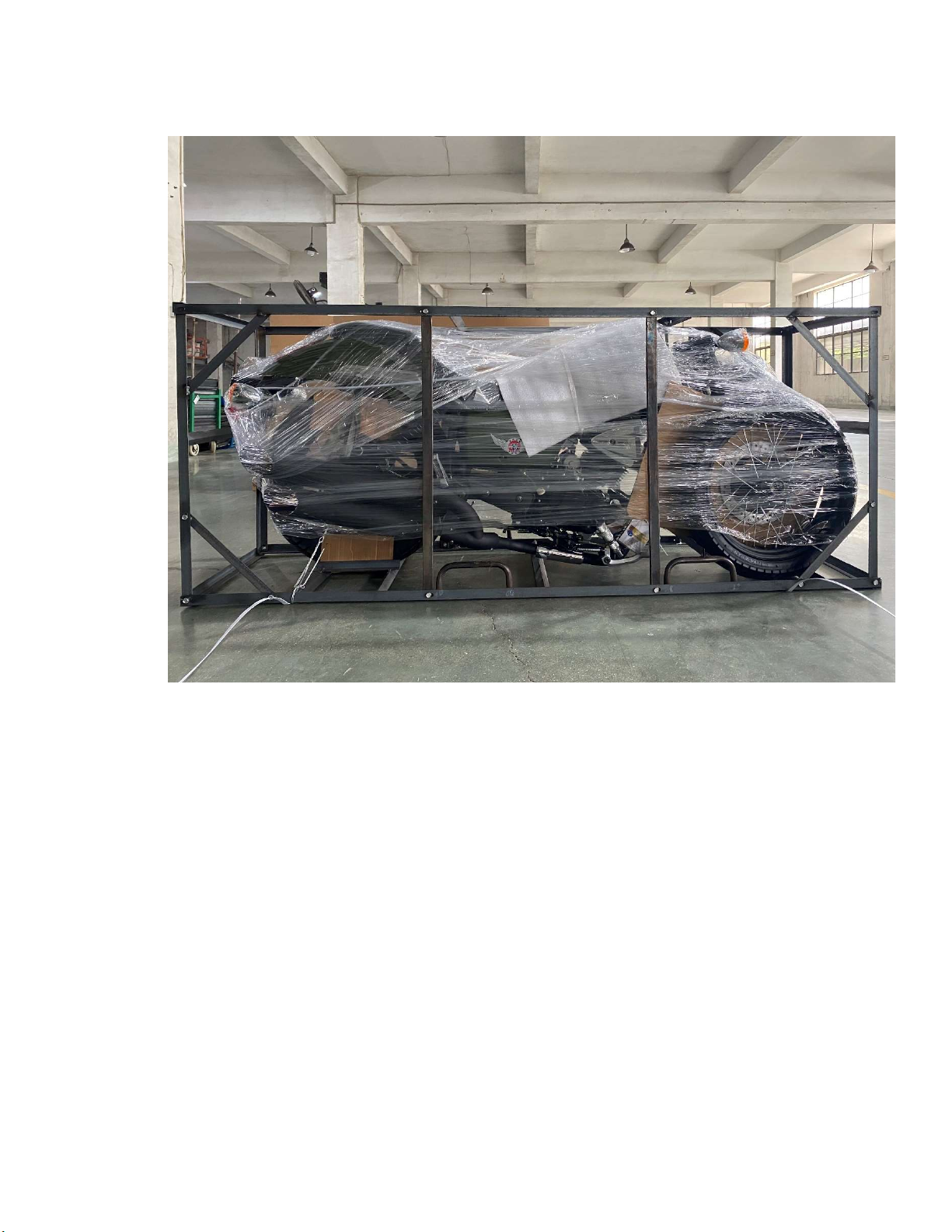

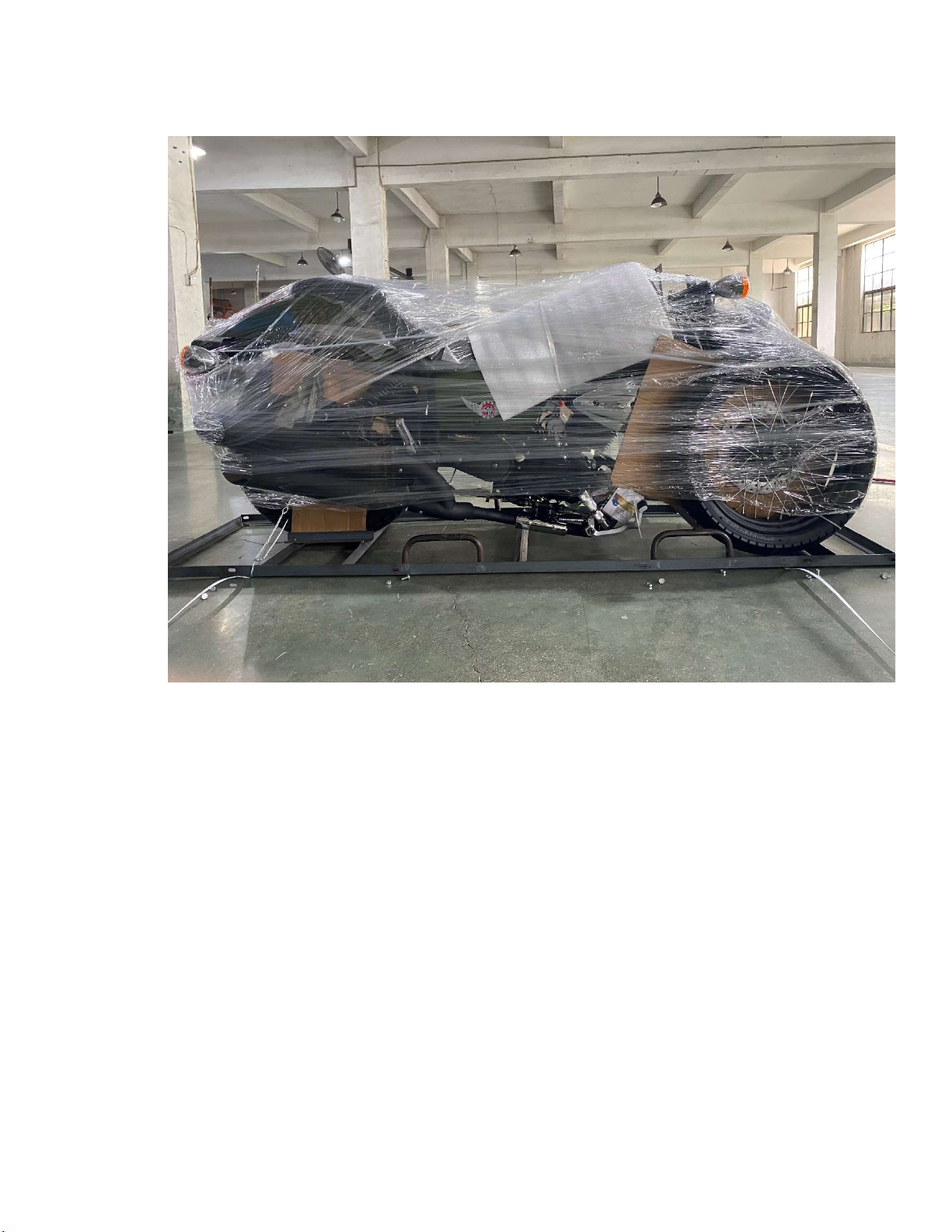

2. Remove Metal Crate

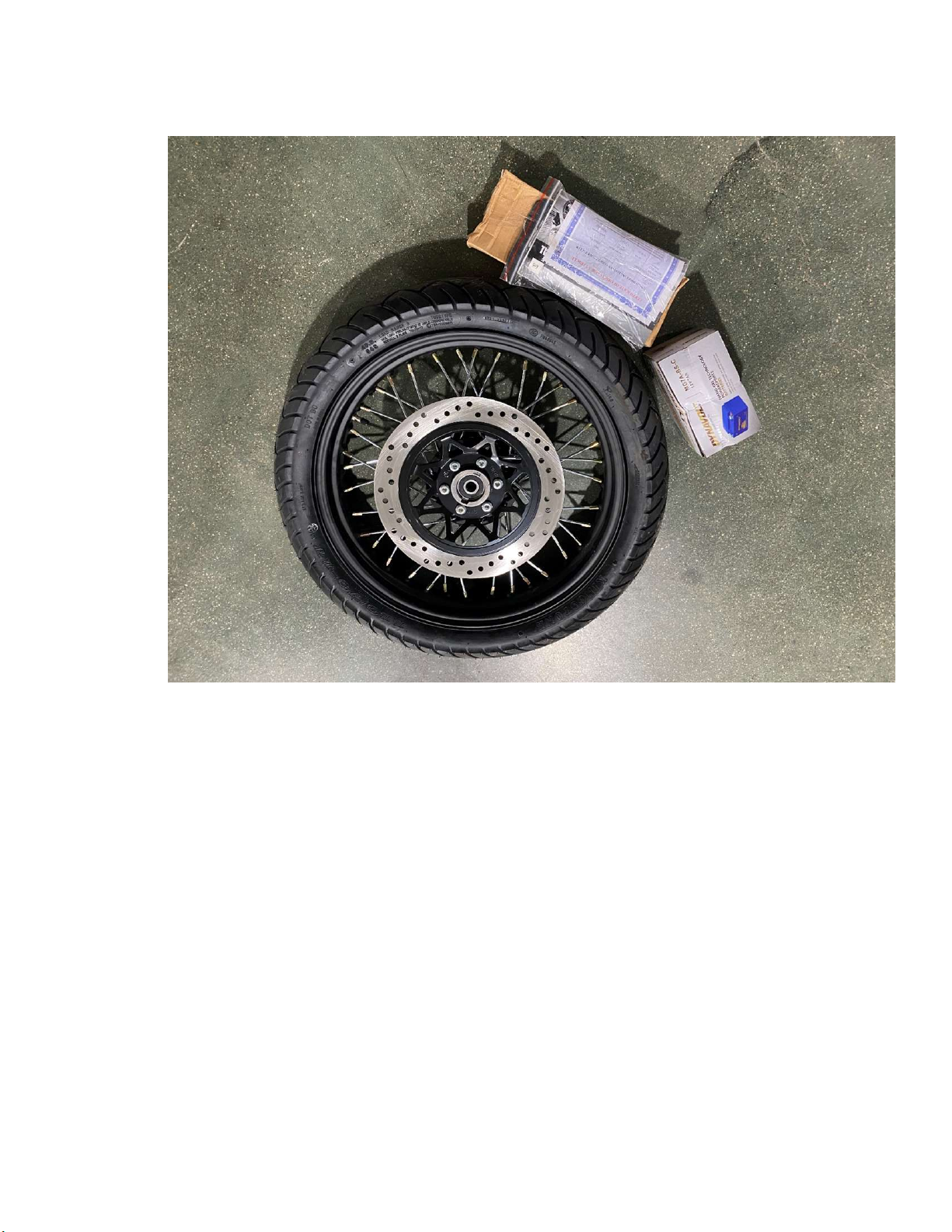

3. Layout all parts

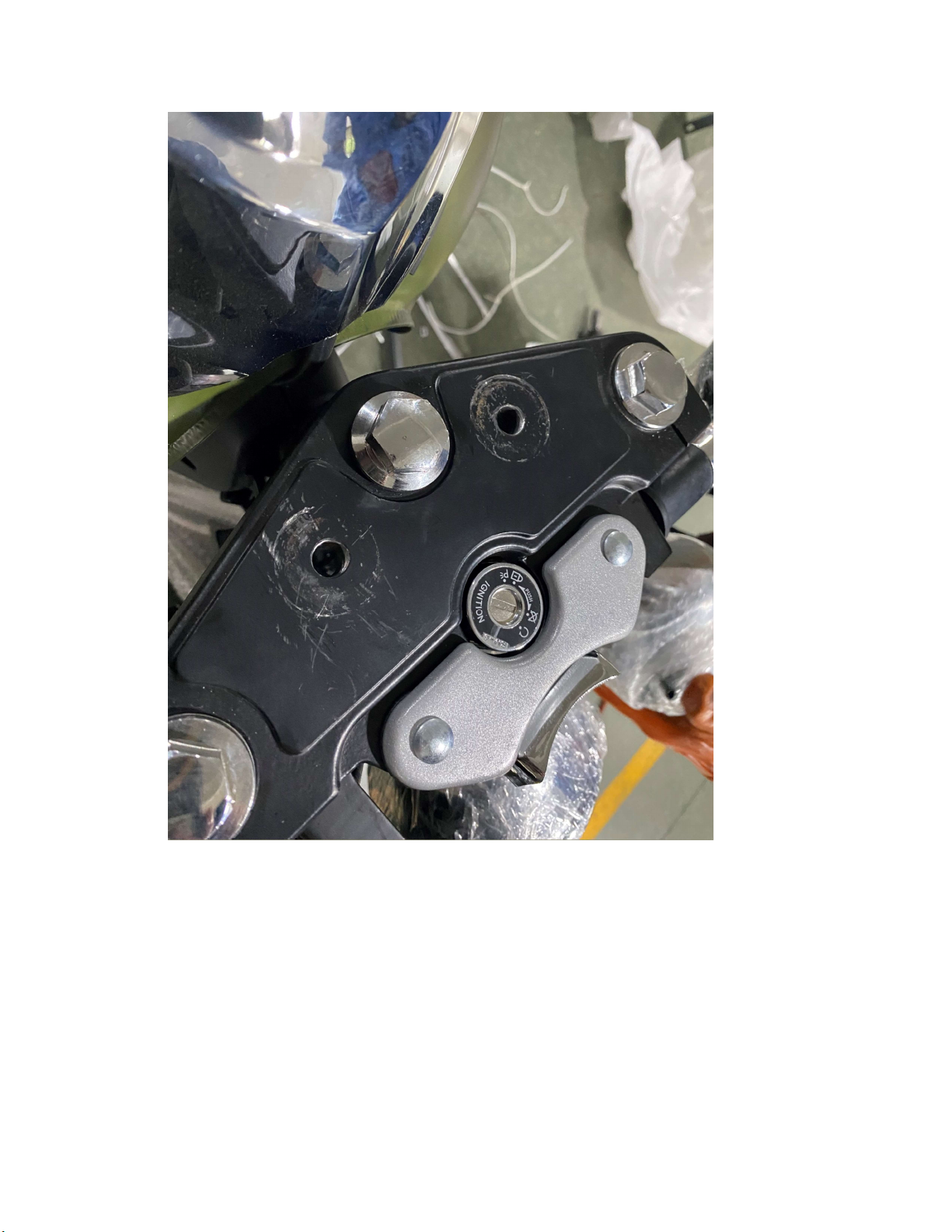

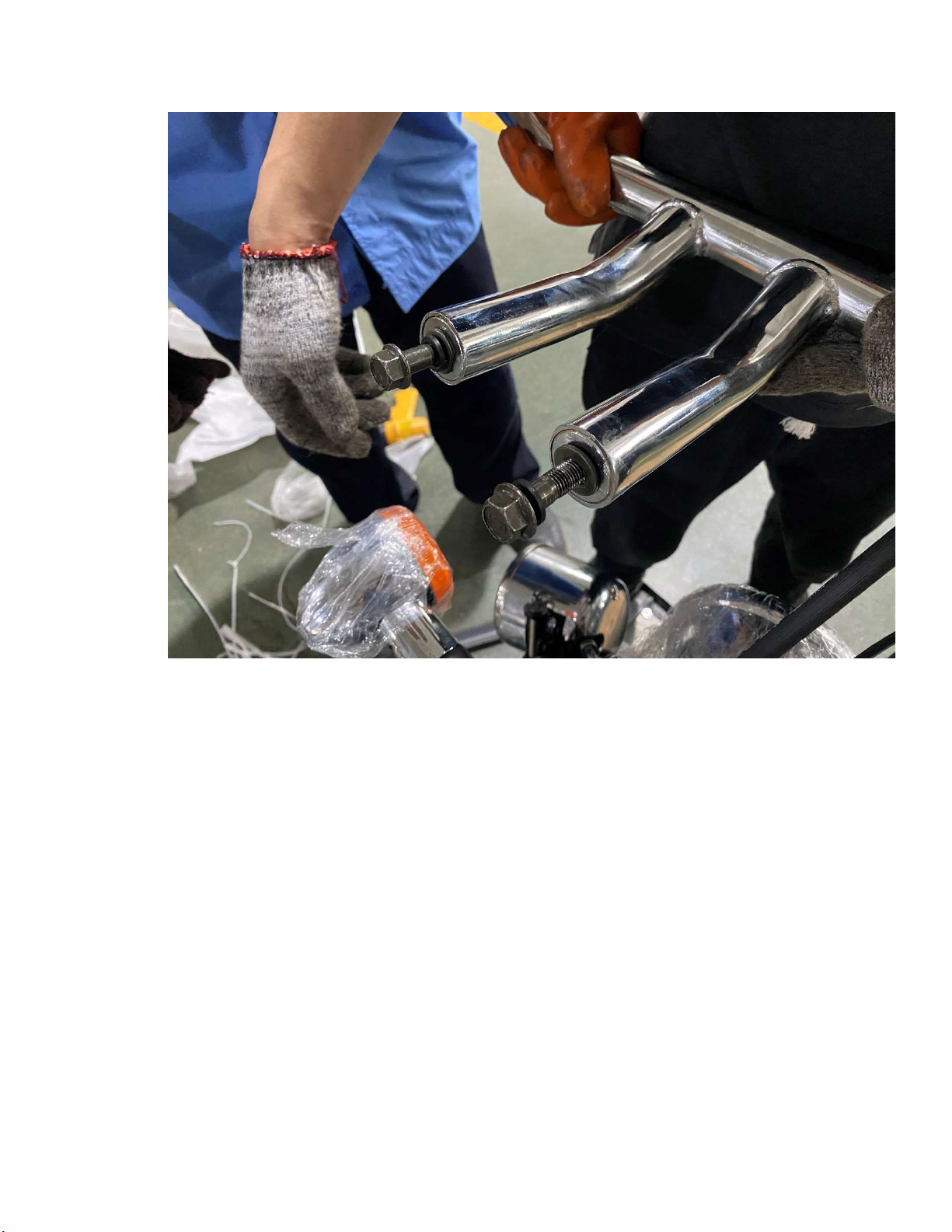

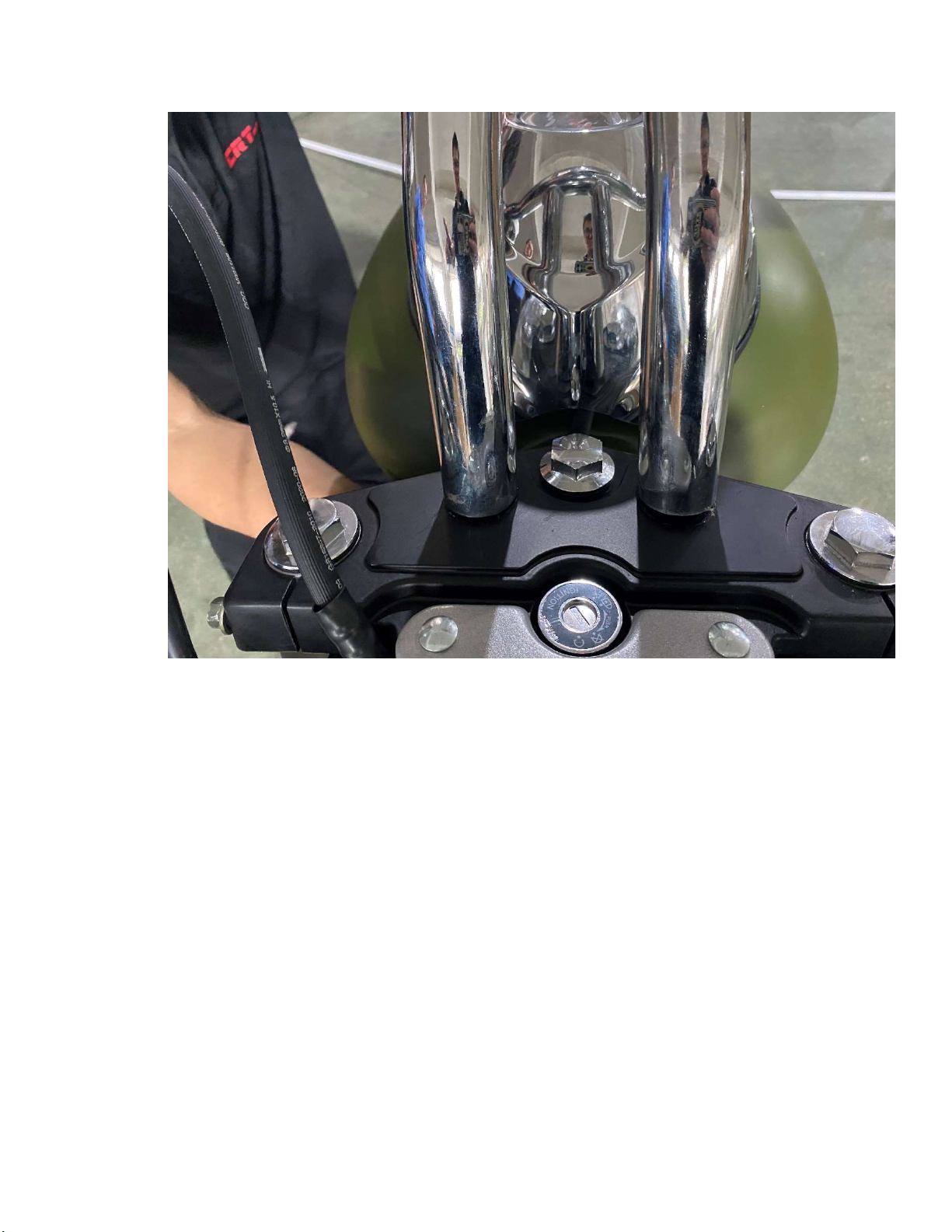

4. Install Handlebar
Make sure to wat
ch out for the
brack
et
and not to scratch
the gas tank.

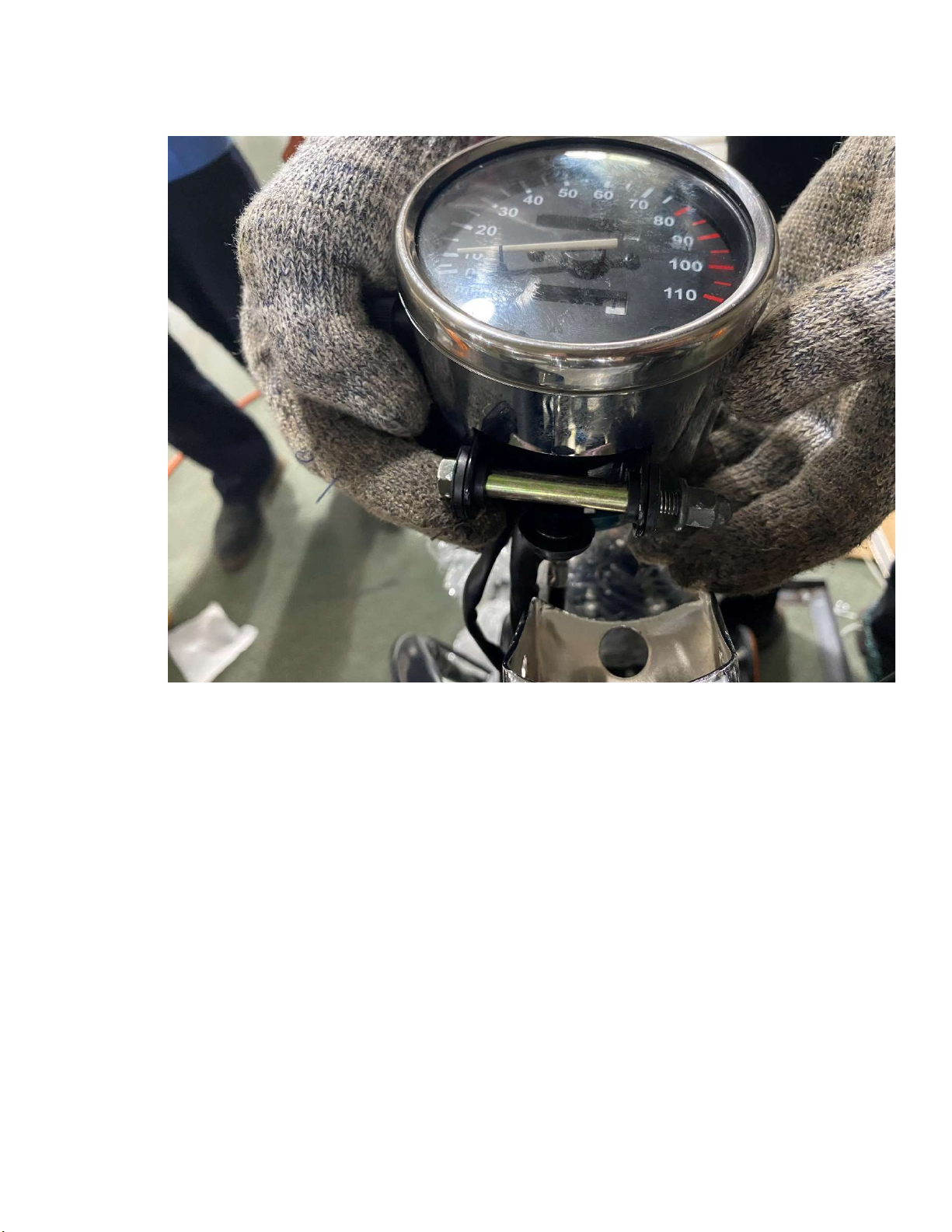

5. Attach Speedometer Assembly
