RedMax HB2300 Manuale del proprietario

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

WARNING

OWNER/OPERATOR MANUAL

HANDHELD BLOWER

6811-96111 (710)

HB2300

Thank you for purchasing a RedMax

product.

Before using our blower, please read

this manual carefully to understand the

proper use of your unit.

Read this manual carefully to understand all

safety precautions, controls, proper operation

and maintenance of your RedMax blower.

Failure to do so could result in serious injury.

Instructions labeled as shown at left concern critical steps or

procedures which must be followed in order to prevent accidents

which could lead to serious bodily injury or death. This mark is

used to indicate instructions which must be followed without

exception.

Instructions labeled as shown at left concern steps or procedures

which, if not followed correctly, could lead to mechanical failure,

breakdown, or damage.

Used to label supplementary instructions designed to provide

hints or directions useful in the use of the product.

WARNING

IMPORTANT

NOTE

SAFETY FIRST

Instructions contained in warnings within this manual and warning seals marked

with a symbol on the blower concern critical points which must be taken into

consideration to prevent possible serious bodily injury, and for this reason you

are requested to read all such instructions carefully and follow them without fail.

Note that there may be times when warning seals peel off or become soiled and

impossible to read. If this happens, you should contact the dealer from which

you purchased the product to order new seals and affix the new seal(s) in the

required location(s).

■ Notes on types of warnings

CONTENTS

SAFETY PRECAUTIONS ............................................................4

OPERATOR

USE OF BLOWER

WORKING CONDITION

AVOID NOISE PROBLEM

AVOID CHANCES OF DAMAGE

PARTS LOCATION & SPECIFICATIONS....................................7

ASSEMBLY..................................................................................7

BLOWER PIPE

FUEL ............................................................................................8

FUEL MIX

MIXING FUEL

FUELING

OPERATION ................................................................................9

STARTING ENGINE

RESTARTING ENGINE WHILE ENGINE HOT

STOPPING ENGINE

ADJUSTING IDLE SPEED

MAINTENANCE.........................................................................10

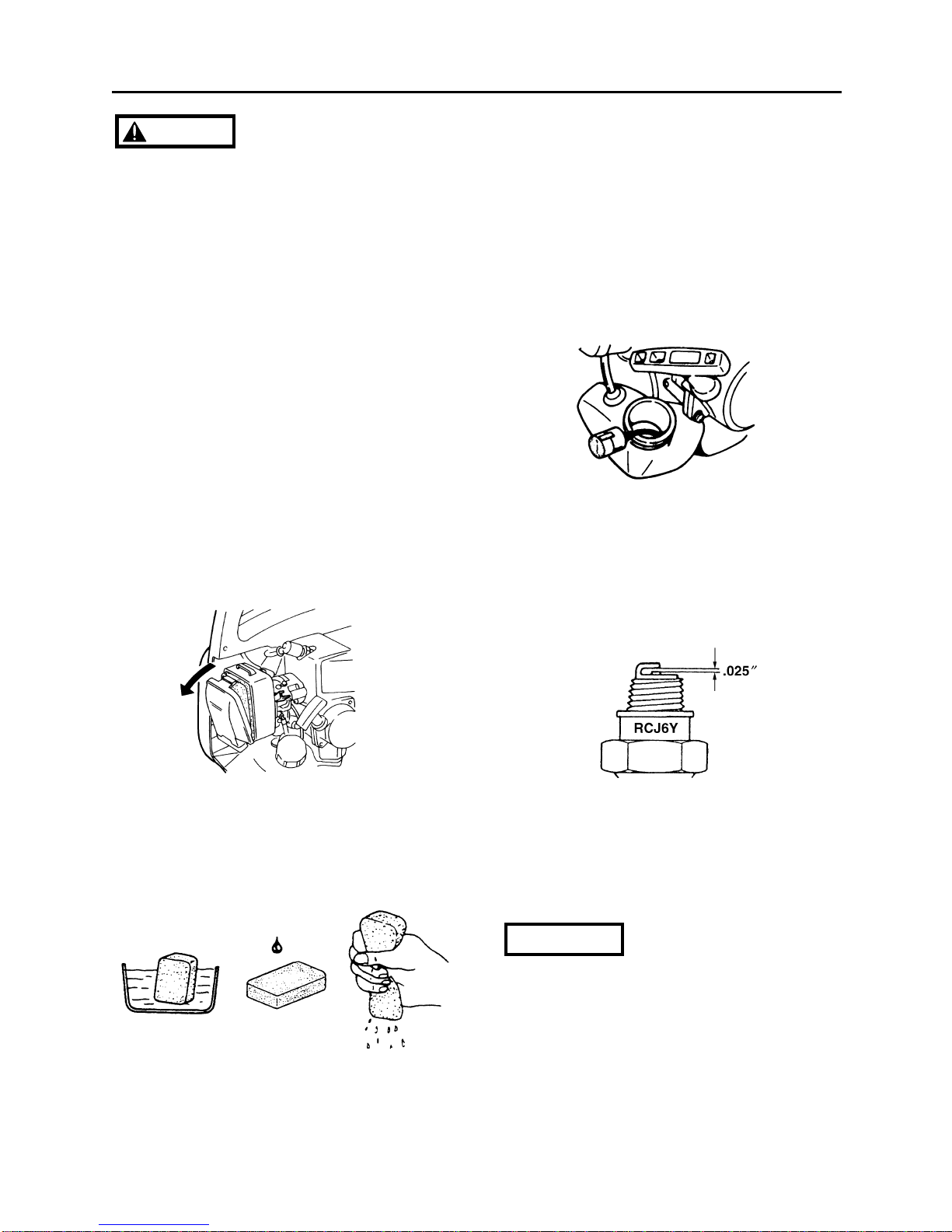

AIR CLEANER

FUEL FILTER

SPARK PLUG

MUFFLER

SPARK ARRESTER

AIR INLET SCREEN

HOW TO INSTALL THE AIR INLET SCREEN TO THE VOLUTE COVER

STORAGE..................................................................................12

PARTS LIST...............................................................................13

•Read this Blower Owner/Operator Manual

carefully. Be sure you understand how to

operate this unit properly before you use

it. Failure to do so could result in serious

injury.

•Be sure to keep this manual handy so that

you may refer to it later whenever any

questions arise. Also note that you are

requested to contact the dealer from

whom you purchased the product for

assistance the event that you have any

questions which cannot be answered

herein.

•Always be sure to include this manual

when selling, lending, or otherwise

transferring the ownership of this product.

■OPERATOR

•Refrain from operating the blower if you are

tired, ill, or upset, or if you are under the

influence of alcohol, drugs or medication.

•Always wear eye protection goggles.

•Always wear ear protectors to protect your

ears from engine noise. If this guideline is

not followed, hearing loss can occur.

•Wear a face mask to guard against the

inhalation of dust.

Safety Precautions

•Wear rubber-soled shoes or shoes with

some other form of anti-slip protection to

help protect you against falling.

•Be sure to wear proper work clothing.

■USE OF BLOWER

•Each time before starting the engine,

inspect the entire unit to see if every part is

in good order and is securely tightened in

place. If any damage is found in the fuel

line, the exhaust line, or the ignition wiring,

do not use the blower until it has been

repaired.

4

•Never use the blower without the screen

at the air intake of the blower. Before

each use, check that the screen is

attached in place and is free from any

damage.

•Never remove debris from the intake

screen while the engine is running.

Contact with rotating blower fan may

result in a serious personal injury.

•Do not allow children to use blower. Make

sure that each person you authorize to

operate the blower understands all of the

safety rules in this manual.

•Avoid using any accessory or attachment

other than those bearing the RedMax mark

for use with the blower.

•When suspending a job or inspecting the

blower, be sure to stop engine.

•Drain the fuel from the fuel tank before

transporting or storing the blower.

•When storing the blower, choose a space

indoors free from moisture and out of the

reach of children.

•Examine the blower at intervals for loose

fasteners and rusted or damaged parts.

Use special care around the fuel line, the

muffler, and the ignition wiring.

WARNING

WARNIN

Safety Precautions

•All engine service except for those

described in this manual should be

performed by competent service personnel.

Improper service to the blower fan and

muffler could cause a hazardous failure.

■WORKING CONDITION

•Keep open flames and sparks away from

the area where fuel is handled or stored, as

the fuel is highly flammable.

•Make sure that the engine has cooled down

before refueling.

•Mix and store fuel only in a approved

container.

•Never smoke while refueling the blower.

•Wipe off any spilled fuel and tighten the fuel

cap securely.

•Move at least 3m(10 ft) away from the

fueling spot before starting the engine.

•Check the work area that the blower will be

used in and remove or cover all valuables

that may be damaged by the air blast or

thrown debris.

•Avoid running the engine indoors. The

exhaust gases contain harmful carbon

monoxide.

WARNING

5

6

•Keep operation area clear of all persons,

particularly small children and pets. Injury

may result from flying debris.

•Avoid using the blower where stable footing

and balance are not assured.

•Never touch the spark plug or plug cord

while the engine is in operation. Doing so

may result in being subjected to an

electrical shock.

•Never touch the muffler, spark plug, or

other metallic parts of the engine while the

engine is in operation or immediately after

shutting down the engine. These metallic

parts reach high temperatures during

operation and doing so could result in

serious burns.

■AVOID NOISE PROBLEM

Check and follow the local regulations

as to sound level and hours of

operations for blower.

•In general, operate blowers between

8a.m.and 5p.m.on week day and 9a.m.to

5p.m.weekends. Avoid using blower late at

night and/or early in the morning.

•Loosen compacted leaves, grass or debris

with a rake or broom beforehand, so that

the lowest possible throttle setting would

get the job done.

•In dusty conditions, slightly dampen

surfaces or use mister attachement when

water is available.

•Check if the air filter, air intakes and muffler

are working in properly.

•Never use more than one piece of the

blower at a time.

■AVOID CHANCES OF DAMAGE

•Avoid directing the blower nozzle toward

persons, pets, cars, windows or anything

that could be harmed by blowing debris or

dust.

•Keep the nozzle at full extension when

operating so as to make the air stream

close to the ground.

•Collect any trash and leaves and put them

into a proper container after the job is

done.

•Always check to be sure that no debris has

been blown onto someone else’s property.

NOTE

Safety Precautions

Parts Location & Specifications

Assembly

■BLOWER PIPE

• Align groove in blower pipe with projection on

blower housing (or another blower pipe) and

slide the pipe onto the blower housing (or

another blower pipe).

Rotate the pipe clockwise to lock it into place.

MODEL EB2300

Dimensions ( L x W x H ) mm ( in ) 325 x 230 x 360 (12.8 x 9.1 x 14.2)

Dry Weight (without tube and nozzle) kg ( ibs ) 3.6 (7.9)

Fuel Tank Capacity liter ( fl. oz ) 0.75 (25.3)

Engine Type Air cooled 2-cycle gasoline engine

Piston Displacement cc ( cu. in ) 22.5 (1.37)

Carburetor Walbro Diaphragm type

Ignition System TCI

Spark Plug Champion RCJ6Y (Noise-proof)

Muffler Spark arrester equipped

Operating Engine Speed rpm 7.000 ~ 7.500

Idle Speed rpm 2.300

Max. Air Volume cu. m/min ( cfm ) 10 (353)

Max. Air Velocity m/sec ( mph ) 67 (150)

Noise Level at 50 feet db ( A ) 69

7

8

•Gasoline is very flammable. Avoid

smoking or bringing any flame or

sparks near fuel. Make sure to stop the

engine and allow it cool before

refueling the unit. Select outdoor bare

ground for fueling and move at least

3m(10ft) away from the fueling spot

before starting the engine.

■FUEL MIX

•The engine is lubricated by oil mixed into

gasoline. Prepare a mixture of unleaded,

alcohol-free gasoline and RedMax oil or an

anti-oxidant added quality oil expressly

labeled for air-cooled 2-cycle engine use.

Recommended mixing ratio is 32 : 1.

•Make sure to use gasoline with a minimum

octane number of 90 ROZ(USA/Canada :

pump octane min.87)

•Unleaded gasoline is recommended to

reduce the contamination of the air for the

sake of your healths and the environment.

•Disqualified gasoline or oil may damage

sealing rings, fuel lines or fuel tank of the

engine.

•Exhaust emission are controlled by the

fundamental engine parameters and

components (eq., carburetion, ignition

timing and port timing) without addition

of any major hardware or the introduc-

tion of an inert material during combus-

tion.

WARNING

•These engines are certified to operate

on unleaded gasoline.

■MIXING FUEL

1.Measure out the quantities of gasoline and

oil to be mixed.

2.Put some of the gasoline into a clean,

marked fuel container.

3.Pour in all of the oil, cap the container and

shake it well.

4.Pour in the rest of gasoline and shake

again for one minute.

5.Indicate the contents on outside of

container to prevent with other containers.

DO NOT USE :

•Fuel containing no oil (raw gasoline)

may cause the engine becoming

overheated and damaged.

•Gasohol may cause deterioration of rubber

and plastic parts and disruption of the

engine lubrication.

•Oil for 4-cycle engine use or water-

cooled 2-cycle engine use may cause

spark plug fouling, carbon building-up and

piston ring sticking.

•Mixed fuels which have been left unused

for a period of one month or more may

have the carburetor clogged or result in the

engine failing to operate properly.

■FUELING

1.Unfasten and remove the fuel cap. Put the

cap on a clean surface for dirt prevention.

2.Pour fuel into the fuel tank up to 80% of full

capacity.

3.Replace the fuel cap and tighten securely.

Spilled fuel must be wiped away from the

blower before starting the engine.

Fuel

32:1 MIXING CHART

GASOLINE gal. 1 2345

2-CYCLE OIL fl.oz 4 8 12 16 20

■

RESTARTING ENGINE WHILE ENGINE IS HOT

1. When restarting the engine immediately

after stopping it, leave the choke open.

2. If the engine won't start after several

attempts, close the choke and repeat

pulling the rope or remove the spark plug

and dry it.

■STOPPING ENGINE

Move the throttle lever to the idling position

and press the stop switch (red button) until

the engine comes to a complete stop.

Except for an emergency, avoid stopping the

engine while pulling the throttle lever.

■ADJUSTING IDLE SPEED

1. When the engine tends to stop frequently

at an idle mode, turn the adjusting screw

clockwise.

Warm up the engine before adjusting the idle

speed.

NOTE

■STARTING ENGINE

1. Rest the unit on a flat, firm place.

2. Pump the primer until fuel flows out in the

clear tube.

3. Move the choke lever upward to close the

choke.

4. While squeezing the throttle lever with

your left hand, pull the starter rope with

your right hand.

Avoid pulling the rope to its dead end or

returning it by releasing the knob. Such

actions can cause starter failures.

5. When the engine has started, move the

choke lever gradually downward to open

the choke.

6. Allow the engine to warm up for a half

minute before starting operation.

NOTE

Operation

9

10 

■FUEL FILTER

•A clogged fuel filter may cause poor

acceleration of the engine. Check

periodically to see if the filter is clogged

with dirt. The filter can be taken out of the

fueling port using a small wire hook.

Disconnect the filter assembly from the fuel

pipe and unhook the retainer to

disassemble it. Clean the components with

gasoline.

■SPARK PLUG

•The spark plug may gather carbon deposits

on its firing end with reasonable use.

Remove and inspect the spark plug every

25 hours and clean the electrodes as

necessary with a wire brush. The spark gap

should be adjusted to .025 in.

•Plug manufacturers recommend replacing

the plug twice a year to avoid unexpected

plug failure in a job.

REPLACEMENT PLUG IS A CHAMPION

RCJ6Y.

•Note that using any spark plugs other than

those designated may result in the engine

failing to operate properly or in the engine

becoming overheated and damaged.

•To install the spark plug, first turn the plug

until it is finger tight, then tighten it a

quarter turn more with a socket wrench.

IMPORTANT

•Make sure that the engine has stopped

and is cool before performing any

service to the blower. Contact with

rotating blower fan or hot muffler may

result in a personal injury.

■AIR CLEANER

•Check the air cleaner every 25 hours of

use or more frequently if used under dusty

conditions. A clogged air filter may increase

fuel consumption while cutting down the

engine power. Never operate the blower

without the air filter or with a deformed filter

element because unfiltered dusty air will

quickly ruin the engine.

CLEANING AIR FILTER:

1.Remove the air cleaner cover by pulling

the tab on bottom and take out the filter

element.

2.Use neutral detergent and warm water to

clean the filter element. After cleaning, air

dry the element completely and moisten

with a small amount of motor oil.

3.Place the filter element into the air cleaner

housing and press the cover against the

housing until it clicks.

WARNING

Maintenance

Indice

Altri manuali RedMax Soffiatore

RedMax

RedMax EBZ8560RH Manuale utente

RedMax

RedMax EBZ5150RH Manuale utente

RedMax

RedMax HBZ2610 Manuale del proprietario

RedMax

RedMax EBZ8001-CA Manuale del proprietario

RedMax

RedMax EBZ7001 Manuale del proprietario

RedMax

RedMax EBZ5100Q Manuale del proprietario

RedMax

RedMax EBZ5150 Manuale del proprietario

RedMax

RedMax US-1 EBZ5100Q Manuale del proprietario

RedMax

RedMax EBZ7500 Manuale utente

RedMax

RedMax EB6200 Manuale del proprietario

RedMax

RedMax EB4400 Manuale del proprietario

RedMax

RedMax EBZ8000RH Manuale del proprietario

RedMax

RedMax EBZ3050RH Manuale del proprietario

RedMax

RedMax EBZ6500 Manuale utente

RedMax

RedMax HB250 Manuale del proprietario

RedMax

RedMax BHB250P Manuale utente

RedMax

RedMax HBZ2600 Manuale del proprietario

RedMax

RedMax EBZ7500 Manuale del proprietario

RedMax

RedMax EB4401 Manuale del proprietario

RedMax

RedMax EBZ7150 Manuale del proprietario

RedMax

RedMax EBZ5000Q Manuale del proprietario

RedMax

RedMax EBZ4800 Manuale del proprietario

RedMax

RedMax EBZ5000 Manuale del proprietario

RedMax

RedMax HBZ2601-CA Manuale del proprietario

Manuali Soffiatore popolari di altre marche

Weed Eater

Weed Eater VS2000BV Manuale utente

KRAUSMANN

KRAUSMANN U37020-00 Manuale utente

Bosch

Bosch ALB 36 LI Manuale utente

Cub Cadet

Cub Cadet HB425 Manuale utente

GreenWorks Pro

GreenWorks Pro BLB482 Manuale utente

ARIETE

ARIETE 2768 Manuale utente

NuTone

NuTone 331H Manuale utente

GÜDE

GÜDE GLB 200 18 Li-Ion Manuale utente

I.VA.CO.

I.VA.CO. SC Series Istruzioni operative

DeWalt

DeWalt DCE100 Manuale utente

Becker

Becker SV 7.330 Manuale utente

Metabo

Metabo AG 18 Pro Manuale utente

Desa

Desa GA3650TB Manuale utente

Echo

Echo Power Blower PB-230LN Manuale utente

Echo

Echo PB-413H Manuale utente

Black & Decker

Black & Decker BV3100 Manuale utente

Ryobi

Ryobi RY08570 Manuale utente

Haaga

Haaga 355 Manuale utente
