OWNER/OPERATOR MANUAL

LONG REACH TRIMMER

T1503-93110(912)

LRTZ2500



The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

WARNING

Before using our trimmers, please

read this manual carefully to

understand the proper use of your

unit.

WARNING

DRIVE UNIT 000000 and up CUTTING UNIT 000000 and up ENGINE UNIT 000479 and up

APPLICABLE SERIAL NUMBERS :

INFORMATION

This machine is equipped with an Overload Cancellation

Mechanism.

When the cutting blades have got into metal wires or those

twigs difficult to cut, the mechanism acts as a shock

absorber, and protects the drive gears and the blades from

severe reaction which could give damage to those parts.

When the blades are frequently caught by twigs, please

check the following points:

1. Size of the twigs. NEVER TRY TO CUT TWIGS

THICKER THAN 3/16” (5mm).

2. Condition of the blade edges. REPLACE THE WORN

OUT BLADES.

For the detail of the mechanism, please see below.

Thank you for choosing our product.

SAFETY FIRST

Instructions contained in warnings within this

manual marked with a symbol concern

critical points which must be taken into

consideration to prevent possible serious

bodily injury, and for this reason you are

requested to read all such instructions

carefully and follow them without fail.

■WARNINGS IN THE MANUAL

This mark indicates instructions which must be

followed in order to prevent accidents which could

lead to serious bodily injury or death.

This mark indicates instructions which must be

followed, or it leads to mechanical failure,

breakdown, or damage.

This mark indicates hints or directions useful in the

use of the product.

NOTE

IMPORTANT

WARNING

CONTENTS

1. Parts location …………………………………4

2. Specifications …………………………………4

3. Warning labels on the machine ……………5

4. Symbols on the machine ……………………5

5. For safe operation ……………………………6

6. Set up…………………………………………12

7. Fuel……………………………………………14

8. Operation ……………………………………16

9. Maintenance …………………………………19

10. Storage ………………………………………23

11. Troubleshooting guide………………………24

12. Parts list………………………………………25

2. Specifications

■LRTZ2500

Overall size(LxWxH)························································ 90.1(2300)x9.8(250)x12.2(310) in(mm)

Dry weight w/o acc.···························································································· 13.4 (6.1) lbs(kg)

Engine Type ········································································· Air-cooled 2-stroke gasoline

Model ··························································································· Zenoah GZ25N

Displacement··········································································· 1.6cu-in (25.4cm3)

Max. output······················································· 1.2Hp (0.9kW)at 7500/min-1(rpm)

Idle speed ·············································································3000±200/min-1(rpm)

Fuel··········································································· Mixture(Gasoline 50 : Oil 1)

Carburetor······································································· Walbro Diaphragm type

Spark plug ························································································NGK CMR7A

Fuel tank capacity·······························································································22.0 fl.oz (0.65 )

Transmission··········································································· Centrifugal clutch, Rigid driveshaft

Reduction ratio ························································································································· 4.0

Durability period················································································································· 300 hrs

Cutting head Type···········································································Reciprocating Double blade

Tooth·········································································································28 teeth

Pitch···················································································································30

Effective cut width··························································································16 in

Angle adjust range··················90°(±45° from cutting head position aligned shaft)

Standard Accessories

Shoulder Strap······························································································ 1 pc.

Goggle··········································································································· 1 pc.

Tool Kit·········································································································· 1 pc.

Blade Cover ·································································································· 1 pc.

Specifications are subject to change without notice.

1. Parts location

1. Loop handle

2. Shoulder strap hanger

3. Ignition switch

4. Throttle cable

5. Throttle lever

6. Throttle set button

7. Drive shaft housing

8. Blade

❲

❳

9. Gear case

10. Spark arrester

11. Starter knob

12. Fuel tank

13. Primer pump

14. Choke lever

15. Air cleaner cover

(1)Read owner's manual before operating this machine.

(2)Wear head, eye and ear protection.

(3)Handling this machine improperly could result in accidents causing serious injury or

death. Read this manual carefully and practice using the trimmer until you are fully

acquainted with all operations and have learned to use it correctly.

(4)Keep all children, bystanders and helpers 15 meters away from the brushcutter

(5)Keep hands away from cutting blades

If warning label peel off or become soiled and impossible to read, you should contact the dealer

from which you purchased the product to order new labels and affix them in the required

location(s).

Never modify your trimmer.

We won't warrant the machine, if you use the remodeled trimmer or you don't observe the

proper usage written in the manual.

WARNING

IMPORTANT

For safe operation and maintenance, symbols are

carved in relief on the machine. According to these

indications, please be careful not to take a mistake.

(a)The port to refuel the "MIX GASOLINE"

Position: FUEL TANK CAP

(b)The direction to close the choke

Position: AIR CLEANER COVER

3. Warning labels on the machine

4. Symbols on the machine

❲

❳

❲

❳

5. For safe operation

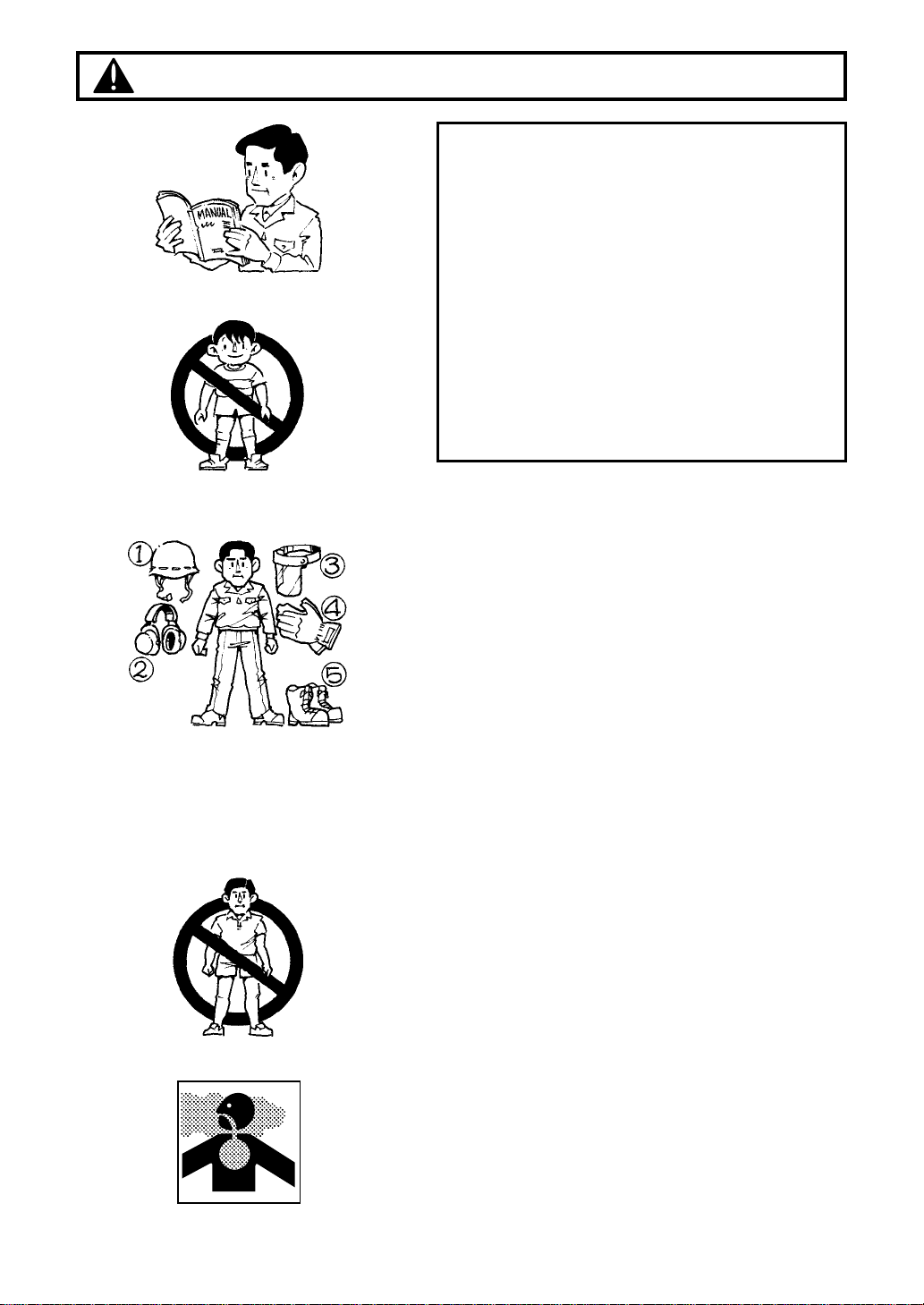

1. Read this manual carefully until you

completely understand and follow all safety

and operating instructions.

2. Keep this manual handy so that you may refer

to it later whenever any questions arise. Also

note, if you have any questions which cannot

be answered herein, contact the dealer from

whom you purchased the product.

3. Always be sure to include this manual when

selling, lending, or otherwise transferring the

ownership of this product.

4. Never allow children or anyone unable to fully

understand the directions given in the manual

to use the machine.

■WORKING CONDITION

1. When using the product, you should wear proper

clothing and protective equipment.

(1)Helmet

(2)Ear protectors

(3)Protection goggles or face protector

(4)Thick work gloves

(5)Non-slip-sole work boots

2. And you should carry with you.

(1)Attached tools and files

(2)Properly reserved fuel

(3)Spare blade

(4)Things to notify your working area (rope,

warning signs)

(5)Whistle (for collaboration or emergency)

(6)Hatchet or saw (for removal of obstacles)

3. Do not wear loose clothing, jewelry, short

trousers, sandals, or go barefoot. Do not wear

anything which might be caught by a moving

part of the unit. Secure hair so it is above

shoulder length.

■WORKING CIRCUMSTANCE

1. Never start the engine inside a closed room or

building. Exhaust gases contain dangerous

carbon monoxide.

2. Never use the product,

a. when the ground is slippery or when you can’t

maintain a steady posture.

❲

❳

b. At night, at times of heavy fog, or at any other

times when your field of vision might be

limited and it would be difficult to gain a clear

view of the working area.

c. During rain storms, during lightning storms, at

times of strong or gale-force winds, or at any

other times when weather conditions might

make it unsafe to use the product.

■WORKING PLAN

1. You should never use the product when under

the influence of alcohol, when suffering from

exhaustion or lack of sleep, when suffering from

drowsiness as a result of having taken cold

medicine or at any other time when a possibility

exists that your judgment might be impaired or

that you might not be able to operate the product

properly and in a safe manner.

2. When planning your work schedule, allow plenty

of time to rest. Limit the amount of time over

which the product is to be used continuously to

somewhere around 30~40 minutes per session,

and take 10~20 minutes of rest between work

sessions. Also try to keep the total amount of

work performed in a single day under 2 hours or

less.

1. If you don’t observe the working time, or

working manner (See ■USING THE

PRODUCT), Repetitive Stress Injury(RSI)

could occur.

If you feel discomfort, redness and swelling

of your fingers or any other part of your

body, see a doctor before getting worse.

2. To avoid noise complaints, in general,

operate product between 8a.m. and 5p.m. on

weekdays and 9a.m. to 5p.m. weekends.

Check and follow the local regulations as to sound

level and hours of operations for the product.

NOTE

WARNING

5. For safe operation

❲

❳

■BEFORE STARTING THE ENGINE

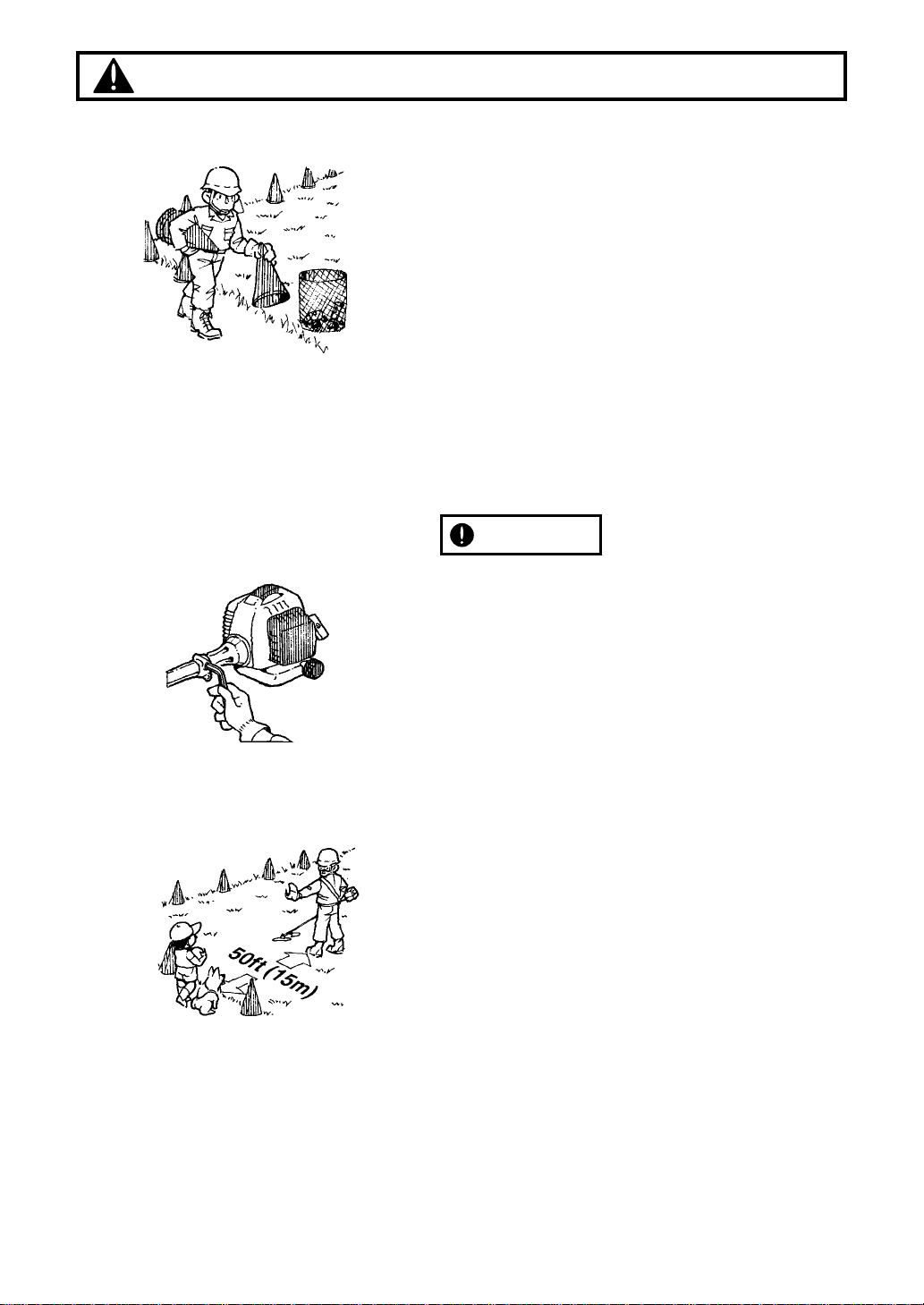

1. The area within a perimeter of 50 feet (15m) of

the person using the product should be

considered a hazardous area into which no one

should enter. If necessary yellow warning rope,

warning signs should be placed around the

perimeter of the area. When work is to be

performed simultaneously by two or more

persons, care should also be taken to constantly

look around or otherwise check for the presence

and locations of other people working so as to

maintain a distance between each person

sufficient to ensure safety.

2. Check the condition of working area to avoid any

accident by hitting hidden obstacles such as

stumps, stones, cans, or broken grass.

Remove any obstacle before beginning work.

3. Inspect the entire unit for loose fasteners and

fuel leakage. Make sure that the cutting

attachment is properly installed and securely

fastened.

4. Always use the shoulder strap. Adjust the strap

for comfort before starting the engine. The strap

should be adjusted to fit your body according as

your working posture.

■STARTING THE ENGINE

1. Keep bystanders and animals at least 50feet

(15m) away from the operating point. If you are

approached, immediately stop the engine.

2. The product is equipped with a centrifugal clutch

mechanism, so the cutting attachment begins to

rotate as soon as the engine is started by putting

the throttle into the start position. When starting

the engine, place the product onto the ground in

a flat clear area and hold it firmly in place so as

to ensure that neither the cutting part nor the

throttle come into contact with any obstacle

when the engine starts.

IMPORTANT

5. For safe operation

❲

❳

Never place the throttle into the high speed

position when starting the engine.

3. After starting the engine, check to make sure

that the cutting attachment stops rotating when

the throttle is moved fully back to its original

position. If it continues to rotate even after the

throttle has been moved fully back, turn off the

engine and take the unit to your authorized Red

Max servicing dealer for repair.

■USING THE PRODUCT

Cut only materials recommended by the

manufacturer. And use only for tasks explained

in the manual.

1. Grip the handles firmly with both hands using

your whole hand. Place your feet slightly apart

(slightly further apart than the width of your

shoulders) so that your weight is distributed

evenly across both legs, and always be sure to

maintain a steady, even posture while working.

2. Keep cutting attachment below waist level.

3. Maintain the speed of the engine at the level

required to perform cutting work, and never raise

the speed of the engine above the level

necessary.

4. If the unit start to shake or vibrate, turn off the

engine and check the whole unit. Do not use it

until the trouble has been properly corrected.

5. Keep all parts of your body away from rotating

cutting attachment and hot surfaces.

6. Never touch the muffler, spark plug, or other

metallic parts of the engine while the engine is in

operation or immediately after shutting down the

engine. Doing so could result in serious burns or

electrical shock.

IMPORTANT

WARNING

5. For safe operation

❲

❳

• IF SOMEONE COMES

1. Guard against hazardous situations at all times.

Warn adults to keep pets and children away

from the area. Be careful if you are approached.

Injury may result from flying debris.

2. If someone calls out or otherwise interrupts you

while working, always be sure to turn off the

engine before turning around.

■MAINTENANCE

1. In order to maintain your product in proper

working order, perform the maintenance and

checking operations described in the manual at

regular intervals.

2. Always be sure to turn off the engine before

performing any maintenance or checking

procedures.

The metallic parts reach high temperatures

immediately after stopping the engine.

3. When replacing any part, or when replacing the

oil or any lubricant, always be sure to use only

RedMax products or products which have

been certified by RedMax for use with the

RedMax product.

4. In the event that any part must be replaced or

any maintenance or repair work not described in

this manual must be performed, please contact a

representative from the store nearest RedMax

authorized servicing dealer for assistance.

5. Do not use any accessory or attachment other

than those bearing the RedMax mark and

recommended for the unit.

6. Under no circumstances should you ever take

apart the product or alter it in any way. Doing so

might result in the product becoming damaged

during operation or the product becoming unable

to operate properly.

WARNING

5. For safe operation

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali RedMax Tagliabordi

RedMax

RedMax CHT2200 Manuale del proprietario

RedMax

RedMax SRTZ230 Manuale del proprietario

RedMax

RedMax HEC-EX850 Manuale utente

RedMax

RedMax CHT220 Manuale di istruzioni

RedMax

RedMax TRZ230S Manuale del proprietario

RedMax

RedMax BTR250PL Manuale di istruzioni

RedMax

RedMax CHT232B Manuale del proprietario

RedMax

RedMax BCZ3050S Manuale utente

RedMax

RedMax BT280 Manuale del proprietario

RedMax

RedMax HTZ2401 Manuale di riferimento

RedMax

RedMax CHT2250 Manuale del proprietario

RedMax

RedMax CHTZ600 Manuale di istruzioni

RedMax

RedMax LRTZ230 Manuale del proprietario

RedMax

RedMax SRTZ2460F Manuale del proprietario

RedMax

RedMax Zenoah CHT2300B Manuale del proprietario

RedMax

RedMax CHTZ60 Manuale di istruzioni

RedMax

RedMax HTZ750 Manuale di istruzioni

RedMax

RedMax SRTZ2401F-CA Manuale del proprietario

RedMax

RedMax BC250S Manuale utente

RedMax

RedMax BT17 Manuale utente

RedMax

RedMax EXtreme EXZ260S-PH Manuale utente

RedMax

RedMax SGC2300DL Manuale del proprietario

RedMax

RedMax BCZ265S Manuale utente

RedMax

RedMax LRTZ2401 Manuale del proprietario

Manuali Tagliabordi popolari di altre marche

MTD

MTD HT 51 E Manuale utente

McCulloch

McCulloch T22 LS Manuale utente

COCKRAFT

COCKRAFT PRO HL36-S Manuale utente

Grizzly

Grizzly CT 1800 Li Manuale utente

Peco

Peco Z Trimmer ZT-3000 Manuale utente

Solo

Solo 116 Manuale utente

Stiga

Stiga ST 1200 Manuale utente

Echo

Echo GT-225 - 10-09 Manuale utente

GreenWorks

GreenWorks STA806 Manuale utente

Parkside

Parkside PHSL 900 A3 Manuale utente

Gardeo

Gardeo PRO GPTHT2560 Manuale utente

Park

Park DT-810870 Manuale utente

Worx

Worx WG209 Manuale utente

Gardenline

Gardenline 43671/HTKS26 Manuale utente

Makita

Makita 3710 Manuale utente

Champion

Champion 100683 Manuale utente

Stihl

Stihl FS 311 Manuale utente

Efco

Efco STARK 38 Manuale
