Safety

• To prevent eye damage and personal injury, do not look into the laser

• Do not point laser directly at people or animals or indirectly off

reective surfaces

• Do not disassemble or do modications to the Thermal Imager

• Do not point the Thermal Imager (with or without the lens cover) at

intensive energy sources as this can damage the Thermal Imager

• Do not use the Thermal Imager in a temperature higher than 50°C

(122°F) or lower than -20°C (-4°F)

• Only use the correct equipment to charge the battery

• Do not disassemble or do a modication to the battery

• Do not put the battery in or near a re, or in direct sunlight, or other

high-temperature locations

• Always charge the battery between 0 to 50°C (32 to 122°F)

• Do not get water or salt water on the battery, or permit the battery to

get wet

• Clean the case with a damp cloth and a weak soap solution

• Do not use abrasives, isopropyl alcohol, or solvents to clean the case

or lens/screen

• Do not clean the infrared lens too vigorously, this can damage the

anti-reective coating

• Remove the battery from the Thermal Imager if not in use for an

extended period of time

• Store the Thermal Imager in cool and dry environment

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

Features

• 3.5" colour TFT LCD capacitive touch screen with sun visor

• High thermal sensitivity (NETD) of <80mK

• Built-in laser and white LED ashlight

• Built-in visible light digital camera

• Includes 7.5mm (29.8 x 22.6° FOV) lens

• 20X continuous zoom

• Infrared and visual images, picture-in-picture, as well as visual image

with infrared overlay

• Three spot, three area with min/max and average, two-line and

isothermal measurement analysis

• Automatic lens recognition identies the temperature calibration data

associated with each of the interchangeable lenses

• Automatic hot/cold spot indicator

• Choice of six colour palettes including custom

• Automatic image capture

• Save images with voice annotations

• Video recording with voice annotations

• Micro SD memory card extension possible

Specifications

IR Resolution: 160 x 120 pixels

Field of View: 29.8 x 22.6°

Detector Type: Uncooled microbolometer

Thermal Sensitivity (NETD): < 0.08°C @ 30°C (86°F)/80 mK

Image Capture Frequency: 50Hz

Focus: Manual

Temperature Range: -20 to 400°C (-4 to 752°F)

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Storage Medium: 4GB micro SD card continued ...

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

Digital Camera Resolution: 640 x 480 pixels

Digital Lens Data: FOV 62.3°

Video Format: MPEG-4, 640x480 @ 30fps,

on memory card >60 minutes

Image Format: JPEG, on memory card >1000 pictures

Interface: USB-mini, audio, composite video

(PAL and NTSC), Micro SD slot

Drop Test: 2m

Encapsulation: IP65

Laser: < class 2

Operating Temperature: -20 to 50°C (-4 to 122°F)

Storage Temperature: -40 to 70°C (–40 to 158°F)

Operating/Storage Humidity: 10 to 90%RH

Power Supply: 7.4V lithium polymer rechargeable

battery

Battery Life: 4.5 hours

Dimensions: 243 x 103 x 160mm (9.57 x 4.05 x 6.29")

Weight: 920g (32.45oz) (including battery)

Includes: 7.5mm lens, lens cap, micro SD memory

card, video output cable, headset, USB

cable, hood, tripod stand, shoulder

strap, two batteries, charger, AC

adapter, software CD(Multiple language)

and hard carrying case

Optional Accessories: 20.6° 11mm Replacement Lens (RL-11)

10.4° 22mm Replacement Lens (RL-22)

6.9° 33mm Replacement Lens (RL-33)

Spare Battery (R2100-7.4V)

REED Instruments offers certied thermography training. Contact REED

Instruments at info@reedinstruments.com for complete information, dates

and locations.

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

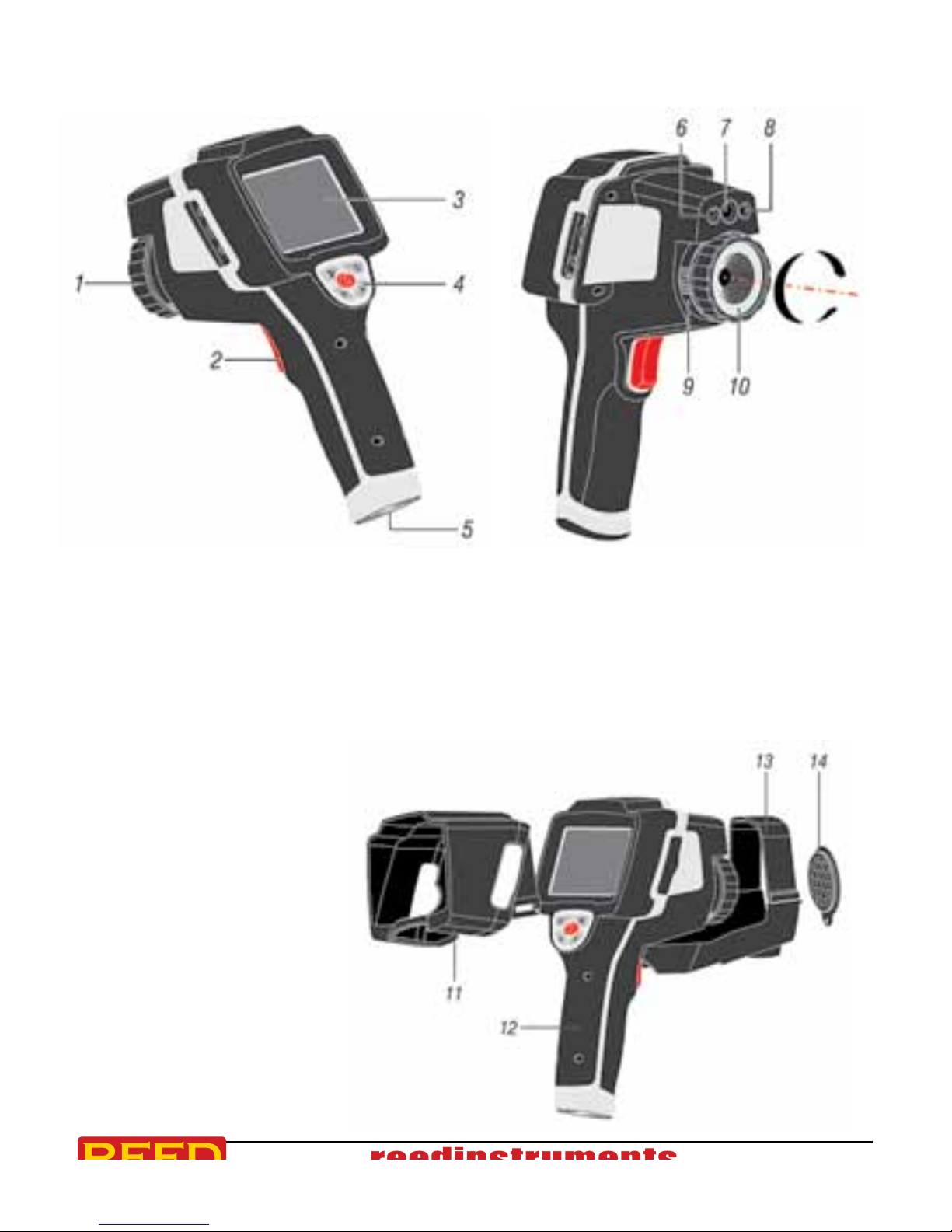

Instrument Description

1. Infrared Camera Lens

2. Trigger

3. LCD Display

4. Button Panel

5. Battery Compartment

6. LED Light

7. Visual Camera

8. Laser Pointer

9. Infrared Camera Lens Lock

10. Infrared Camera Lens

11. Hood

12. Thermal Imager

13. Tripod Base

14. Lens Cap

continued ...

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

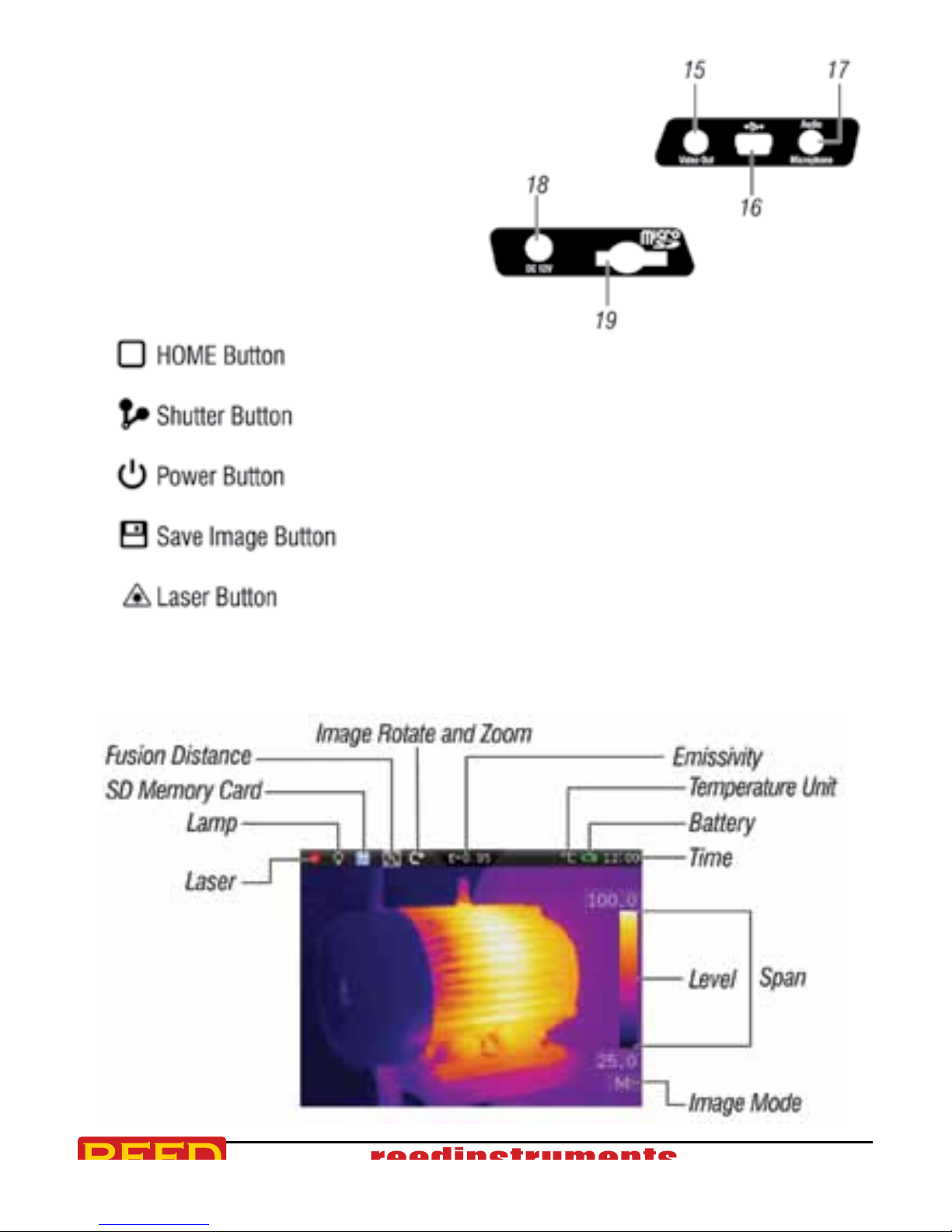

Button Panel Description

Display Description

15. Video Output

16. USB Cable Connection

17. Audio/Microphone

18. AC Adapter/

Charger Input Terminal

19. MicroSD Slot

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

Operating Instructions

Before you use the Thermal Imager for the rst time, charge the battery

for a minimum of 1.5 hours. To charge the battery, refer to the "Battery

Instructions" section of this manual.

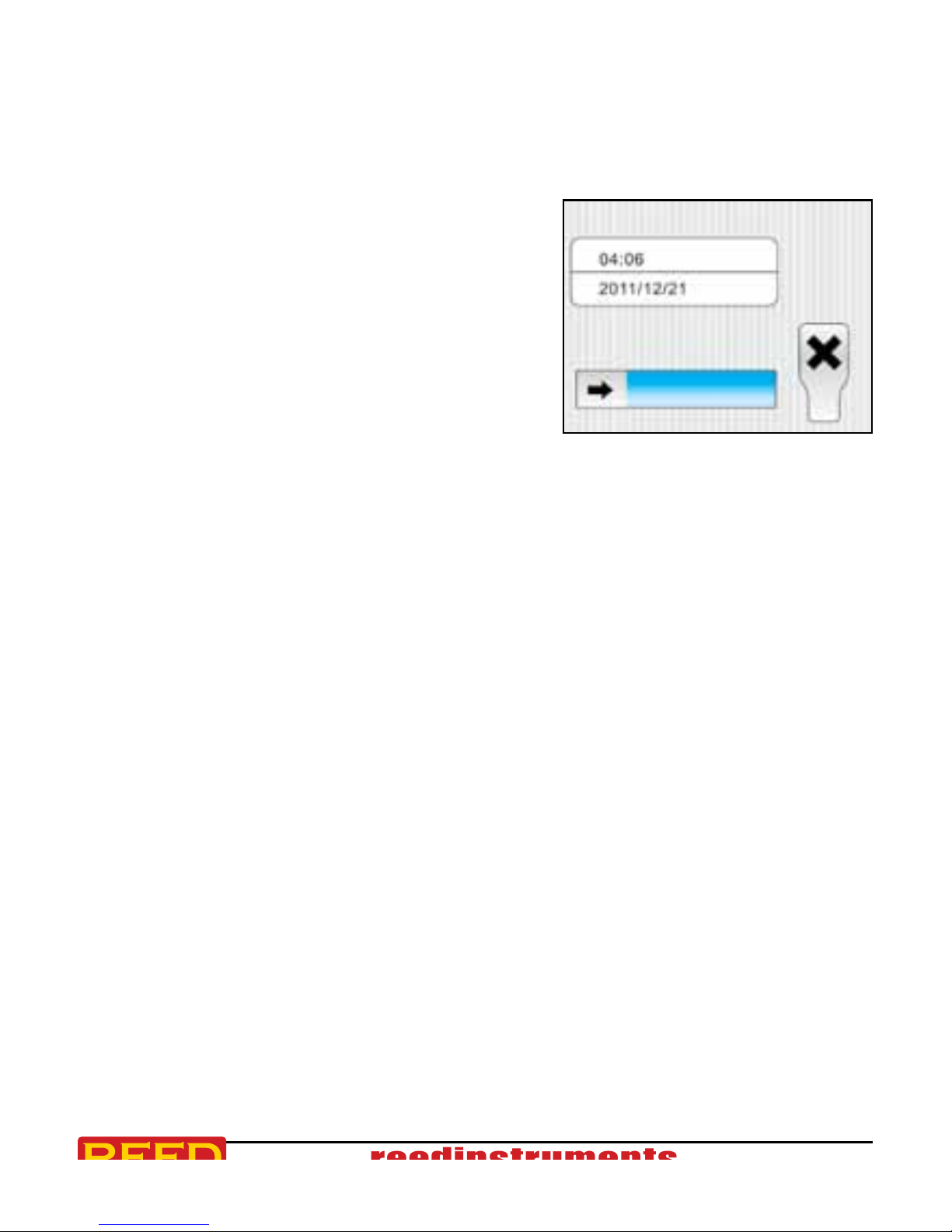

To turn the Thermal Imager on or off,

press and hold the Power Button for three

seconds. You can also turn the Thermal

Imager off by pressing the Power Button,

and sliding the arrow icon to the right.

Focus

Correct focus is important in all imaging applications. Without the correct

focus, the image can be blurry and the radiometric data will be inaccurate.

Out-of-focus infrared images are frequently unusable or of little value. This

Thermal Imager has focus-free in manual mode. To adjust the focus rotate

the IR lens.

Shutter

A shutter is pivoted into the ray path in order to make a temperature

reference available for image correction. The self calibration shutter in this

Thermal Imager can be set to Manual or Auto. To manually activate the

shutter, press the Shutter Button. To activate or adjust the shutter Auto

Mode please refer to the Settings Menu section of this manual.

Optical Lens

Rotate the Lens Lock counter-clockwise to remove the optical lens.

The optical lens that is supplied with the Thermal imager has the

following specications:

Focal Length: 7.5mm Horizontal FOV: 29.8°

IFOV: 3.33mrad Vertical FOV: 22.6°

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

Emissivity

This Thermal Imager measures infrared energy from the surface of the

object and uses this data to calculate an estimated temperature value.

Surfaces that are good at radiating energy (high emissivity), the

emissivity factor is ≥0.90. Shiny surfaces or unpainted metals are not

good at radiating energy (low emissivity) have an emissivity of <0.6.

To more accurately measure materials with a low emissivity, an emissivity

correction is necessary. Emissivity is set directly as a value or from a list

of emissivity values for some common materials. The global emissivity

displays on the LCD Screen as "E=x.xx".

The following table gives typical emissivity of some materials:

Material Emissivity

Asphalt 0.95

Concrete 0.95

Hard plaster 0.90

Wood (natural) 0.93

Lime Stone 0.98

Ballast chipping 0.95

Paper (every color) 0.95

Plastics non lm 0.95

Tissue (fabric) 0.95

Sand 0.90

Glass wool 0.90

Melted asphalt 0.93

Screed/pavement 0.93

Foamed polystyrene 0.94

Material Emissivity

Drywall 0.95

Render 0.94

Smoothing cement 0.90

Lacquer 0.92

Latex paint 0.97

Wallpaper 0.93

Tilling 0.93

Parquet oor 0.90

Laminate 0.90

PVC-Floor 0.92

Brick 0.93

Cliff 0.97

Roong cardboard 0.93

Stucco 0.91

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

Reflected Temperature

Using the offset factor, the reection is calculated out due to the low

emissivity and the accuracy of the temperature measurement is improved.

In most cases, the reected temperature is identical to the ambient air

temperature. Only when objects with strong emissions of a higher

temperature are in the proximity of the object being measured should

be determined and used. The reected temperature has only little effect

on objects with high emissivity. The reected temperature can be set

individually.

Follow these steps to get the right value for the reected temperature:

1. Set the emissivity to "1.0"

2. Adjust the optical lens to near focus

3. Looking in the opposite direction away from the object, take a

measurement and save the image

4. Determine the average value of the image and use that value for

your input of reected temperature

Thermal Imager Reporter Software

Reporter Software is supplied with this Thermal Imager. This software

contains features to analyze images, organize data and information, and

make professional reports. The Thermal Imager Reporter Software allows

audio annotations and commentary to be reviewed on a PC.

1.888.475.5235info@REED-Direct.com REED-Direct.com

Indice

Altri manuali REED Telecamera termica

REED

REED R2050 Manuale utente

Manuali Telecamera termica popolari di altre marche

Hikmicro

Hikmicro B20 Manuale utente

FLIR

FLIR E-EST Series Manuale utente

FLIR

FLIR M-Series Manuale utente

BST

BST BT-72 Manuale utente

FLIR

FLIR G300 pt Series Manuale utente

CBC

CBC EN7-S02T Manuale utente

Satir

Satir YRH600 Manuale utente

TESTO

TESTO 882 Manuale utente

TECPEL

TECPEL TIG-320 Manuale utente

SKF

SKF TKTI 21 Manuale utente

TESTO

TESTO 885 Manuale utente

InfiRay

InfiRay AT300 Series Manuale utente

InfiRay

InfiRay AT Series Manuale utente

FLIR

FLIR X6530sc Series Manuale utente

Videotec

Videotec MAXIMUS MVXT Manuale utente

Guide Sensmart

Guide Sensmart D384M Manuale utente

NBN

NBN FLIR A6 Series Manuale utente

WORKSWELL

WORKSWELL SAFETIS Manuale utente
