187June 2007 Regency Product Speciﬁcations Book

Wood Inserts

Wood Inserts

I1200 Wood Insert

I1200 Small Wood Insert

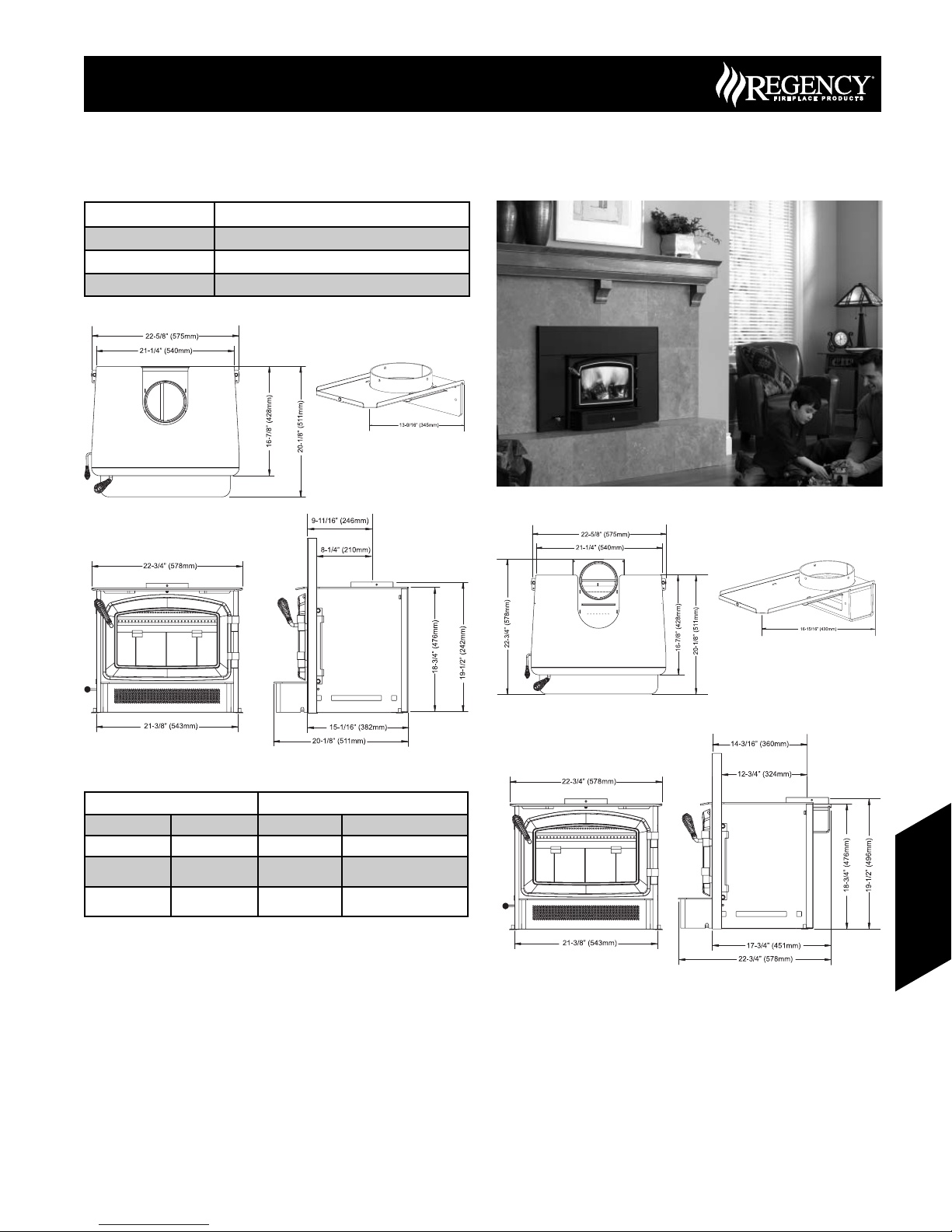

Minimum Fireplace Opening Faceplate Dimensions

Height 19” (483mm) Standard 3 Sided 38” (width) x 26-1/8” (height)

Width 23” (584mm) Standard 4 Sided 38” (width) x 34-1/8” (height)

Depth

Standard Flue Adaptor 13-3/4” (349mm) Oversize 3 Sided 44” (width) x 30-1/8” (height)

Depth

Offset Flue Adaptor 16-1/2” (419mm) Oversize 4 Sided 44” (width) x 38-1/8” (height)

Model I1200S

Cordwood BTU’s 55,000 BTU’s

EPA g/hr 3.0 g/hr

Flue Size 6” (152mm)

6" (152mm) Diameter

STANDARD FLUE ADAPTOR

6" (152mm) Diameter

OFFSET FLUE ADAPTOR

Unit with Standard Flue Adaptor

Unit with Offset Flue Adaptor

188 June 2007 Regency Product Speciﬁcations Book

Wood Inserts

Wood Inserts

I1200 Wood Insert

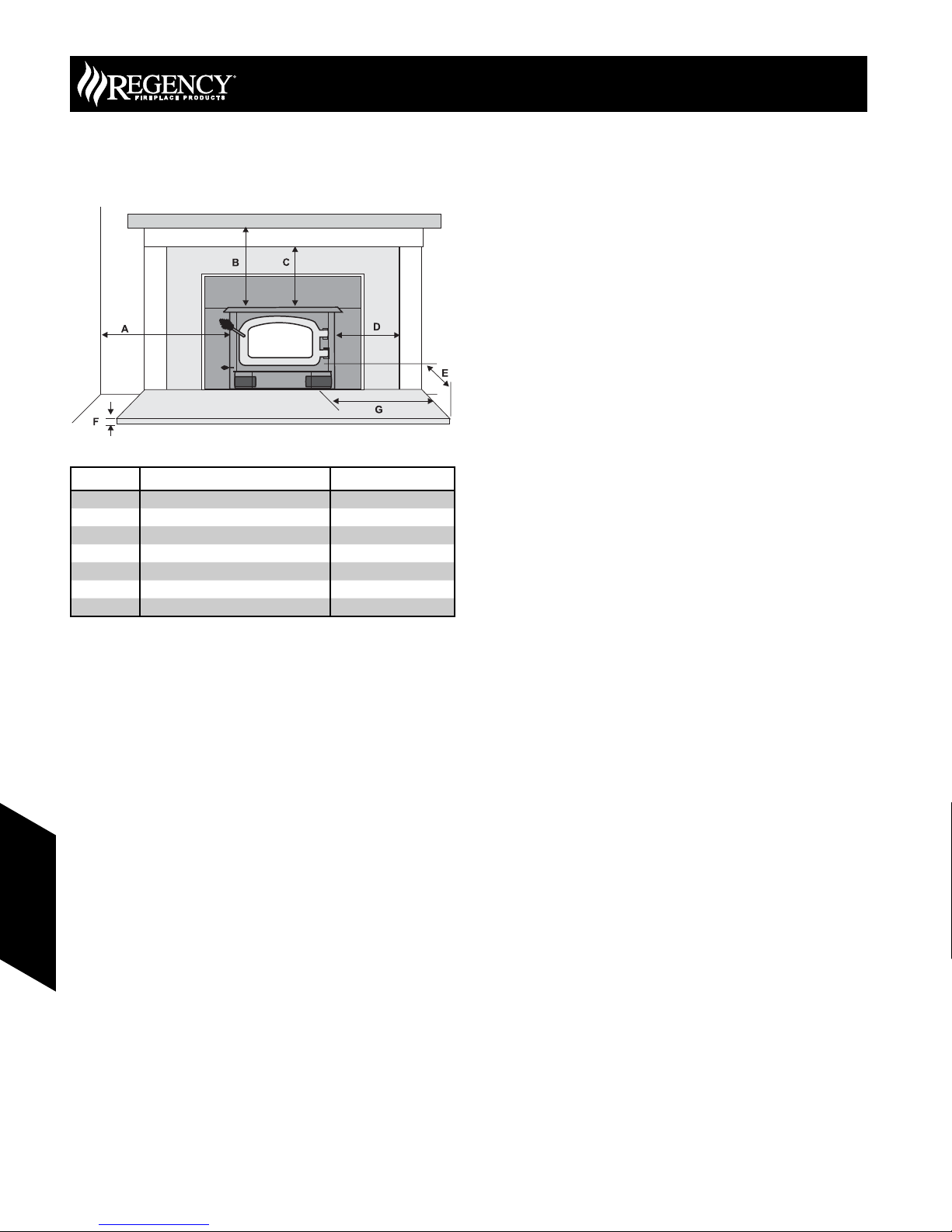

Dimension Description I1200

A Adjacent Side Wall (to side) 15” (381mm)

B Mantle (to top)** 20” (508mm)

C Top Facing (to top) 14” (356mm)

D Side Facing (to side) 7-3/8” (187mm)

E Minimum Hearth Extension* 16” (406mm)

F Minimum Heath Thickness* 1-1/2” (38mm)

G Minimum Hearth Side Extension 8” (203mm)

Side and Top facing is a maximum of 1-1/2" thick.

Floor protection must be non-combustible, insulating material with an

R value of 1.1 or greater.

*If the hearth extension is ﬂush with the ﬂoor (F) it must extend

19-1/2" in front of the body face (E).

Note: Hearth Extension Width (G) is measured from edge of fuel

door to side of hearth.

** Anon-combustible mantel may be installed at a lower height if the

framing is made of metal studs covered with a non-combustible

board.

I1200 Small Wood Insert
