Remaco BKT-M595 Manuale utente
CCOPYRIGHTS 1998 REMACO TECHNOLOGIES PTE LTD Website: www.remacotech.com
Important Notes:
All Plasma / LCD TV brackets are thoroughly inspected and fully tested operational in factory.
We accept no liability whatsoever for any losses due to improper operation, or any unauthorized alternation.
All trademarks contained in this installation guide are the property of their respective owners.
Installation Guide (For BKT-M595)
V:5.0
BKT-M595

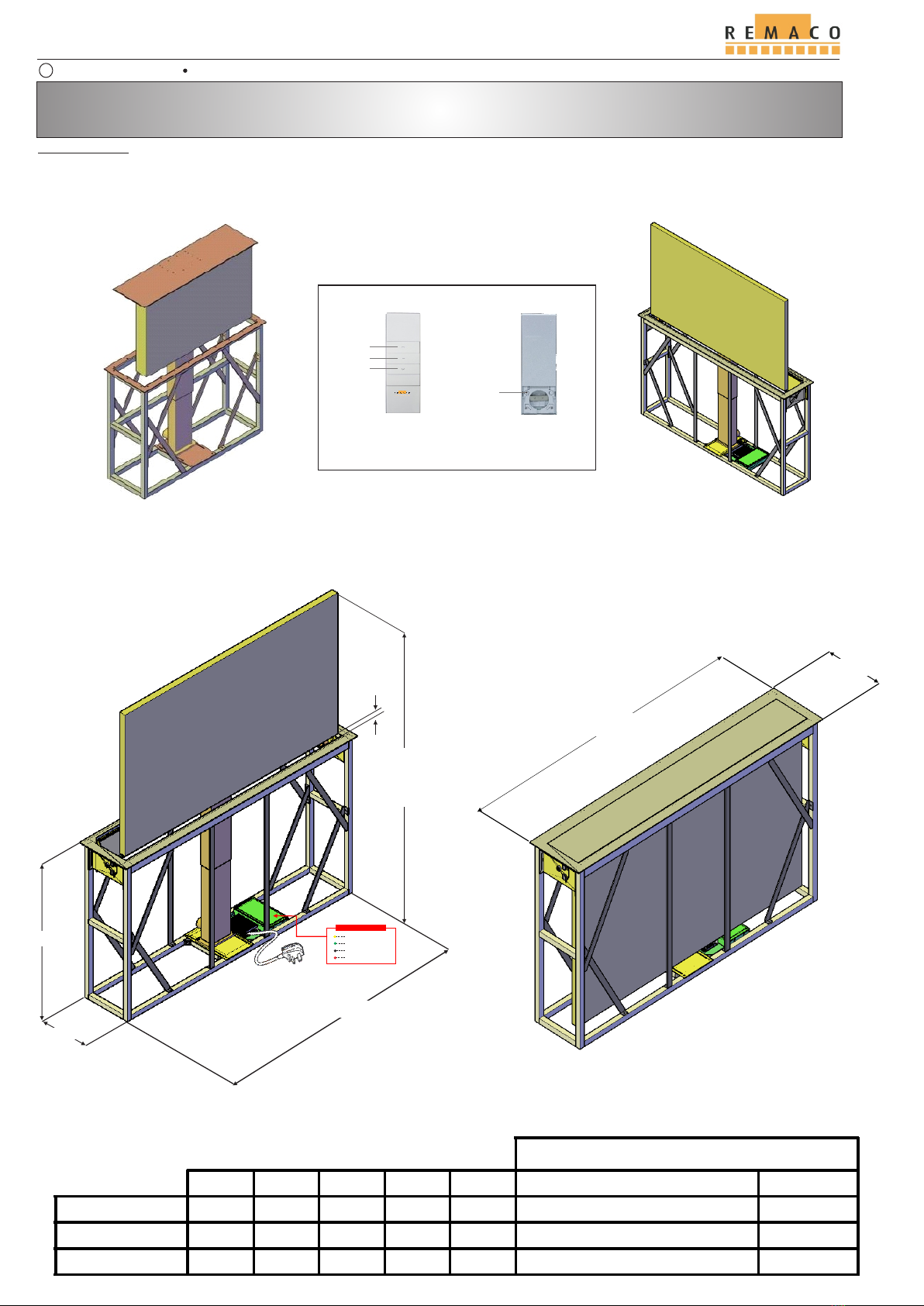

BKT-M595 Motorized TV Lifter
(Top Cover-Type1)
BKT-M595 Motorized TV Lifter
(Flip Cover-Type2)
Radio Frequency Remote Control
AVA-315-RF 1Ch
Front View
AVA-315-RF 1Ch
Back View
Up button
Stop button
Down button
Setting
button
Front Side
TV at Up Position
Variable
(10-20mm)
H1
H1
+
TV Height
+
Variable (10-20mm)
W1
D1
Front Side TV at
Down Position
D2
W2
Max.TV Size
W1 D1 H1 W2 D2 (Width x Depth x Height) (Diagonal)
BKT-M595C/S 1037 325 851 1087 360 W980 x D41 x H616 42"
BKT-M595C/M 1556 325 851 1606 360 W1470 x D41 x H755 55"
BKT-M595C/L 1770 325 1063 1820 360 W1672 x D41 x H963 75"
Remark:
Dry Contacts for A/V Control System (e.g. AMX / Creston) Available
3-Core
Power Supply
AC Cable
Common (Yellow)
Stop (Green)
Down (Black)
Up (Red)
Contact Closure
Frequency
Power
Work Temperature
Sensitivity Distance
433 MHz
100 Watts
..
-10 C - 50 C
20m
Input Voltage 230 VAC
Description AVA-350A-RF Receiver
A/V Equipments
BKT-M595
LCD Motorized Lifter
Antenna
(Black)
- Motor (Black)
+ Motor (Red)
0 Vdc, Common (Blue)
24 Vdc, Input (Brown)
AVA-350A RF Receiver
(For 24 Vdc Motor)
ATM-470C
Automatic Mirror System
}
AVA-350A Radio Frequency Receiver
Motor Connection
DC Voltage Supply
Common (Yellow)
Stop (Green)
Down (Black)
Up (Red)
AVA-350A PCB Board
AVA-350A compatible with AVA-315 1-Channel Radio Frequency Remote
OPTION
All controls support 230V/50Hz
433MHz
End
AVA-315-RF 1Ch
Setting
button
Pairing AVA-350A with AVA-315-RF 1Ch
Front Back
P2 x 1
Switch (OFF) first then
Switch (ON)
Long beep
from motor
press setting button (P2)
one time, within 10sec
press (DOWN) button
one time
Direction 1
Direction 2
(Change Direction)
press (UP) button
one time
UP x 1
DOWN x 1
OFF x 1
ON x 1
hear buzz
P2 x 1
press setting button (P2)
one time
hear buzz
Beep 4 times
Beep 4 times
Contact Closure
