Renault FLUENCE Guida all'installazione

Page 1 Technical Training Renault Fluence

RENAULT FLUENCE

Model introduction Training for Auto body repair centres

Page 2 Technical Training Renault Fluence

RENAULT FLUENCE,

ITS SMOOTH SILHOUETTE

HIDES A SPACIOUS

INTERIOR, AN ELEGANT

FINISH AND A WIDE RANGE

OF EQUIPMENT.

AN OUTSTANDING DRIVE.

Page 3 Technical Training Renault Fluence

Contents

Overview

Body

Technical Specifications

Electronics

Page 4 Technical Training Renault Fluence

Overview

1.6 16V EXPRESSION

1.6 16V DYNAMIQUE

2.0 16V PRIVILÈGE

ENGINE

1.6 16V

2.0 16V

Fuel injection type

Multipoint sequential

Number of cylinders / valves

4 in-line / 16

Displacement (cc)

1598

1997

Power (kW @ rpm)

81 at 6 000

105 at 6 000

Torque (NM @ rpm)

156 at 4 400

195 at 3 750

Fuel requirement

Unleaded Petrol

TRANSMISSION

Number of forward gears

5-speed manual

6-speed manual

STEERING

Power assisted - electric

Standard

PERFORMANCE

Acceleration: 0 - 100 km/h (secs)

11.7

10.4

Maximum speed (km/h)

185

195

SUSPENSION

Front:

Mac-Phearson with

lower wishbone

Rear:

Torsion beam axle

FUEL CONSUMPTION

Litres /100 km (Urban cycle)

8.8

10.5

Litres /100 km (Extra-urban cycle)

5.3

6.2

Litres /100 km (Combined cycle)

6.5

7.8

CO2 emissions (g/km)

159

184

eco2

Fuel tank capacity (litres)

SEATING

No. of seats

WEIGHT & VOLUMES

Maximum load volume (litres)

1024

Minimum load volume (litres)

344

Gross train weight (kg)

2780

3085

Gross vehicle weight (kg)

1736

1793

Kerb weight excluding driver (kg)

1205

1195

Maximum payload including driver (kg)

425

Maximum towing weight unbraked -

650

driver only (kg)

BRAKES

Bosch 8.0 system Anti-lock Brakes

Standard

EBD (Electronic Brake-Force Distribution)

Standard

Emergency Brake Assist (EBA)

Standard

Front:

280mm Ventilated discs

Rear:

260mm Solid discs

Page 5 Technical Training Renault Fluence

Overview

WHEELS & TYRES

1.6 16V EXPRESSION

1.6 16V DYNAMIQUE

2.0 16V PRIVILÈGE

Wheels size

6.5 J16

6.5 J17

Wheels type

Alloy

Tyres

205/60/ R16

205/55/ R17

Spare wheel

16"

17"

WARRANTY / SERVICE / MAINTENANCE

5 Year / 150 000 km mechanical warranty

Standard

6 Year anti-corrosion warranty

Standard

5 Year / 100 000 km service plan Standard

Standard

Dimensions in metres:

) 0.908

) 2.702

) 1.010

) 4.620

) 1.545

) (unloaded) 1.478

) 1.563

) 1.809

Page 6 Technical Training Renault Fluence

Overview

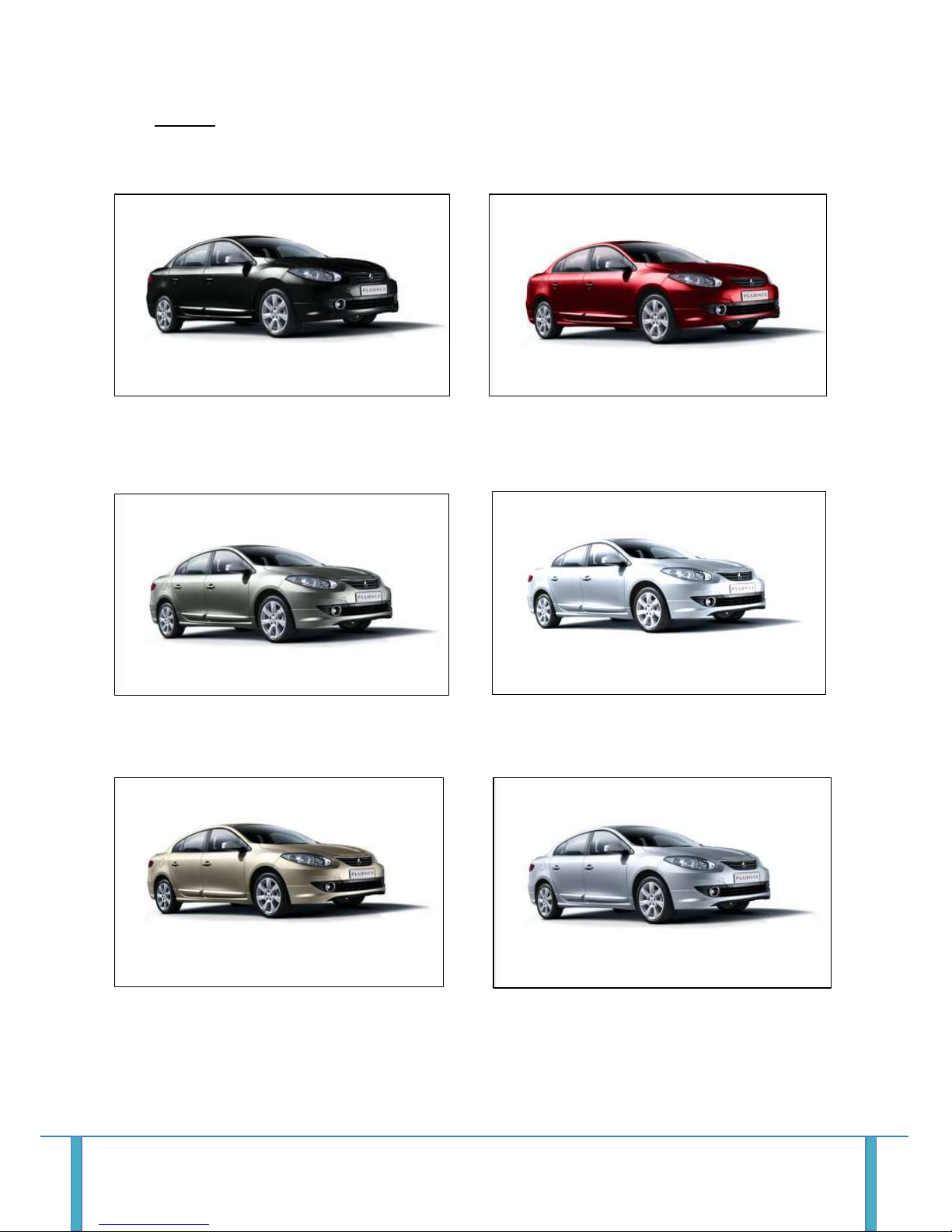

Colours

Black Metallic (GXA)

White Pearl (QXA)

Ultra Silver (KXC)

Lava Grey (WXA)

Red (NXA)

White (QXB)

Page 7 Technical Training Renault Fluence

Overview

Interior

Even from afar, it is easy to guess how roomy a Renault Fluence is. Its smooth, modern, stylish

silhouette does nothing to hide its generosity! The Renault Fluence is a truly comfortable

saloon car, with the greatest interior space in its category. The front seats offer excellent

support. In the back, the knee room is extremely generous. The back seat is inclined at an

angle of 27° for bespoke comfort.

The sense of on board comfort is reinforced by the attention to detail in the form of reduced

noise levels and high standards of interior space, including class-topping elbow room.

Backseat passengers also enjoy outstanding legroom and knee room. The cabin provides

more than 23 litres of stowage space, while the boot has a volume of 530dm3 - one of the

largest in its class. The 60/40-split folding rear seat enables the carrying capacity to be

increased to suit the needs of the moment.

Page 8 Technical Training Renault Fluence

Overview

Interior

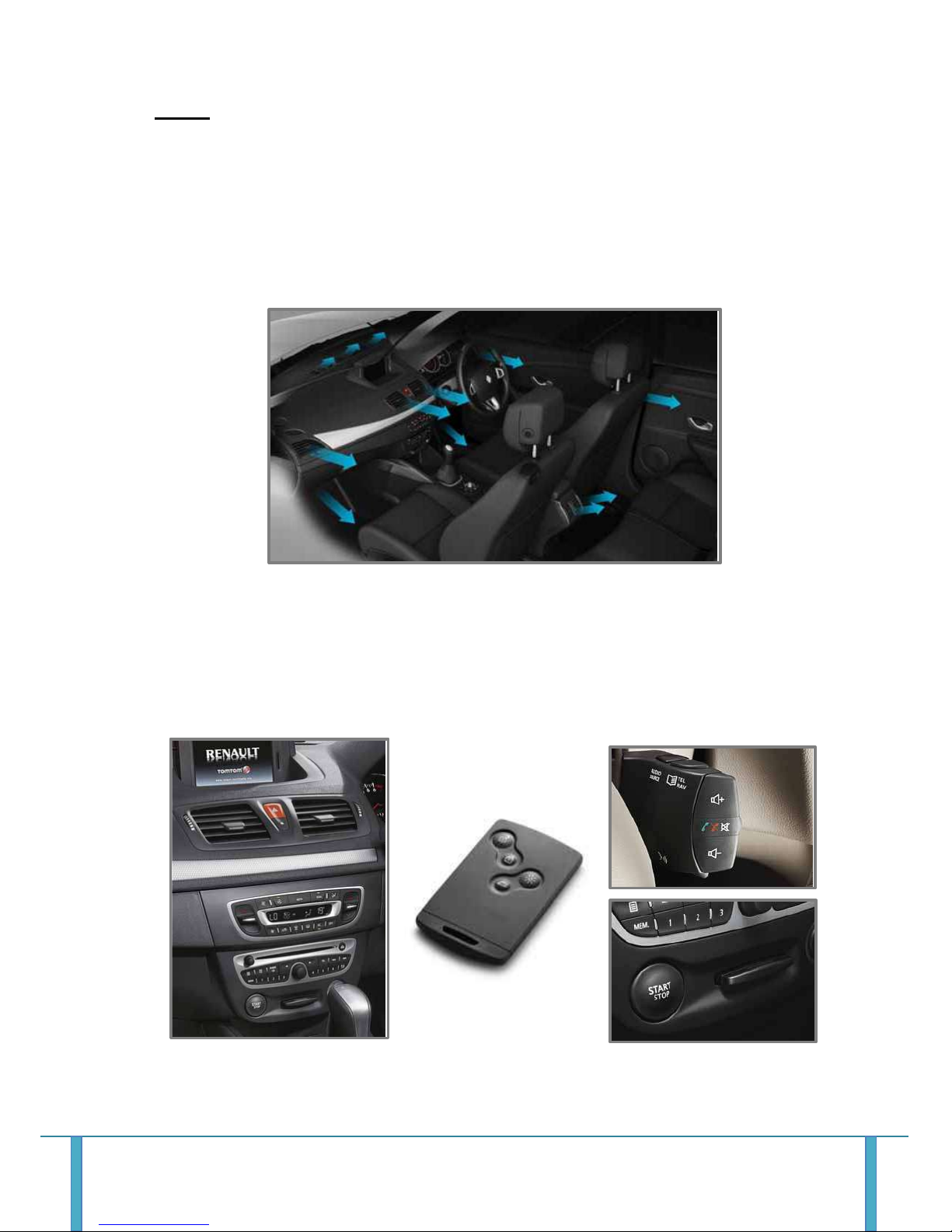

Comfort is vital, regardless of distance. That is why Renault Fluence offers a comfortable drive

and a full range of equipment designed to make any journey a pleasure for you and your

passengers. Exceptional sound quality is at your fingertips with a 60W Radio Sat Classic

system which includes fingertip remote control and a MP3 compatible CD player. The

Dynamique and Privilège models include tailored temperature control with regulated dual-zone

air conditioning. The atmosphere on board is perfect.[ What's more, with the adjustable air

vents in the back, passengers really feel the benefit of the air-conditioning, wherever they’re

seated.]

Technology in the Renault Fluence is multifaceted. Take the Renault Hands-Free Key card

which can be used to lock, unlock and start the vehicle simply by carrying the card with you.

The Bluetooth® hands free kit and MP3 audio system, enabling you to make phone calls safely

and listen to music with complete freedom. Fluence combines sobriety and performance.

Innovations designed for the driver and expressing a unique philosophy: useful progress.

Page 9 Technical Training Renault Fluence

Overview

Interior

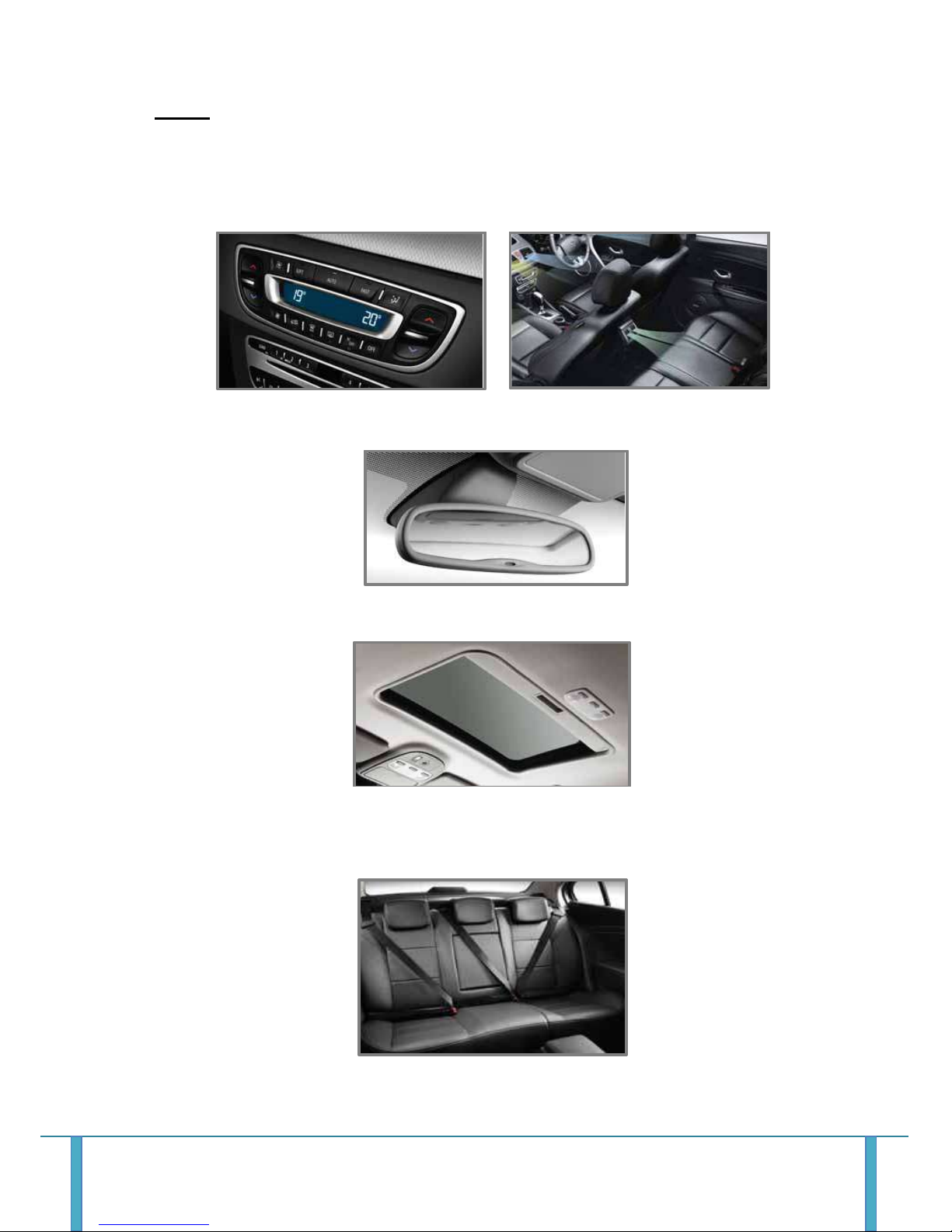

Regulated Dual-Zone air-conditioning offers personalised climate comfort to enable each front-

seat passenger to choose the temperature they prefer. For maximum comfort and a

temperature balanced between the front and rear of the vehicle, rear passengers also have an

adjustable air vent.

The Electro chrome Rear-View Mirror gradually darkens as light levels increase to prevent

dazzling.

The Sunroof lets more light into the passenger compartment and is fitted as option.

The Safety Belts reduce forces in the event of an impact and to ensure your body is held in the

correct position, the system is fitted with a double pretensioner in the front seats and a load

limiter in the rear seats.

Page 10 Technical Training Renault Fluence

Overview

Systems

The ABS anti-lock brake system with EBV electronic brake distribution, combined with

emergency brake assist, helps to control the trajectory.

The Dynamic Driving Control Esc (ESP) the ASR anti-skid system and under steer control logic

(UCL) ensure the vehicle remains stable even in difficult road conditions.

The Rear Parking Aid facilitates parking manoeuvres. The parking assistance system alerts

you to any obstacles behind the car with a series of increasingly rapid beeps.
