Renault Media Nav Manuale utente
Instruction Manual
RENAULT MEDIA NAV for RENAULT
GU Electronic
INDEX
Specifications
1. Main Spec --------------------------------------------
2. Diagram ----------------------------------------------
3. Components -----------------------------------------
4. Exterior -----------------------------------------------
Settings
1. Dip Switch --------------------------------------------
2. How to distinguish “MEDIA NAV” and “R-LINK”-----
3. Touch control -----------------------------------------
4. Key board ---------------------------------------------
5. OSD Menu --------------------------------------------
Installation
1. Diagram -----------------------------------------------
2. FFC Cable Connection --------------------------------
3. Caution ------------------------------------------------
2
3
4
5
6
7
8
9
12
12
20
21
22
GU Electronic 3
Specification
1-1 Input Spec. (MULTI VIDEO INTERFACE)
- 1 x HDMI Input
- 2 x A/V Input (External video source).
- 1 x CVBS(REAR CAMERA) Input. (Rear camera source)
- 1 x CVBS(FRONT CAMERA) Input. (Front camera source)
- 1 x Analog RGB Input (Navigation System output)
1-2 Output Spec.
- 1 x LCD Output (LCD Operation)
- 1 x Resistive Touch
1-3 Power Spec.
- Input Power : 8VDC ~ 24VDC
- Consumption Power : 12Watt, Max
1-4 Switch Input mode
- Possible to switch input mode through “HOME” button on screen
1. Main spec.
2. Features
- Possible to register IR code of DVD/DTV
- Possible to control DVD/ DTV by touch
- Easy installation with plug & play LVDS cable
GU Electronic 4
Specification
INTERFACE
2. Diagram
Scaler
(PIP)
MCU
LVDS
TX
CAR
COMMAND
SYSTEM
LVDS
CAN
EEPROM
CAN
RECEIVER
LVDS
TX
CAR
TFT-LCD
LVDS
RX
RELAY
REAR CAMERA
POWER
COMPOSITE
RGB
NAVIGATION
SYSTEM
CVBS1
CVBS2
FRONT CAMERA
MUX
REAR CAMERA
GU Electronic
Specification

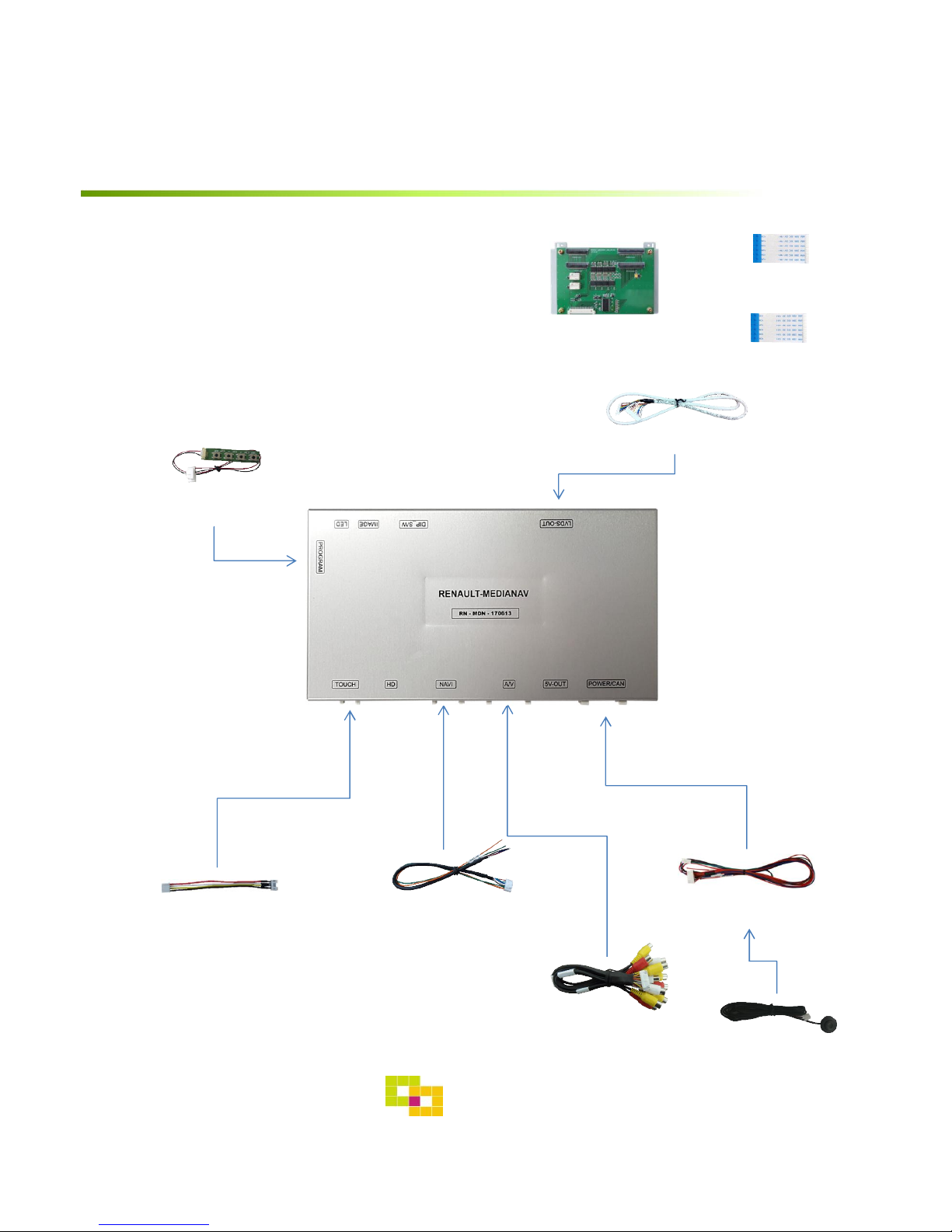

3. Components
5
RGB NAVI Cable(7pin) 1EA
LVDS Cable (800mm) 1 EA
OSD Board 1EA
Touch Cable(KD-900) 1EA
A/V Cable 1EA
Sub Board 1EA
+ steel plate 1EA
FFC Cable 1EA
(50 * 50 * 0.5 * P6)
FFC Cable 1EA
(40 * 50 * 0.5 * P6)
Mode S/W 1EA
Power Cable 1EA
Specification
4. Exterior
171 mm
22 mm
6
93 mm
GU Electronic
*NAVI Connect
① R DATA (Red)
② G DATA (Green)
③ B DATA (Blue)
④ SYNC (White)
⑤ GND (Black)
⑥ DMB IR (TX)(Green)
⑦ DVD IR (RX) (Orange)
①②③④⑤⑥⑦
Touch Connect
1. Y-
2. X-
3. Y+
4. X+
① ② ③ ④
*POWER Connect
1. ACC (Red)
2. N.C
3. Rear-DET (Brown)
4. Front-DET (Blue)
5. N.C
6. N.C
7. N.C
8. N.C
1 15
2 16
9. N.C
10. N.C
11. N.C
12. Rear-VCC (
Red)
13. Front-VCC (Red)
14. Mode (Green)
15. GND (Black)
16. GND (Black)
Settings

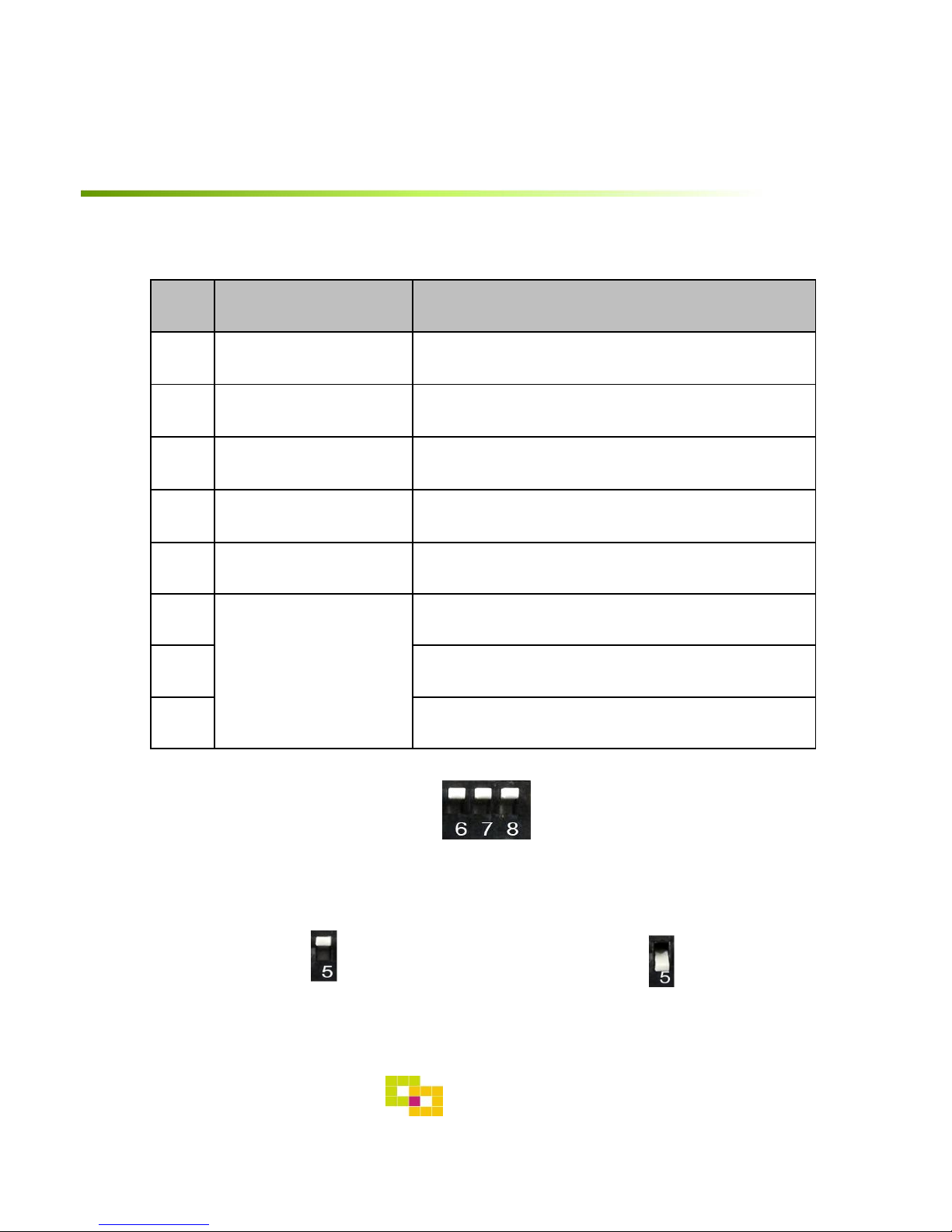

1. Dip Switch
* ON : DOWN , OFF : UP
NO. Function Selection
1 NAVI ON : Skipping NAVI
OFF : Display
2 AV1 (DVB-T) ON : Skipping AV1 (DVB-T)
OFF : Display
3 AV2 (DVD) ON : Skipping AV2 (DVD)
OFF : Display
4 HDMI ON : Skipping HDMI
OFF : Display
5 N.C
6
Car Model
OFF : Media NAV 7” Model
7 OFF : Media NAV 7” Model
8 OFF : Media NAV 7” Model
* Example
7
Media NAV 7” Model
GU Electronic
OEM TOUCH : OFF
(Blocking OEM touch in external screen
- For reverse CAM, HDMI)
OEM TOUCH : ON
(For using OEM touch in external screen
– Control NAV, DTV, DVD by OEM touch)
* OEM TOUCH ON / OFF SETTING
Settings
2. How to distinguish “MEDIA NAV” and “R-
LINK” ?
※ Check the shape of the buttons on the right
8
GU Electronic
MEDIA NAV
R-LINK
9
Touch OEM screen in any mode more than
7sec. For calibration
(This function can be activated only one time
after switching mode)
Touch the “+” correctly
Settings
GU Electronic
3. Touch screen – Touch calibration
1. OEM Screen Setting
2. OSD Setting
Touch the “+” correctly
OSD메뉴에서 그림과 같이 설정한다.
(OSD Menu – Utility – Calibrate – Execute)
10
[Type -1] [Type -2]
•DVD
[POWER][SCAN] [Ch+] [Ch-]
[POEWER][MENU]
[RETURN][USB]
[stop]
[Play/Pause]
[Audio]
•DTV (Select the type of I-con)
[FR]
[FF]
[Ch+]
[Ch-]
[Right]
[Left]
[POWER]
[DISC UP]
[DISC DOWN]
[Play next
chapter]
[Play previous
chapter]
GU Electronic
※ To use this function, It is necessary to offer the remote IR code to manufacturer
or resister IR code on your own (P. 19）
Settings
3. Touch screen - DVB-T, DVD Menu
