Renesas H8/3864 Series Manuale utente

H8/3864 Series

QFP-80A

User System Interface Cable

(HS3864ECH61H)

for E6000 Emulator

User’s Manual

HS3864ECH61HE(D)

Cautions

1. Renesas neither warrants nor grants licenses of any rights of Renesas’s or any third party’s

patent, copyright, trademark, or other intellectual property rights for information contained in

this document. Renesas bears no responsibility for problems that may arise with third party’s

rights, including intellectual propertyrights, in connection with use of the information contained

in this document.

2. Products and product specifications may be subject to change without notice. Confirm that you

have received the latest product standards or specifications before final design, purchase or use.

3. Renesas makes every attempt to ensure that its products are of high quality and reliability.

However, contact Renesas’s sales office before using the product in an application that demands

especially high quality and reliability or where its failure or malfunction may directly threaten

human life or cause risk of bodily injury, such as aerospace, aeronautics, nuclear power,

combustion control, transportation, traffic, safety equipment or medical equipment for life

support.

4. Design your application so that the product is used within the ranges guaranteed by Renesas

particularly for maximum rating, operating supply voltage range, heat radiation characteristics,

installation conditions and other characteristics. Renesas bears no responsibility for failure or

damage when used beyond the guaranteed ranges. Even within the guaranteed ranges, consider

normally foreseeable failure rates or failure modes in semiconductor devices and employ

systemic measures such as fail-safes, so that the equipment incorporating Renesas product does

not cause bodily injury, fire or other consequential damage due to operation of the Renesas

product.

5. This product is not designed to be radiation resistant.

6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document

without written approval from Renesas.

7. Contact Renesas’s sales office for any questions regarding this document or Renesas

semiconductor products.

Preface

Thank you for purchasing this user system interface cable (HS3864ECH61H) for the Renesas’s

original microcomputer H8/3864 series and H8/3887 series.

The HS3864ECH61H is a user system interface cable that connects an H8/3864 series, H8/3887

series E6000 emulator (HS3880EPI60H; hereinafter referred to as the emulator) to the IC socket for

a QFP-80A package (package code: FP-80A) for the H8/3864 series MCU on the user system.

Contents

Section 1 Configuration....................................................................................1

Section 2 Connection Procedures......................................................................4

2.1 Connecting User System Interface Cable to Emulator Station .........................................4

2.2 Connecting User System Interface Cable to User System................................................5

2.2.1 Installing IC Socket .............................................................................................5

2.2.2 Soldering IC Socket.............................................................................................5

2.2.3 Inserting Cable Head ...........................................................................................5

2.2.4 Fastening Cable Head..........................................................................................6

2.2.5 Connecting Cable Body to Cable Head ...............................................................8

2.3 Recommended Dimensions for User System Mount Pad.................................................9

2.4 Dimensions for User System Interface Cable Head..........................................................10

2.5 Resulting Dimensions after Connecting User System Interface Cable.............................11

Section 3 Installing the MCU to the User System.............................................12

Section 4 Verifying Operation...........................................................................14

Section 5 Notice ................................................................................................16

Section 1 Configuration

UTIONCA

Use an IC149-080-017-B5 socket (manufactured by

YAMAICHI ELECTRONICS Co., Ltd.) for the FP-80A

package IC socket on the user system.

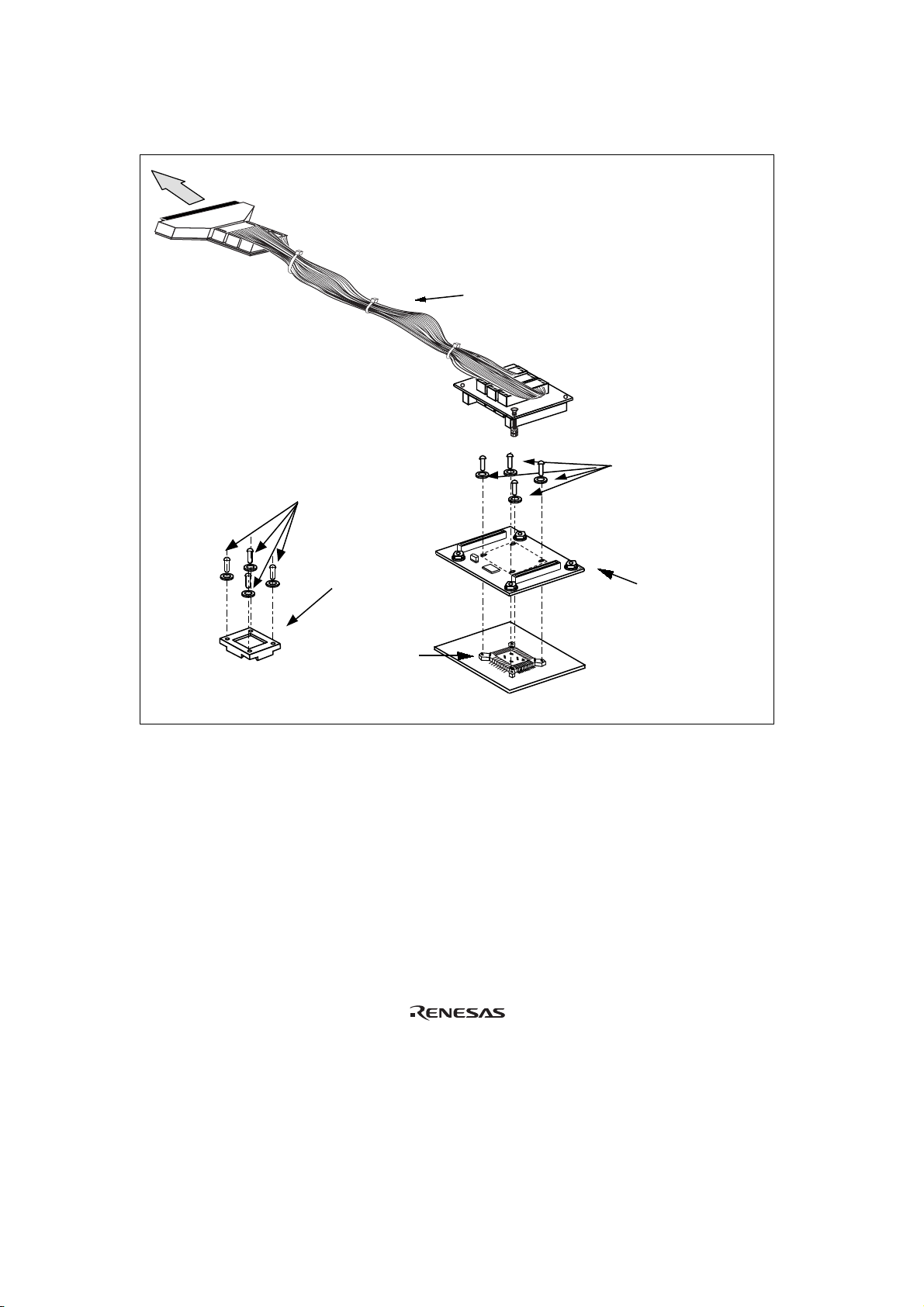

Figure 1 shows the configuration of the HS3864ECH61H user system interface cable for the

FP-80A package.

User system

IC socket

Cable head

Screws (M2 x 12 mm)

with flat washers

Screws (M2 x 8 mm)

with flat washers

Socket cover

(for fastening cable head)

To emulator station

Cable body

Figure 1 HS3864ECH61H User System Interface Cable

Table 1 lists the HS3864ECH61H components. Please make sure you have all of these components

when unpacking.

Table 1 HS3864ECH61H Components

No. Component Quantity Remarks

1 Cable body 1 Includes flat cable

2 Cable head 1

3 IC socket 1 For the FP-80A package

4 Socket cover 1 For installing an FP-80A-packaged MCU

5 Screws (M2 x 12 mm) 4 For fastening cable head

6 Screws (M2 x 8 mm) 4 For installing an FP-80A-packaged MCU (with four

flat washers)

7 Documentation 1 User’s manual for HS3864ECH61H (this manual)

Section 2 Connection Procedures

2.1 Connecting User System Interface Cable to Emulator Station

WARNING

Always switch OFF the user system and the emulator

product before the USER SYSTEM INTERFACE CABLE

is connected to or removed from any part. Before connecting,

make sure that pin 1 on both sides are correctly aligned. Failure to

do so will damage the user system and the emulator product or will

result in PERSONAL INJURY. The USER PROGRAM will be

LOST.

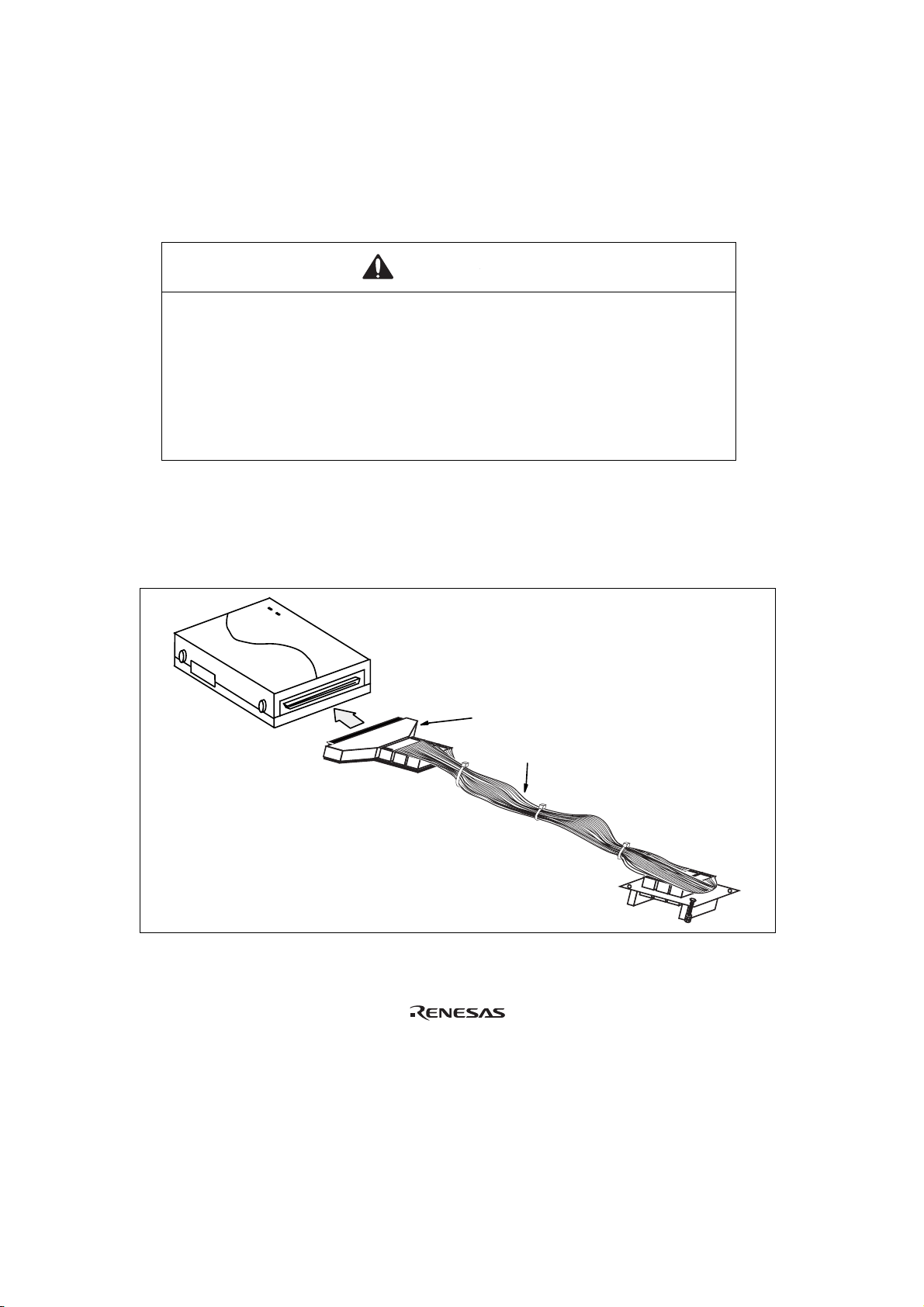

To connect the cable body to the emulator station, follow the instructions below.

1. Make sure the user system and emulator station are turned off.

2. After making sure the direction of the cable body connector is correct, firmly insert the cable

body connector into the emulator station socket (figure 2).

6000

Emulator station

Cable body

User system interface cable

Figure 2 Connecting User System Interface Cable to Emulator Station

2.2 Connecting User System Interface Cable to User System

WARNING

Always switch OFF the user system and the emulator

product before the USER SYSTEM INTERFACE CABLE

is connected to or removed from any part. Before connecting,

make sure that pin 1 on both sides are correctly aligned. Failure to

do so will damage the user system and the emulator product or will

result in PERSONAL INJURY. The USER PROGRAM will be

LOST.

To connect the cable head to the user system, follow the instructions below.

2.2.1 Installing IC Socket

After checking the location of pin 1 on the IC socket, apply epoxy resin adhesive to the bottom of

the IC socket for an FP-80A package, and fasten it to the user system before soldering.

2.2.2 Soldering IC Socket

After fastening, solder the IC socket for an FP-80A package to the user system. Be sure to

completely solder the leads so that the solder slops gently over the leads and forms solder fillets.

(Use slightly more solder than the MCU.)

2.2.3 Inserting Cable Head

CAUTION

Check the location of pin 1 before inserting.

Align pin 1 on the IC socket for an FP-80A package on the user system with pin 1 on the user system

interface cable head, and insert the user system interface cable head into the IC socket on the user

system, as shown in figure 3.

2.2.4 Fastening Cable Head

UTIONCA

1. Use a Phillips-type screwdriver whose head matches

the screw head.

2. The tightening torque must be 0.0785 N•m or less.

If the applied torque cannot be accurately measured,

stop tightening when the force required to turn the screw

becomes significantly greater than that needed when first

tightening. If a screw is tightened too much, the screw

head may break or an IC socket contact error may be caused

by a crack in the IC socket solder.

3. If the emulator does not operate correctly, cracks might

have occurred in the solder. Check conduction with

a tester and re-solder the IC socket if necessary.
